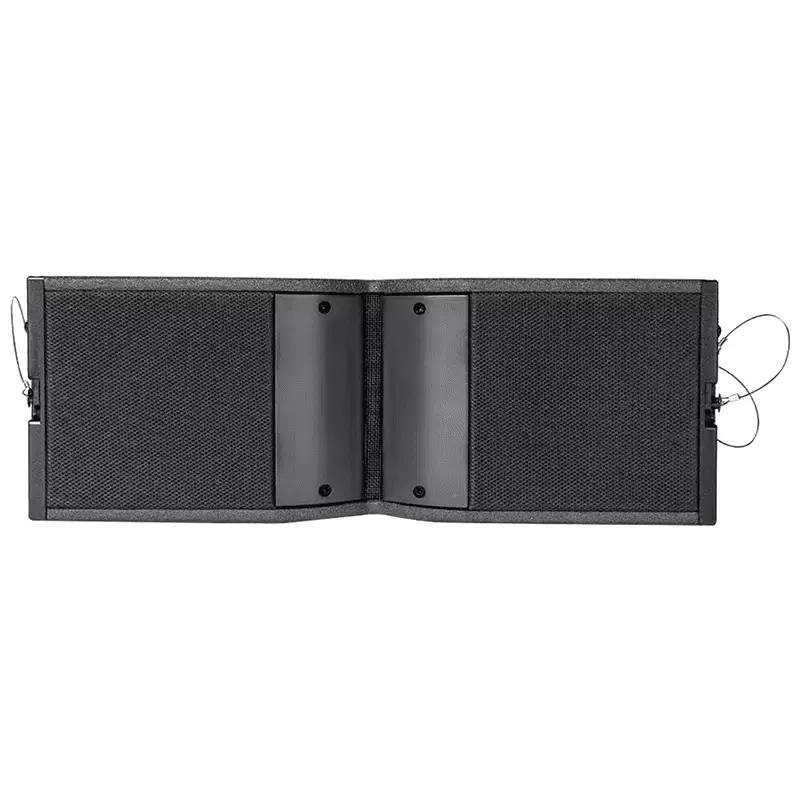

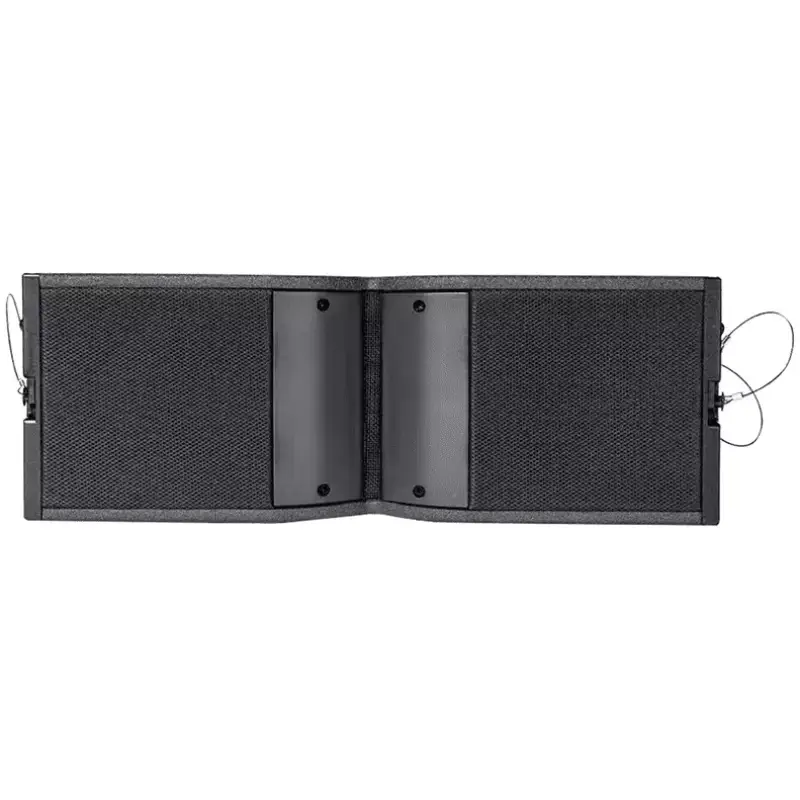

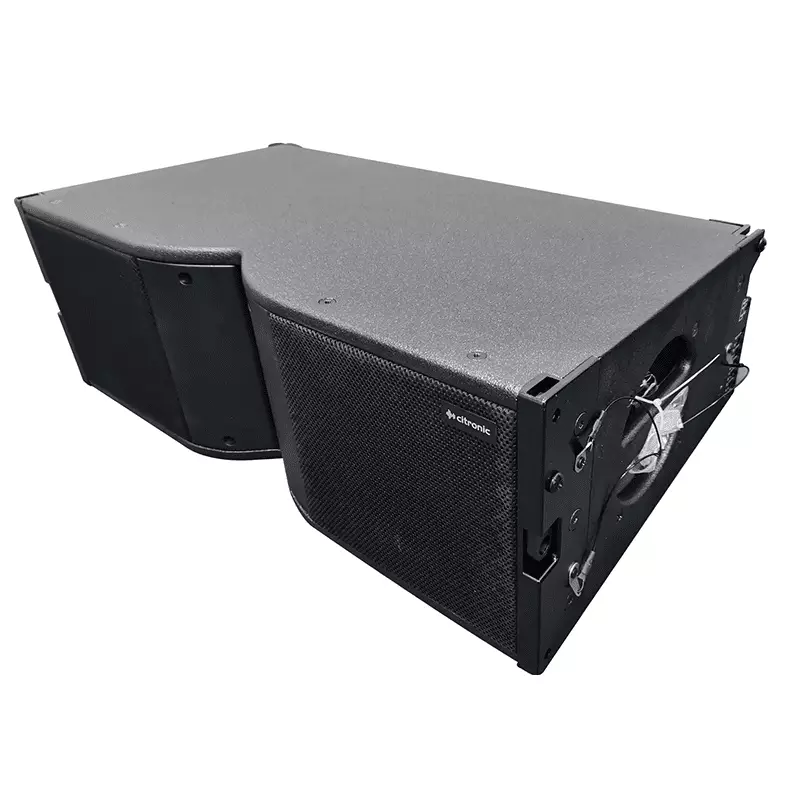

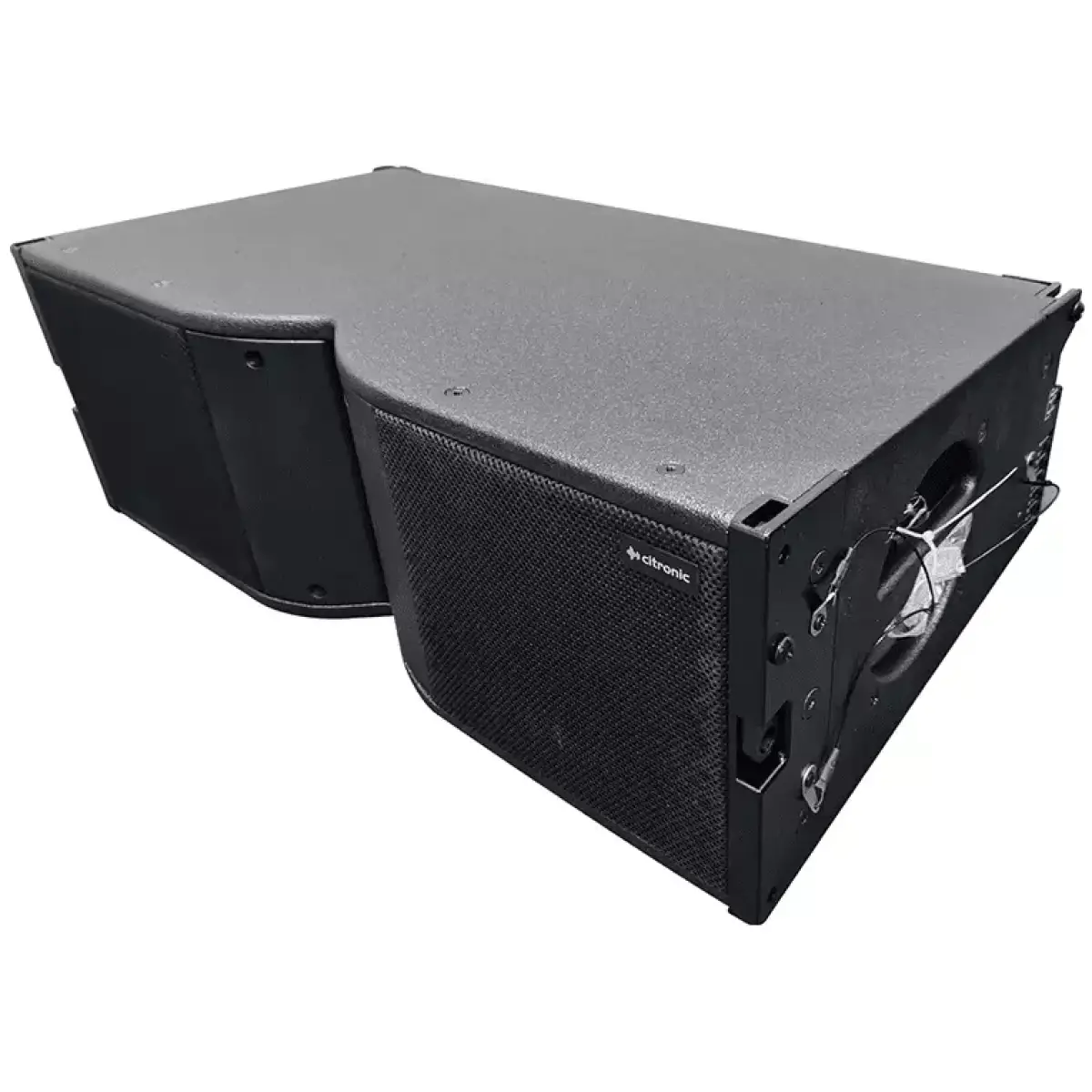

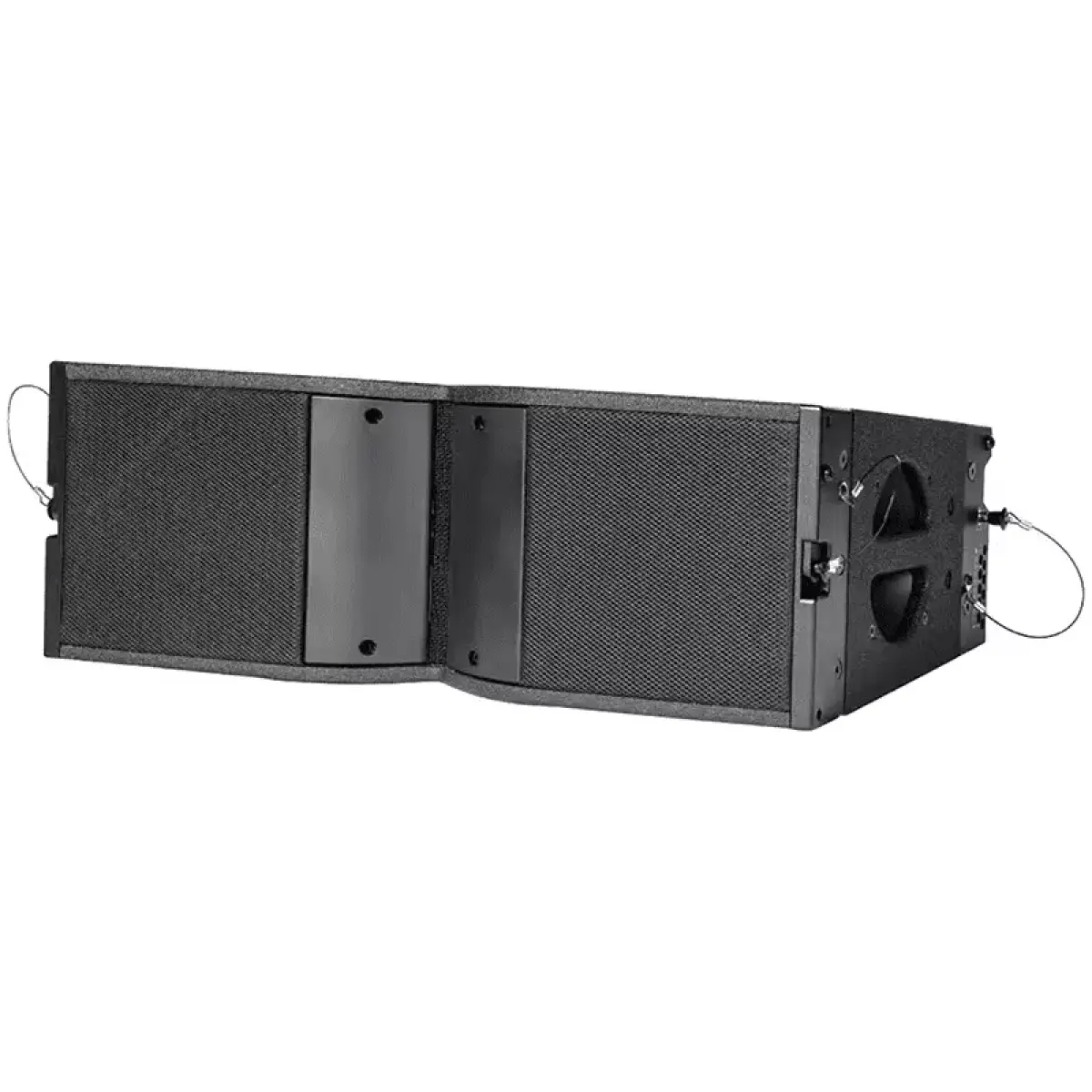

Citronic C – 208 TOP 2X 8IN 600W Line Array

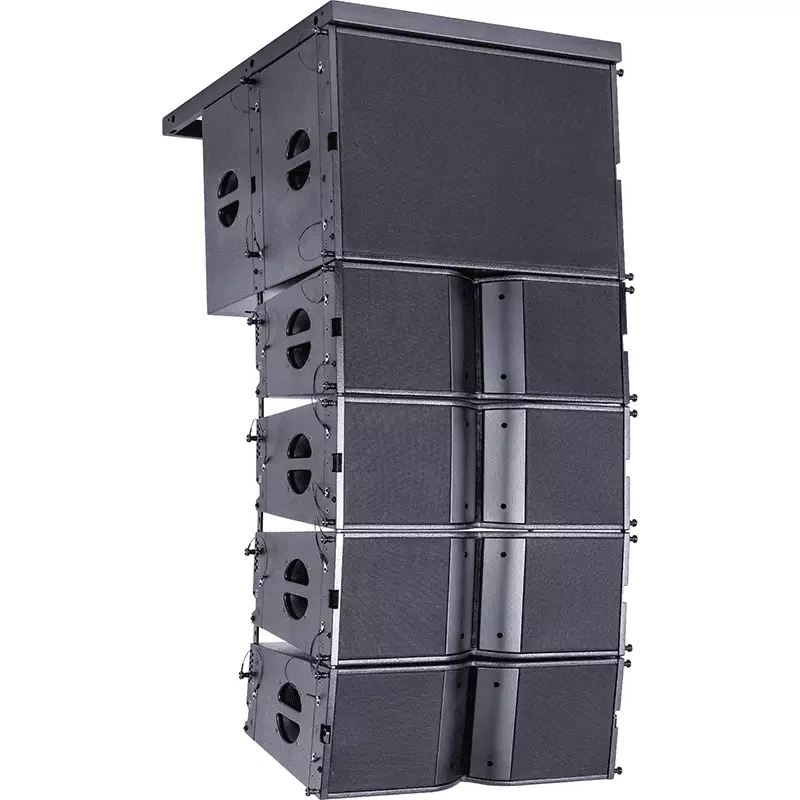

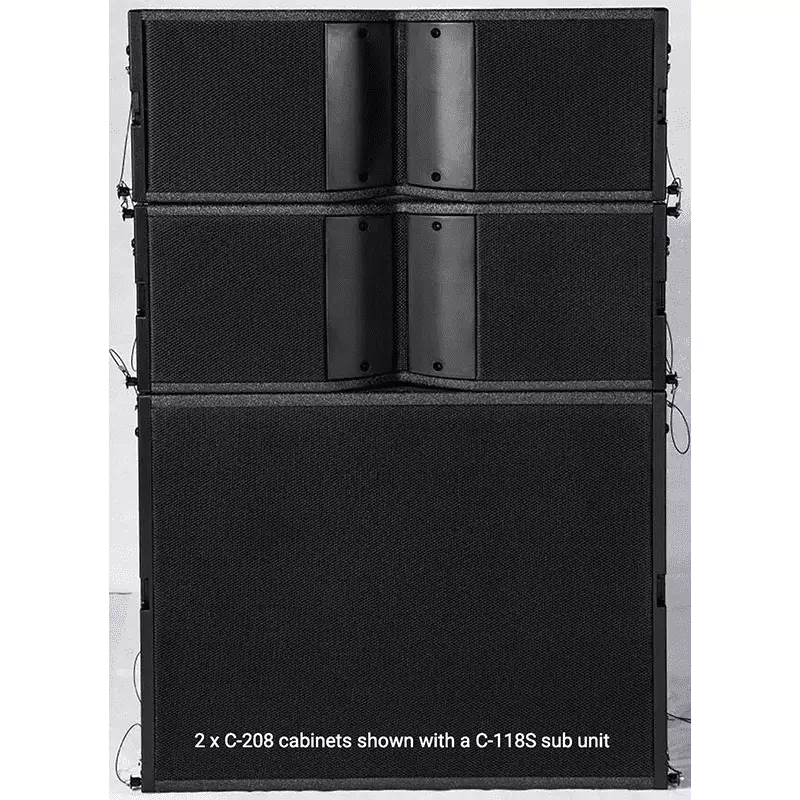

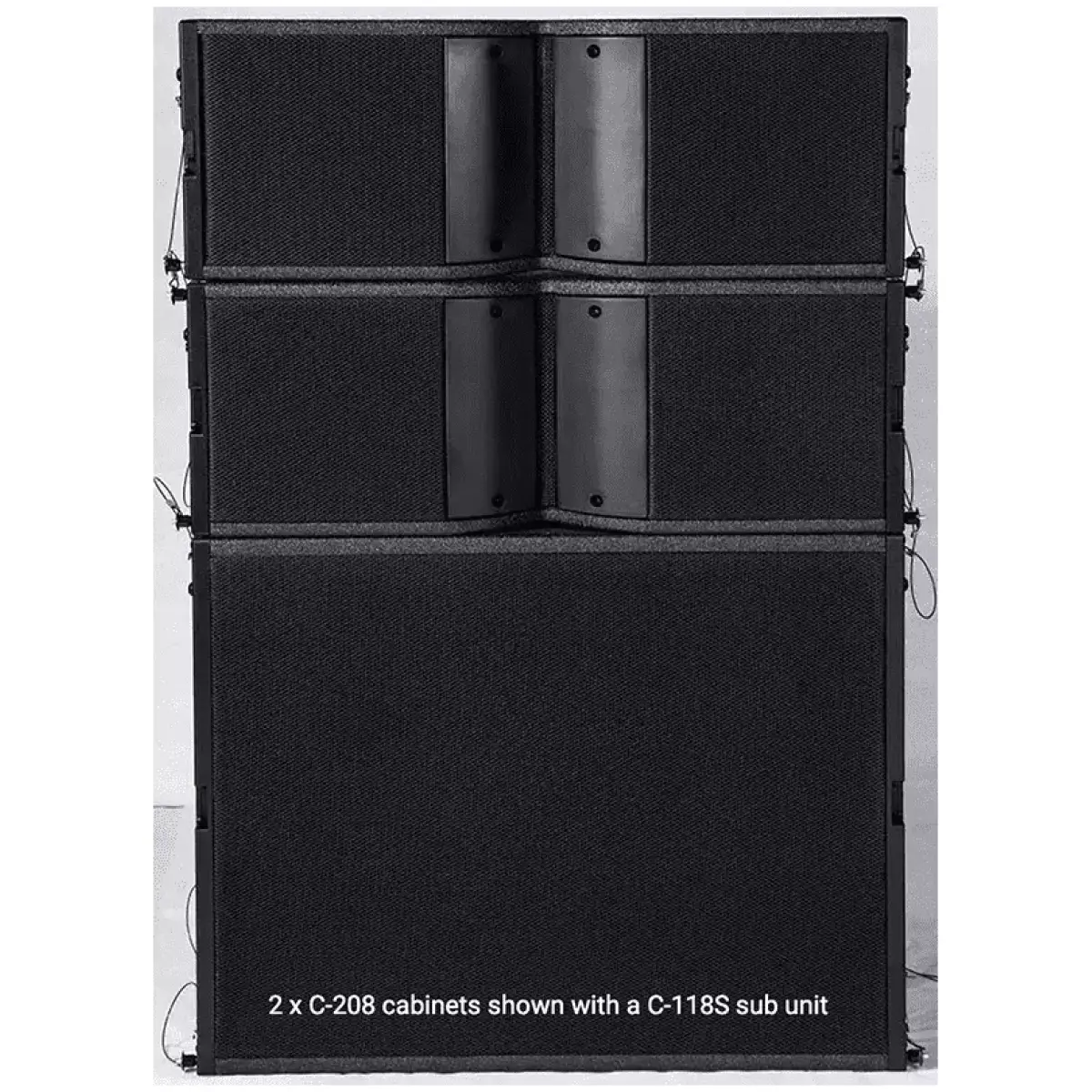

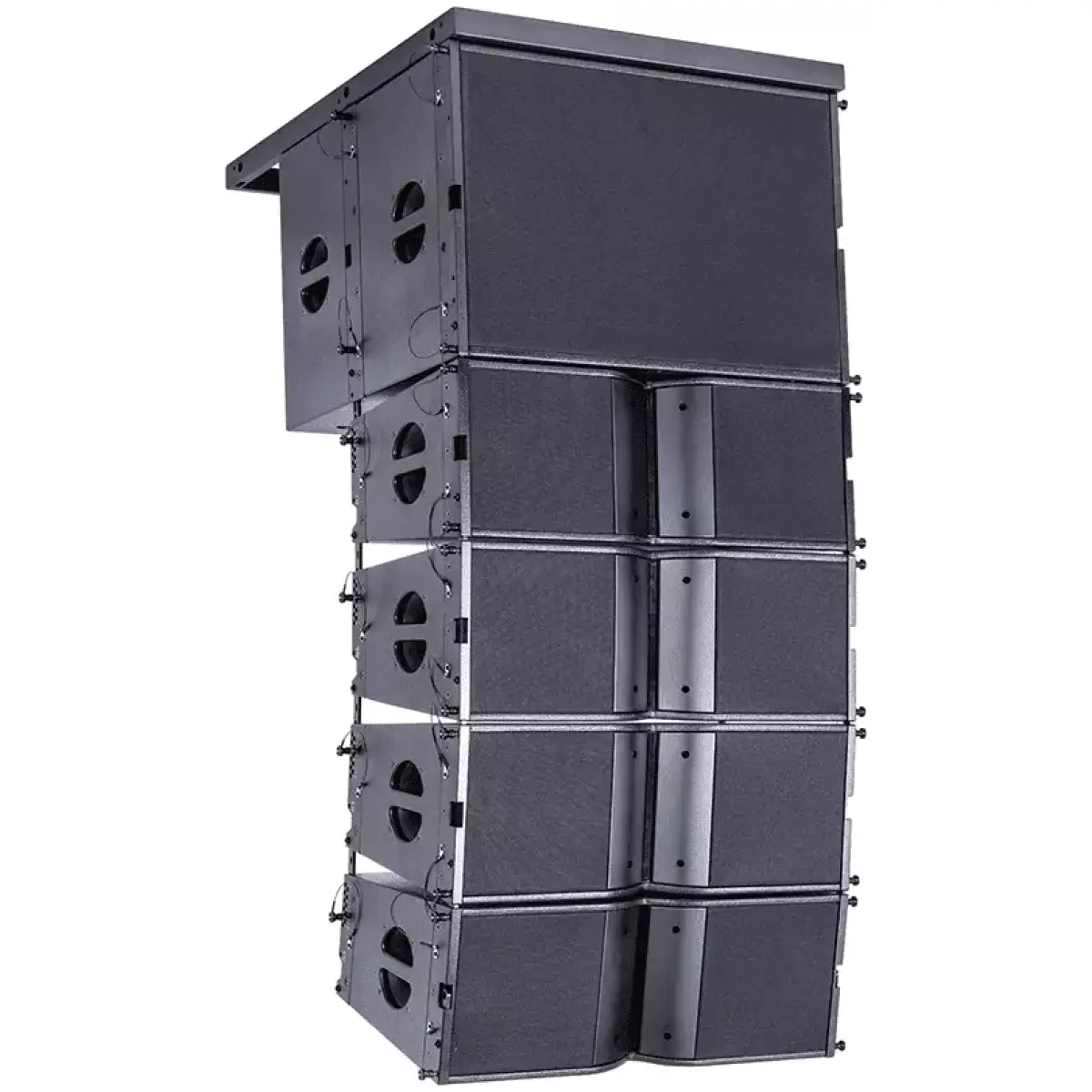

Created for high SPL output in medium to long throw applications, the C-series line array system offers uncompromised sound performance and power control in a modular and easy to configure format. The C-208 line array unit comprises 2 x 8″ main drivers coupled with a 3″ compression driven ribbon tweeter for wide horizontal coverage. All drivers are fitted with high flux-density Neodymium magnets to efficiently convert power into sound pressure and are loaded into a computer-designed plywood wedge enclosure. A class-D bi-amplifier section is fully DSP controlled for accurate and efficient power delivery to the driver units across all frequencies. Fitted with side handles and array hardware, the C-208 can be angled for exact coverage of the venue or auditorium, either flown or floor mounted from the optional C-FRAME support assembly and/or partnered to the the C-118S sub units.

Features:

• Neodymium magnets for efficient power-to-sound conversion

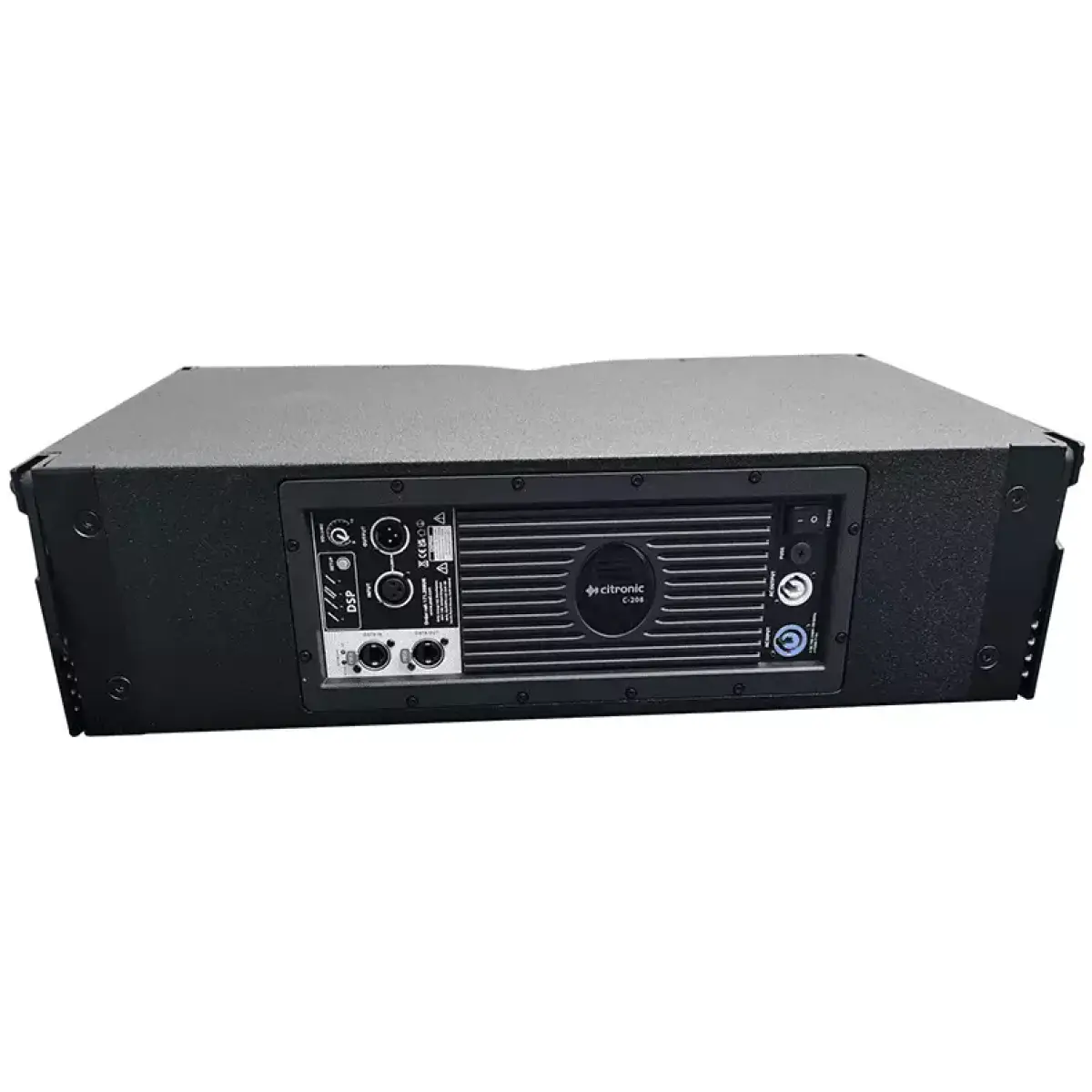

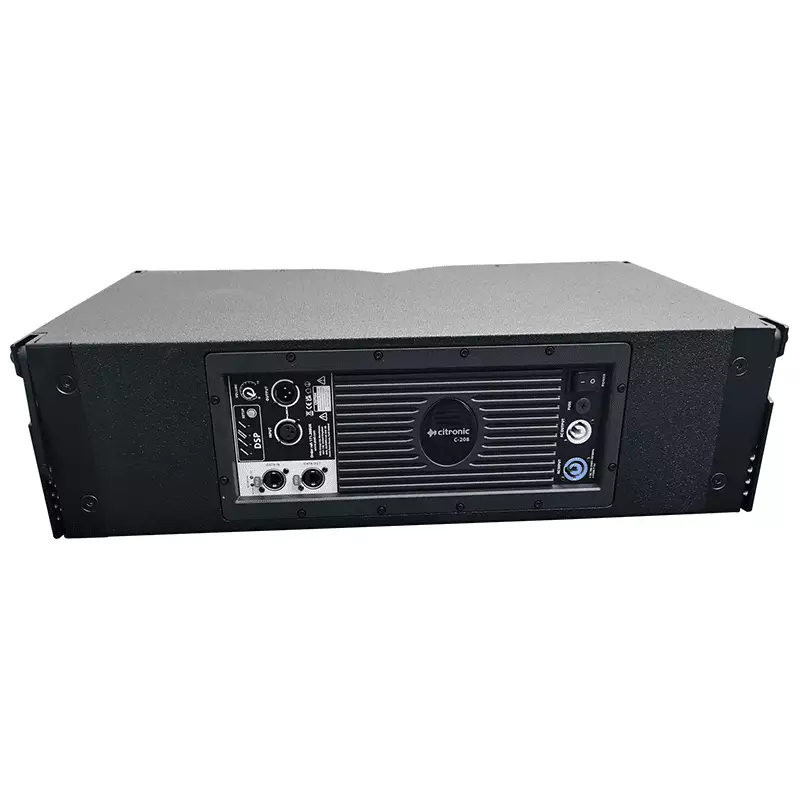

• Internal 500+100Wrms digitally controlled bi-amplifier
• Integral pinlock array hardware and carry handles
• 2 x 8″ main drivers + 3″ CD ribbon tweeter

Specifications:

• Power supply: 230Vac, 50Hz (Powercon® in + through)
• Construction: 15mm plywood cabinet, polyurea coated
• Frequency response: 45Hz – 20kHz
• Amplifier : construction: Class-D bi-amp (inbuilt DSP)
• Output power rms: 600W
• Output power peak: 1200W
• Drivers: 2 x 200mmØ (8″) LF + HF ribbon tweeter (Ti CD)
• Voice coil: 2 x 50mmØ (2″) LF, 1 x 75mmØ (3″) HF
• Sensitivity: 98dB
• SPL: max.128dB (@ 1W/1m)
• Dispersion: 10° (V) x 100° (H)
• Dimensions: 690 x 380 x 248mm
• Weight: 22.5kg
