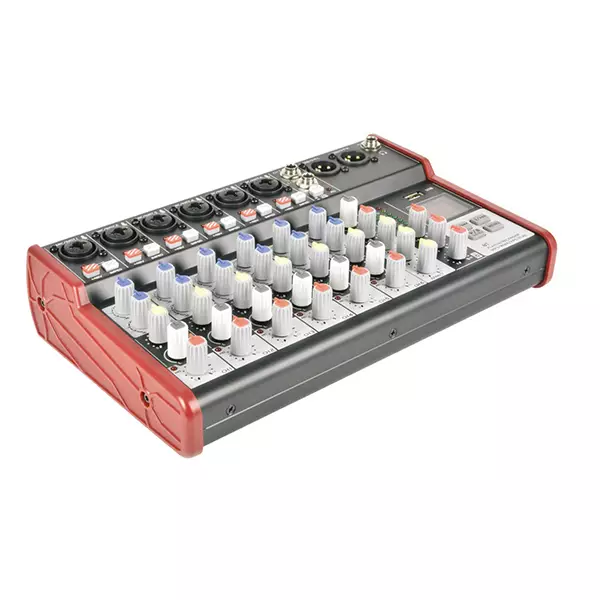

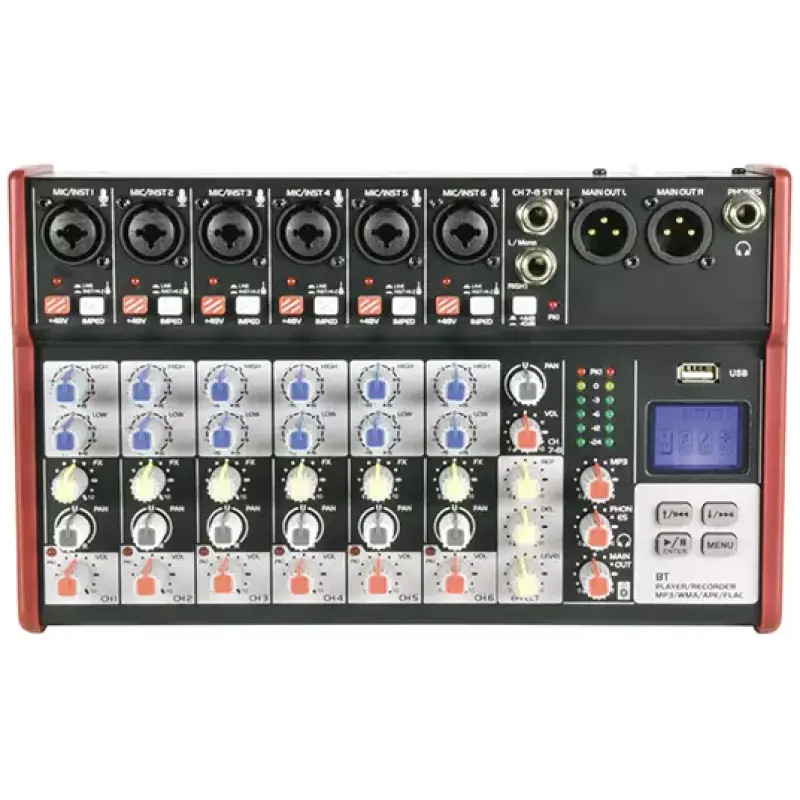

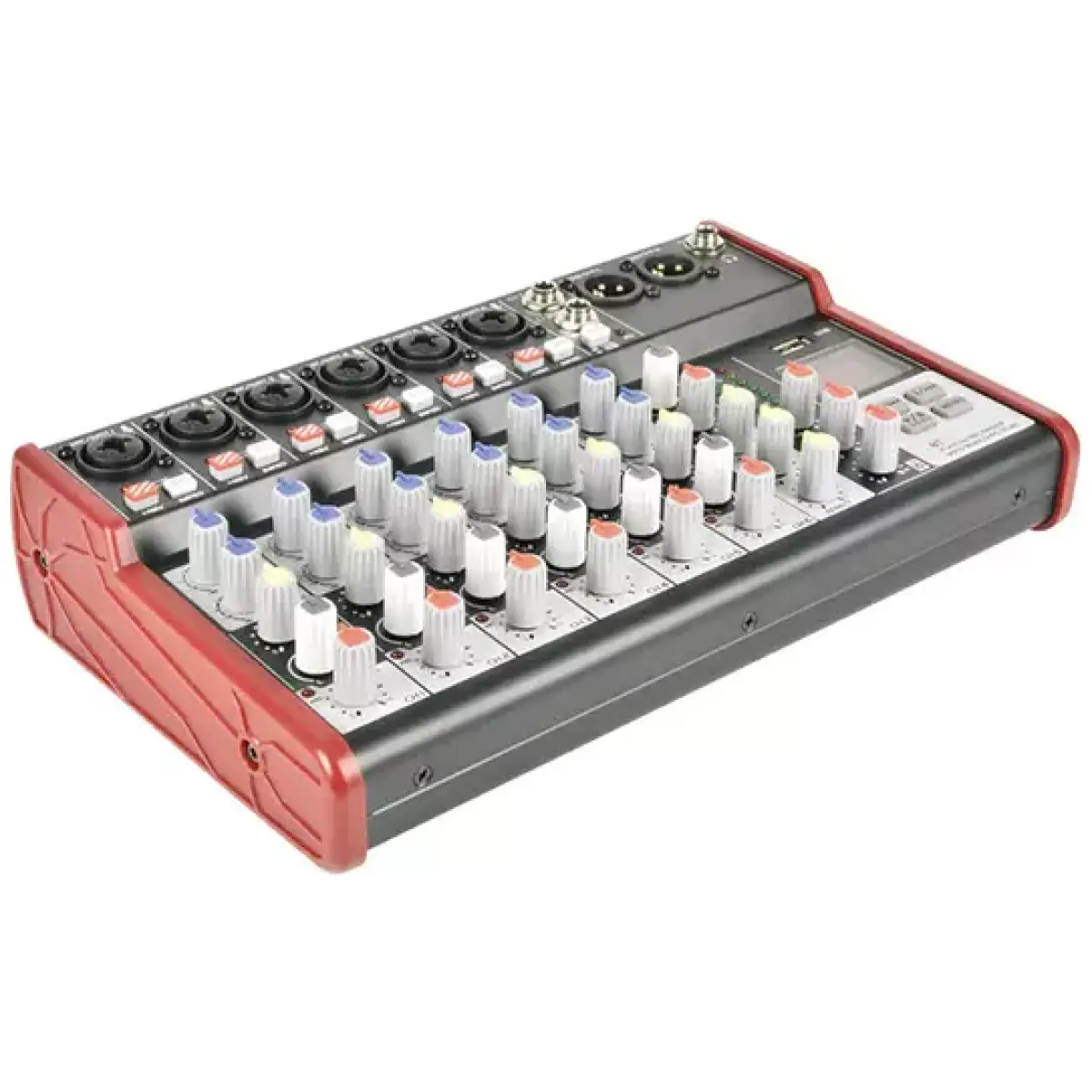

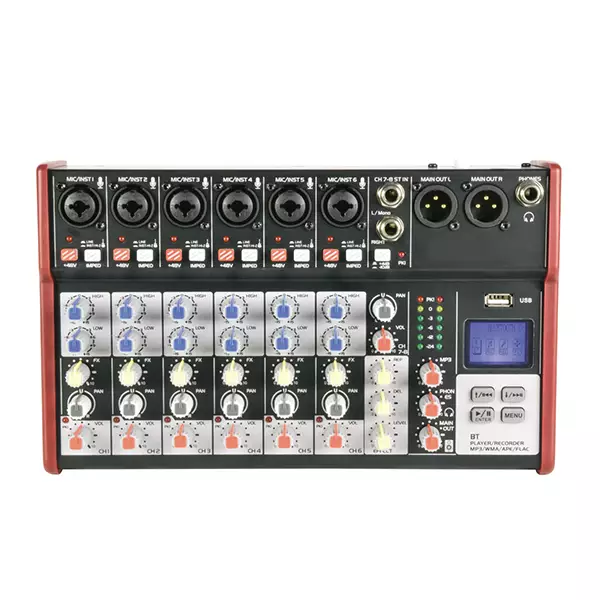

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
Features:
- Integral USB multi-format audio player
- BT wireless connectivity
- Digital delay effect for vocals or instruments
- Individually switchable +48V phantom power
- Built in record function
- Supplied with DC power adaptor
Specifications:
- Inputs: 2 x combo XLR/jack + stereo jack
- Dimensions: 166 x 165 x 66mm
- Power supply: 5Vdc 1A (adaptor included)
- Power consumption: max.5W
- Gain: -14 to +40dB
- EQ: low: ±15dB @ 80Hz
- EQ: high: ±15dB @ 12kHz
- Phantom power: +48V individually switchable (XLR inputs only)
- Input impedance: mic2k Ohms
- Input impedance: instrument1M Ohms
- Input impedance: line20k Ohms
- Audio source: Internal USB player/recorder & BT receiver
- Audio format: USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)
- Bluetooth version: 2.1 + EDR
- Frequency response: 20Hz – 20kHz (±0.5B)
- THD +N<0.03%: @ 1kHz
- Dynamic range: 102dB
- Crosstalk : stereo: 92dB
- OutputLeft + Right balanced: XLR
- Output impedance: 120 Ohms
- Max. output level: 3Vrms

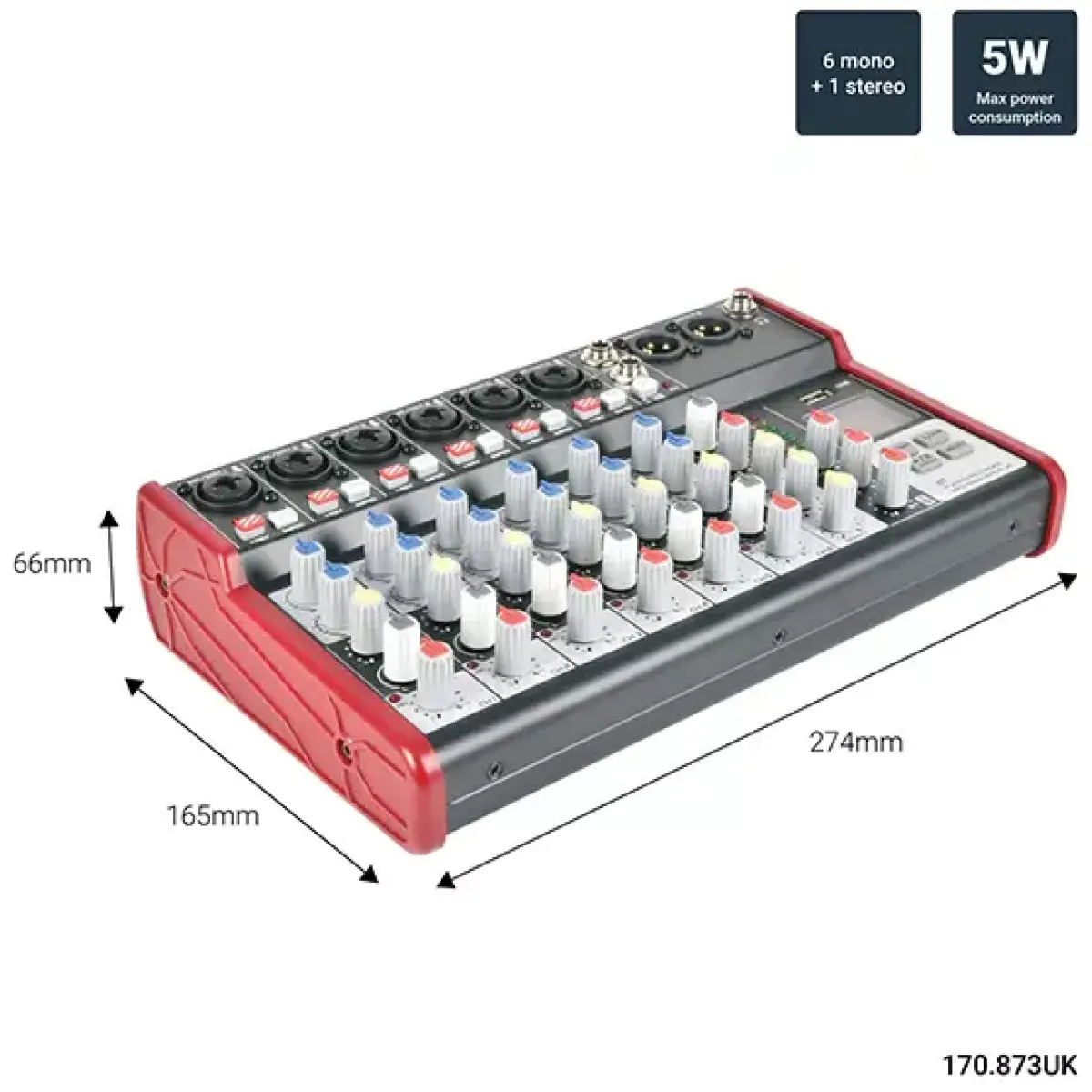

- Inputs: 6 x combo XLR/jack + stereo jack

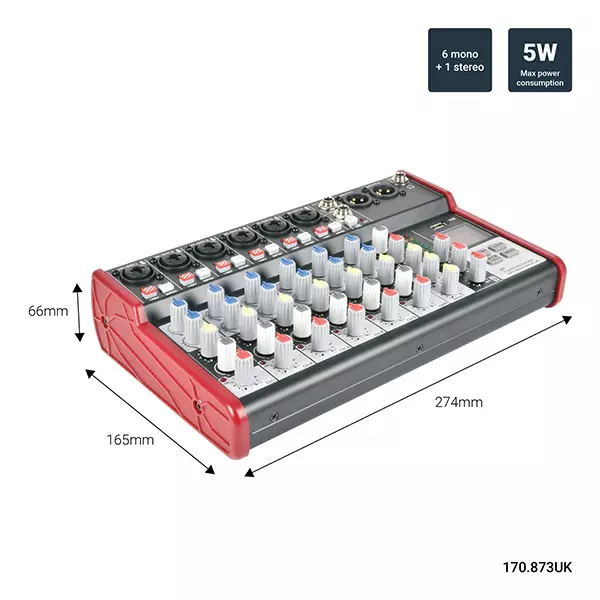

- Dimensions: 274 x 165 x 66mm
- Weight: 1.45kg
