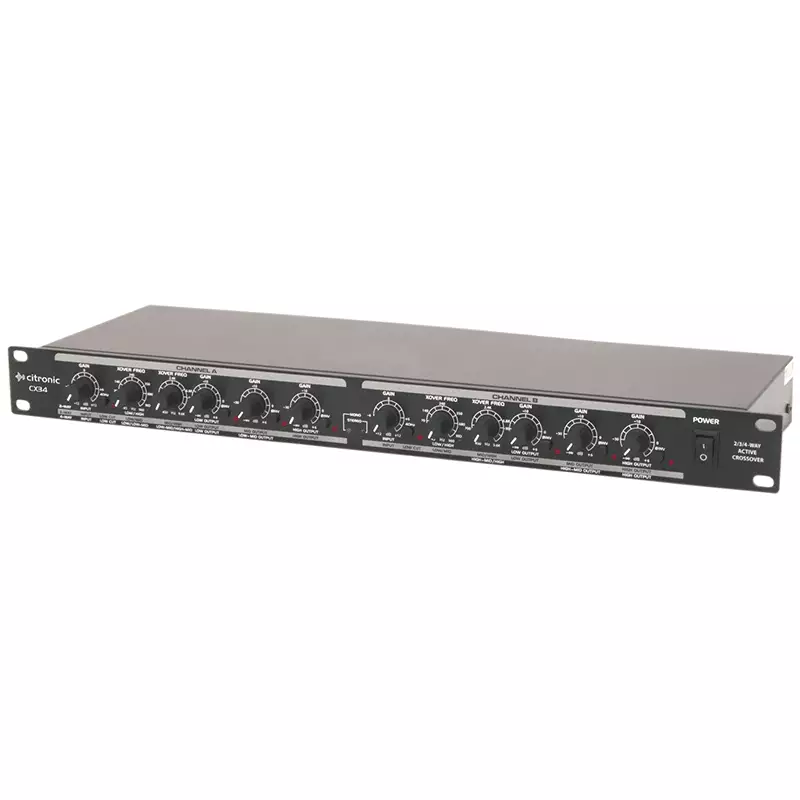

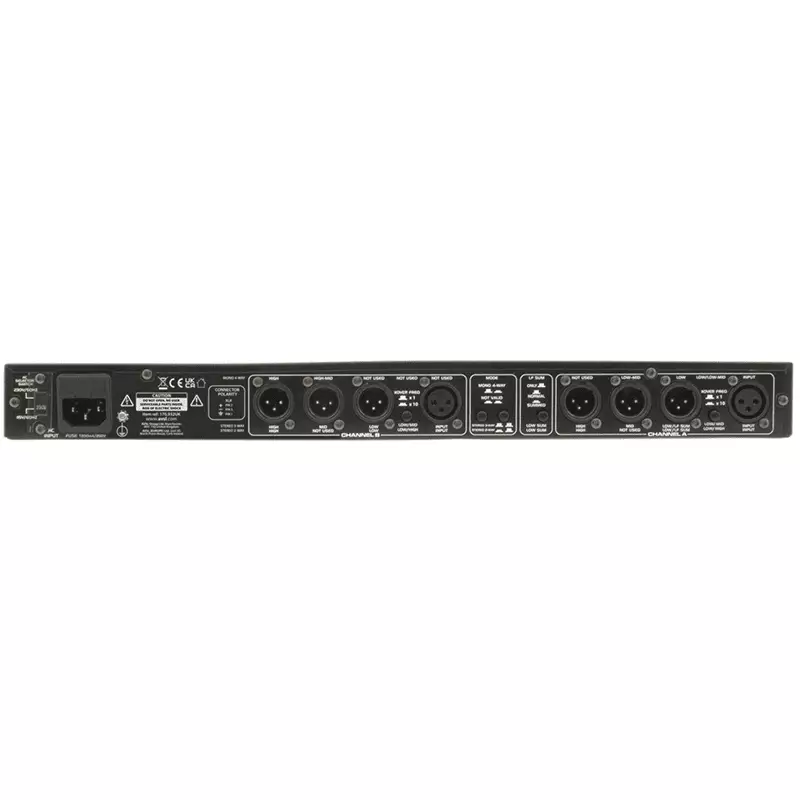

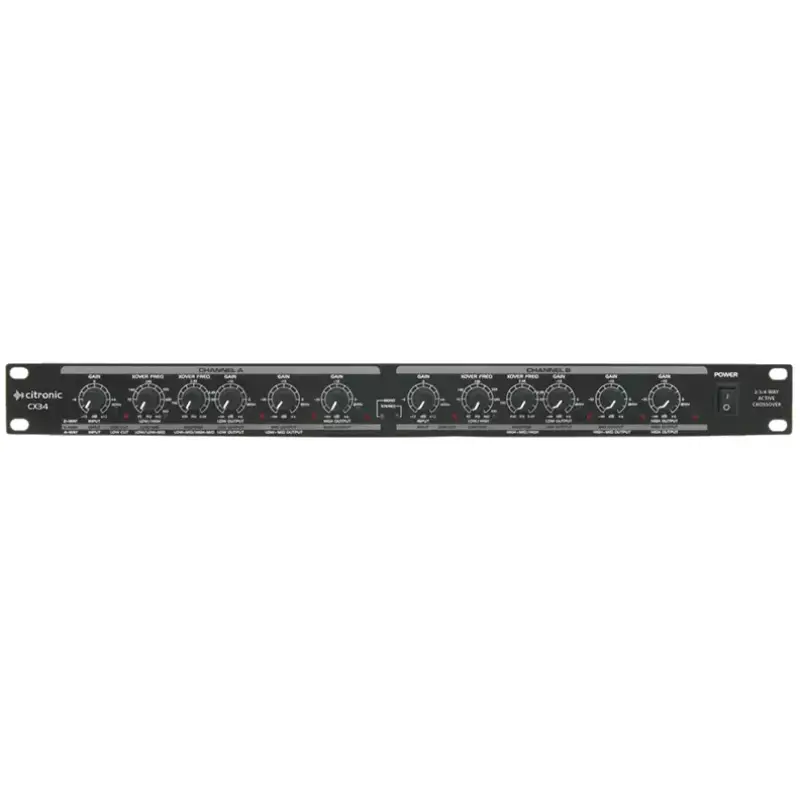

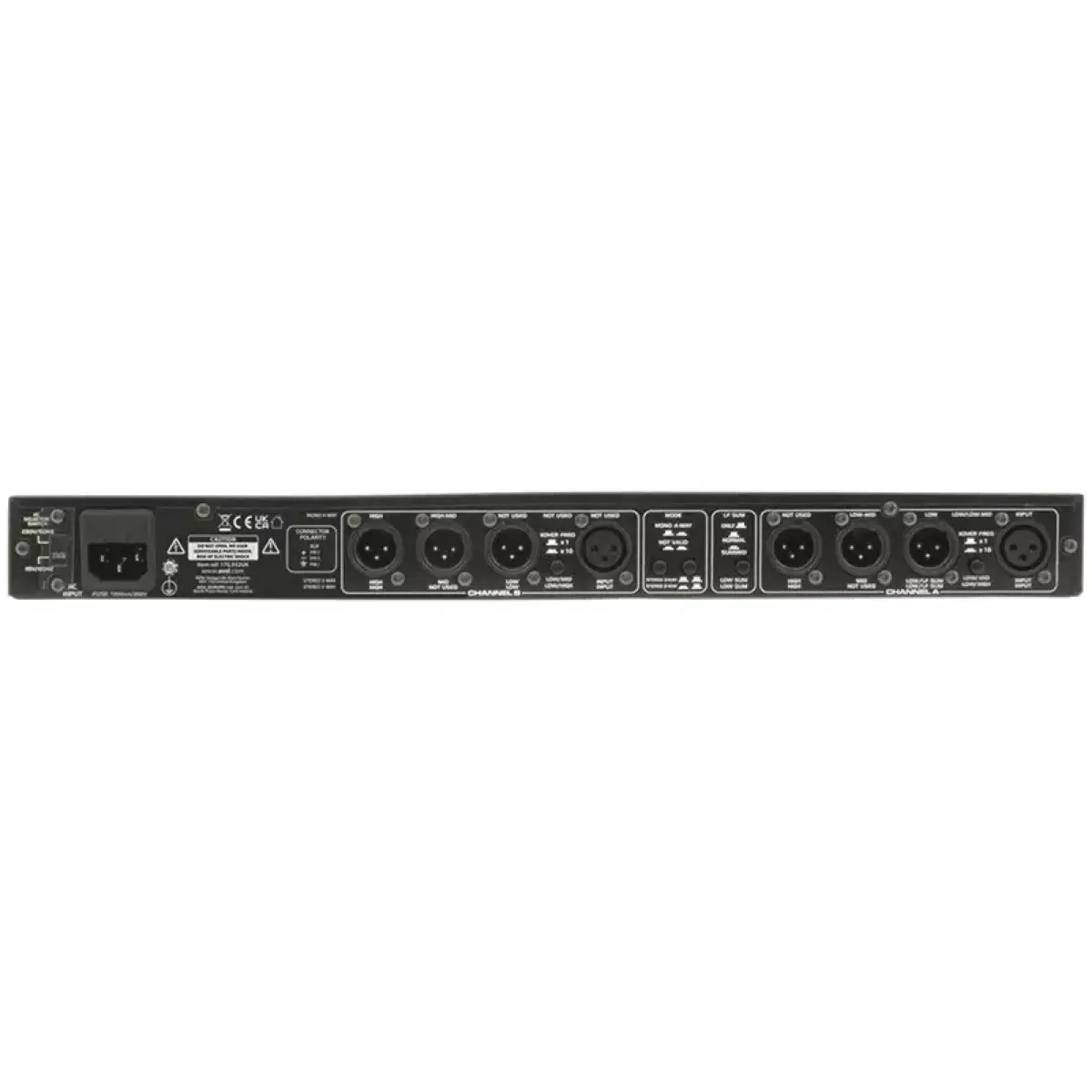

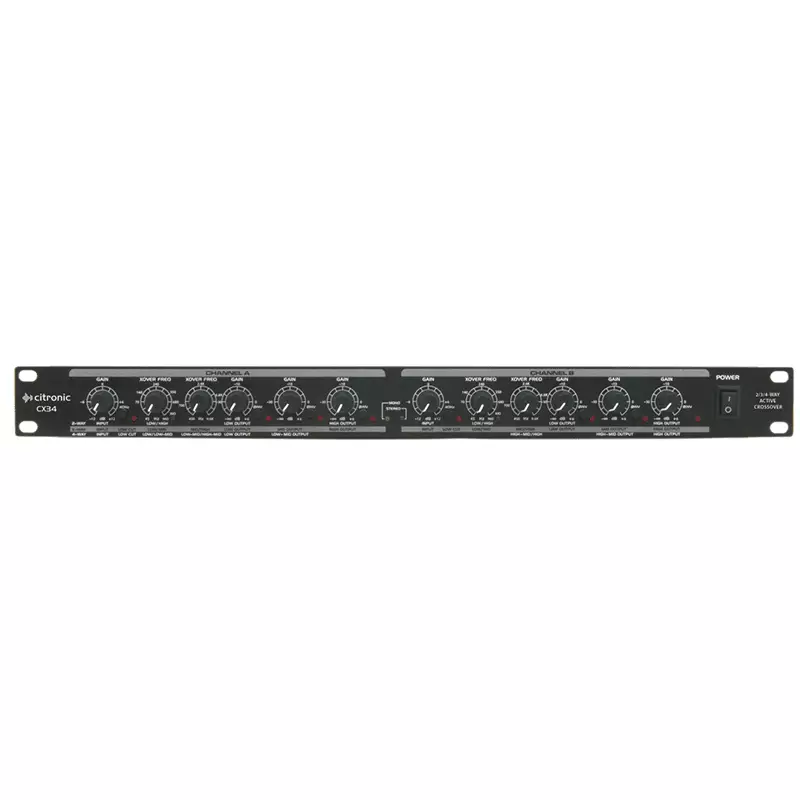

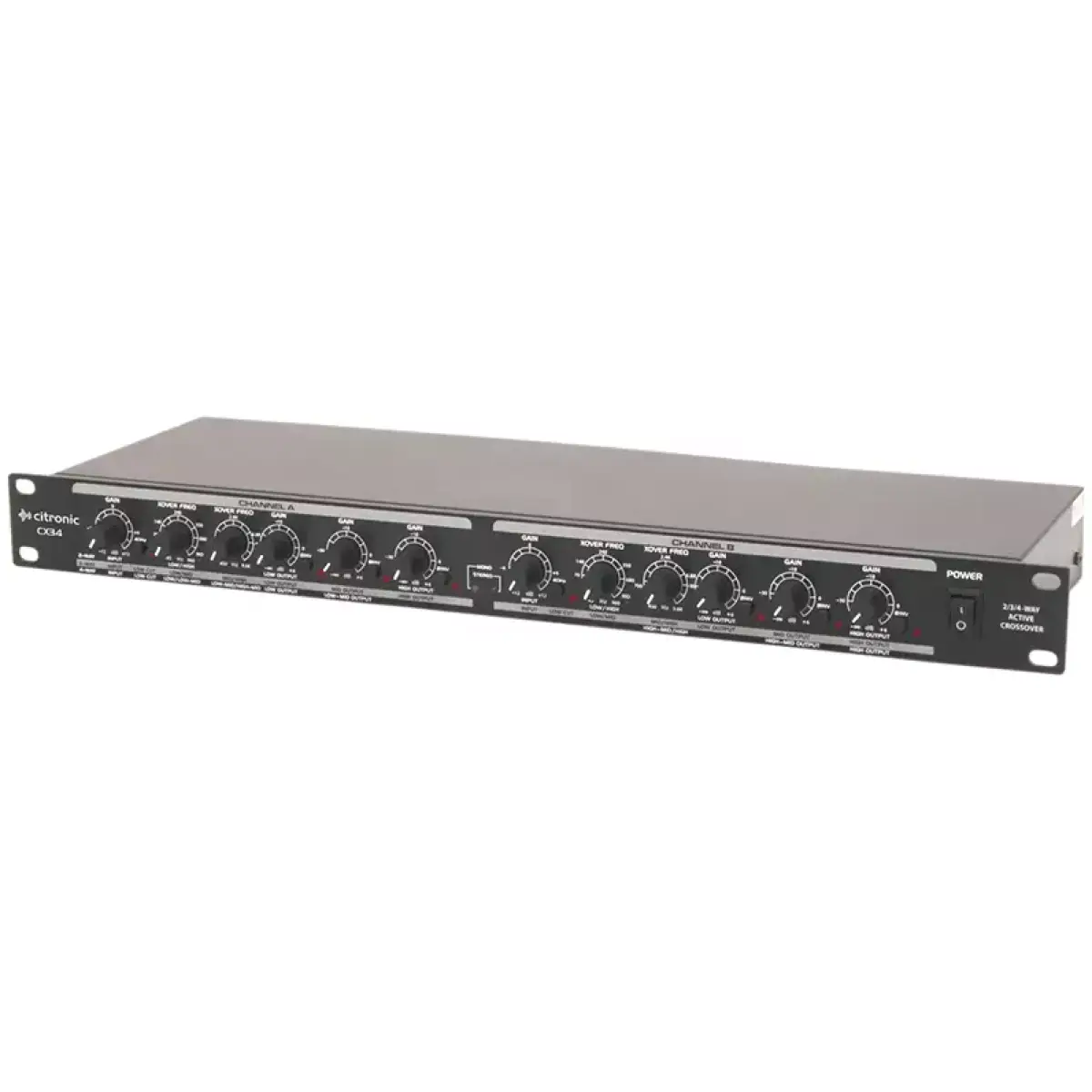

Citronic – CX34 ACTIVE CROSSOVER

The CX34 is a 2 or 3-way stereo or 4-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.

Features:

• 2 or 3-way stereo, 4-way mono crossover
• 19″ rack mountable
• Linkwitz-Riley 24dB/octave, state variable
• Continuously adjustable cutoff frequencies
• 40Hz ultra-low frequency cut
• Phase invert function
• Inputs and outputs via XLR

Specifications:

• Power supply: 115/230Vac, 50/60Hz (IEC)
• Input impedance : balanced: 50k ohms
• Input impedance : unbalanced: 25k ohms
• Output impedance: 200 ohms
• Crossover ranges: 45-960Hz (switchable 10x) or 450Hz-9.6kHz
• Filter slope: 24dB/octave
• Frequency response: 20Hz – 20KHz, +0/-0.5dB
• Signal to noise ratio: >90dB
• THD: <0.004% @ +4dBu, 1kHz
• Dimensions: 482 x 44 x 170mm
• Weight: 2.5kg
