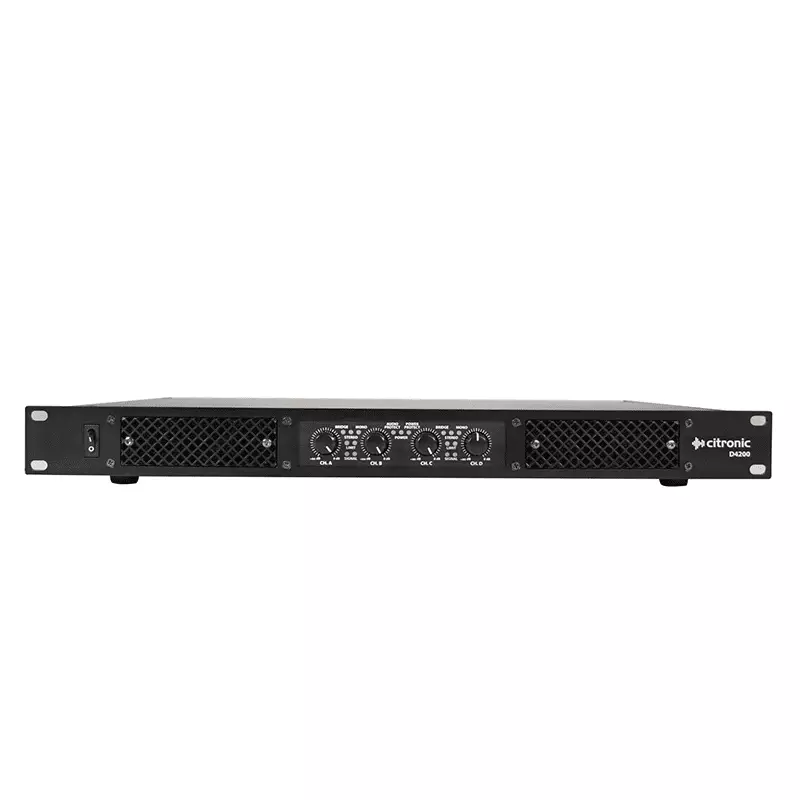

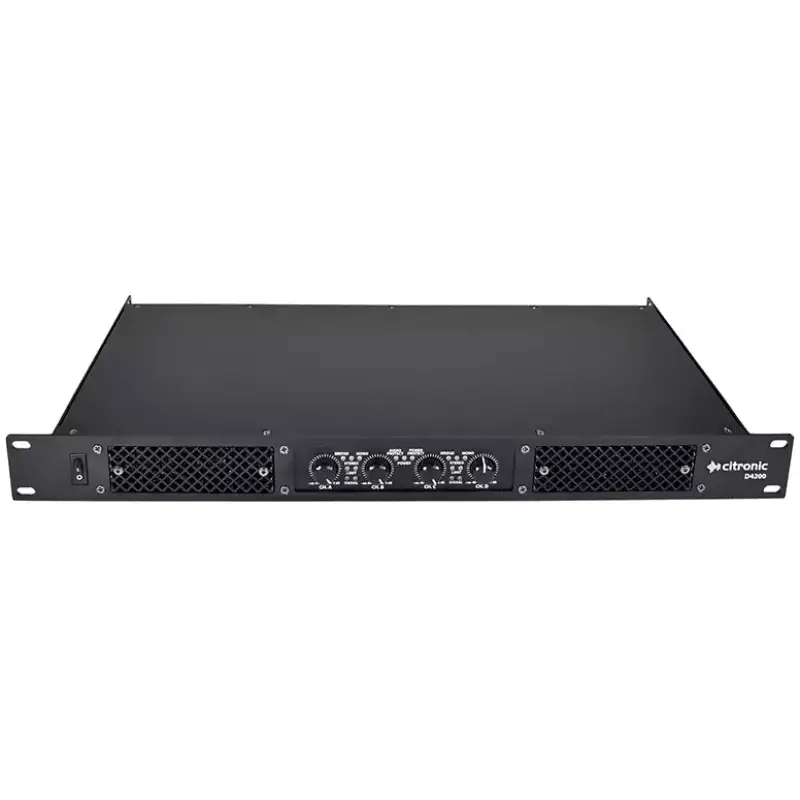

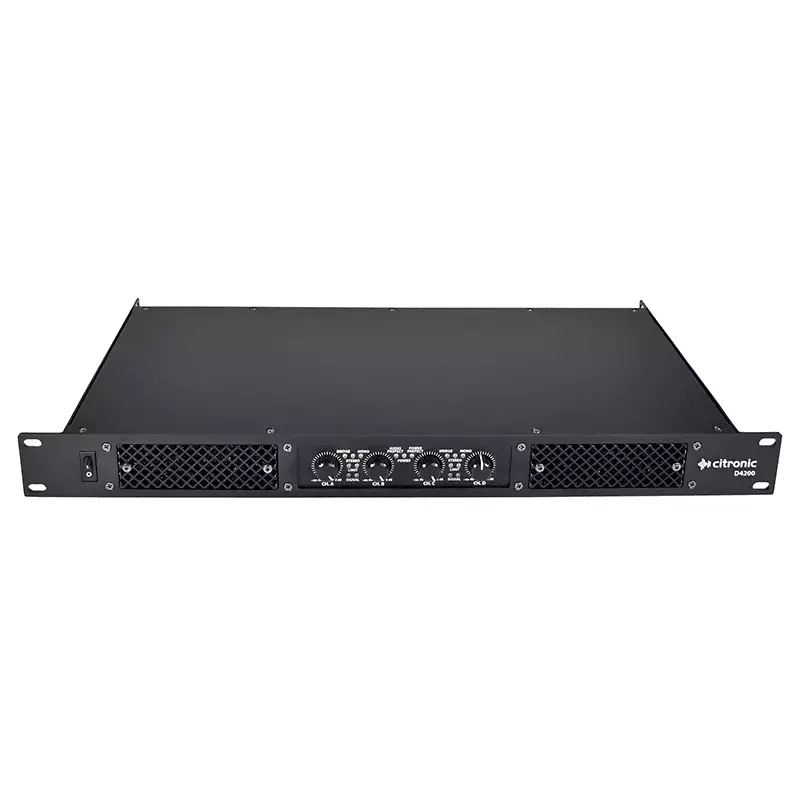

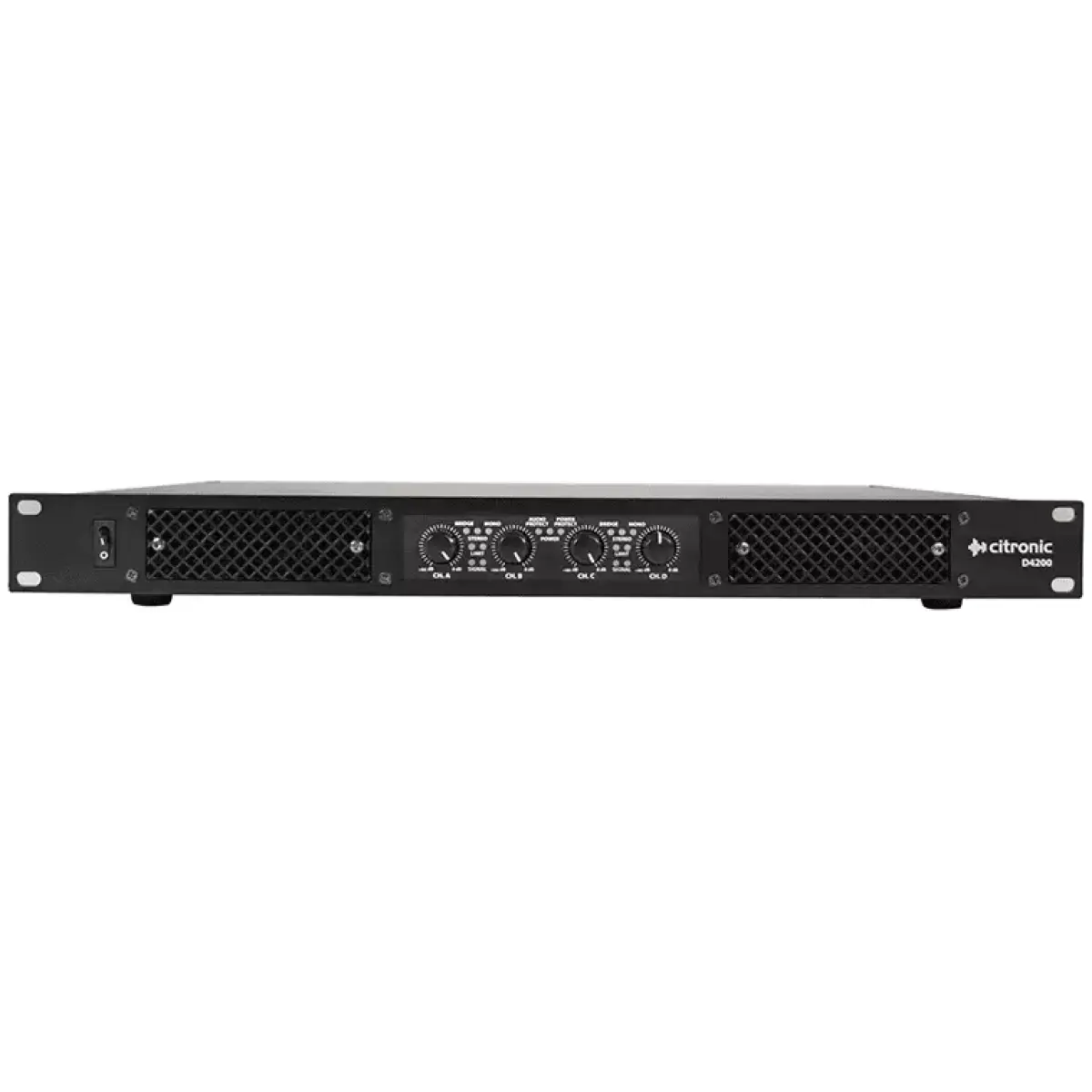

Quad digital power amplifier in a lightweight 1U rack-mountable format. An energy-efficient switch-mode power section and class-D amplifiication circuit delivers accurate power-on-demand to four independent speaker outputs. Proprietary cool guide technology provides stable temperature management for dependable operation. Each pair of output channels can be separately parallel switched or bridged as a full or part stereo amplifier configuration. For channel A, there is a switchable 120Hz low-pass filter for use with subwoofers and a channels C and D have a switchable stereo pair of 120Hz high pass filters to effectively focus power in full-range cabs operating as mid-tops in conjunction with sub-woofers. For permanent or mobile installations, the D-series offers an invaluable and flexible problem solver for audio designers and sound engineers.
Features:
- Switchable bridge or parallel mono modes
- Switchable high and low pass filters
- Configurable as a quad, stereo or 2.1 system
- Fully balanced audio signal path
- Full audio and power protection with peak limiter
Specifications:
- Output : rms @ 4 Ohms: 4 x 200W
- Output : rms @ 8 Ohms: 4 x 100W
- Bridge power @ 8 Ohms: 2 x 400W (both pairs of channels bridged)
- Weight: 4.393kg
- Power supply: 220-240Vac, 50/60Hz (IEC)
- Modes: 2 x Stereo, Parallel (mono), Bridge (mono)
- Input sensitivity: 0dB = 0.775Vrms
- Crossover: Input A 120Hz LPF and C+D 120Hz HPF (all switchable)

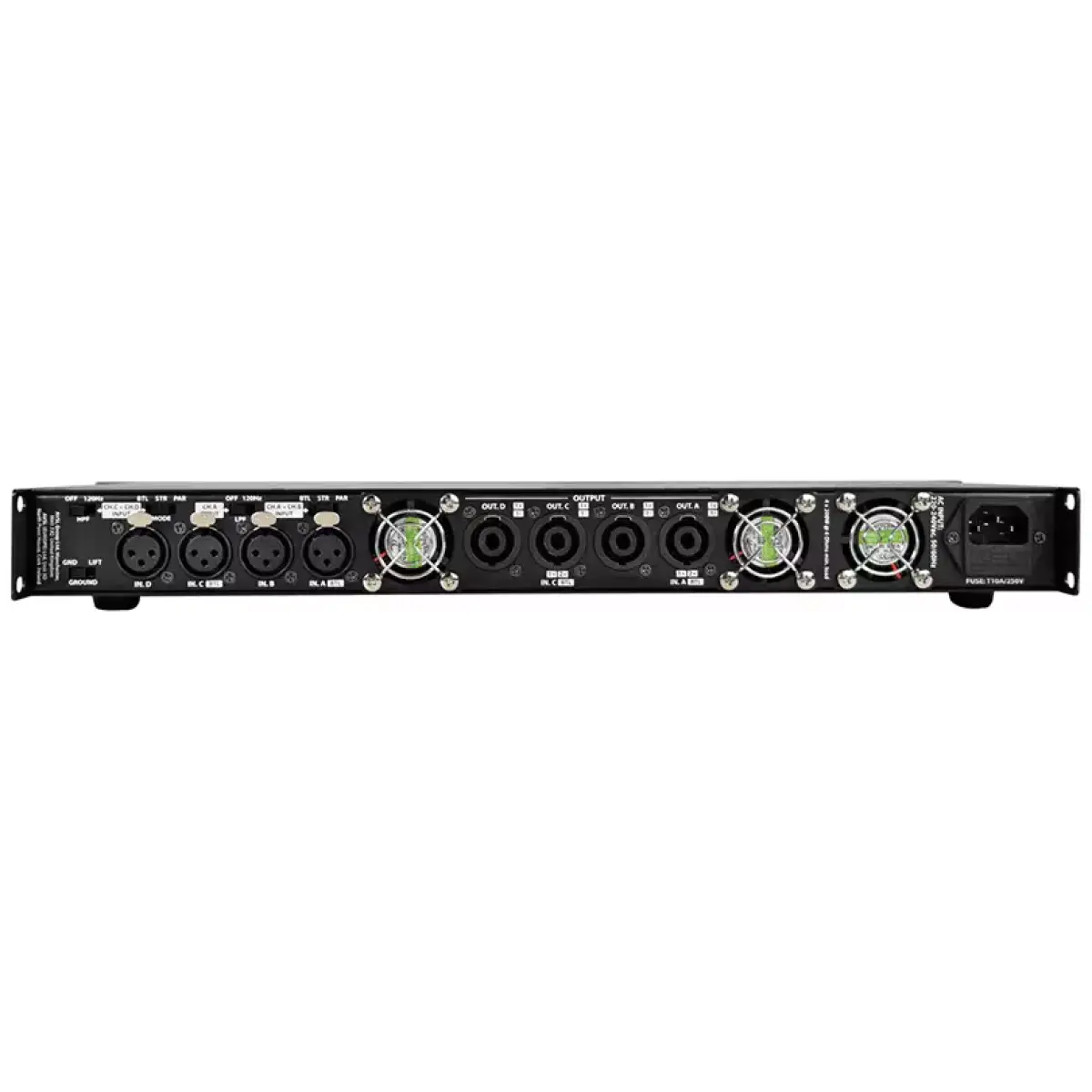

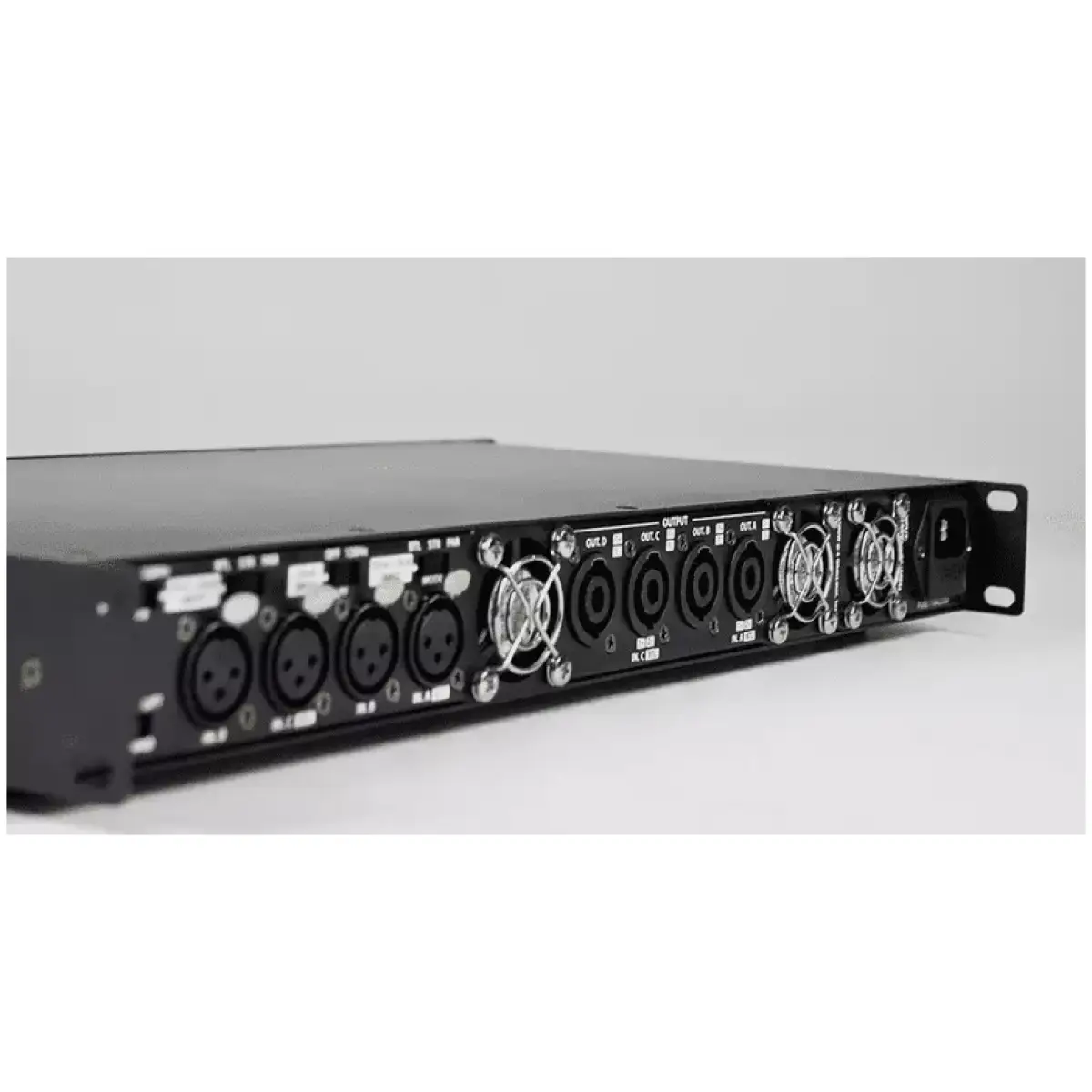

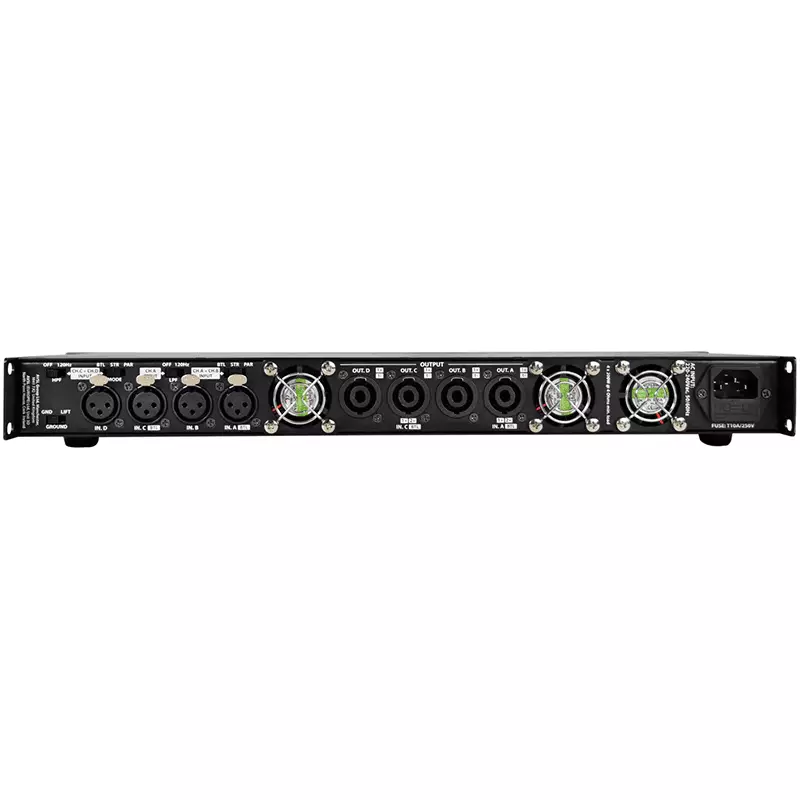

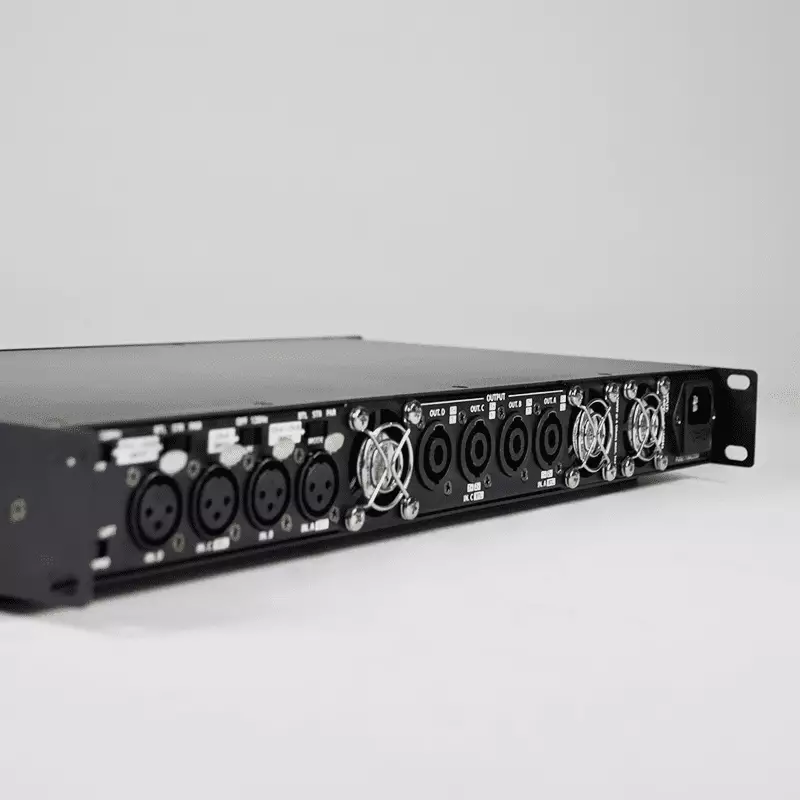

- Input connections: 4 x XLR female
- Sound output: 4 x SPK connectors
- Dimensions: 482 x 248 x 44mm (without feet)
