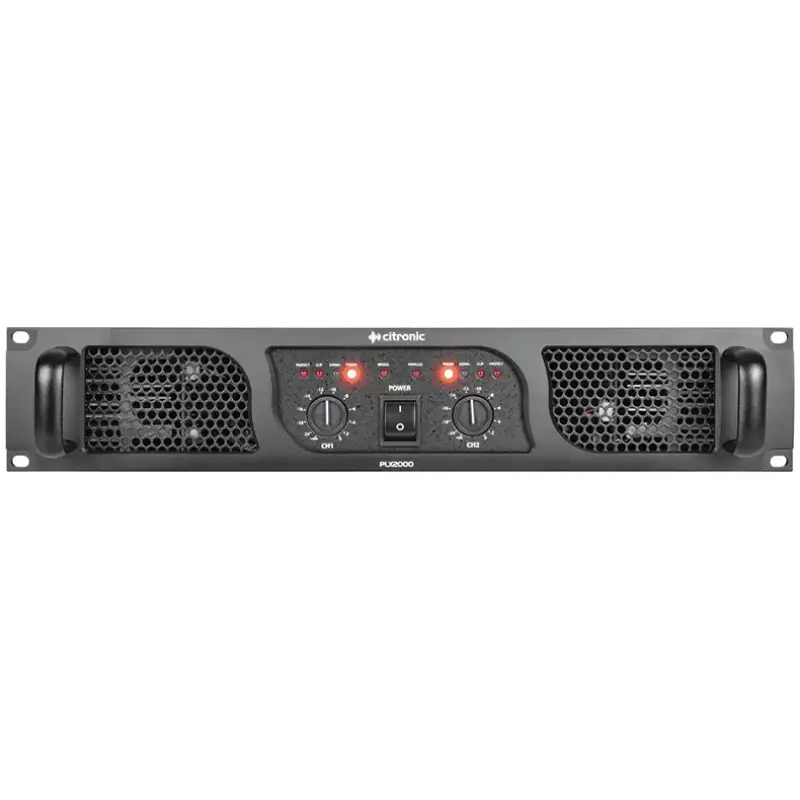

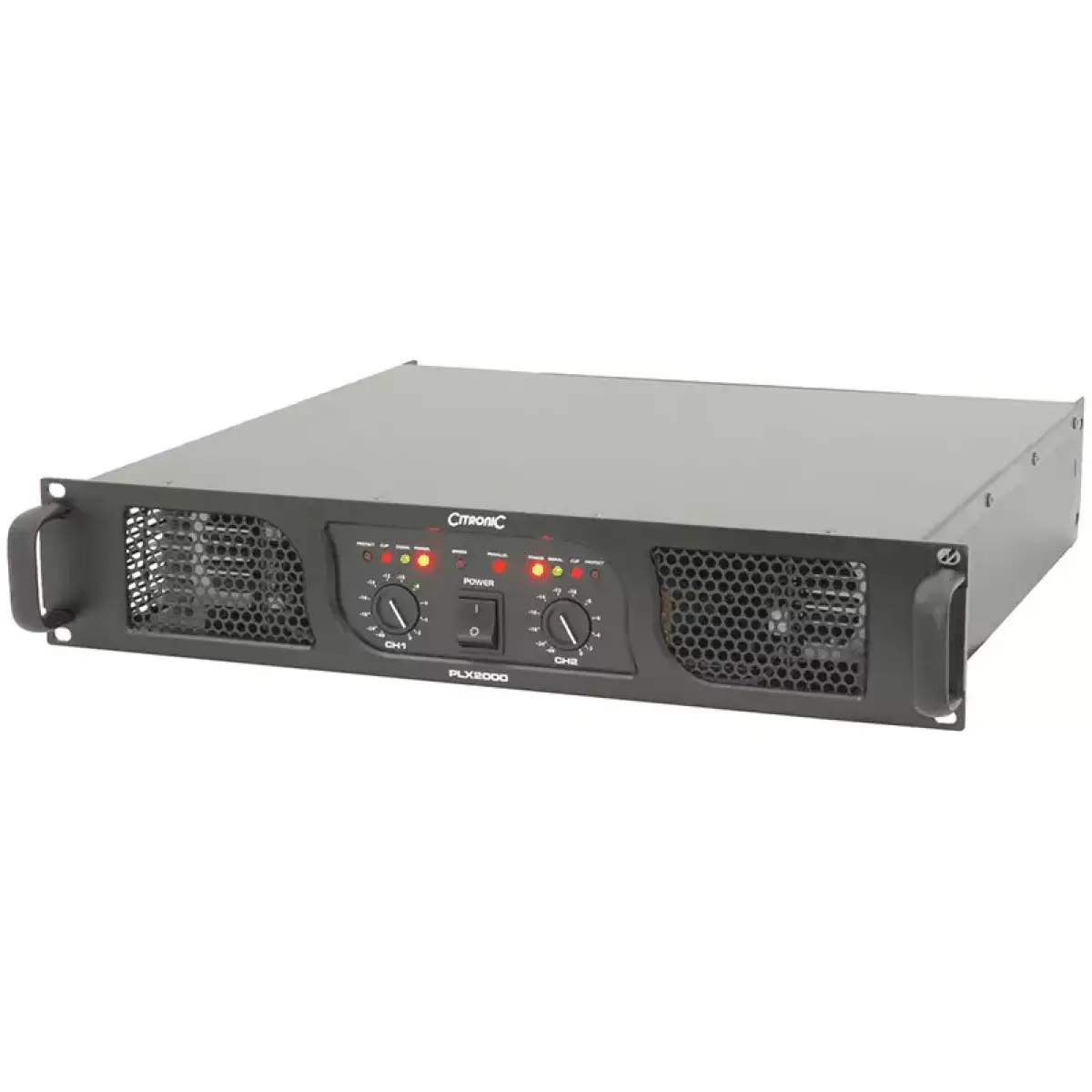

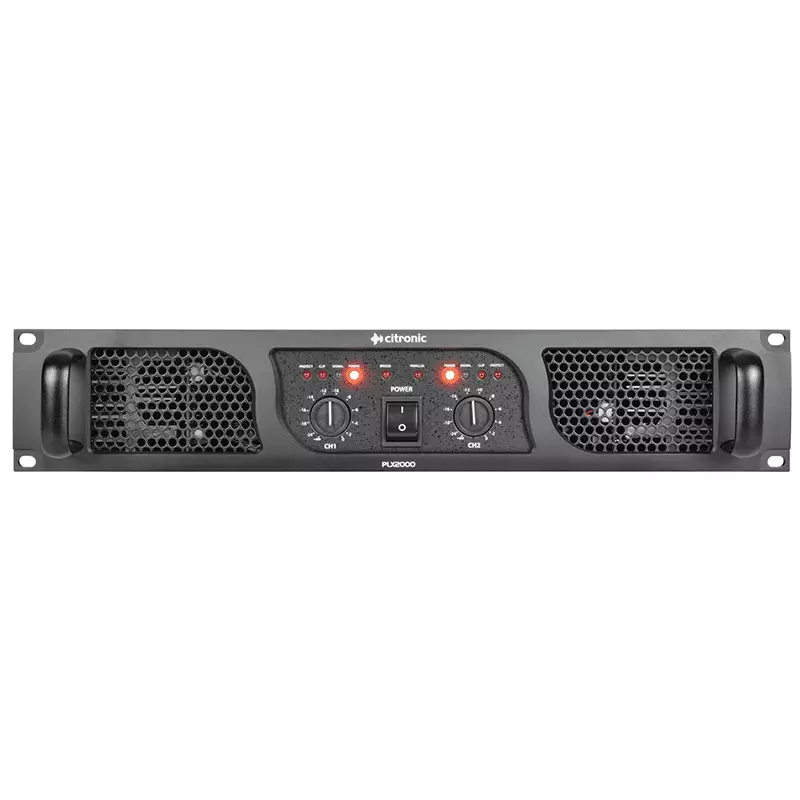

CITRONIC PLX2000 2U POWER AMPLIFIER 2X 1000W

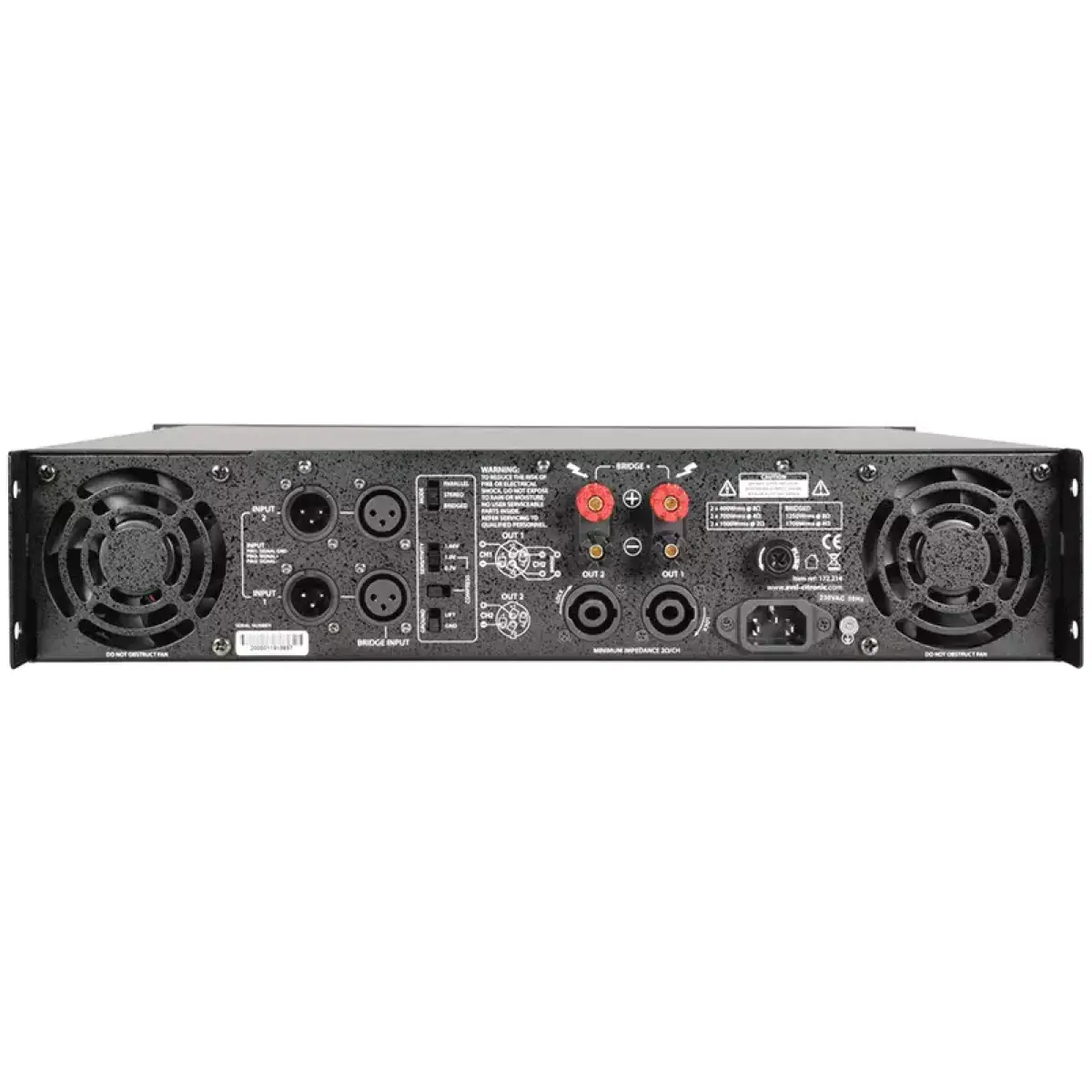

19″ rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via 6.3mm jack or XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.

Features:

• Bridge mode for high power mono operation
• Output stable down to 2 Ohms
• Removable handles for low profile install
• Switchable clip limiter

Specifications:

• Weight: 22.5kg
• Power rms bridge @ 8 Ohms: 1250W
• Power rms bridge @ 4 Ohms: 1700W
• Power rms @ 8 Ohms: 2 x 400W
• Power rms @ 4 Ohms: 2 x 700W
• Power rms @ 2 Ohms: 2 x 1000W
• Amplifier : construction: Class-AB
• Fuse: F8A (6 x 32mm)
• Power supply: 230Vac, 50Hz (IEC)

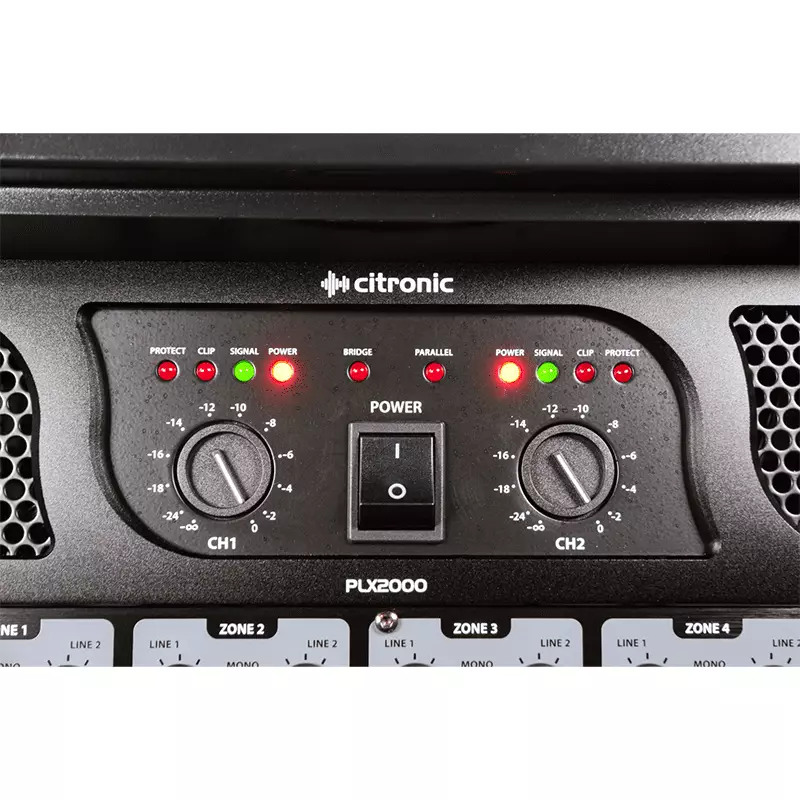

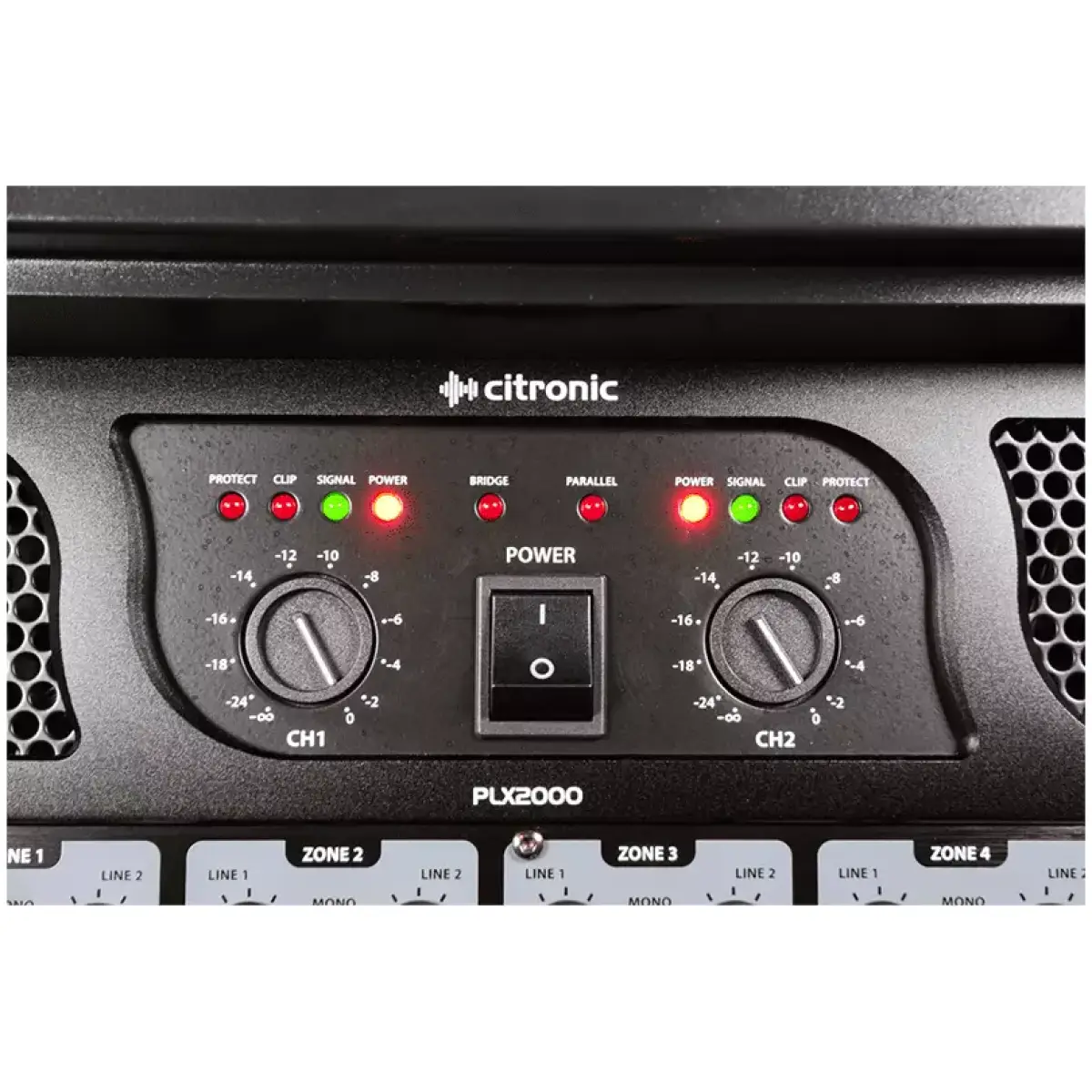

• Controls: Level channel 1, level channel 2, ground, mode, clip limiter
• Input impedance: 20k ohms
• Frequency response: 5Hz – 50kHz
• Total harmonic distortion: 0.05%
• Slew rate: 40V/us
• Damping factor: >400
• Protection: Short-circuit, overload, D.C. and thermal protect
• Dimensions: 482 x 453 x 88mm (2U)
