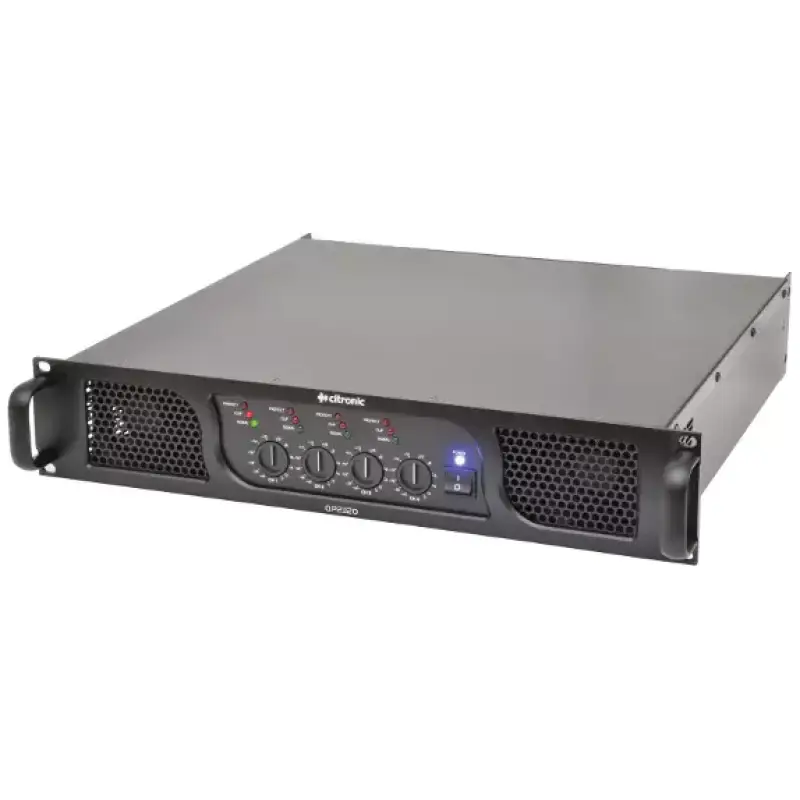

A range of quad power amplifiers with 4 fully independent channels and individual volume controls. Fully balanced line inputs and parallel outputs allow signal daisy-chaining to further amplifiers. Designed as a cost effective and efficient solution for multi speaker installations where sound quality is paramount.
Features:
- Fully balanced signal path
- Stable down to 2 Ohms
- 2U rack-mountable
Specifications:
- Power supply: 230Vac, 50Hz (IEC)
- Controls: 4 x channel gain
- Dimensions: 483 x 439 x 88mm

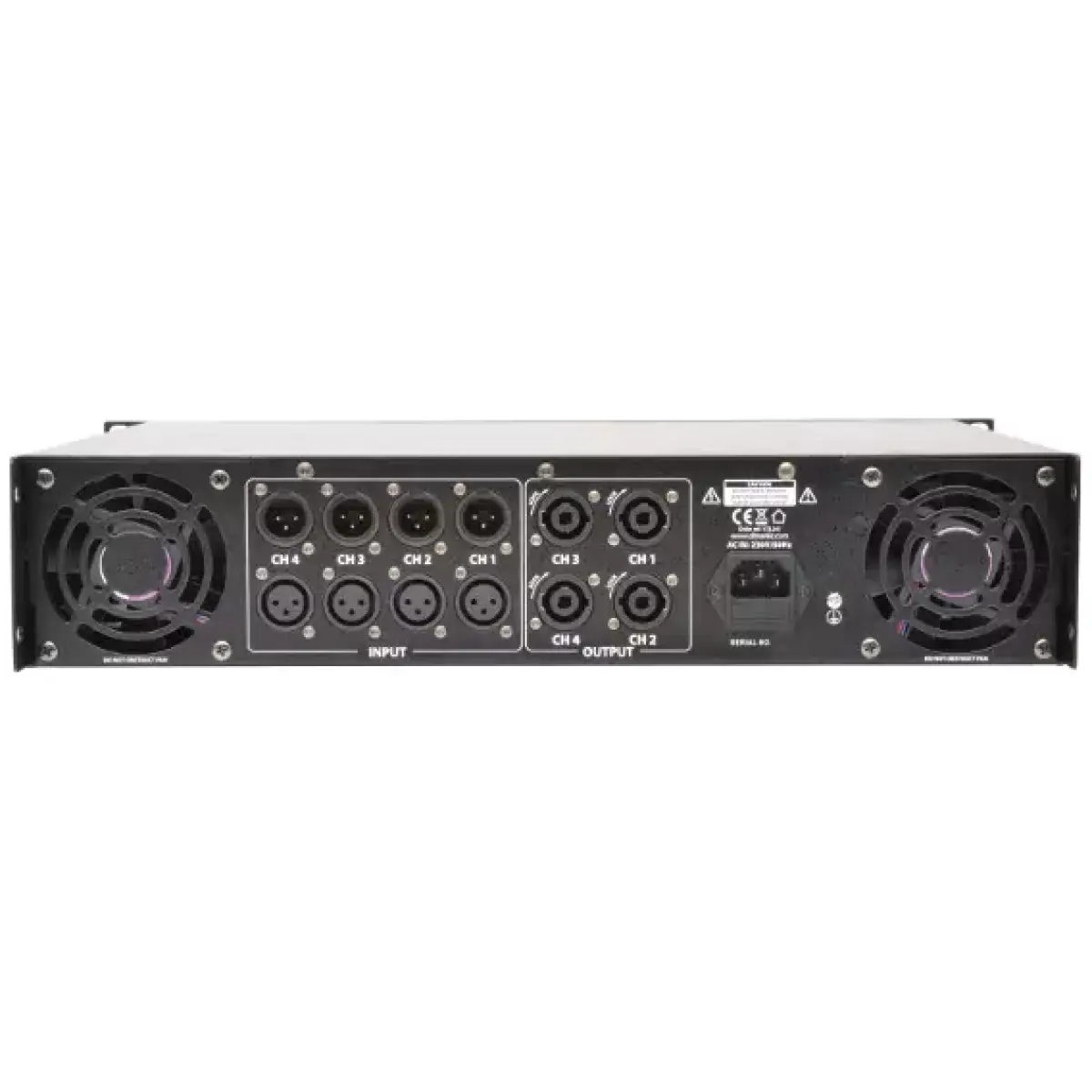

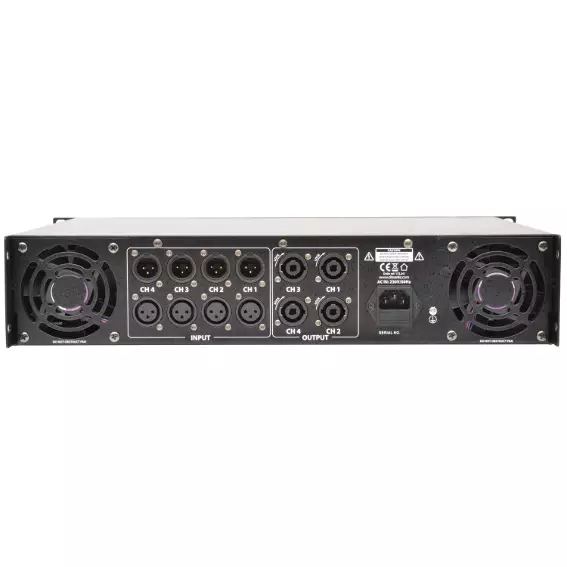

- Input : line: 4 x XLRF balanced
- Output : line: 4 x XLRM (parallel from inputs)
- Speaker outputs: 4 x SPK connectors
- Input impedance: 20k Ohms
- Frequency response: 5Hz – 50kHz
- THD: 0.05%
- Slew rate: 40V/usec
- S/N ratio: 103dB
- Circuit protection: Short-circuit, DC, overload, soft-startPower rms @ 8 Ohms 4 x 300W
- Power rms @ 4 Ohms: 4 x 450W
- Power rms @ 2 Ohms: 4 x 580W
- Weight: 23.5kg
- Fuse rating: F12A
