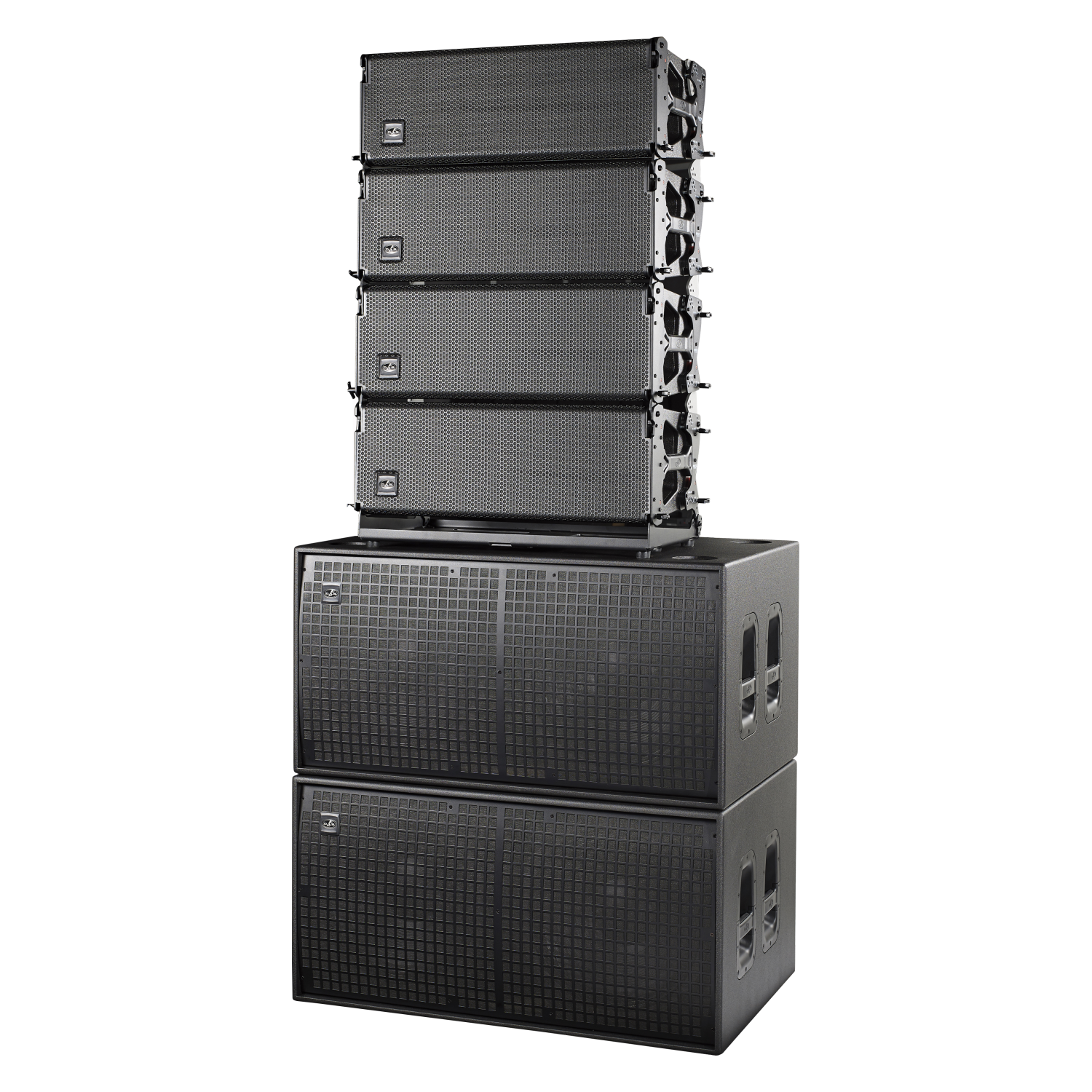

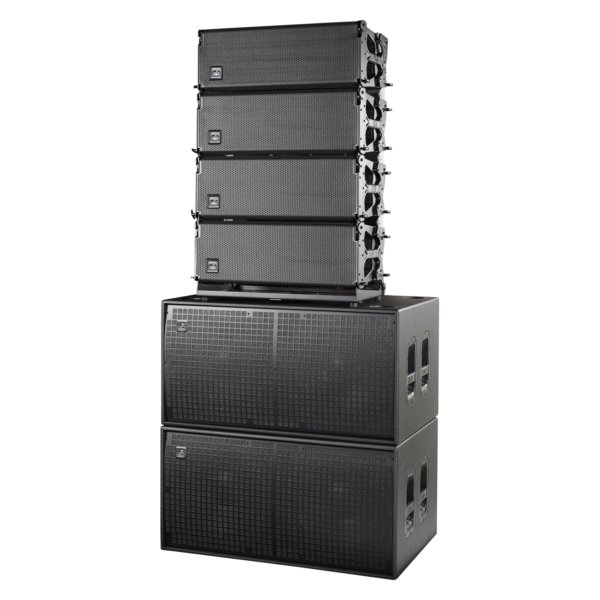

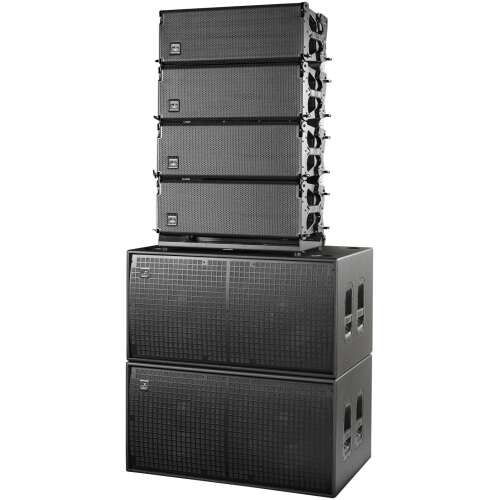

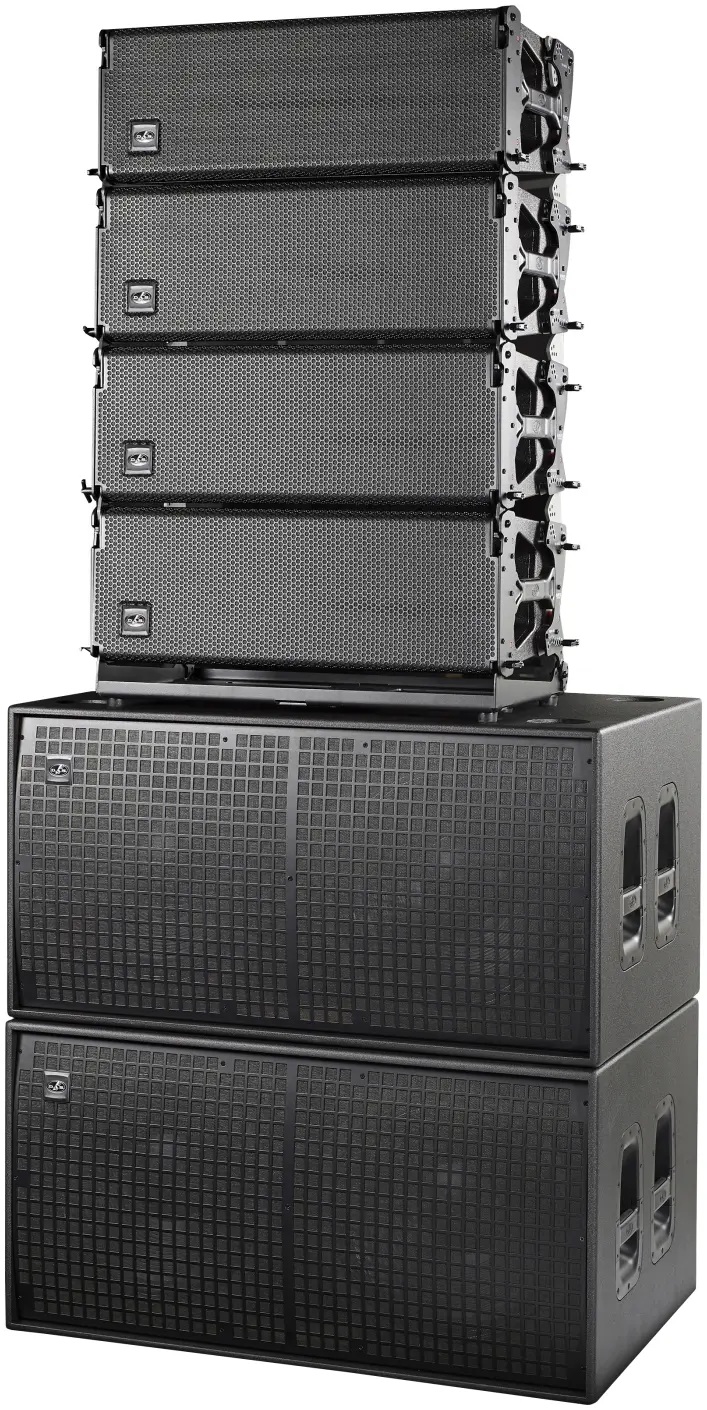

Das Event-210 Combo
DAS EVENT-210A line array Active double 10” x 4PC
DAS EVENT-218A Active double 18” bassbin x 2pc
DAS Rigging bumper for EVENT-210A x 2pc
Line Array Combo Including Cable*
| Performance DAS EVENT-210A | |
| Frequency Range (-10 dB) | 70 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | Splay Dependent |
| Maximum Peak SPL at 1 m | 134 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power LF (continuous) | 180 W |
| Nominal Amplifier Power LF (peak) | 360 W |
| Nominal Amplifier Power MF (continuous) | 180 W |
| Nominal Amplifier Power MF (peak) | 360 W |
| Nominal Amplifier Power HF (continuous) | 180 W |
| Nominal Amplifier Power HF (peak) | 360 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 6.2 V (+18 dBu) |
| Audio Signal Input Connector | 1 x Female XLR |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 1.5 A/- |
| Certification Number | NRTL US&CA SGSNA/19/SUW/00109 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | Captive Rigging System |
| Finish | ISO-flex Paint |
| Color | Black |
The EVENT-210A Line is a three-way powered line array in a double 10” “dual-band” configuration which provides a wider frequency range. The DAS loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide.
The EVENT-210A line array is powered by a three channel Class D amplifier which provides 360 Wpeak per channel. The amp´s rear panel includes quality Neutrik® XLR and powerCON connectors, status LEDS to facilitate setup and DAS’s Easy-DSP™ interface which simplifies preset selection for the number of units and throw depth
| Performance DAS EVENT-218A | |
| Frequency Range (-10 dB) | 32 Hz – 125 Hz |
| Maximum Peak SPL at 1 m | 140 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 1800 W |
| Nominal Amplifier Power (peak) | 3600 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 6.2 V (+18 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| Audio Signal Loop Thru Connector | 2 x Male XLR |
| AC Output Connector | powerCON NAC3FCB |
| Current Draw 230 V / 115 V | 3.0 A/6.0 A |
| Certification Number | NRTL US&CA SGSNA/19/SUW/00110 |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Rectangular |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
The EVENT-218A dual 18” powered subwoofer makes use of one of DAS´s most acclaimed loudspeakers, the LX series long excursion transducers which were introduced in the high-level LX-218. The enclosure is designed for horizontal use, built using quality Birch plywood, finished with the ISO-flex coating and has a pole mount socket on the upper panel.
The power amplifier provides 3600 Wpeak power and offers features found on the more expensive LX subwoofers such as the Cardioid Preset mode switch which offers specific signal treatment for easy set-up of pairs of systems in cardioid subwoofer applications. The system includes two balanced inputs (A-B) with stereo HPF (100 Hz) filtered output connections for satellite systems. Defeating the HPF filter offers stereo “loop thru” connections. The variable LPF crossover ranges from 80 Hz-125 Hz. A gain control and polarity reverse feature increase user control over the system
