The DVA S30N is a high-performance active dual 18″ subwoofer designed to deliver powerful, deep, and controlled low-frequency reproduction for large-scale sound reinforcement systems. As part of the dB Technologies DVA Series, the S30N pairs perfectly with DVA T8 and T12 line array modules, offering extended bass response and precise phase alignment through its integrated DSP. With dual 18″ neodymium woofers, 3200 W RMS Digipro G2 Class-D amplification, and advanced FIR filtering, the DVA S30N ensures consistent, punchy, and distortion-free performance across the entire low-end spectrum.
Features:
- Active dual 18″ bass reflex subwoofer
- Digipro G2 Class-D amplifier delivering 3200 W RMS
- Dual 18″ neodymium woofers with 4″ voice coils
- Frequency range down to 35 Hz for extended low-end response
- Integrated 24-bit / 96 kHz DSP with delay and crossover settings
- RDNet and Aurora Net compatible for remote control and system tuning
- Cardioid configurations available via DSP presets
- Front-loaded design with optimized venting for maximum efficiency
- Integrated rigging and stacking hardware

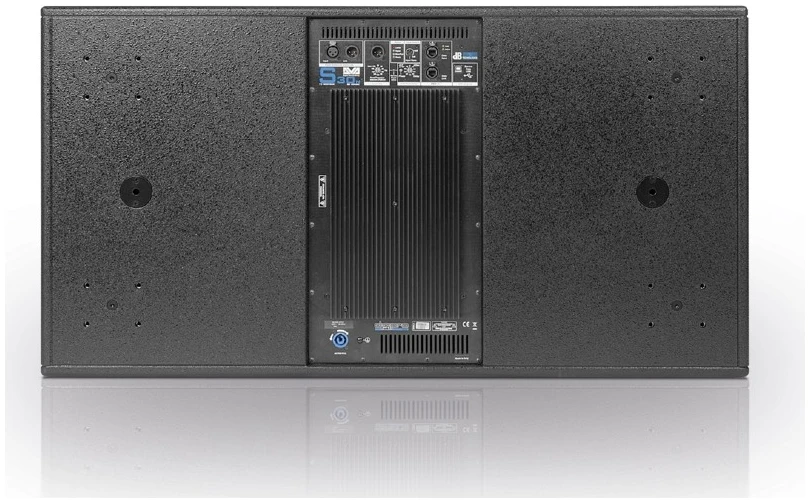

- PowerCON and XLR connectivity for audio and power linking
Specifications:

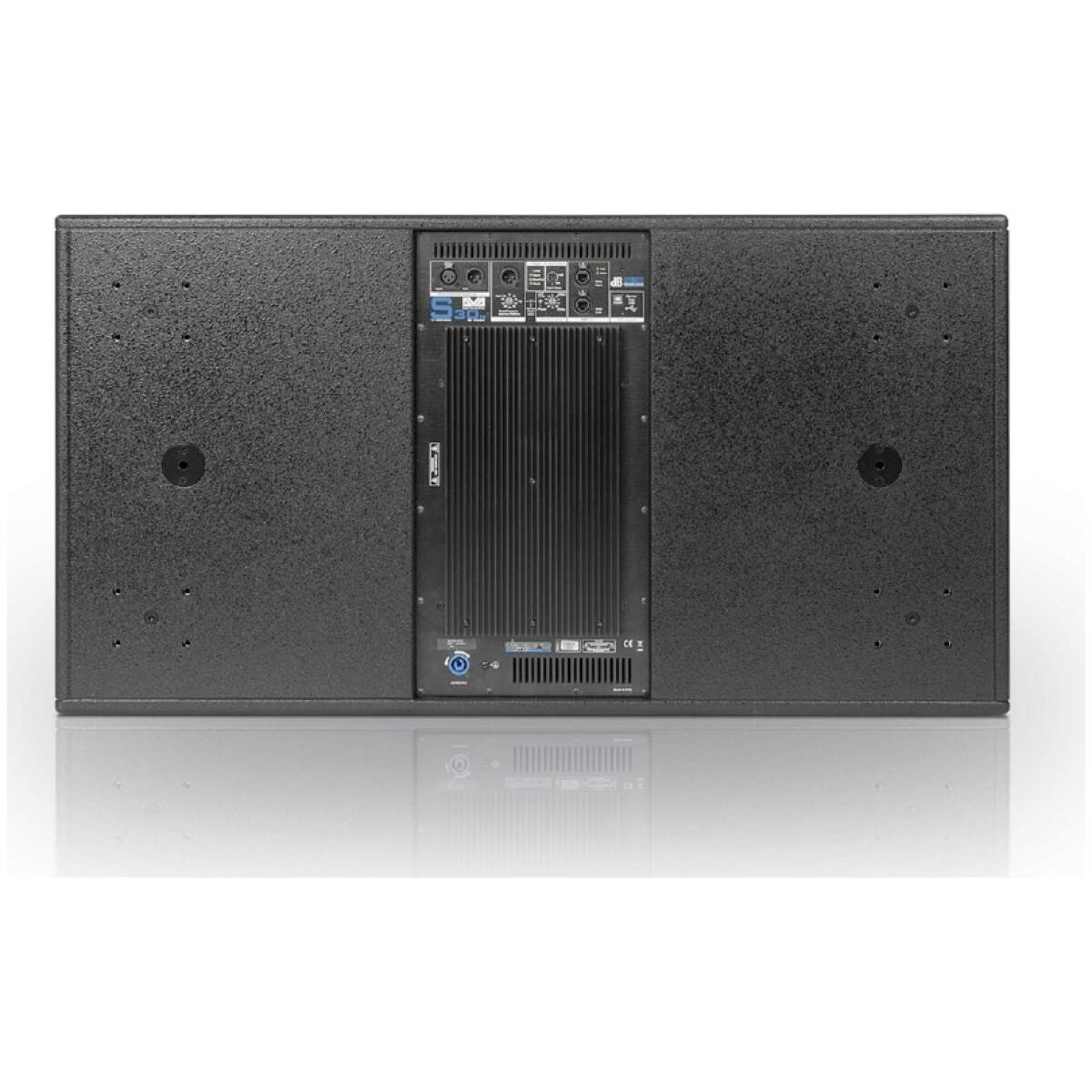

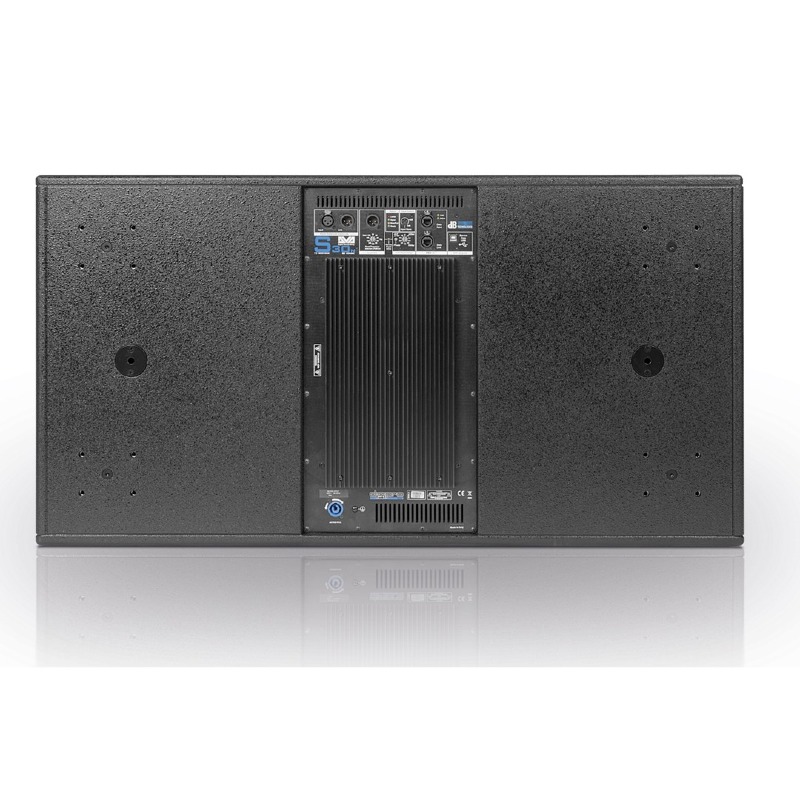

The frequency response extends from 35 Hz – 120 Hz (–6 dB), with a maximum SPL of 141 dB. The internal Digipro G2 amplifier provides 3200 W RMS total power, delivering clean and powerful bass reproduction. DSP processing ensures system alignment, phase correction, and limiter functions for maximum reliability and protection. Connectivity includes XLR Input/Link, PowerCON In/Out, and RJ45 ports for RDNet communication.
Cabinet:

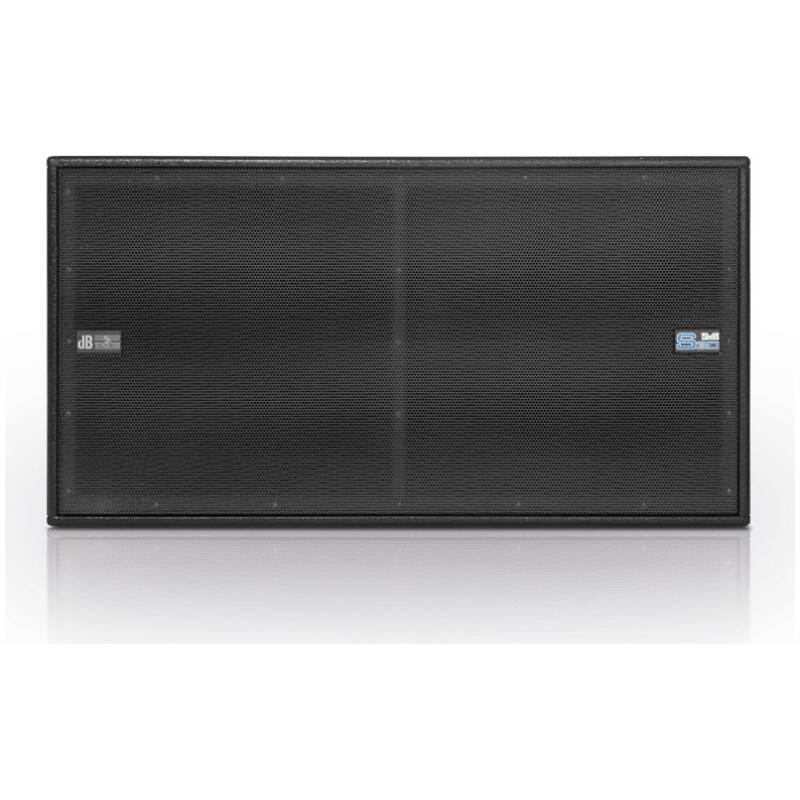

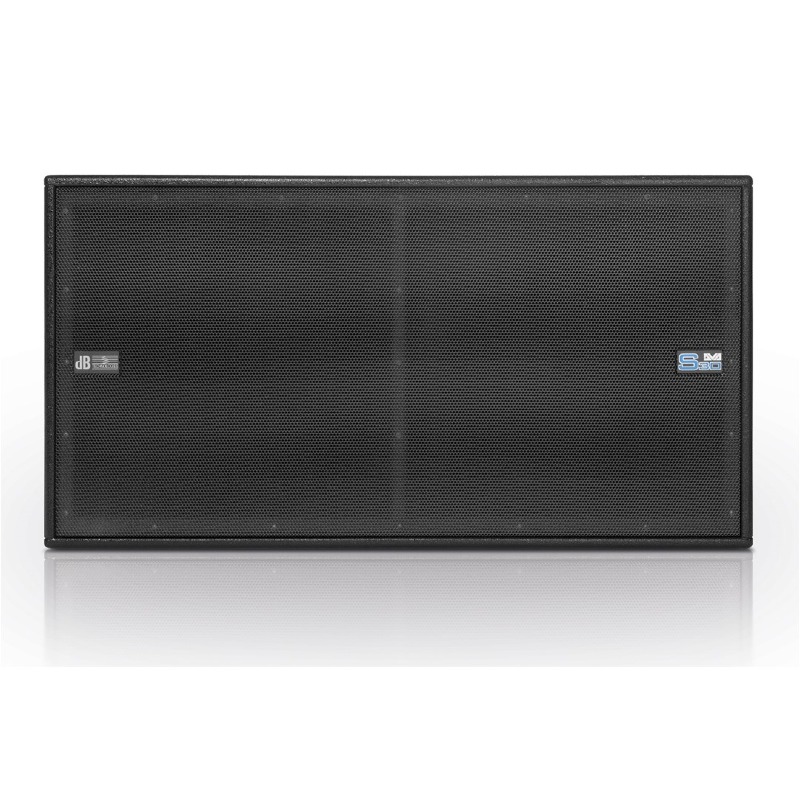

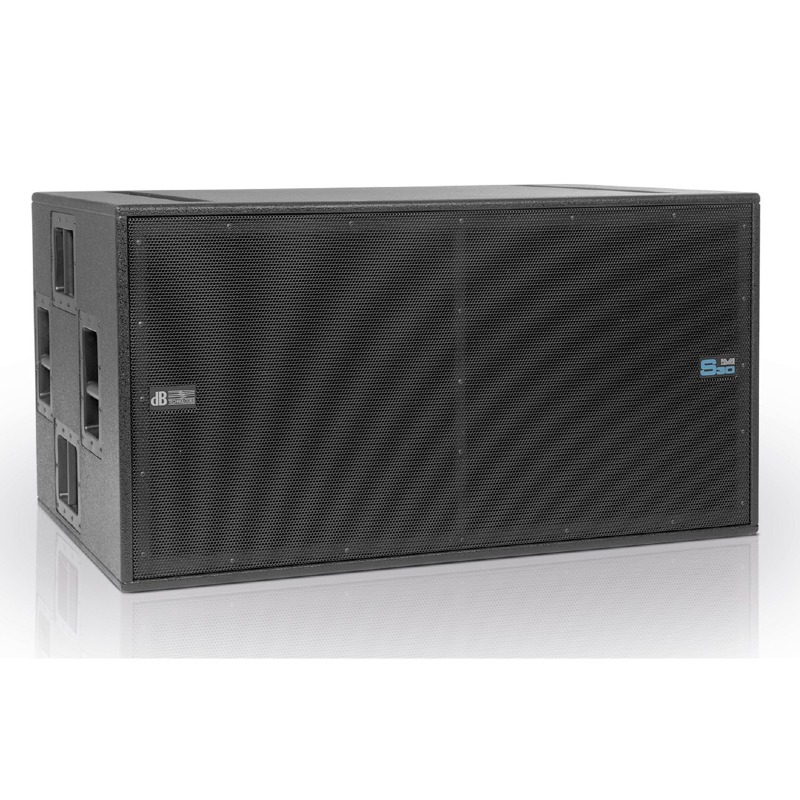

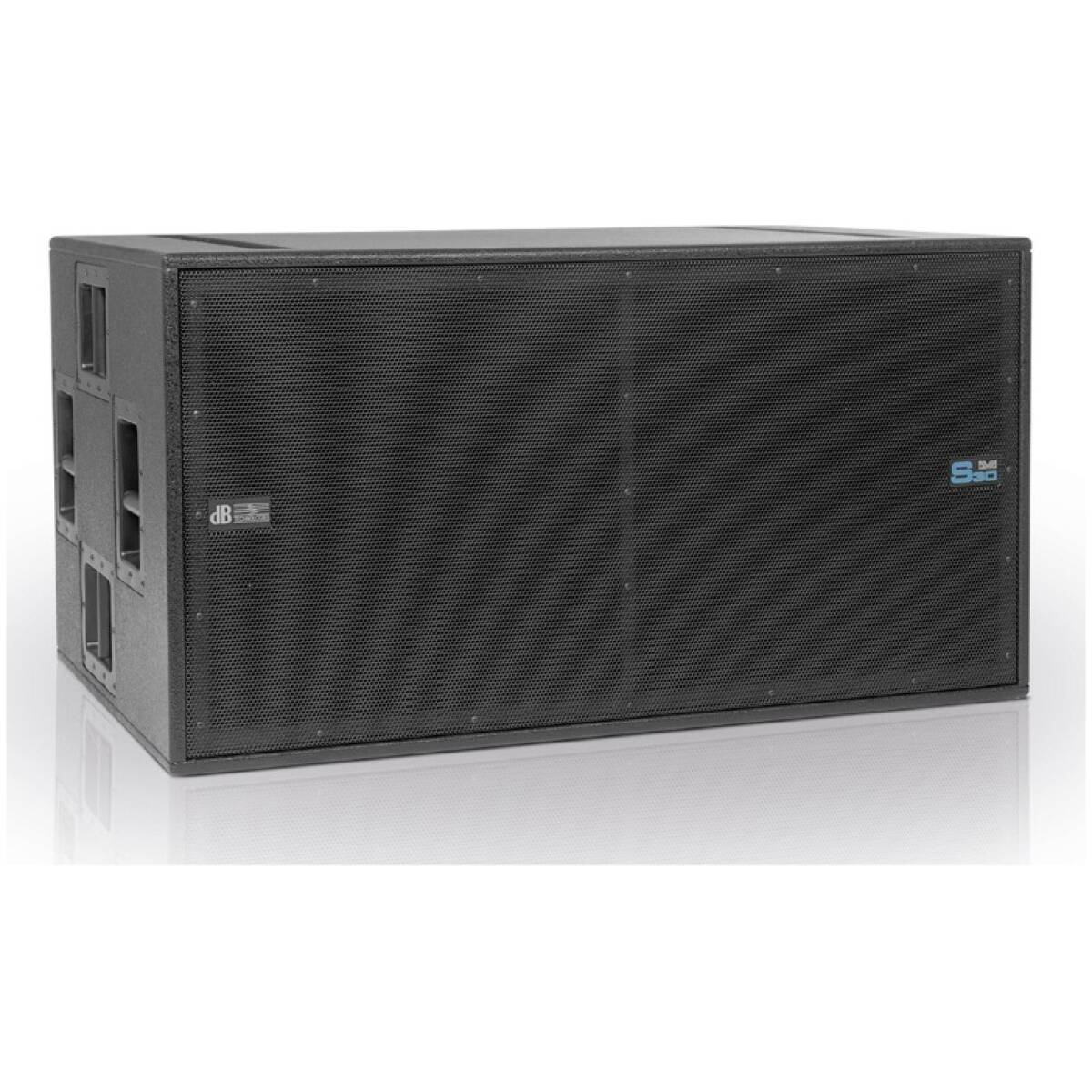

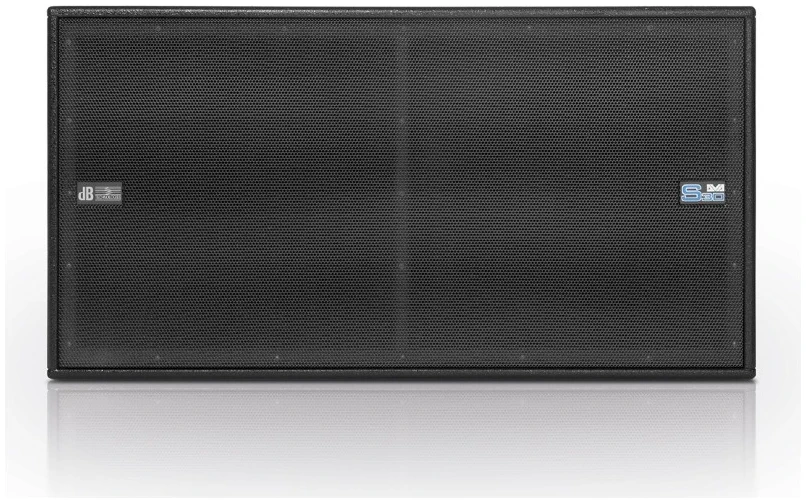

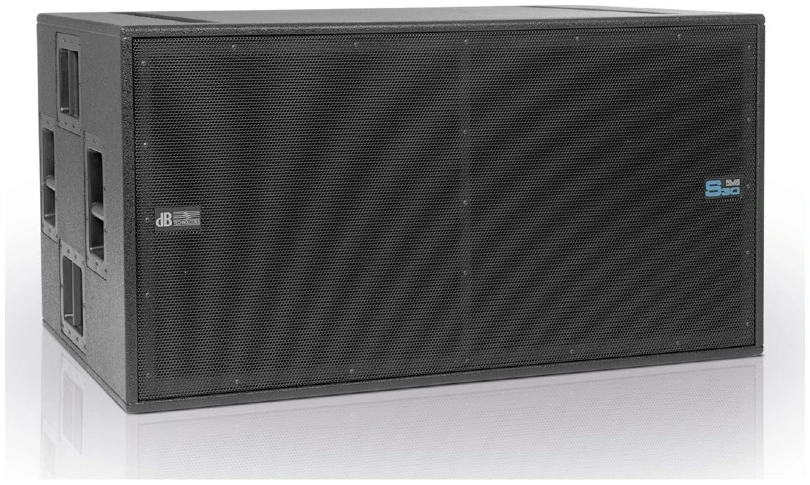

The enclosure is constructed from high-quality birch plywood finished with a durable black polyurea coating. The cabinet design features front-loaded dual 18″ woofers with precision ports for reduced turbulence and improved efficiency. It includes M20 pole mount, stacking recesses, and flyware for use in both ground-stacked and flown configurations.
