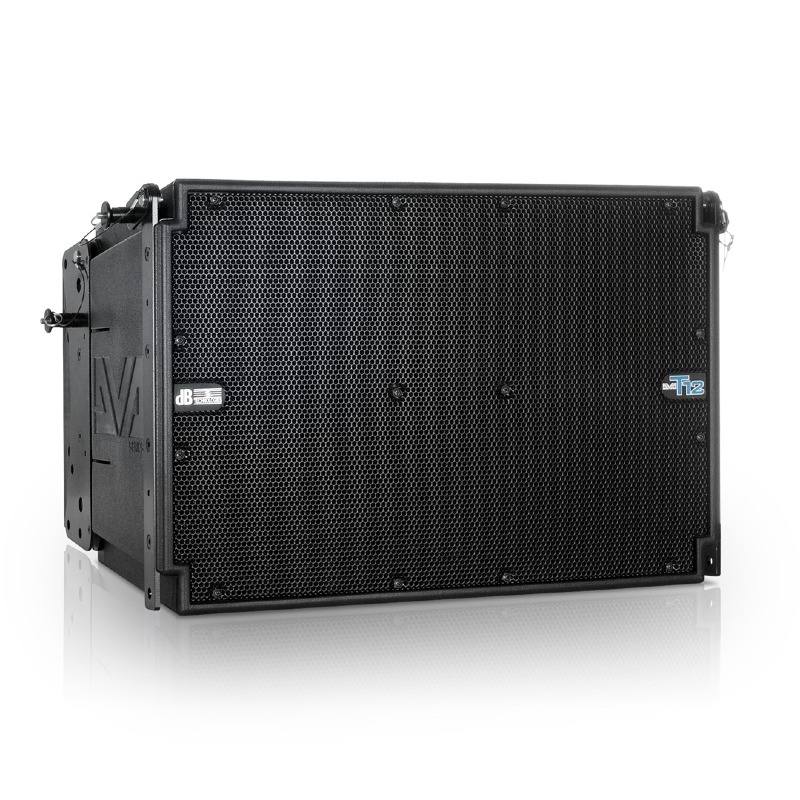

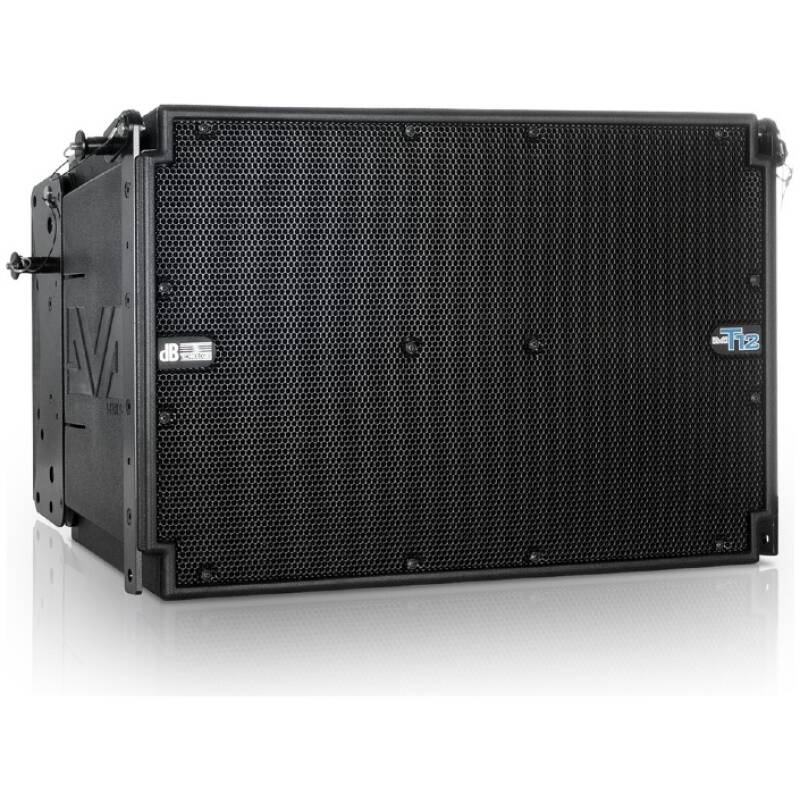

The dB Technologies DVA T12 is a flagship active 3-way line array module designed for large-scale touring and fixed installations. With its high output, exceptional clarity, and advanced DSP control, the T12 delivers uncompromising performance for concerts, festivals, and professional sound reinforcement. Its lightweight polypropylene enclosure and integrated rigging hardware make setup quick and efficient, while the Class-D amplification and digital signal processing ensure precision and reliability in any environment.
Features:
- Fully active 3-way tri-amped design
- Digipro G2 Class-D amplifiers for superior efficiency
- FIR phase alignment and advanced DSP filtering
- RDNet control and monitoring via Aurora Net software
- Integrated rigging system for fast array setup
- Lightweight polypropylene-fiber composite housing
- Switchable 90° × 10° dispersion pattern
- Adjustable EQ presets for array configurations
Specifications:
The DVA T12 features two 8″ neodymium woofers for low frequencies, one 6.5″ neodymium midrange with a sealed horn-loaded design, and three 1″ compression drivers with 1.4″ voice coils for high frequencies. The integrated Class-D Digipro G2 amplifier delivers a total of 1410 W RMS (LF 710 W + MF 350 W + HF 350 W), producing a maximum SPL of 136 dB. Its frequency response ranges from 60 Hz – 19 kHz (–6 dB), offering tight, linear response across the spectrum.

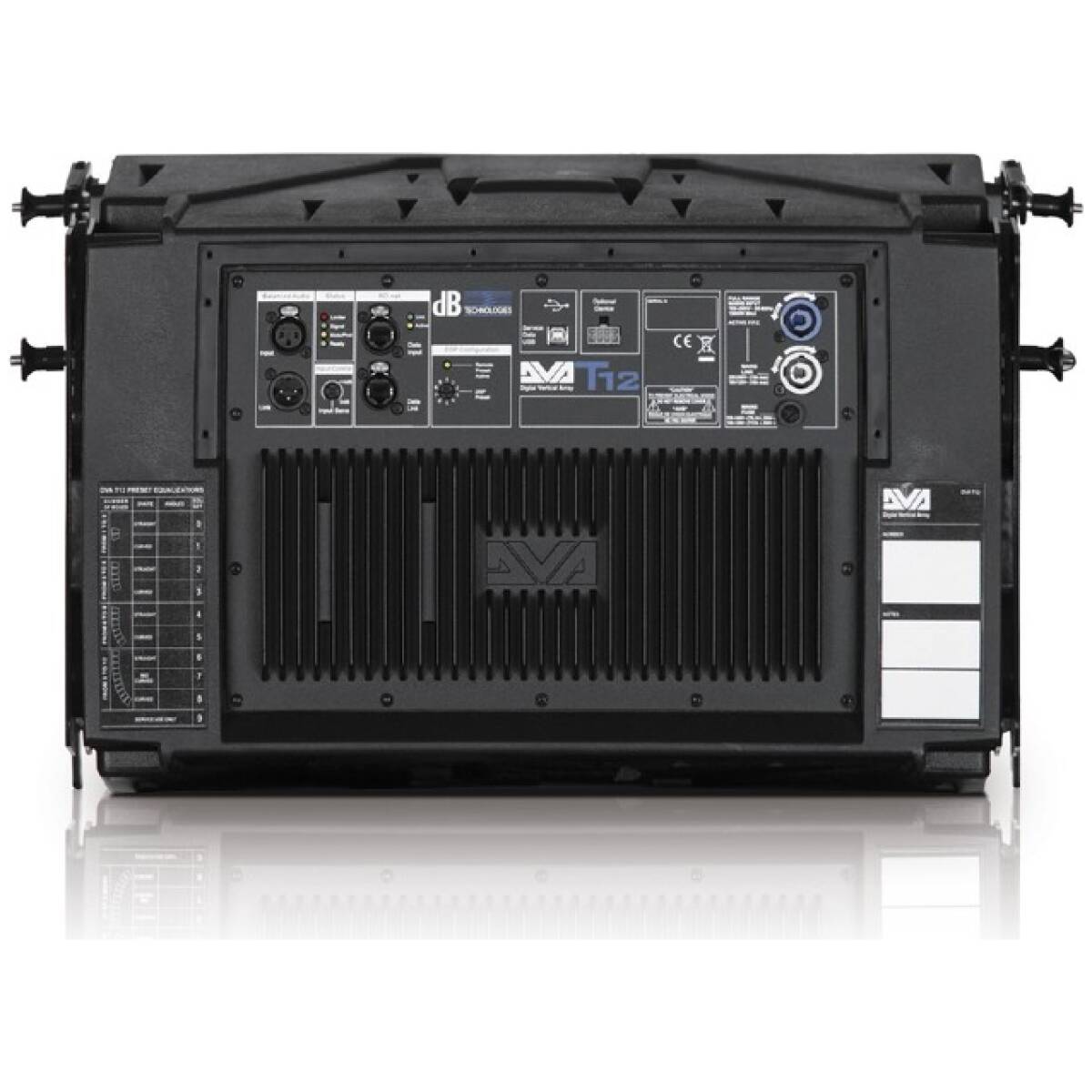

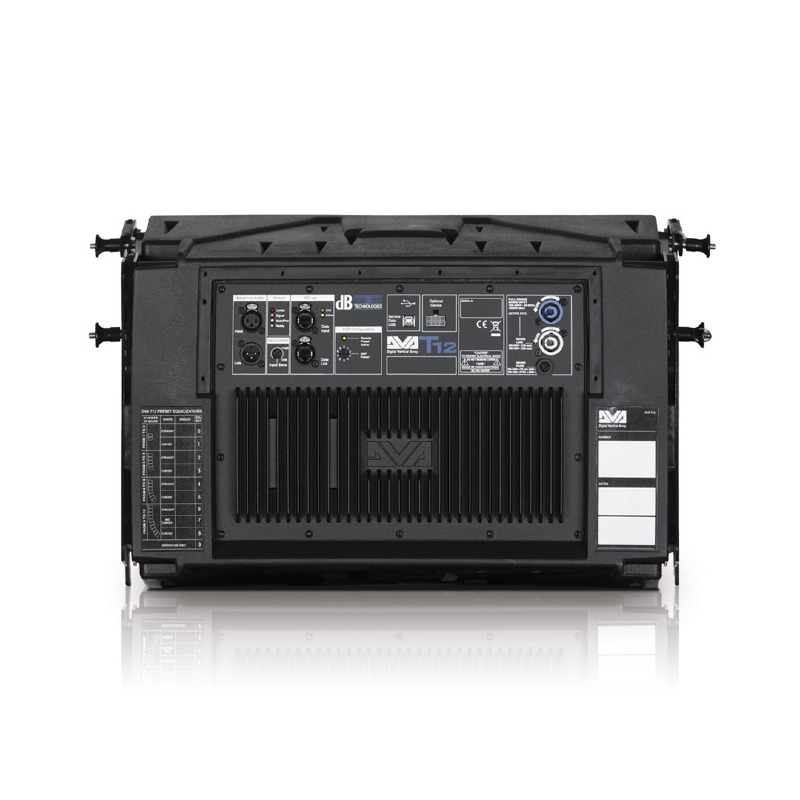

Connectivity includes XLR input/output, PowerCON In/Out, and RJ45 ports for RDNet control. The built-in 56-bit DSP operates at 96 kHz, providing delay, EQ, and limiter functions with 8 onboard presets optimized for array configuration.
Cabinet:

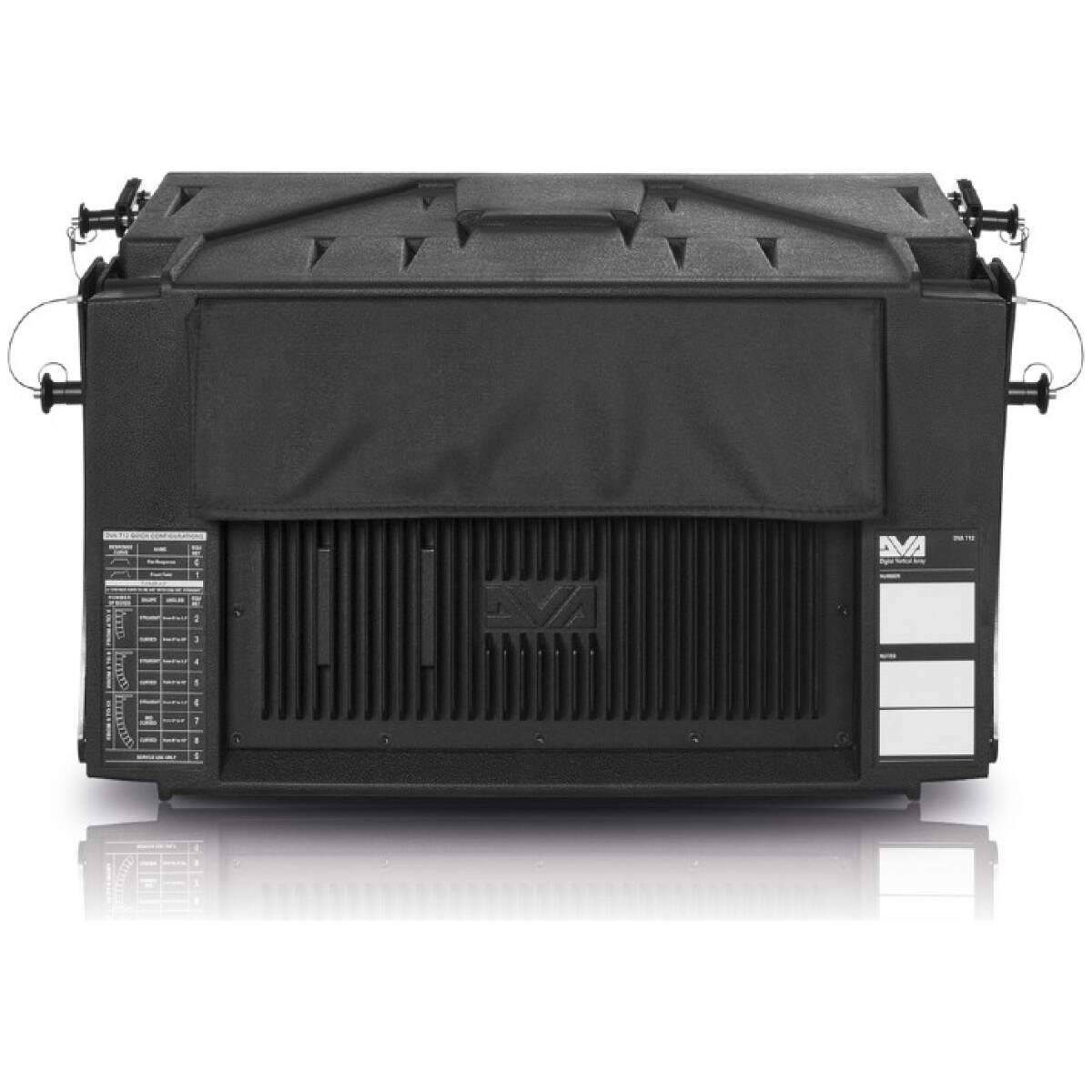

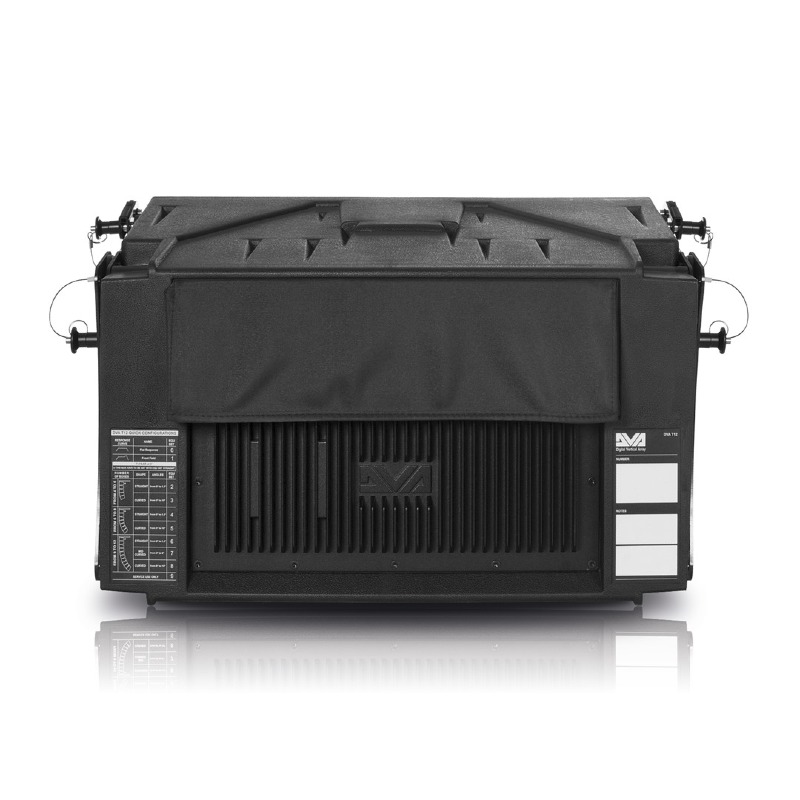

Constructed from high-resistance polypropylene composite, the cabinet combines strength with reduced weight for easy handling. It includes integrated aluminium rigging hardware for quick and secure flying or stacking and a front metal grille with internal acoustic foam for driver protection.
