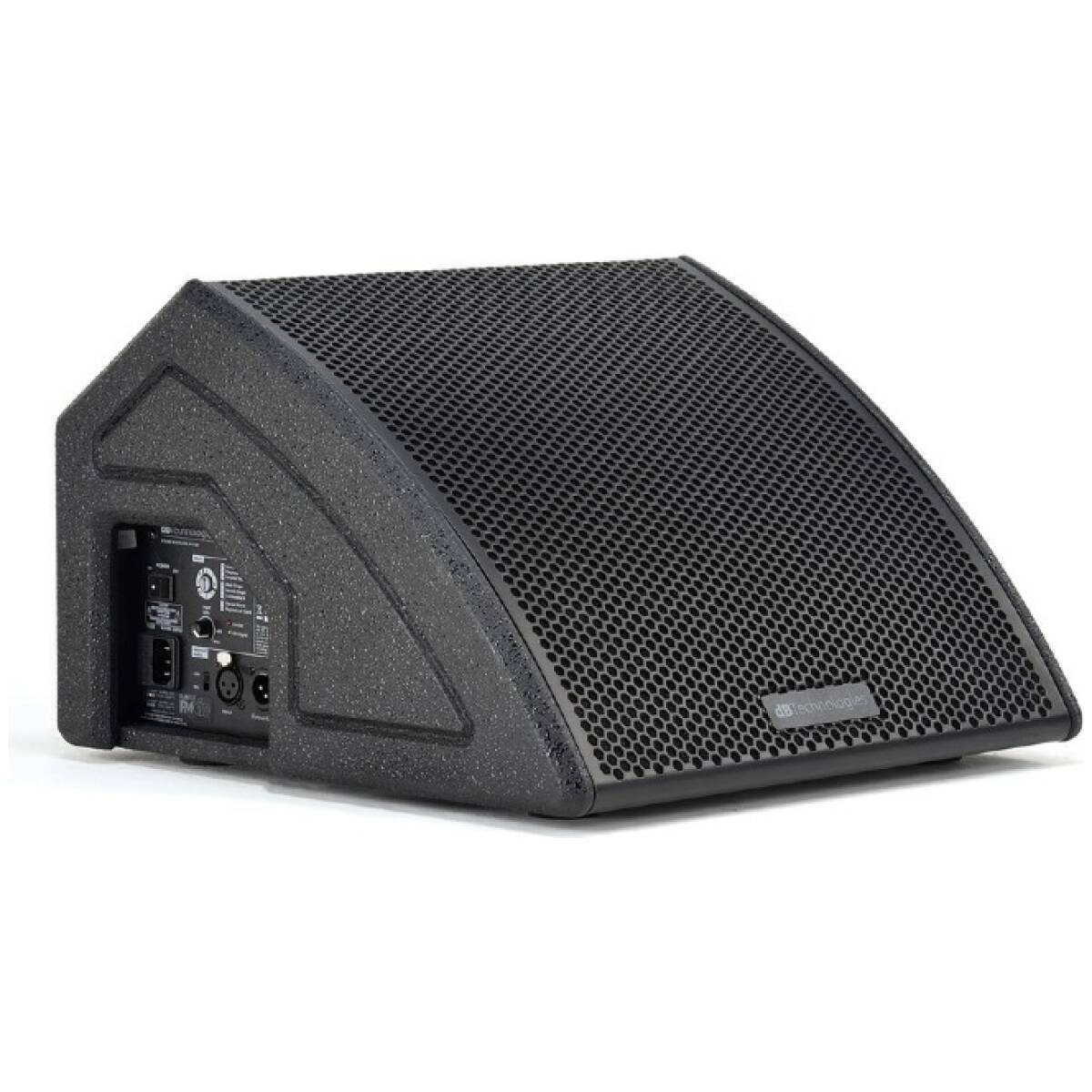

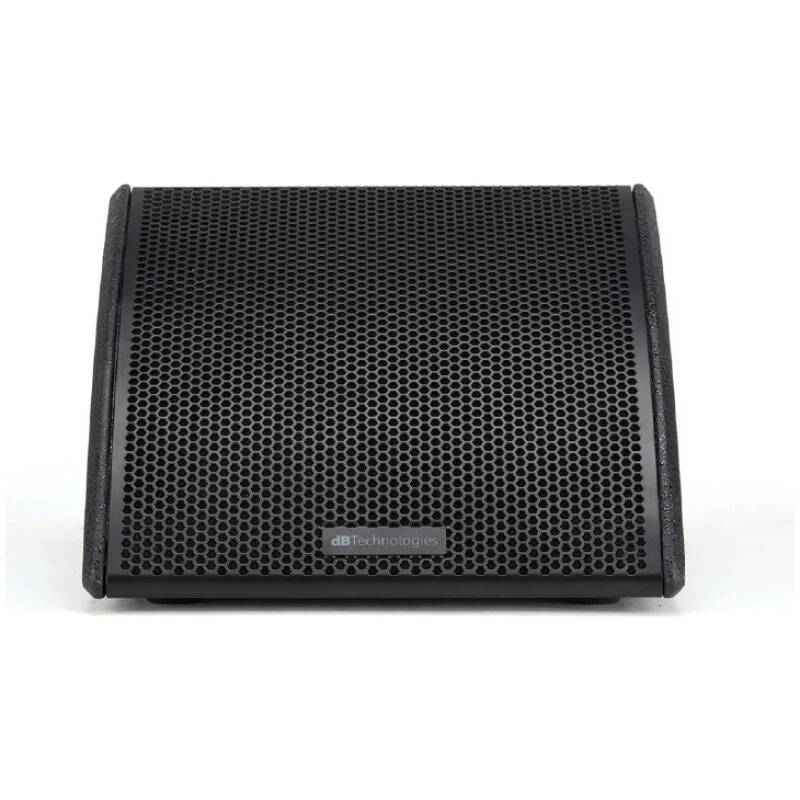

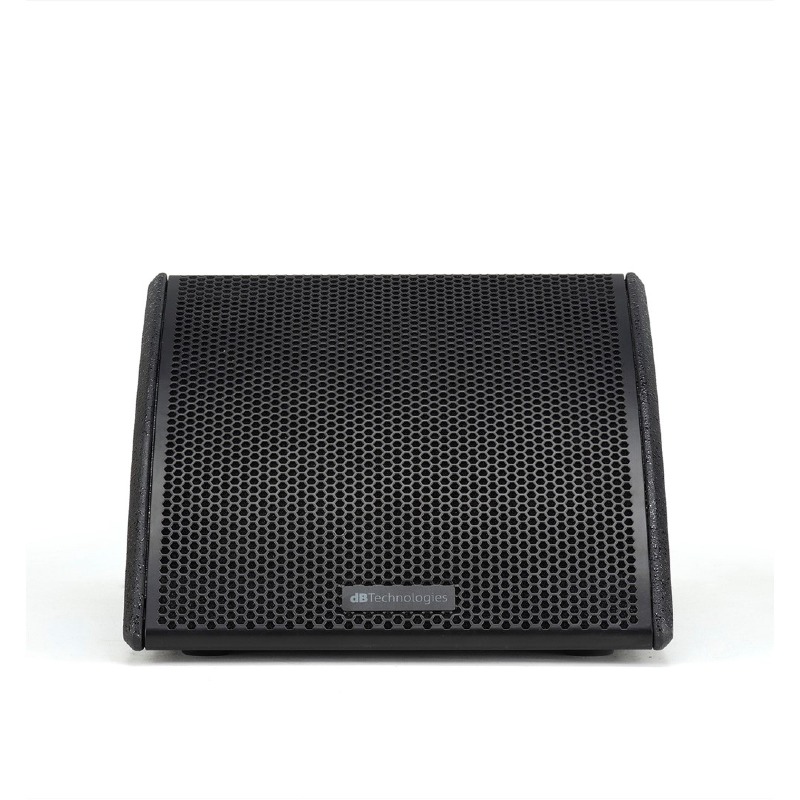

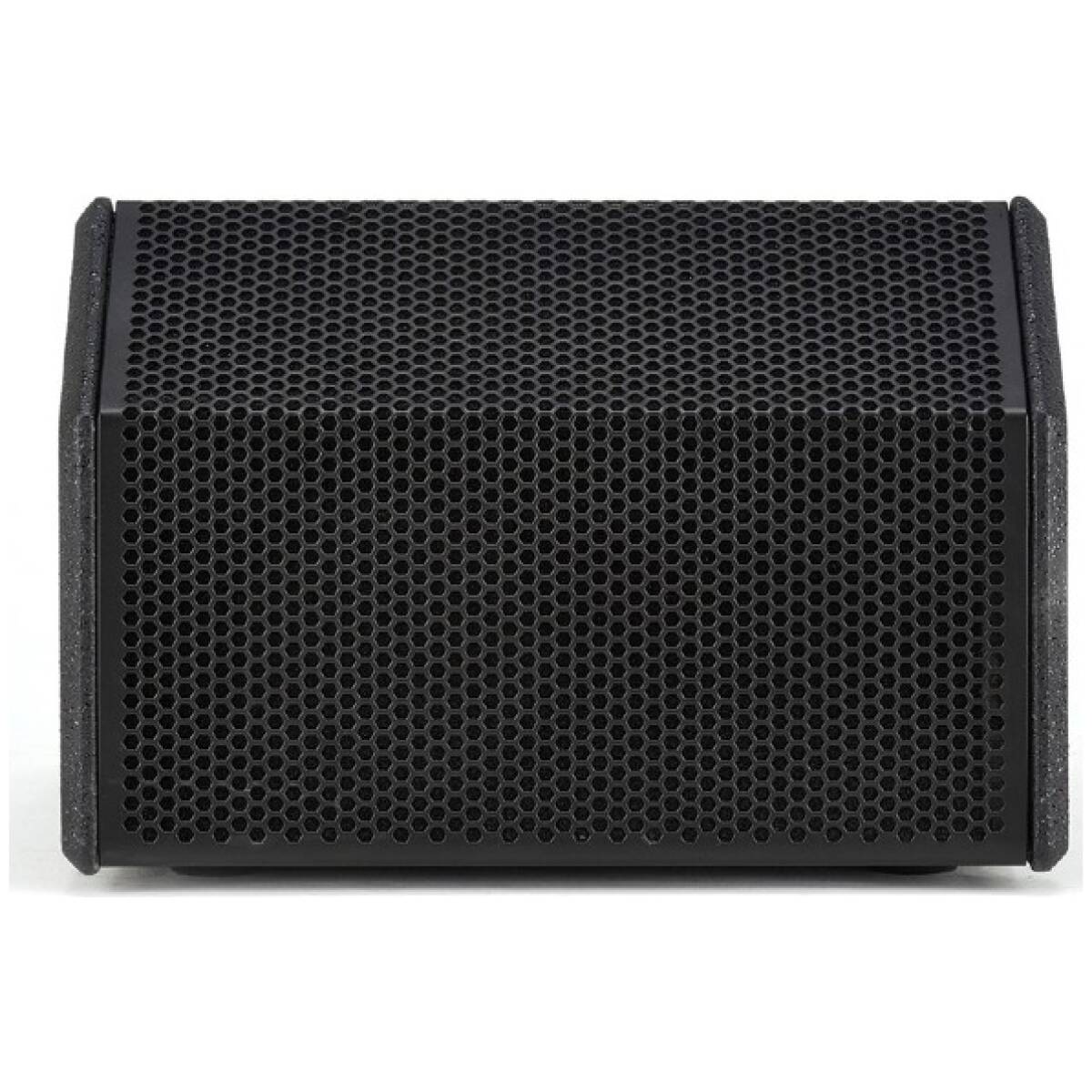

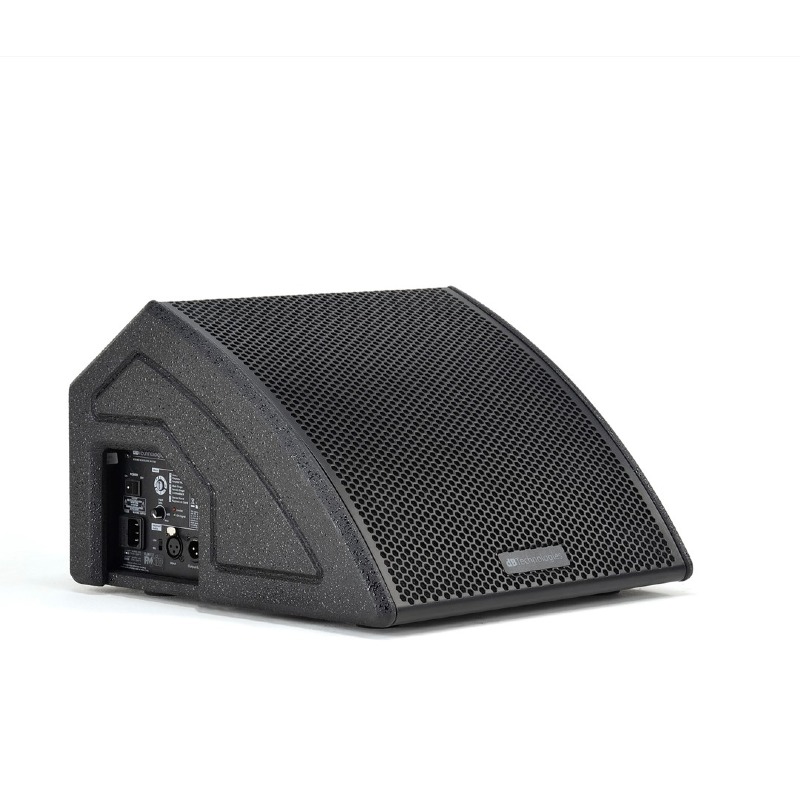

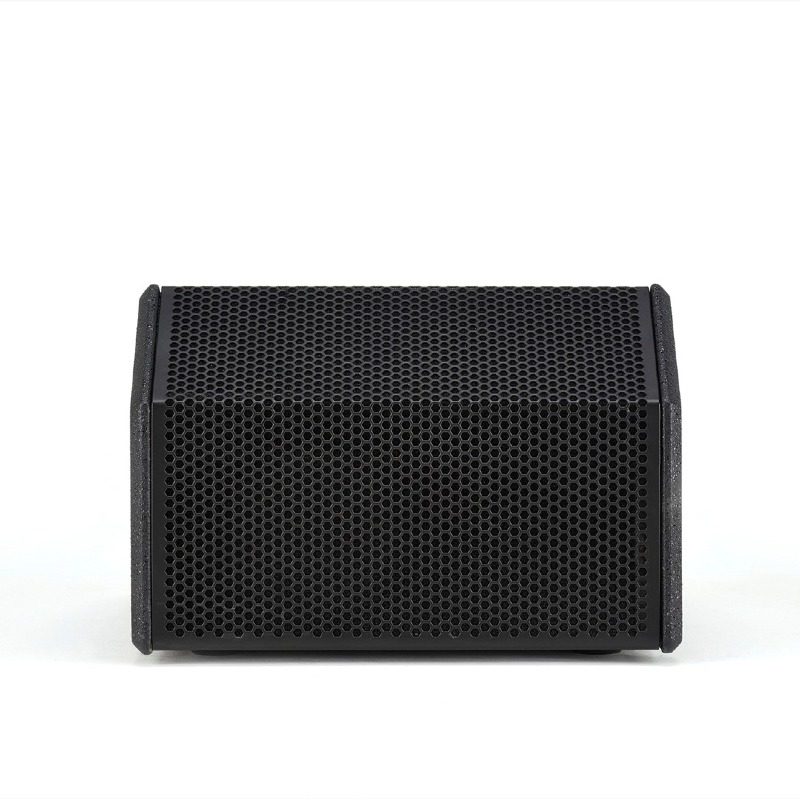

The dB Technologies FMX 10 is a professional active 10″ coaxial stage monitor designed to deliver exceptional clarity, power, and control in a compact form. Engineered for live sound reinforcement, touring, and installations, the FMX 10 provides a natural and accurate sound image with minimal feedback risk. Its coaxial design ensures uniform coverage, while the powerful Class-D amplifier and DSP processing guarantee consistent performance across all frequencies.
Features:
- Active 2-way coaxial stage monitor system
- 10″ woofer + 1″ compression driver in coaxial configuration
- 400 W RMS / 800 W Peak Class-D Digipro G3 amplifier
- 24-bit / 48 kHz DSP with FIR filters for phase coherence
- Max SPL of 127 dB for clean, high-volume monitoring
- Adjustable DSP presets for different applications (Monitor, Full Range, Speech, Playback)
- RDNet ready for remote control and monitoring
- Multi-angle design for wedge or pole-mounted use
- Robust plywood cabinet with black polyurea coating
Specifications:

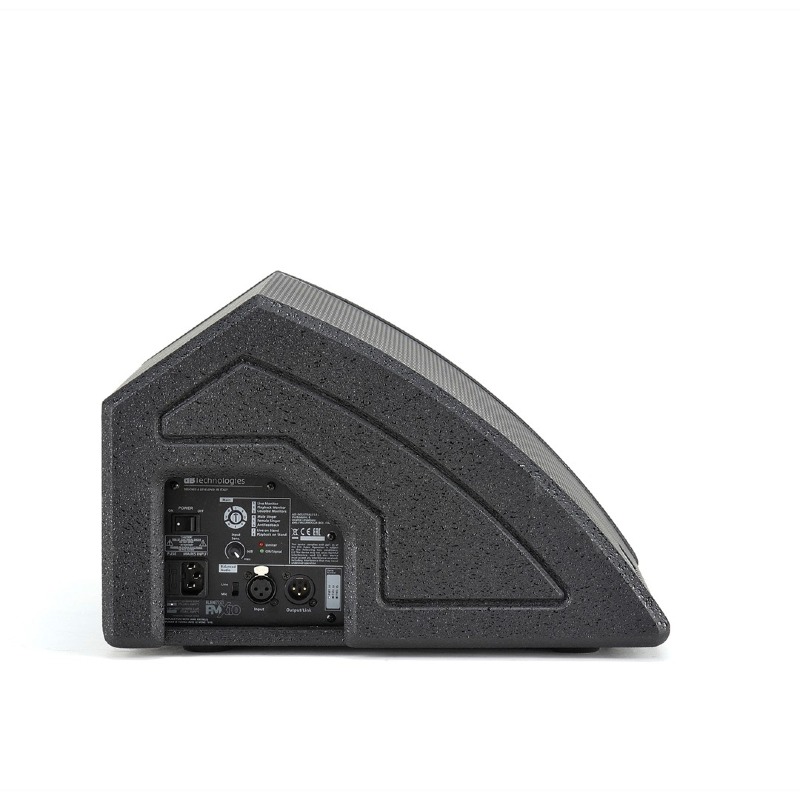

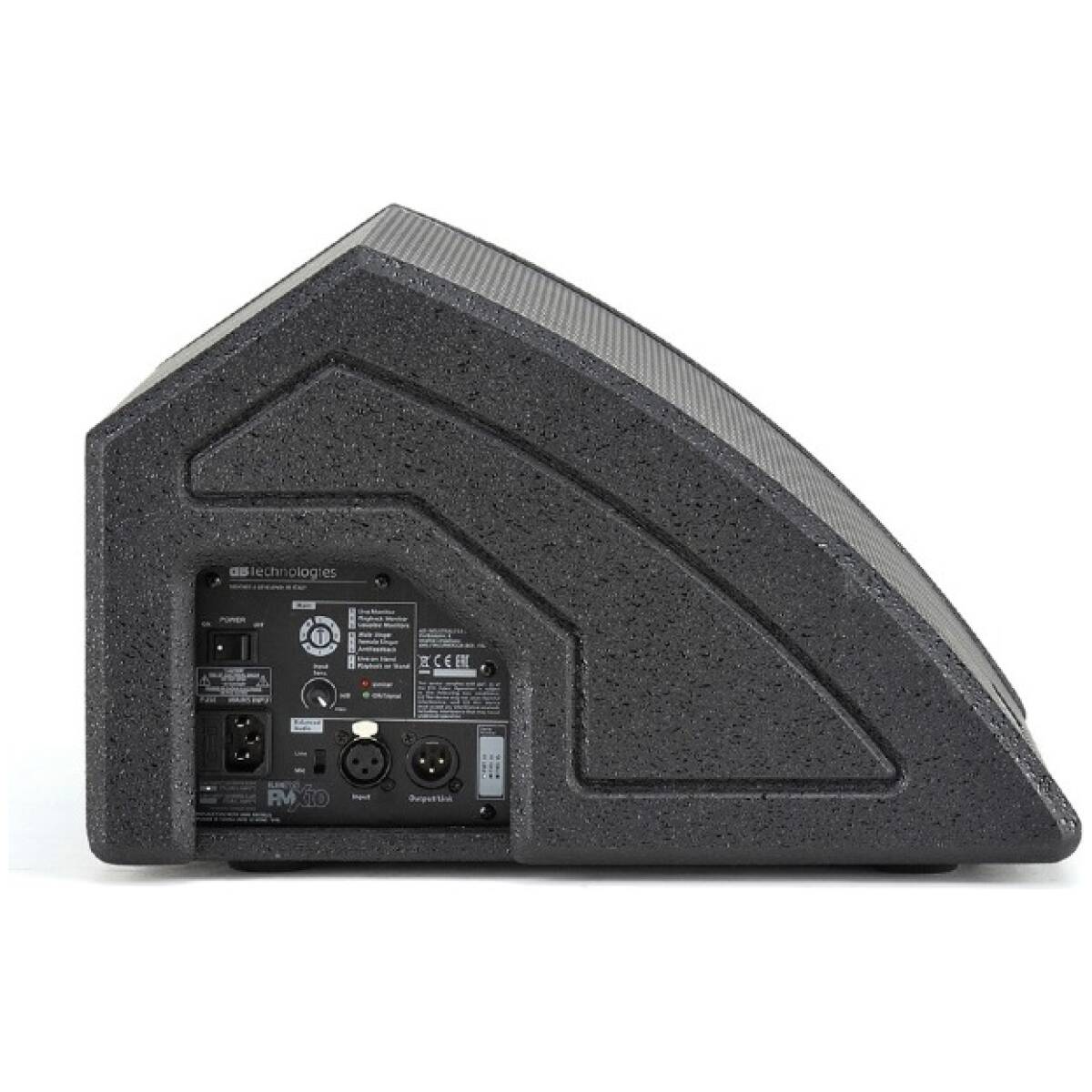

The FMX 10 delivers a frequency response of 58 Hz – 20 kHz (–10 dB) with a maximum SPL of 127 dB. The integrated Digipro G3 Class-D amplifier provides 400 W RMS power. Its DSP section offers EQ, crossover, limiter, and delay settings for flexible stage configurations. Connectivity includes XLR In/Out and PowerCON TRUE1 In/Out.
Cabinet:

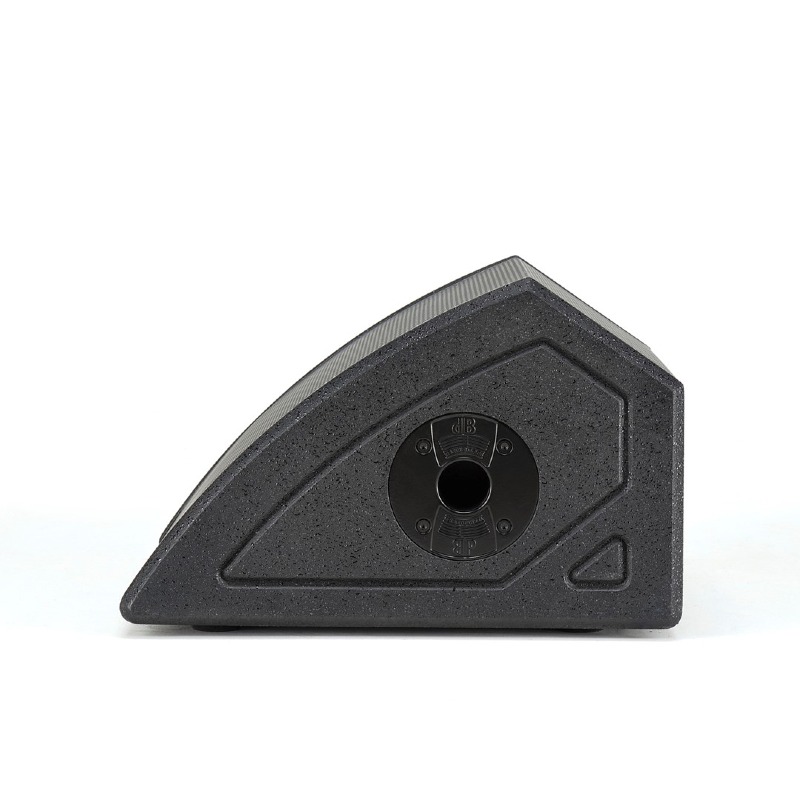

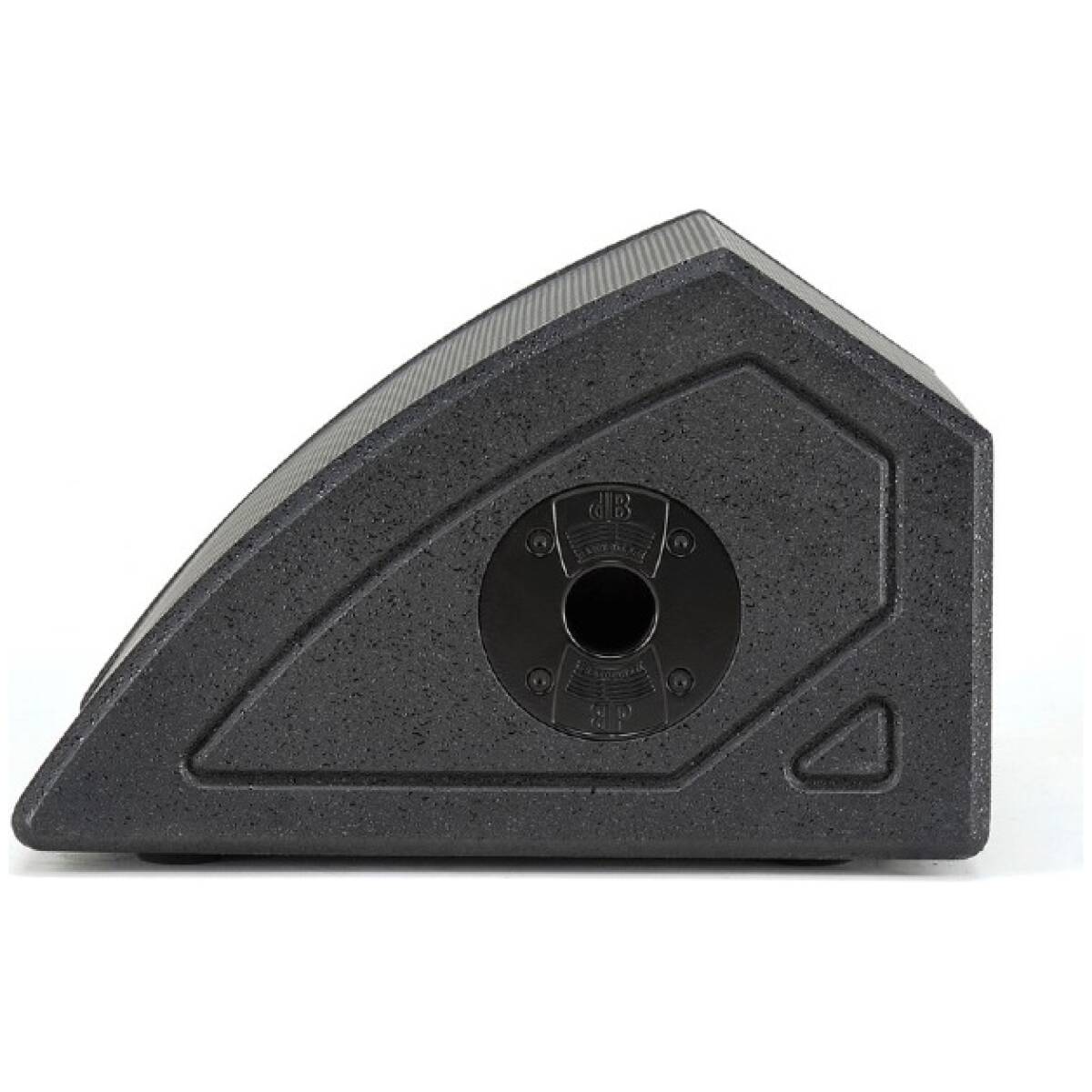

The cabinet is constructed from premium birch plywood coated with rugged black polyurea paint. The coaxial speaker layout provides excellent phase alignment and consistent coverage on stage. It features a dual-angle wedge design for 35° or 55° floor positioning and includes a 35 mm pole mount for FOH applications.
