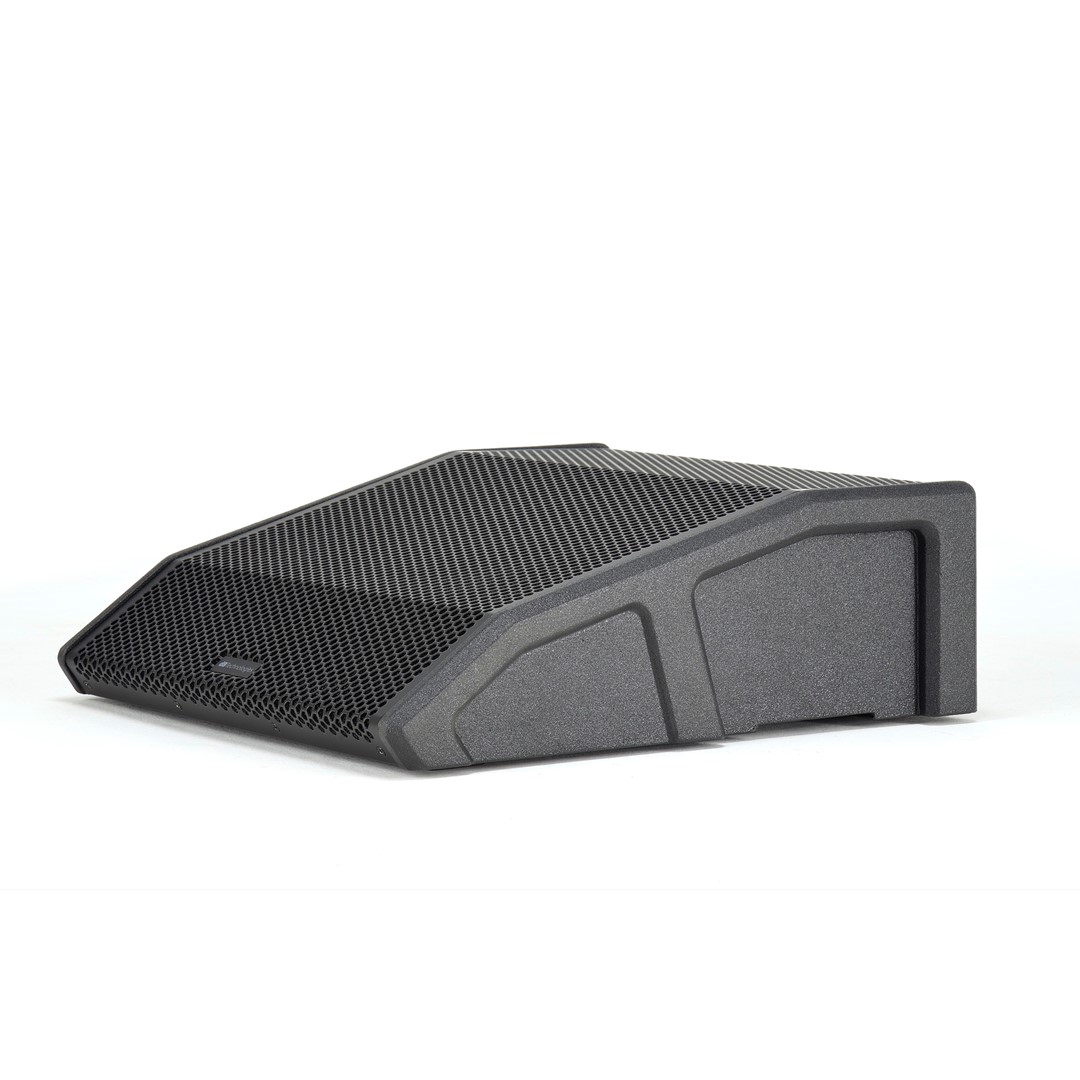

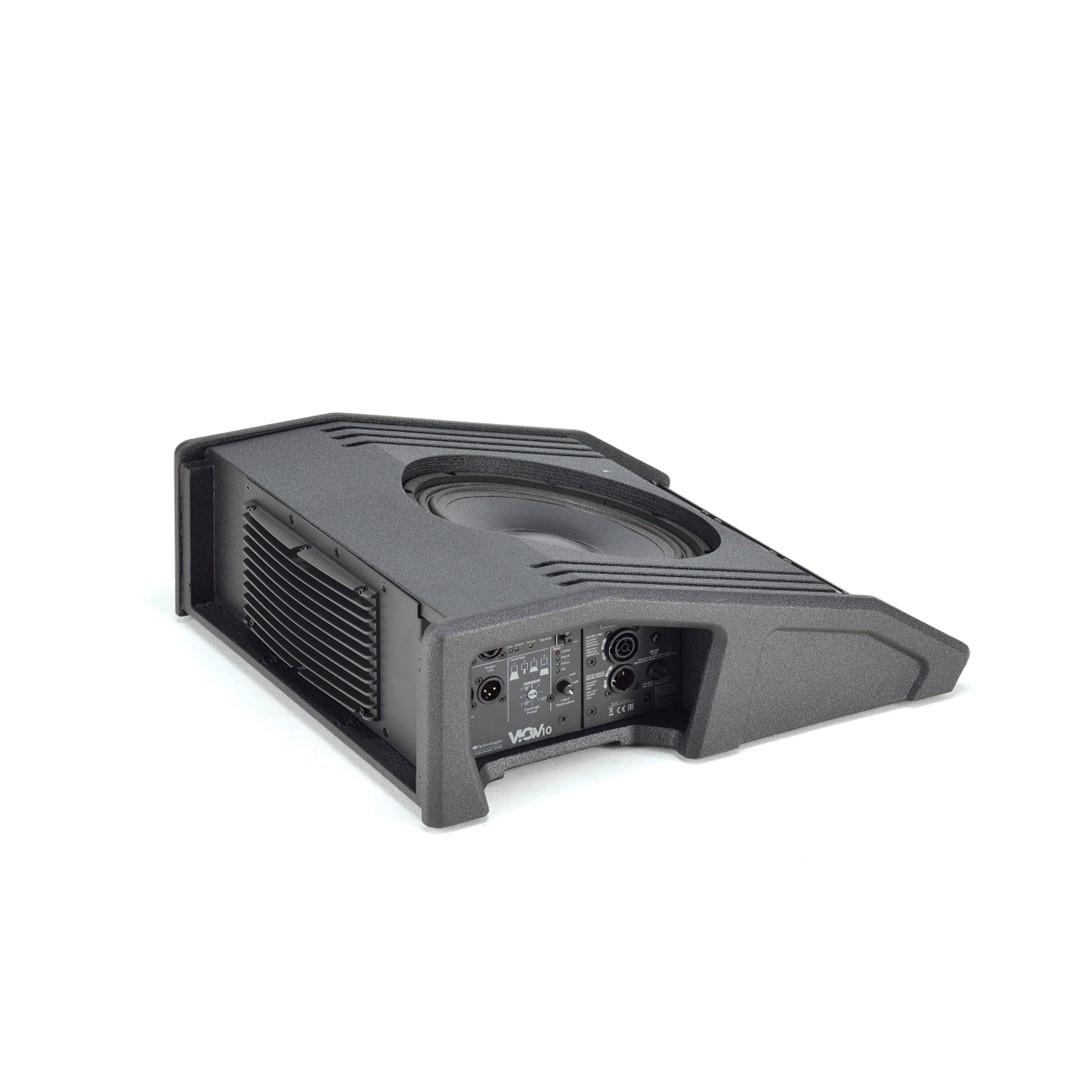

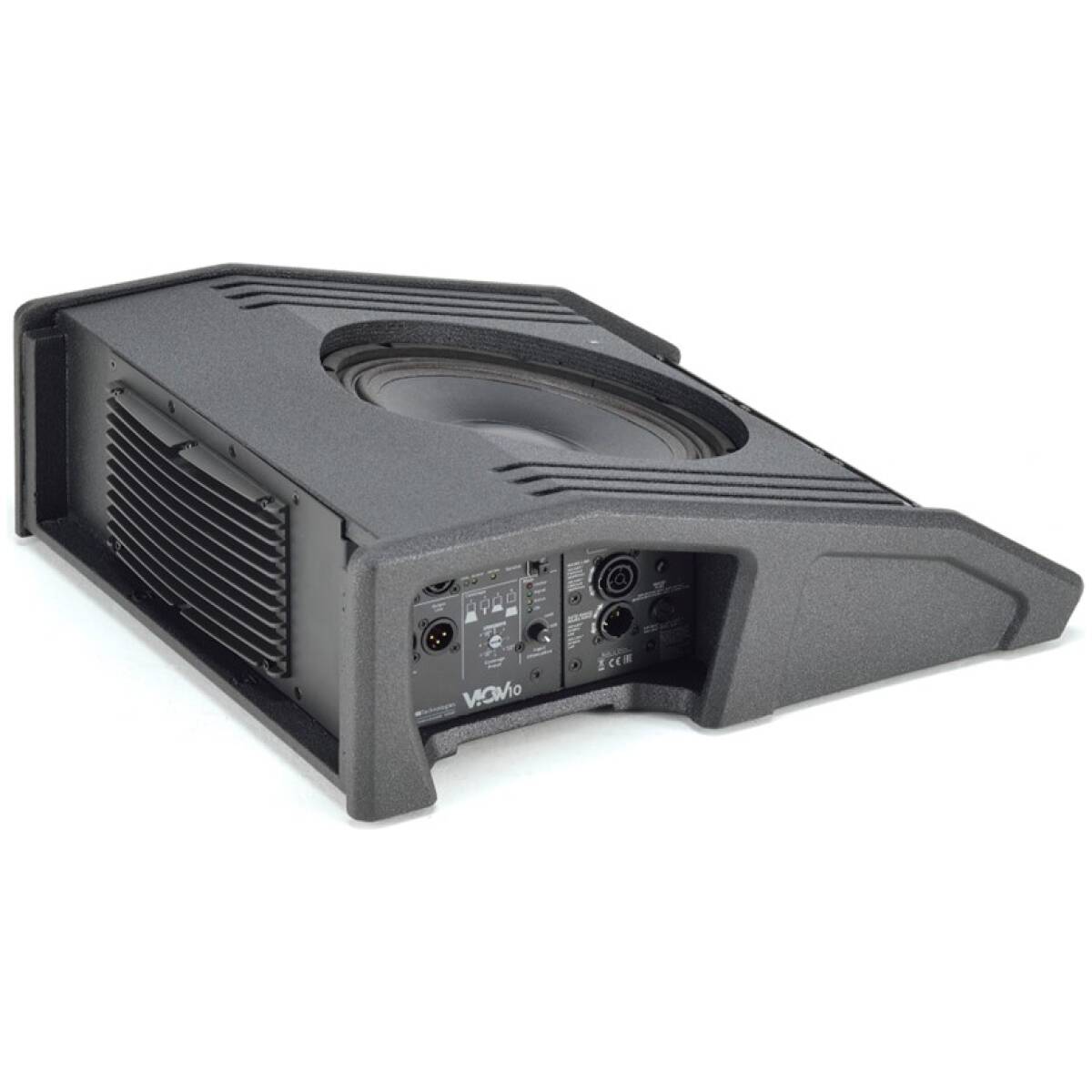

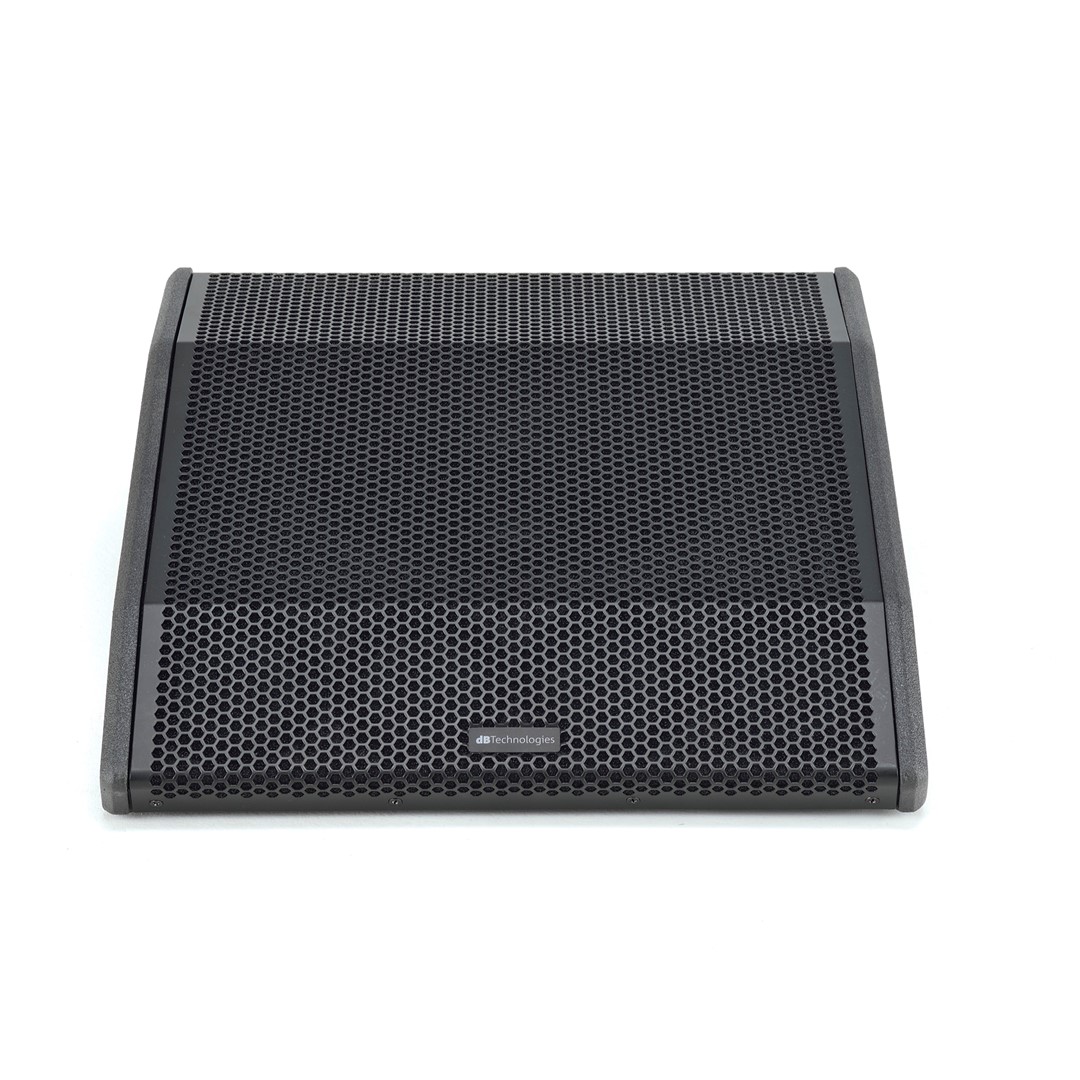

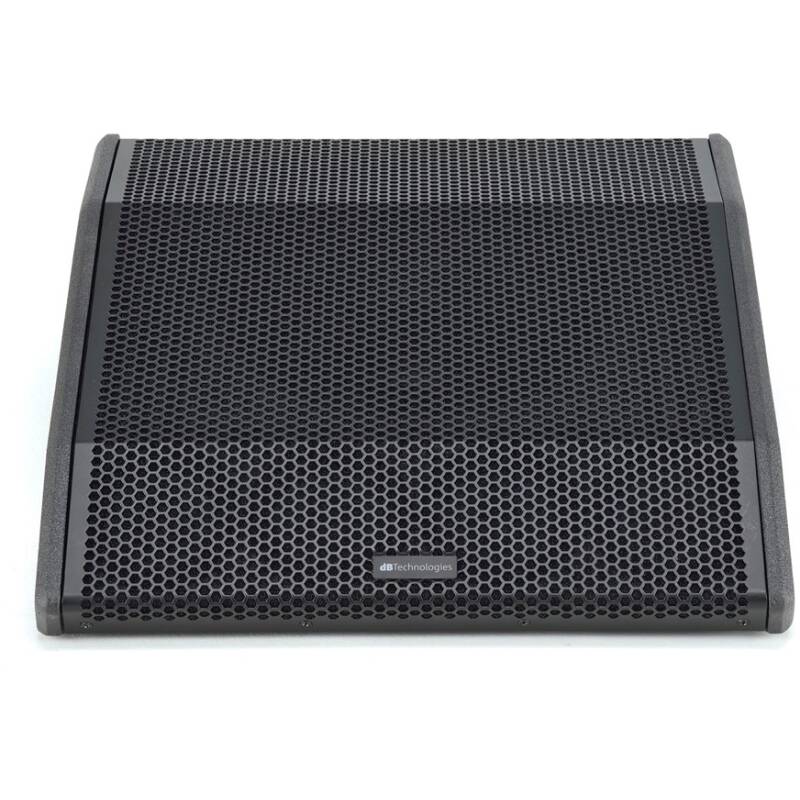

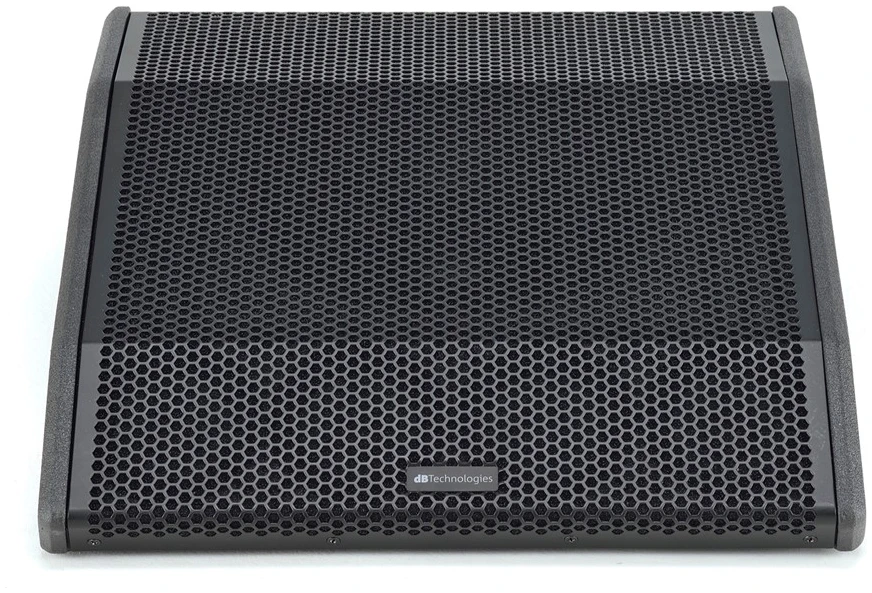

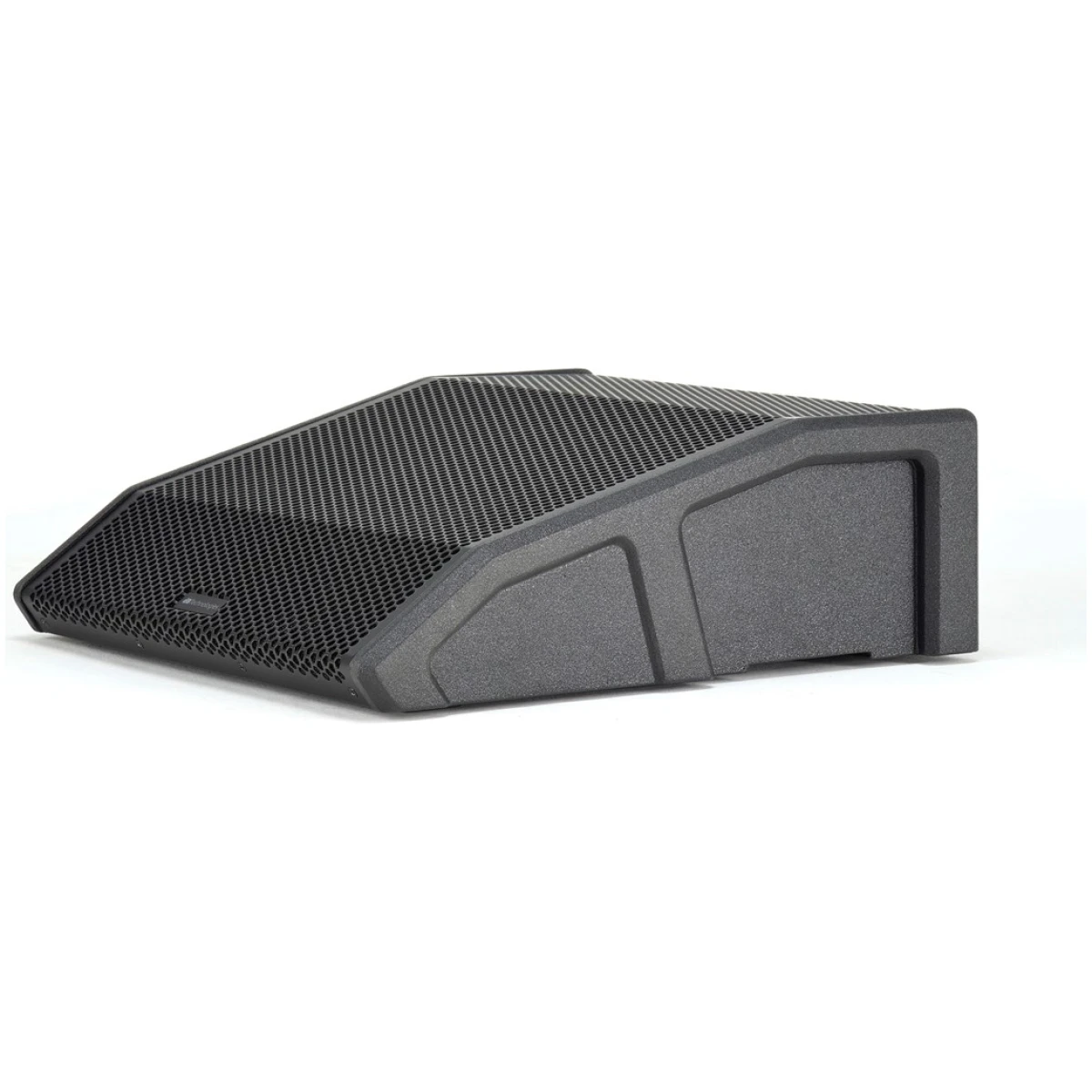

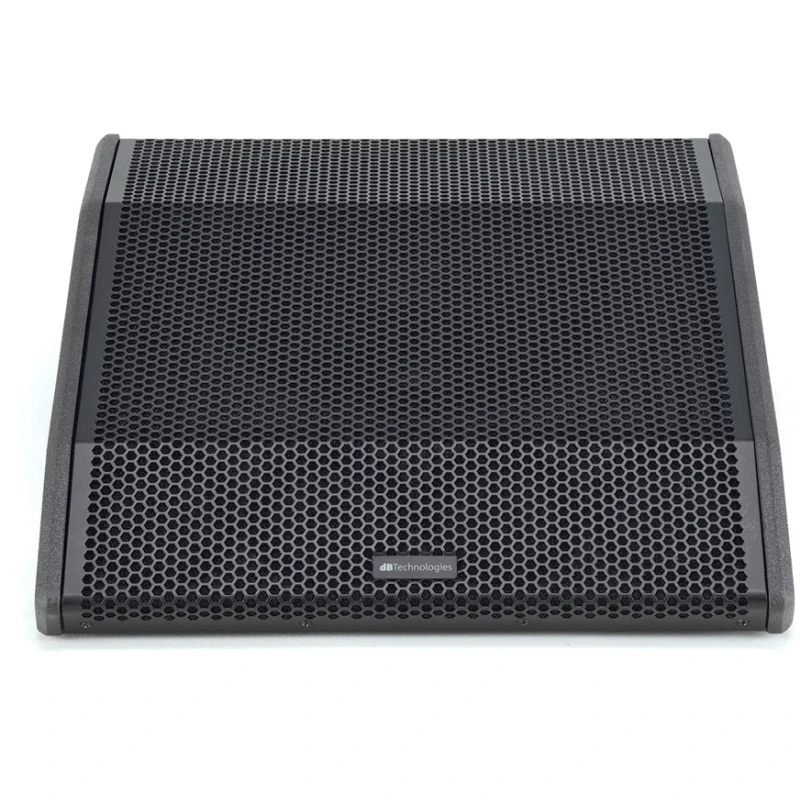

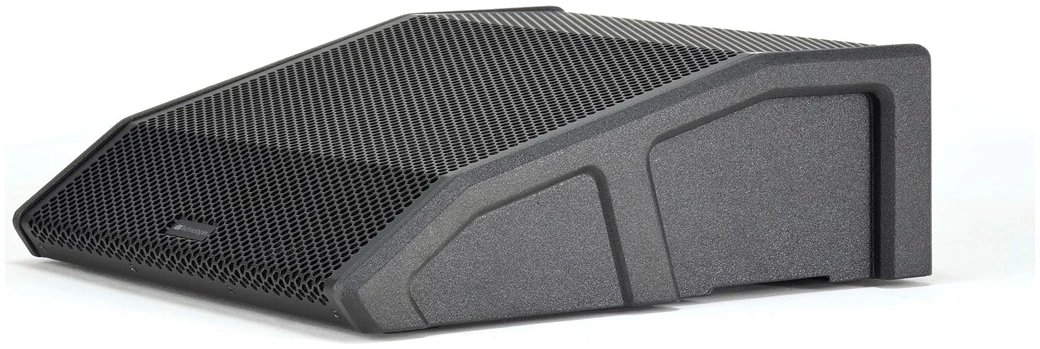

The dB Technologies VIO W10 is a compact 2-way active system designed for use as a high-performance stage monitor or a flexible front-fill/line array module. Powered by a Digipro G4 Class-D amplifier with advanced DSP and FIR filters, it delivers precise, powerful sound and seamless integration with VIO systems.
Features:
• 2-Way Active Stage Monitor / Line Array Module
• High-Efficiency Class-D Digipro G4 Amplifier
• 900 W RMS (1800 W Peak) Output Power
• Advanced DSP with FIR Phase-Linear Processing

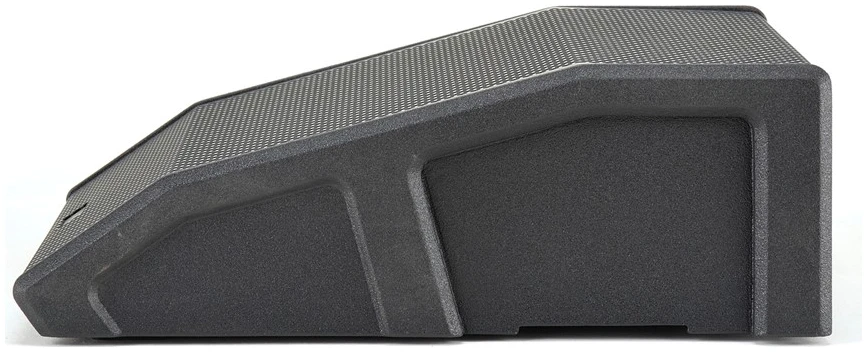

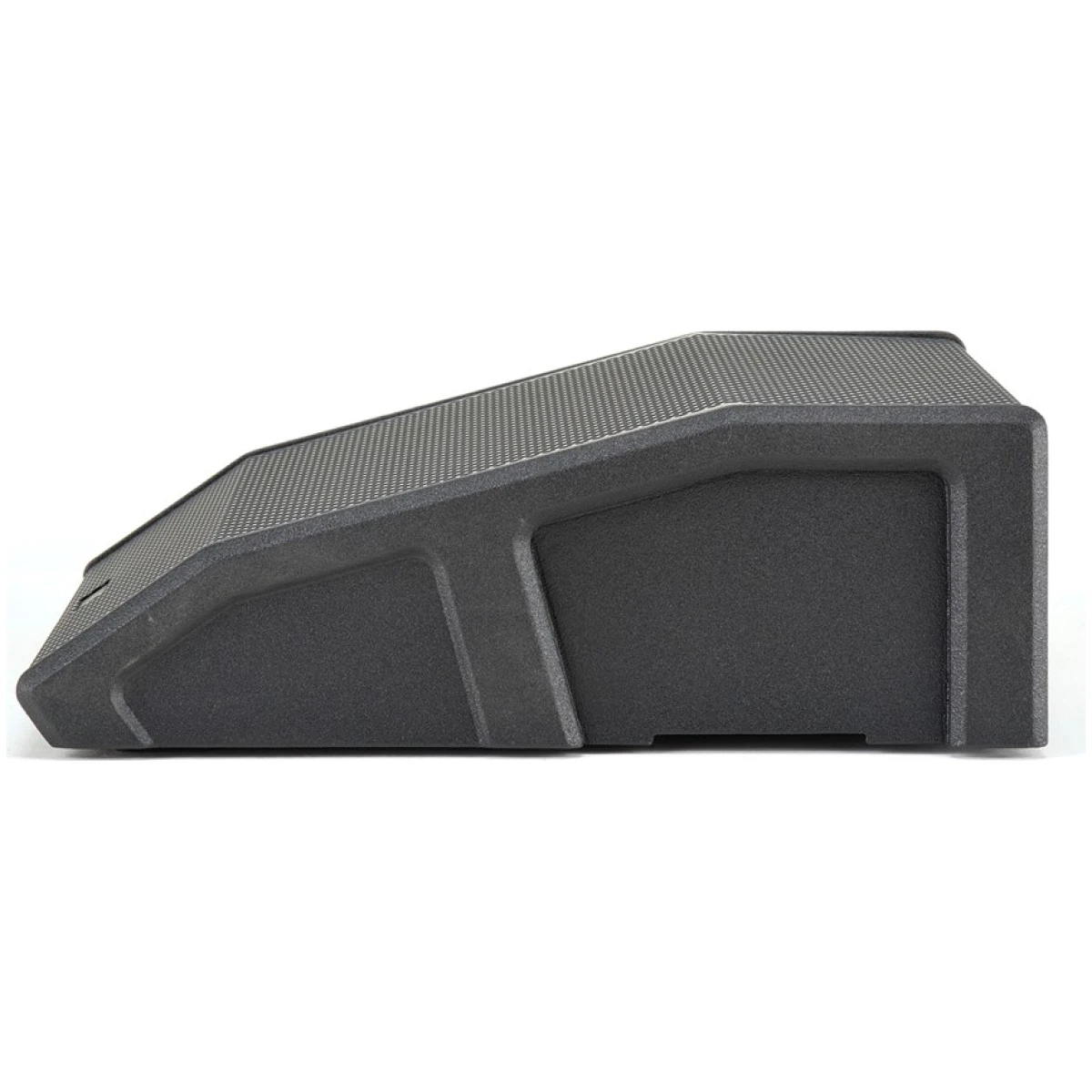

• Dual-Angle Enclosure for Monitoring or Front Fill Use
• RDNet Network Control with Dante Option
• Rugged 15 mm Birch Plywood Construction with Polyurea Coating
• Flyable, Stackable, and Compact Design
Specifications:
• Type: 2-Way Active Speaker
• Frequency Response: 60 Hz – 20 kHz (-6 dB)
• Maximum SPL: 131 dB
• Amplifier Power: 900 W RMS / 1800 W Peak
• Amplifier Type: Class-D Digipro G4®
• Transducers:

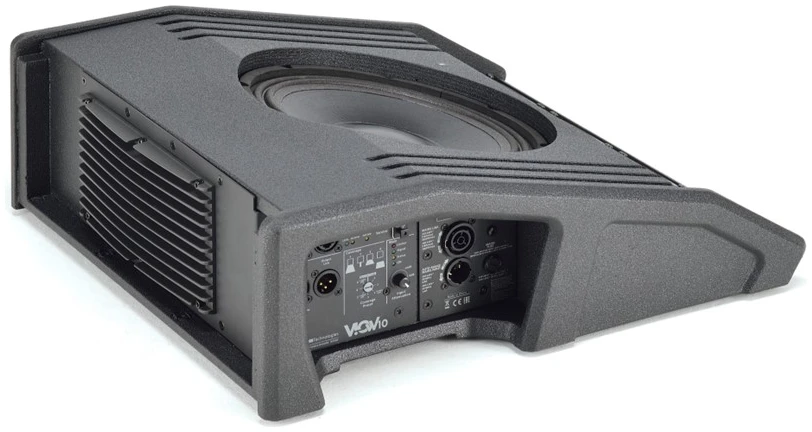

– LF: 1 × 10″ Neodymium Woofer (2.5″ VC)
– HF: 1 × 1.4″ Neodymium Compression Driver (2.5″ VC)
• Crossover Frequency: 1.8 kHz (FIR Filters)
• Coverage: 60° × 90° (Rotatable Horn)
• Processing: 32-bit / 96 kHz DSP with RDNet + Dante (optional)
• Magnet Type: Neodymium (LF/HF)
• Cabinet Material: 15 mm Birch Plywood with Polyurea Finish

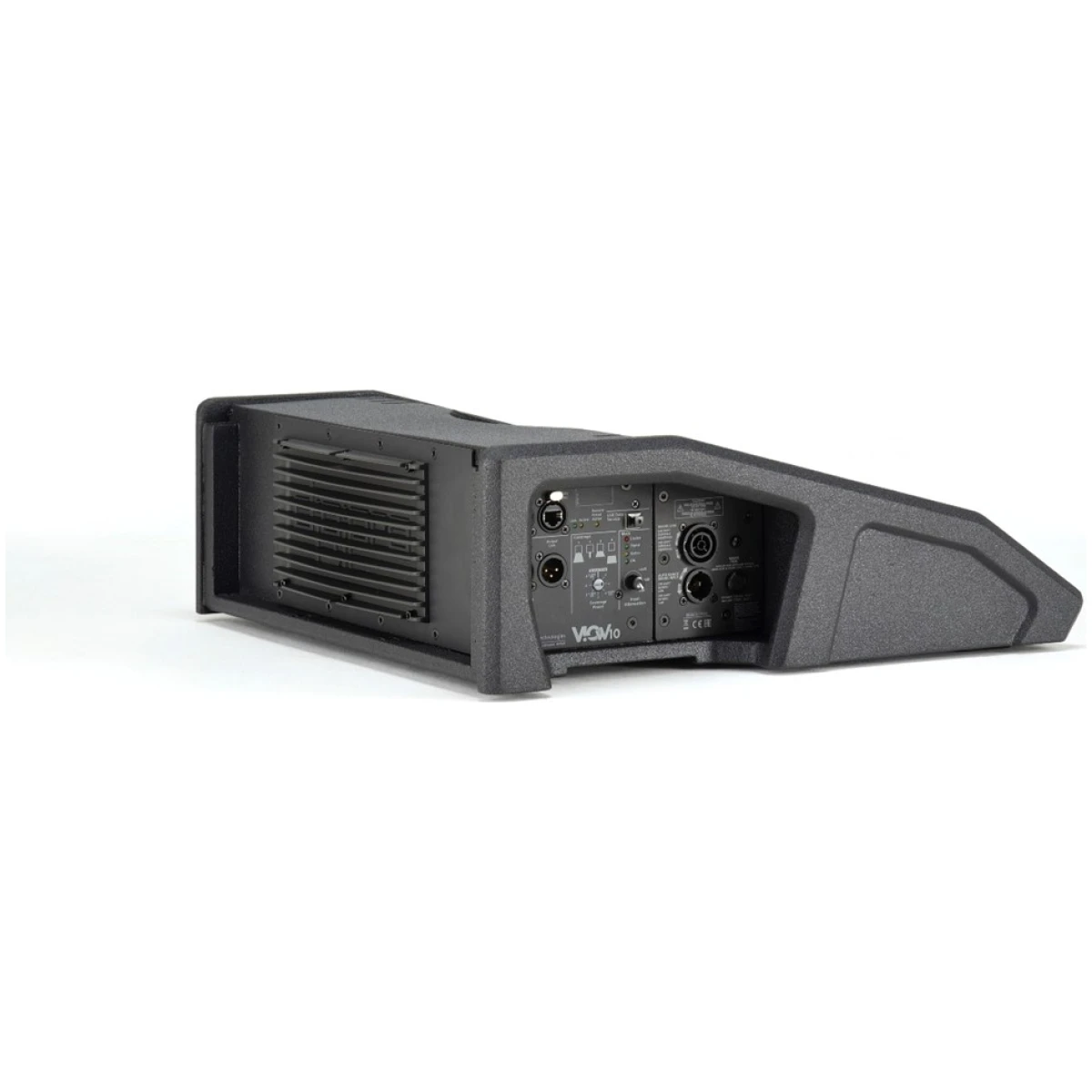

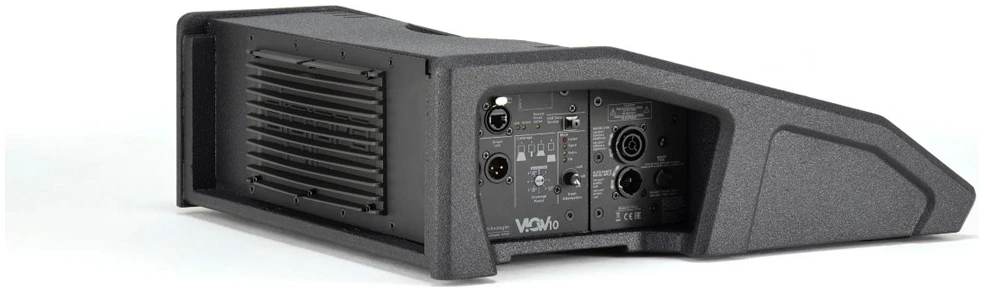

• Connectors: PowerCON TRUE1, XLR In/Out, RDNet Ports
• Mounting: Integrated Rigging and Wedge Angles (25° / 45°)
