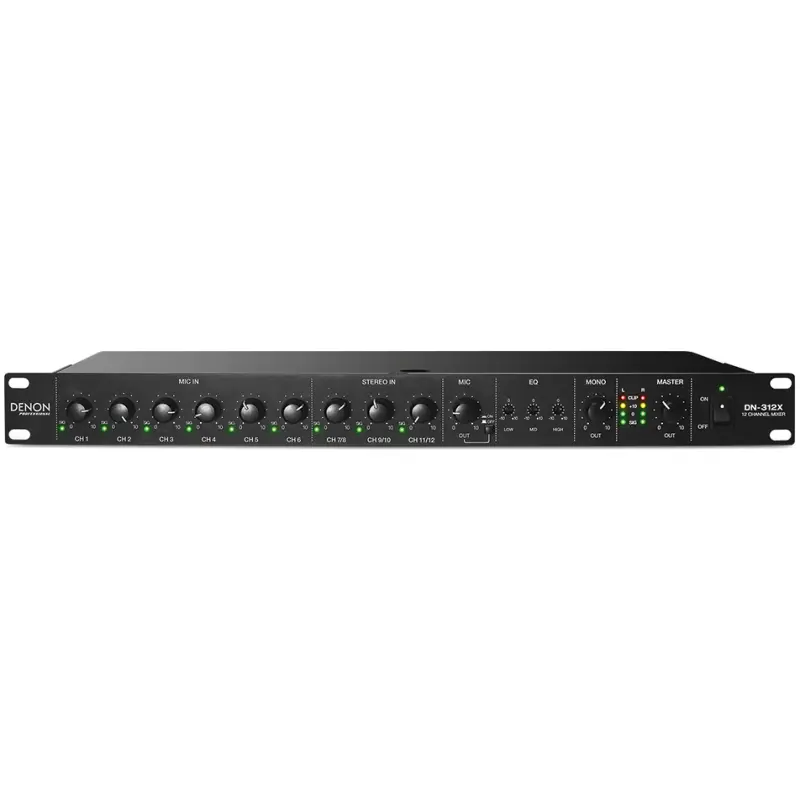

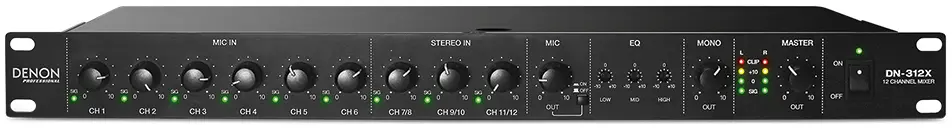

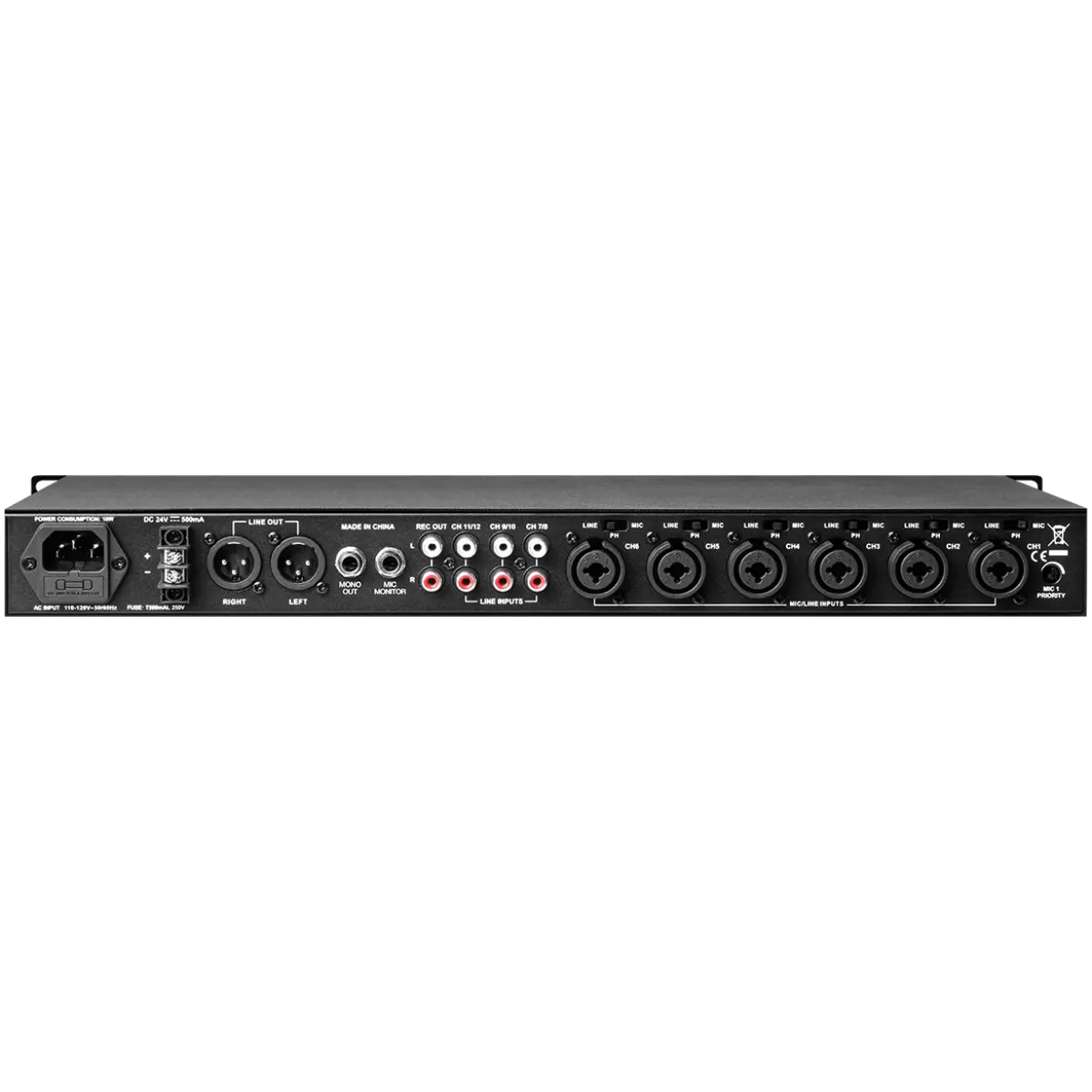

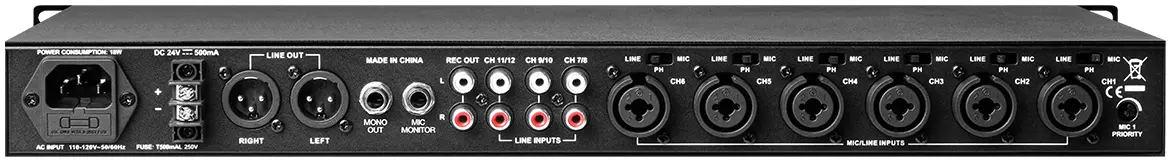

The DN-312X is a 1U rack-mounted 12-channel mixer that can solve countless audio challenges. It features 6 mic/line combination inputs (HDHQ™ Denon-Marantz proprietary mic pre’s) each with switchable phantom power and 6 additional line-level inputs. It has balanced XLR outputs, a 1/4-inch (6.3mm) mono output that can be used to connect the DN-312X to a remote mixer, a pair of RCA stereo outputs to connect to a remote recording device, and 1/4-inch (6.3mm) mic monitoring port that can be used to monitor the mics’ signals. The DN-312X provides individual level control for all inputs in addition to level control for the mono output port and a master level control. Rounding off the feature set, It has a 3-level equalizer and a controlled priority for Mic/Line 1. It can be powered from standard AC or a 24V DC power source, inviting it to be used in a variety of applications; everything from a classroom to a tour bus.
-
-
Input Channels
-
Microphone Input:
- 6 Balanced XLR Connectors (Channels 1–6)
-
Frequency Response:
- 20 Hz – 22 kHz
-
THD+N:
- < 0.03% @ 1 kHz
-
Sensitivity:
- -40 dBu
-
Maximum Input:
- -19 dBu
-
Maximum Voltage Gain:
- 60 dB (Mic Input to Line Out, Mic Out & Mono Out)
- 50 dB (Mic Input to Rec Out)
-
Signal-to-Noise Ratio:
- > 103 dB
-
Phantom Power:
- 18–21 V, switch control
-
Line Inputs:
- 6 Balanced XLR Connectors (Channels 1–6)
-
Frequency Response:
- 20 Hz – 22 kHz
- 20 Hz – 22 kHz
-
THD+N:
- < 0.03% @ 1 kHz
-
Sensitivity:
- 0 dBu
-
Maximum Input:
- +21 dBu
- +21 dBu
-
Maximum Voltage Gain:
- 20 dB (Mic Input to Line Out, Mic Out & Mono Out)
- 10 dB (Mic Input to Rec Out)
- 10 dB (Line Input to Line Out)
- 0 dB (Line Input to Rec Out)
- 4 dB (Line Input to Mono Out)
-
Signal-to-Noise Ratio:
- > 103 dB
- Stereo Balanced RCA Connectors (Channels 7/8-11/12)
-
THD+N:
- < 0.03% @ 1 kHz
-
Sensitivity:
- +10 dBu
-
Signal-to-Noise Ratio:
- > 103 dB
-
Impedance:
-
Mic/Line Input:
- 1.4 kΩ
-
Line Input:
- > 10 kΩ
-
All Outputs:
- 120 Ω
-
-
-
Equalizer
-
High:
- +15 dB @ 12 kHz
-
Mid:
- +12 dB @ 2.5 kHz
-
Low:
- +15 dB @ 80 Hz
-
-
Crosstalk
-
Adjacent Inputs:
- < -70 dB @ 1 kHz (Channels 1–6)
- < -68 dB @ 1 kHz (Channels 7/8–11/12)
-
Input to Output:
- < -82 dB @ 1 kHz
-
-
Main MixOutput
-
Line Output:
- 0 dBu (+2 dBu), balanced
-
Mic Output, Mono Output:
- 0 dBu (+2 dBu), unbalanced
-
Maximum Output:
- +21 dBu balanced/unbalanced, 1/4” (6.35 mm) jacks
-
Noise (Bus):
- < -83 dB @ 20 Hz – 22 kHz
-
-
General
-
Power connection:
- IEC
-
Input Voltage:
- 100V~, 110-120V~, 50/60Hz; 220-240V~, 50/60Hz or DC24V
-
Dimensions (width x depth x height):
- 19.0” x 7.7” x 1.7” (483 x 195 x 44 mm)
-
Weight:
- 6.4 lbs (2.9 kg)
-
-
