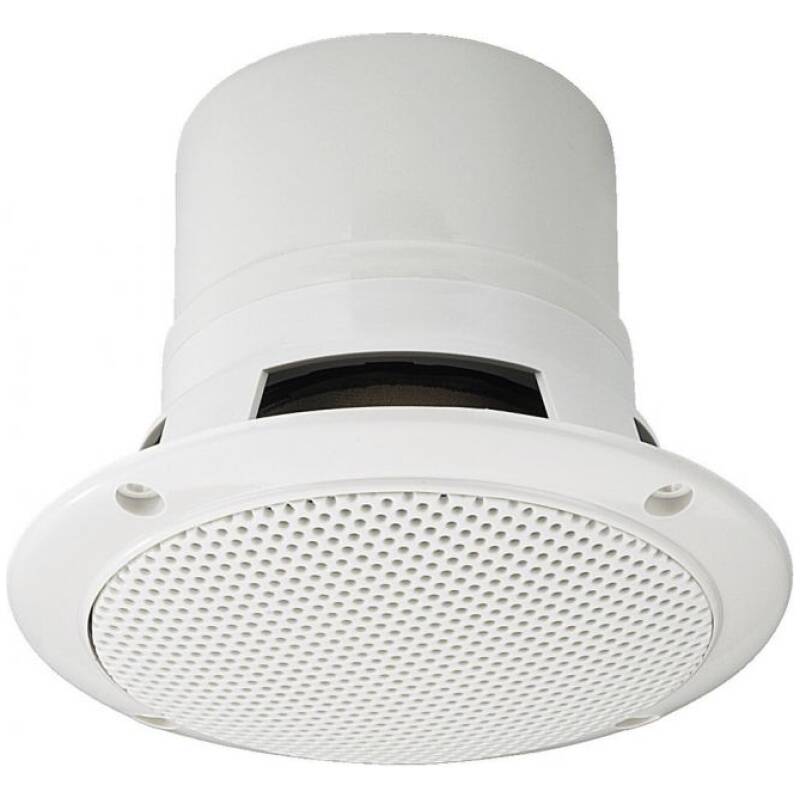

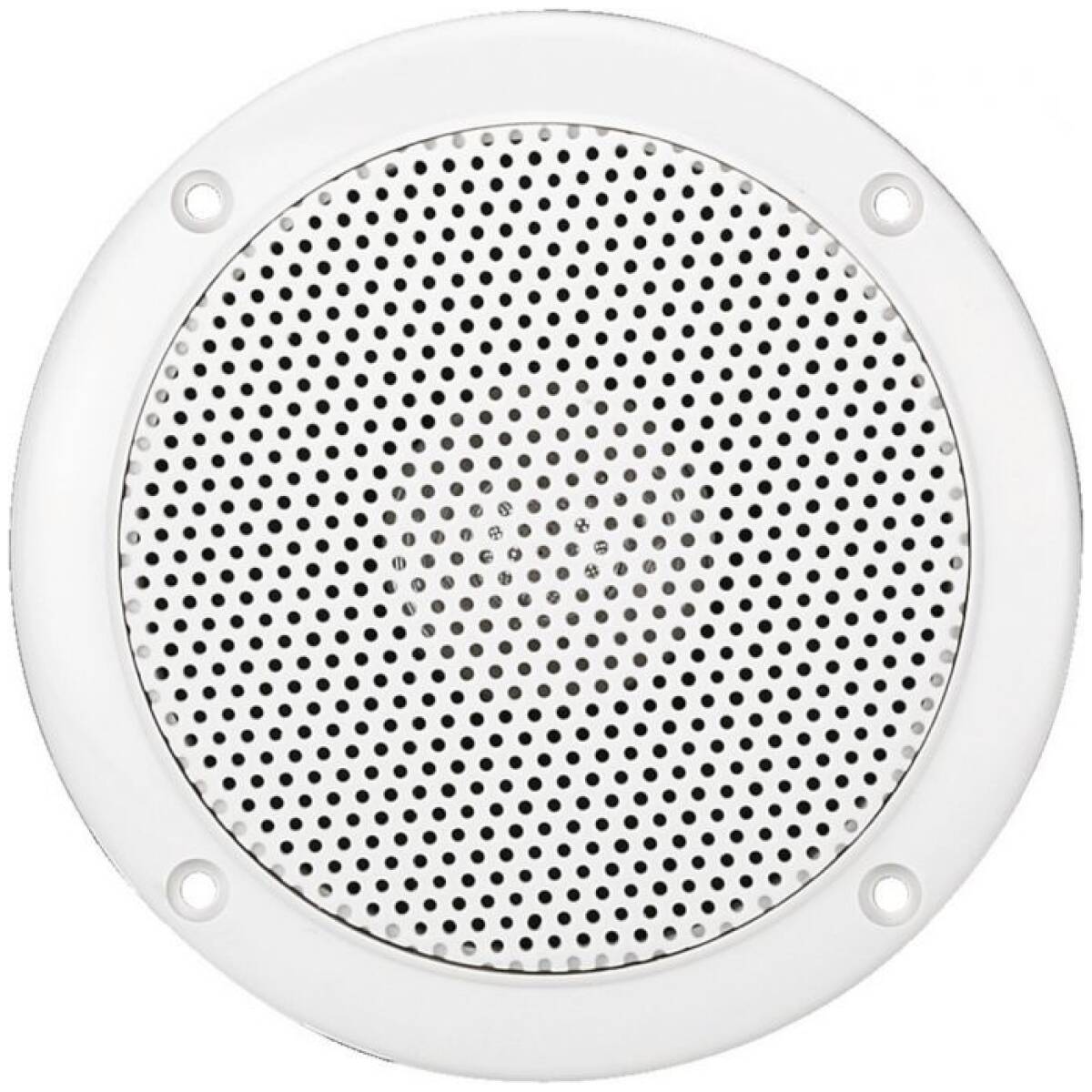

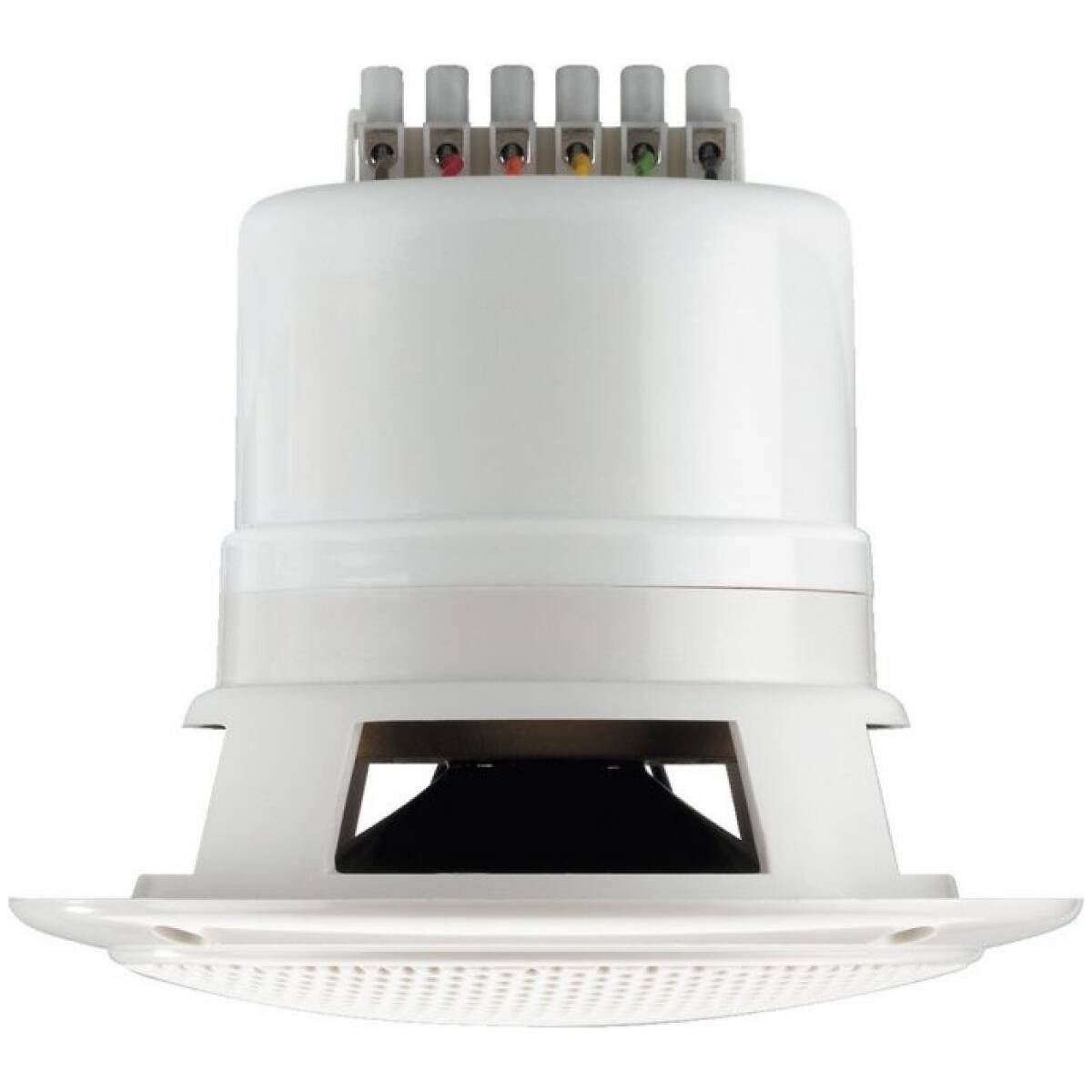

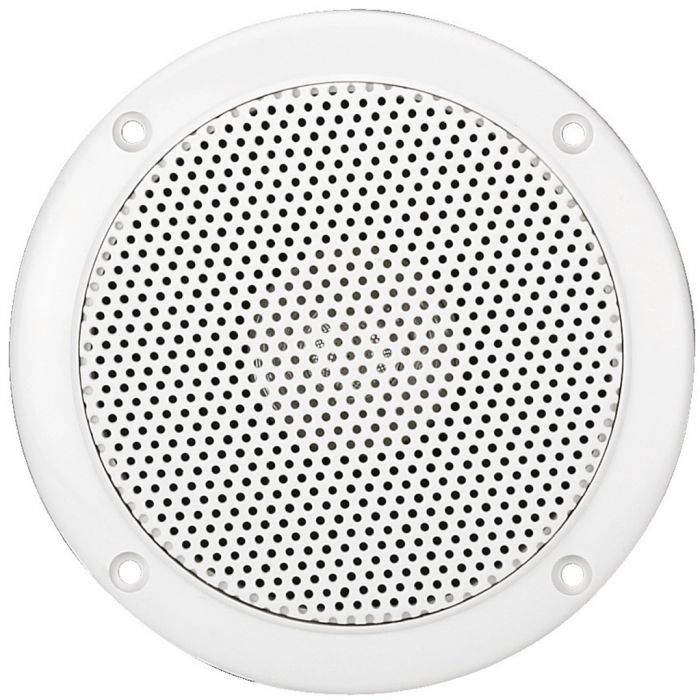

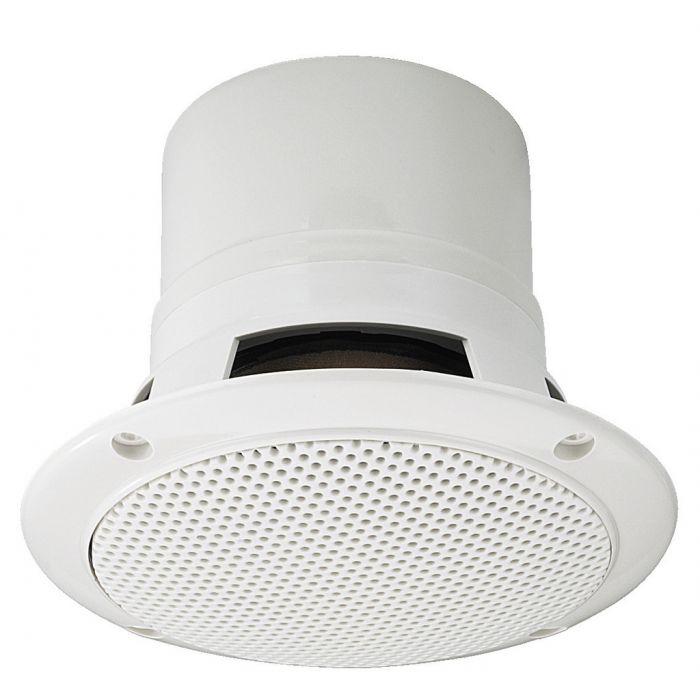

Monacor EDL-204 Ceiling Speaker

The Monacor EDL-204 is a high-quality 100 V ceiling speaker designed for clear and balanced sound reproduction in commercial, public, and professional installations. Ideal for background music and speech in offices, retail spaces, hotels, and restaurants, this compact unit delivers reliable audio performance with elegant flush-mount design and easy installation.

Key Features:

• 100 V Line Speaker – Designed for distributed audio systems with multiple zones.

• Compact Dual-Cone Design – Ensures full-range sound with excellent speech intelligibility.

• Multiple Power Taps – Selectable output levels for flexible system integration.

• Metal Ceiling Frame with Protective Grille – Durable and discreet for professional installations.

• Spring-Clamp Mounting System – Enables quick and secure ceiling installation.

• Wide Dispersion Angle – Provides even sound coverage in large or open spaces.

Specifications:

• Type: 100 V Ceiling Speaker

• Power Taps: 6 W / 3 W / 1.5 W

• Driver Configuration: 130 mm (5.25″) Dual-Cone Speaker

• Frequency Response: 90 Hz – 18 kHz

• Sound Pressure Level: 90 dB (1 W/1 m)

• Dispersion Angle: 150°

• Transformer Impedance: 1.6 kΩ / 3.3 kΩ / 6.6 kΩ

• Material: Metal grille, plastic baffle

• Color: White (RAL 9016)

• Mounting Cut-out: Ø 170 mm

• Dimensions (Ø × D): 195 × 70 mm
