| Frequency Response (-3 dB) | 55 Hz – 18 kHz¹ |
| Frequency Range (-10 dB) | 48 Hz – 20 kHz¹ |
| Maximum SPL | 134 dB² |
Specifications |
|
| Coverage (H x V) | 90″ x 60″ |
| Power Rating | 1500 W |
| LF Transducer | EVS-15M 381 mm (15 in) |
| HF Transducer | DH-1M 1-inch titanium compression driver |
| Crossover Frequency | 1.7 kHz |

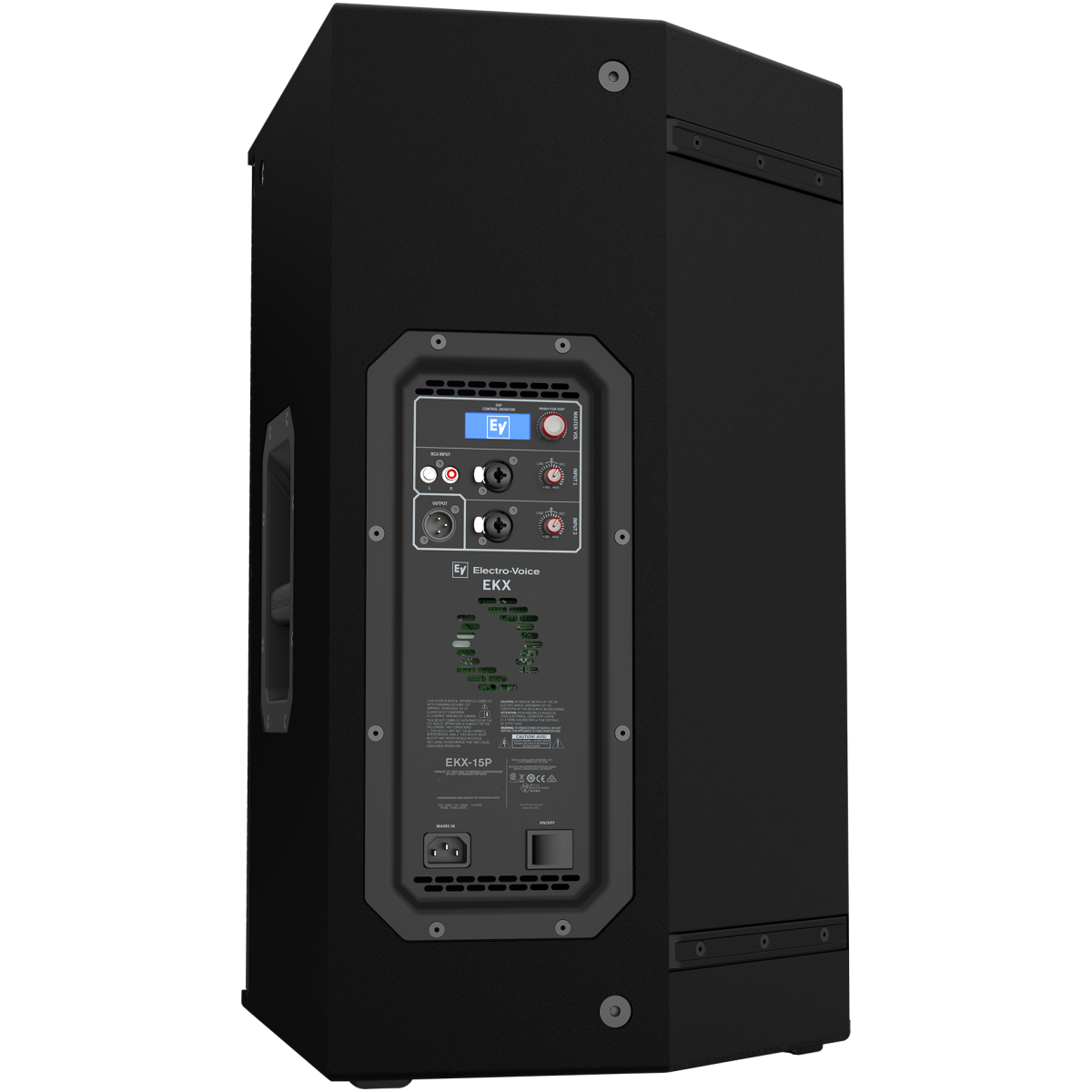

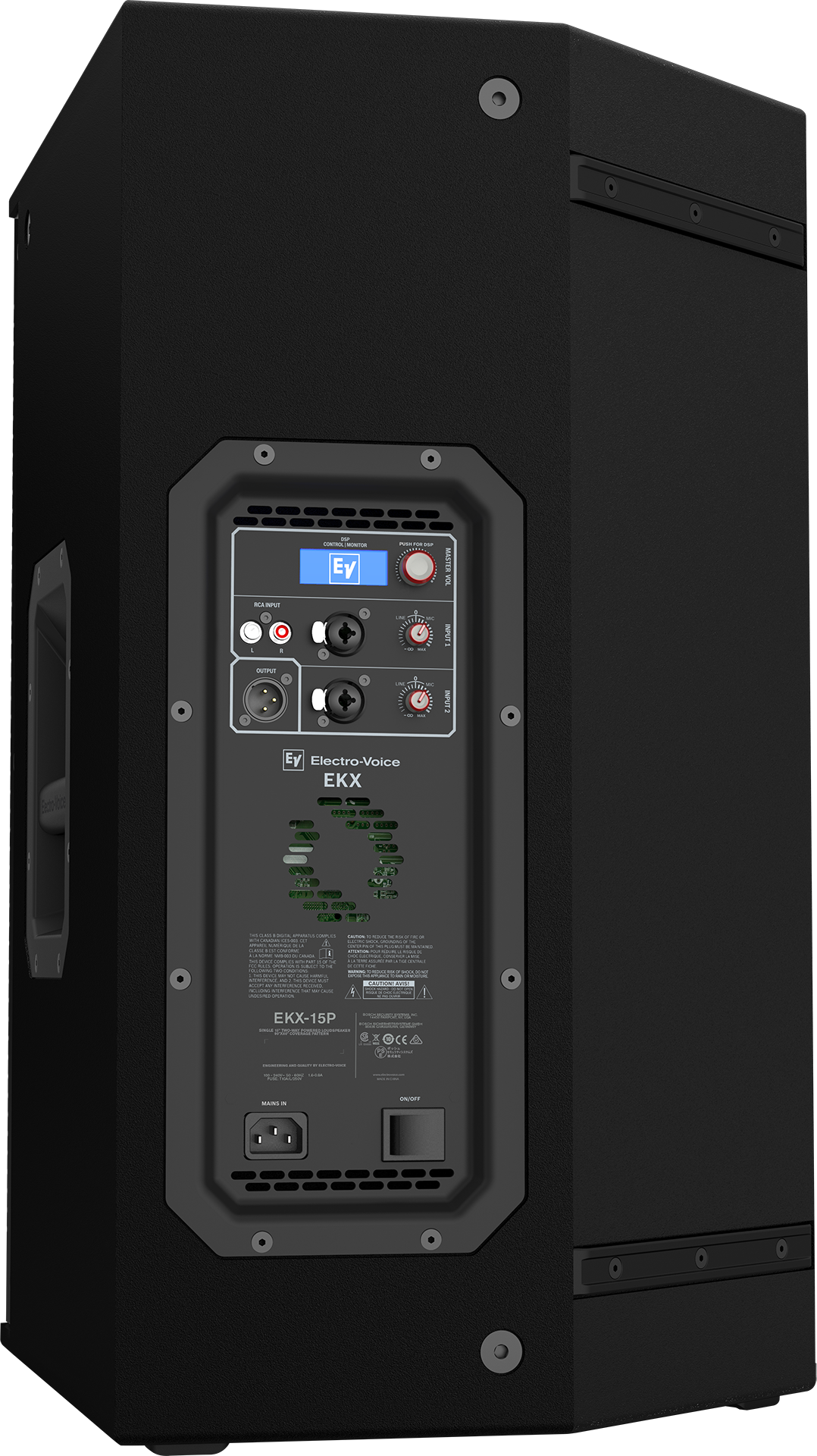

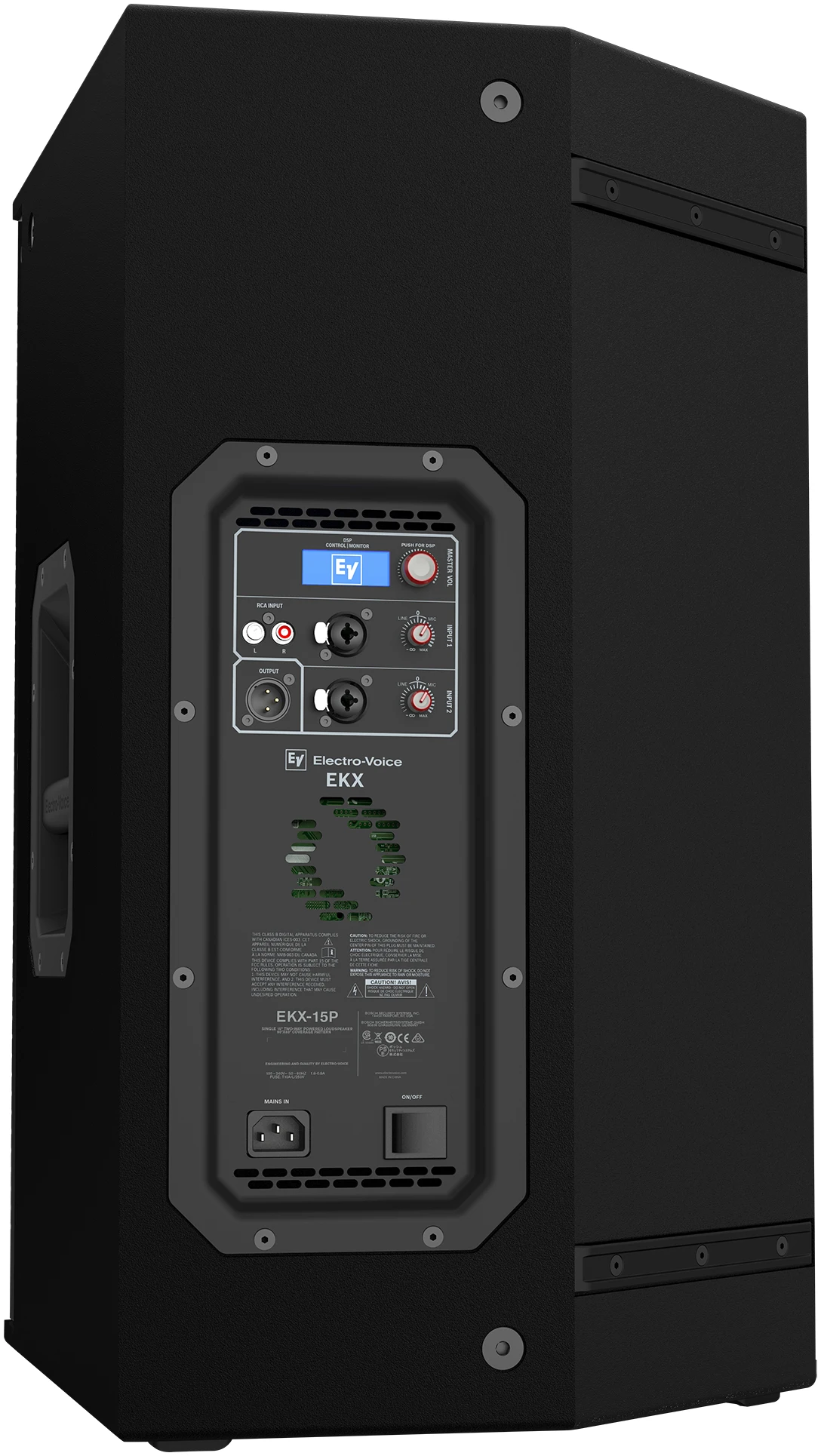

| Connectors | (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output |
| Enclosure | 15 mm plywood with EVCoat |

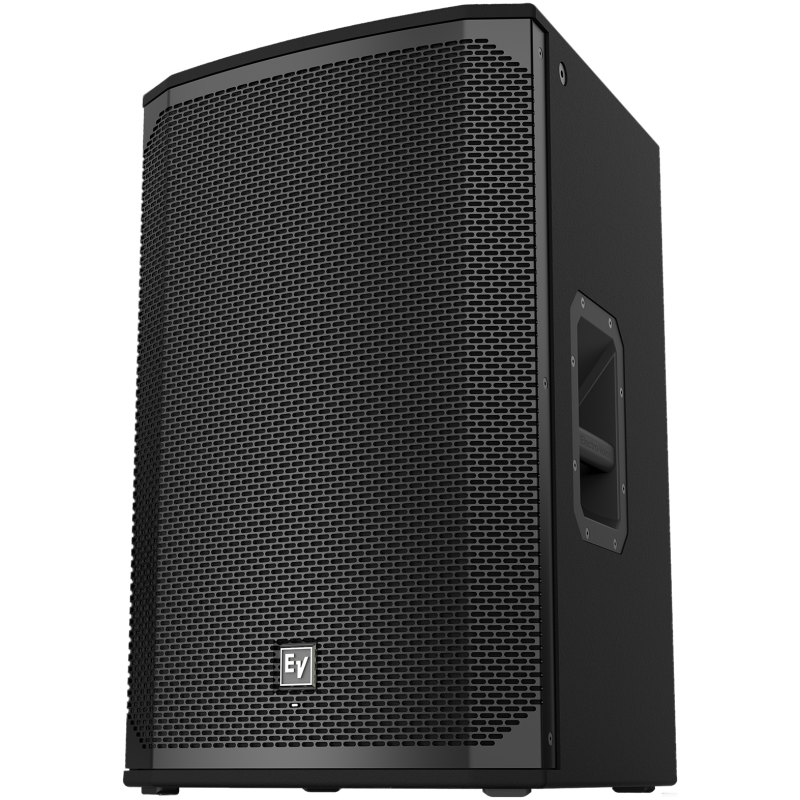

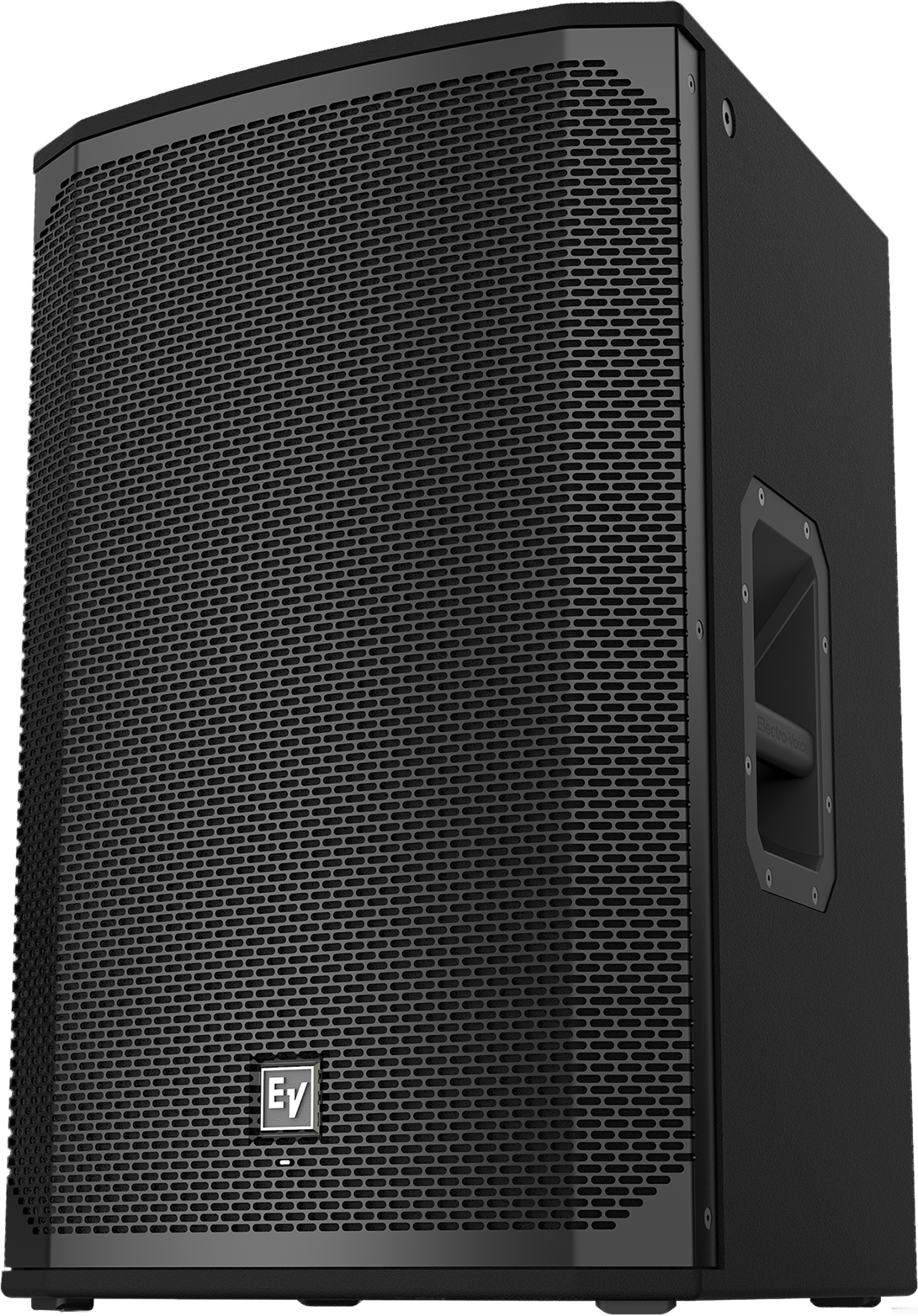

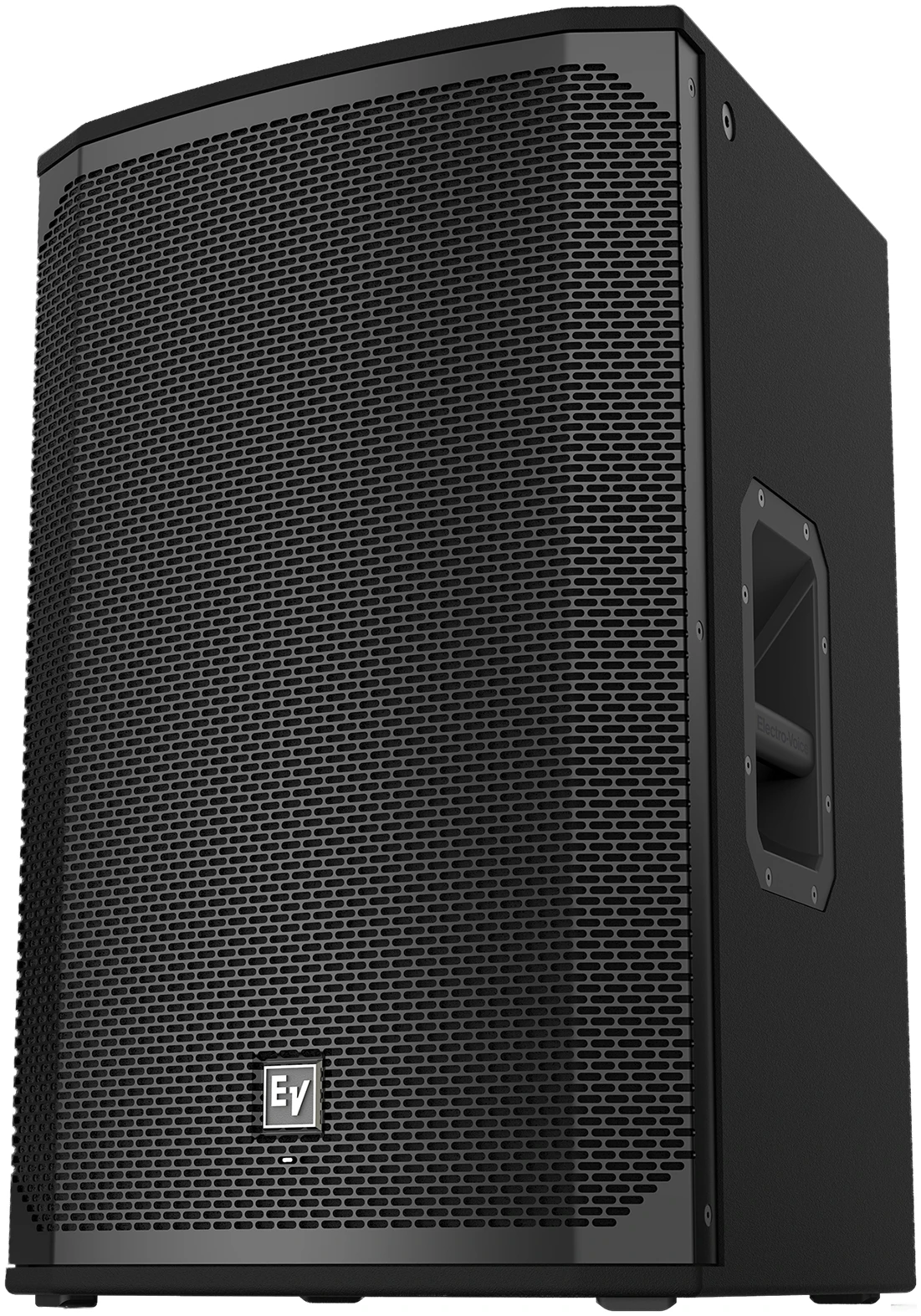

| Grille | 18 AWG steel with powdercoat |

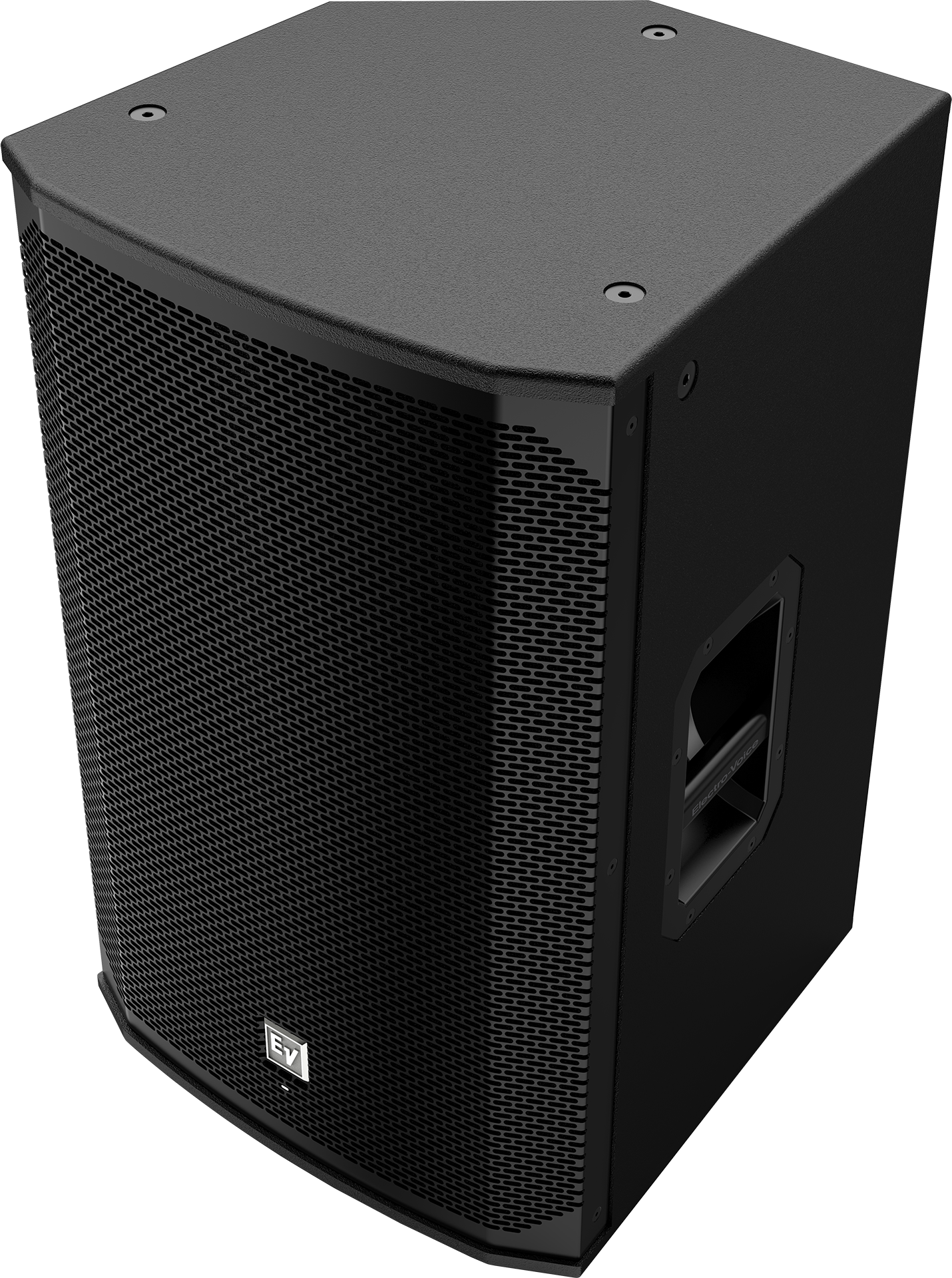

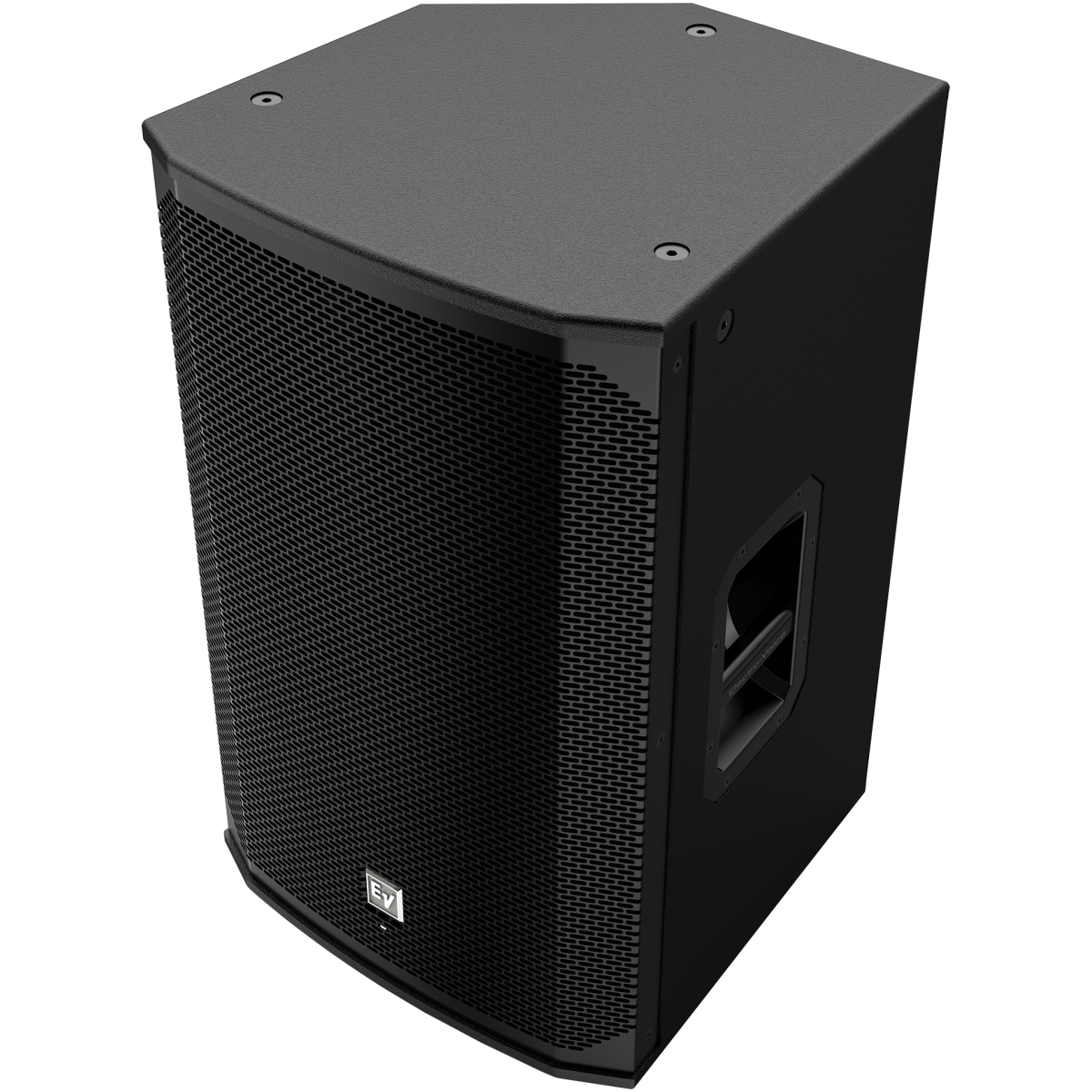

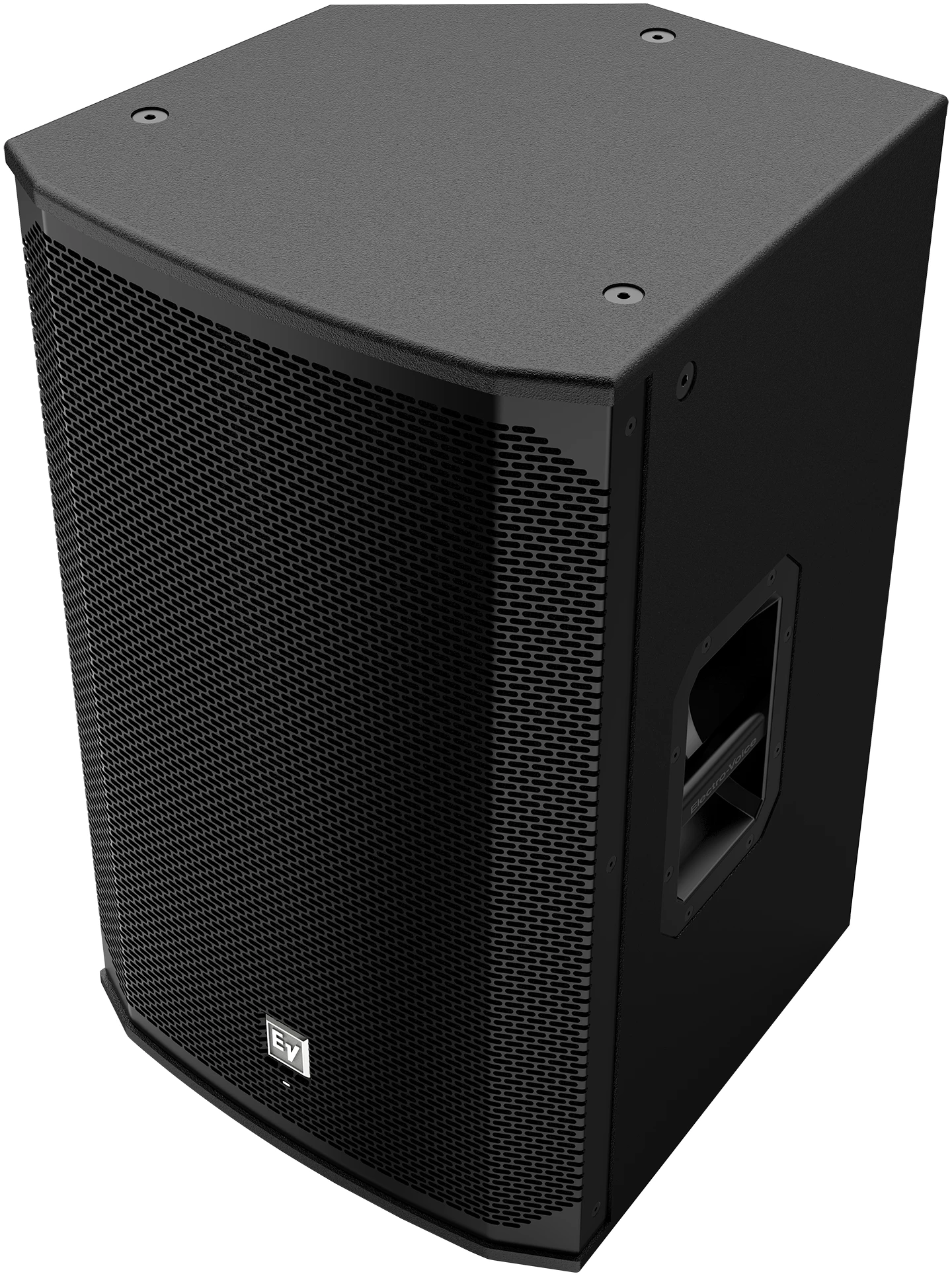

| Suspension | (8) M10 threaded mounting points |
| Dimensions (H x W x D) | 685 mm x 432 mm x 429 mm (27 in x 17 in x 17 in) |
| Net Weight | 24.4 kg (53.9 lb) |
| Shipping Weight | 29.5 kg (65.0 lb) |
| Power Consumption | 1.8 A³ |
¹ Full space measurement using the music DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.
