- EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
- QuickSmartDSP features best-in-class processing. Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
- High-efficiency 1200 W Class-D power amplifier delivers up to 130 dB peak SPL utilizing transducers designed and engineered by EV.
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.

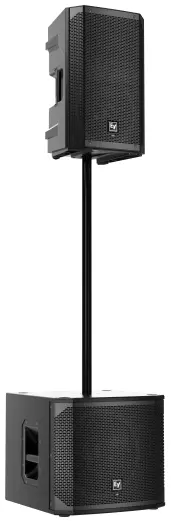

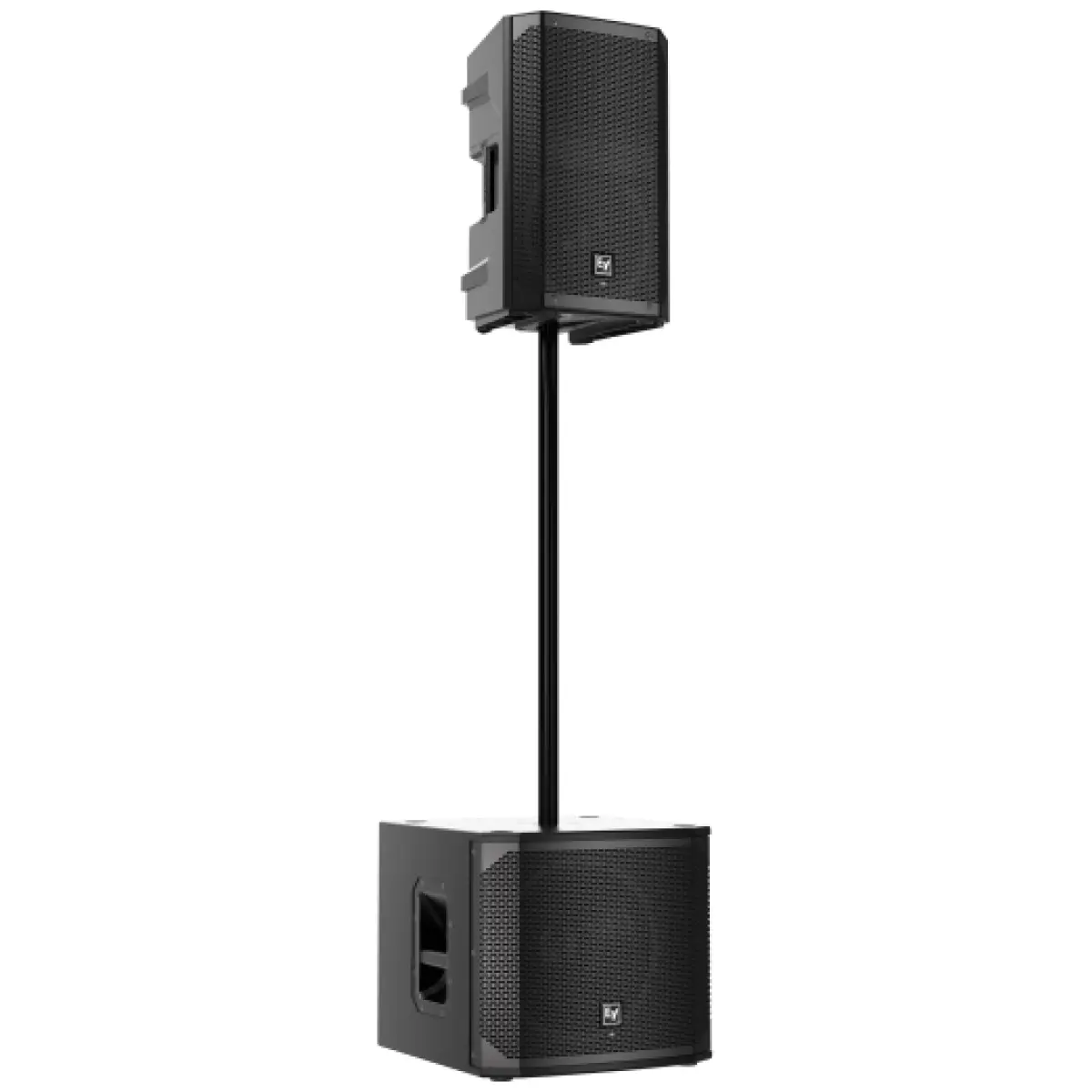

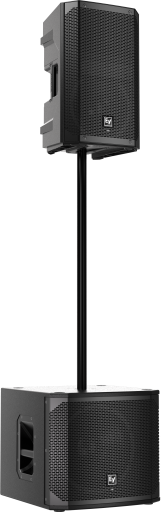

- Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.
Specifications
Frequency response (-3 dB) 59 Hz -18 kHz¹ Frequency range (-10 dB) 53 Hz – 20 kHz¹ Maximum SPL 130 dB2 Fewer Specifications

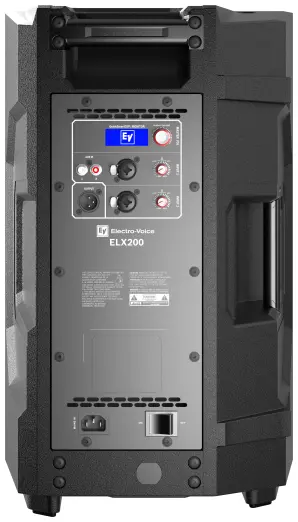

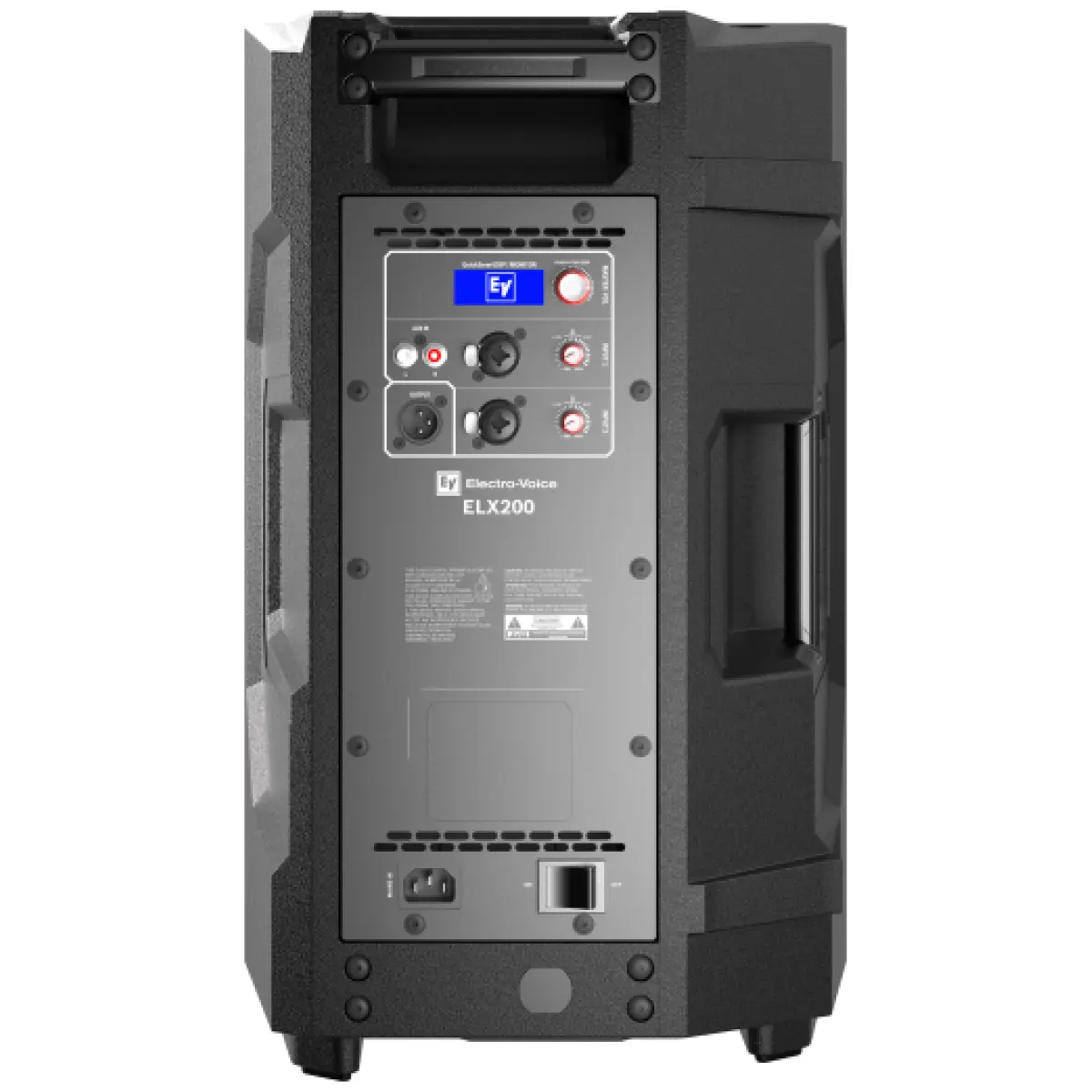

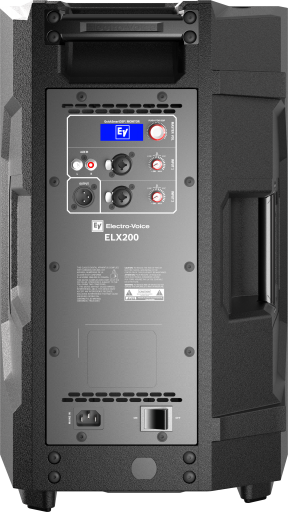

Coverage (H x V) 90˚ x 60˚ Power rating 1200 W LF transducer EVS-10M 254 mm (10 in) HF transducer DH-1L 1-inch titanium compression driver Crossover frequency 1800 Hz Connectors (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR Enclosure Polypropylene Grille 18 AWG steel with powdercoat Suspension (3) M10 suspension points Color Black or White Dimensions (H x W x D) 531 mm x 330 mm x 319 mm (21.0 in x 13.0 in x 12.6 in) Net weight 13.5 kg (29.9 lb) Shipping weight 15.6 kg (34.4 lb) Power consumption 100 – 240 V~, 50 – 60 Hz, 1.2 ~ 0.6A³ ¹ Full space measurement using music DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.

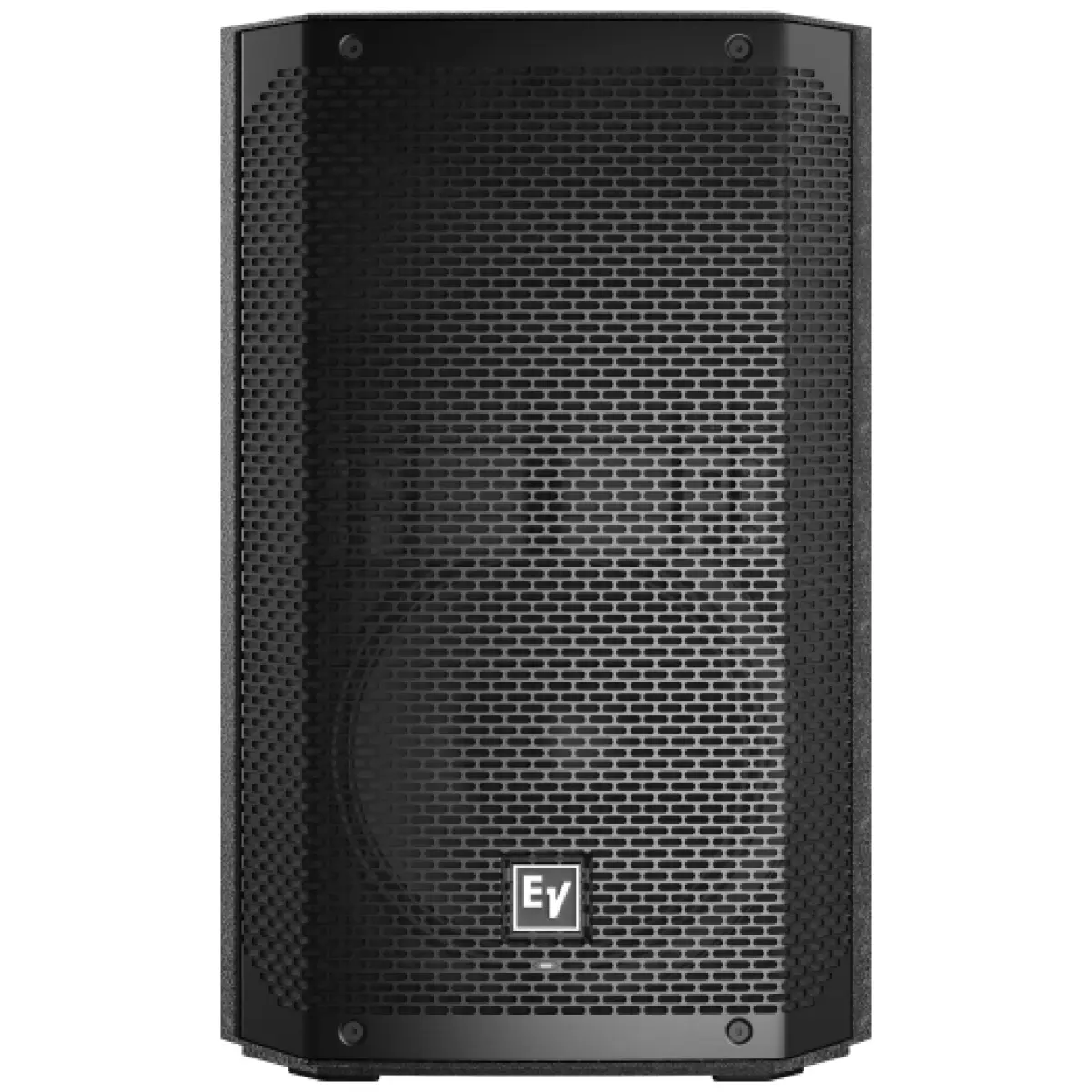

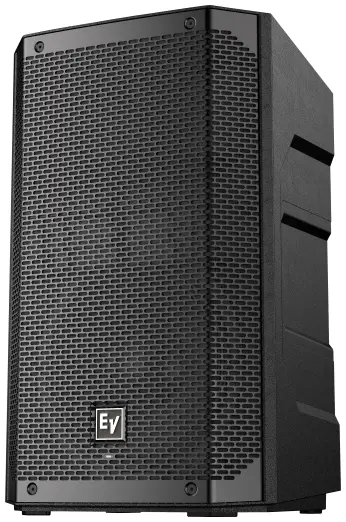

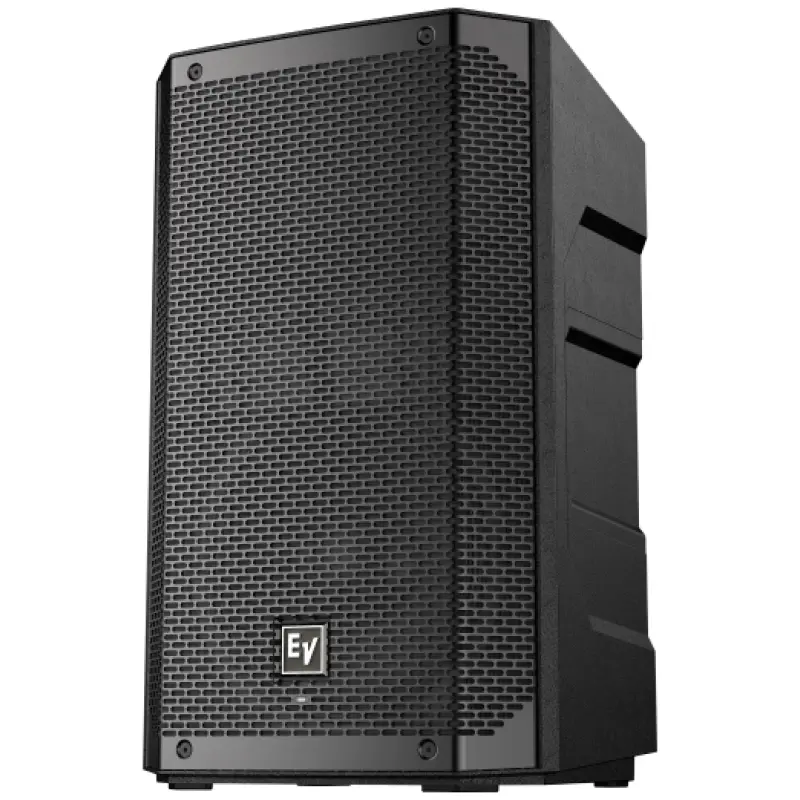

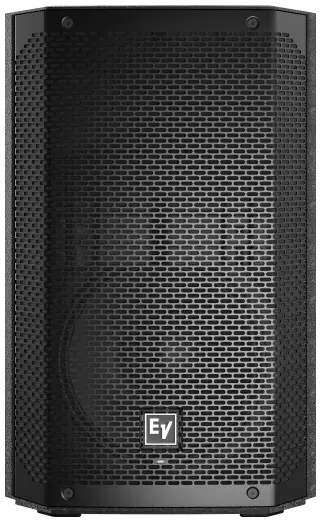

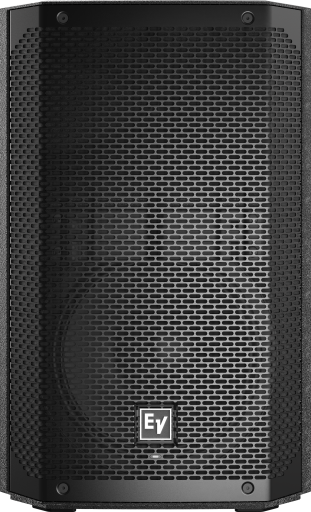

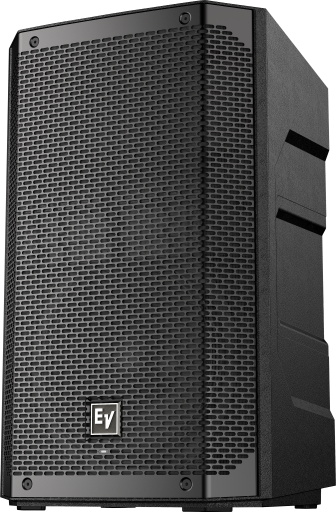

Electro Voice ELX 200-10P Powered 10″ Loudspeaker
R13 200,00
| Attribute | Value |
|---|---|
| Driver Configuration: | 1 X LF (10"); 1X HF (1") |
| Cabinet Material: | Polypropylene Enclosure |
| Power Rating (RMS): | 1200 W |
| Power Rating (Peek): | 2400W |
| Magnet Type: | Ferrite |
| Frequency Response | 59 Hz -18 kHz¹ |
| BlueTooth Capable | No |
| Speakon Output (Max Output power): | - |
| DSP | - |
| Decibel (dB) | 130 dB2 |
| Shipping Weight | 15.6 kg |
