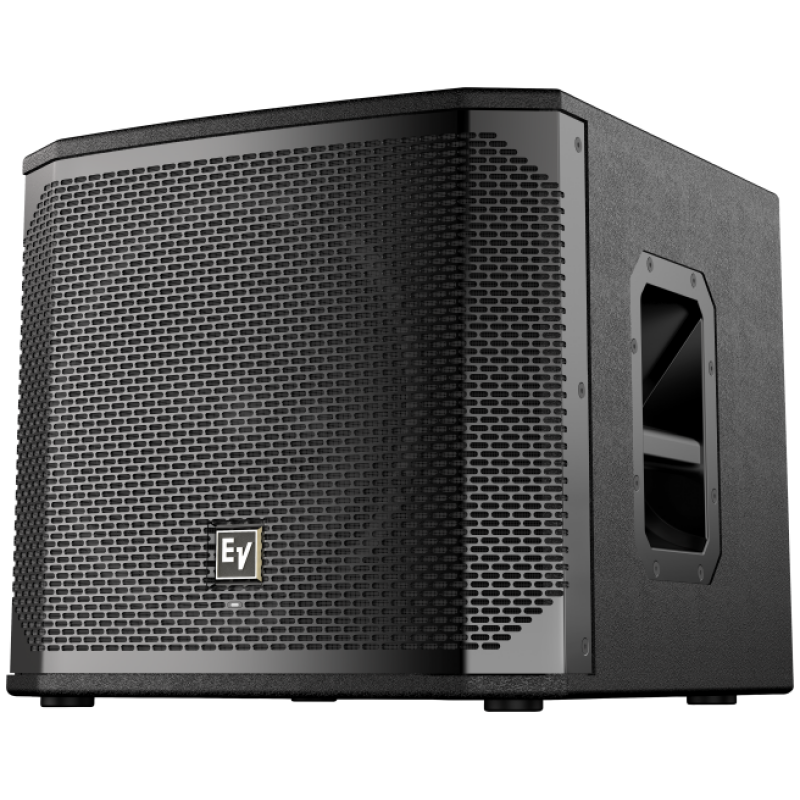

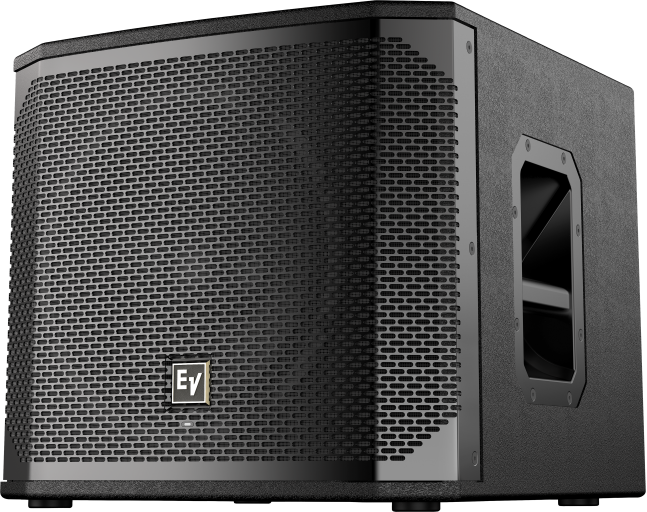

ELX200-12SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 129 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall

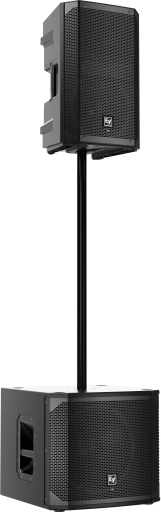

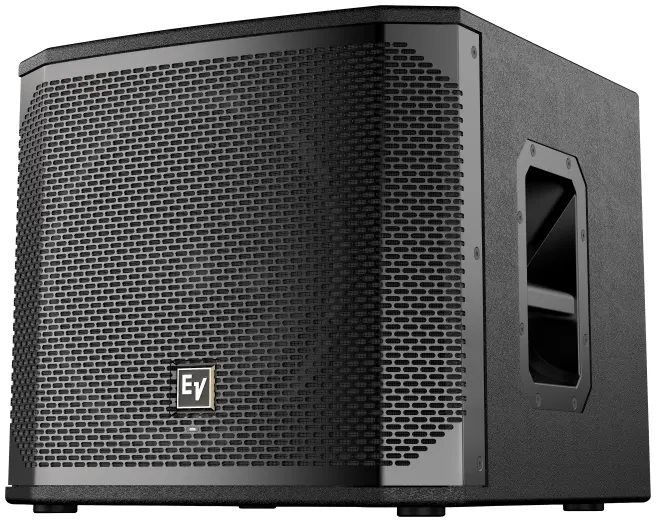

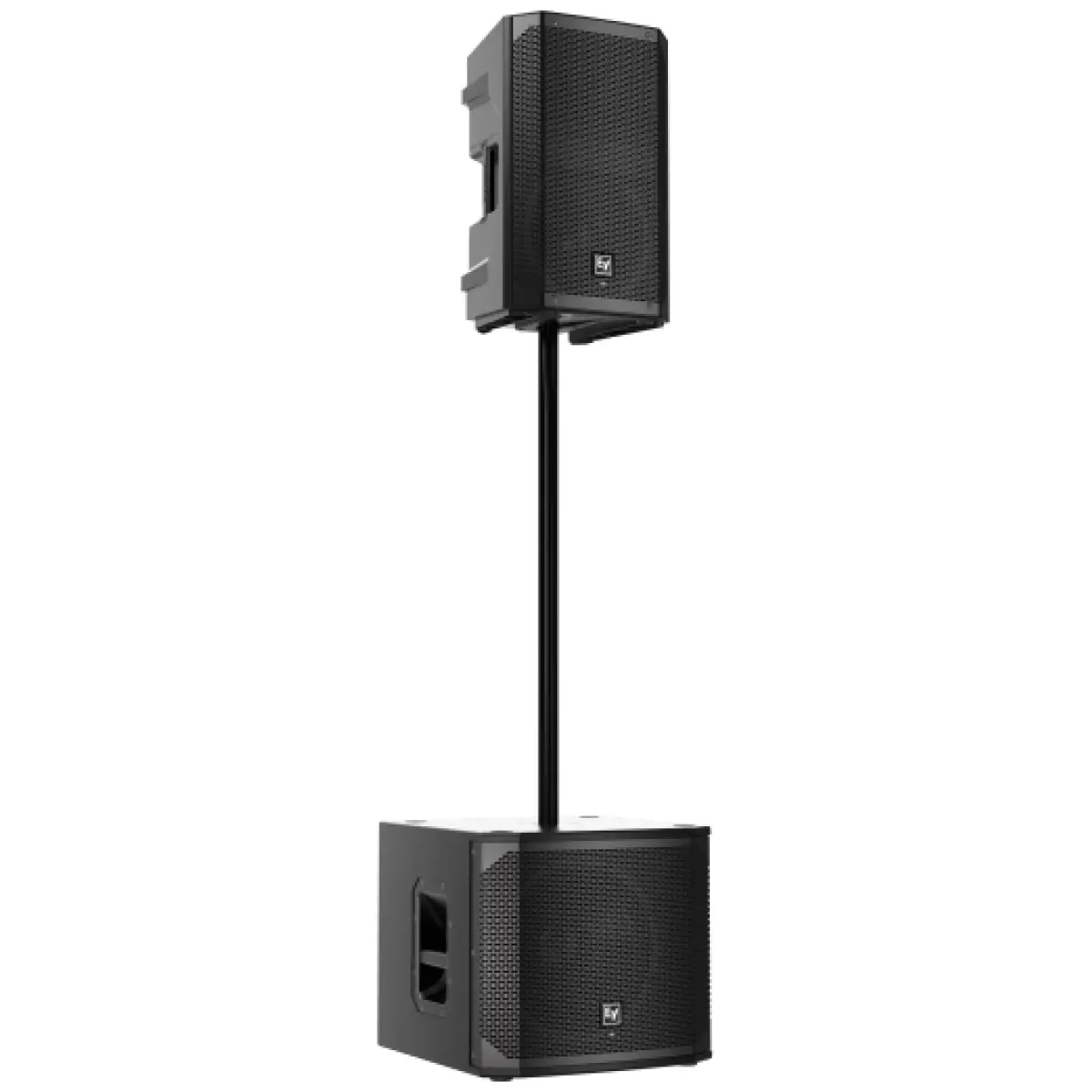

settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.
Specifications
| Frequency response (-3 dB) | 49 Hz – 135 Hz¹ |
| Frequency range (-10 dB) | 41 Hz – 165 Hz¹ |
| Maximum SPL | 129 dB² |
Specifications |
|
| Power rating | 1200 W |
| LF transducer | EVS-12L 300 mm (12 in) |
| Low-Pass frequency | Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz |

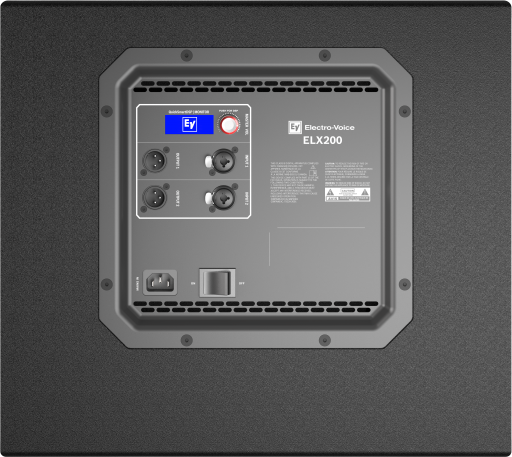

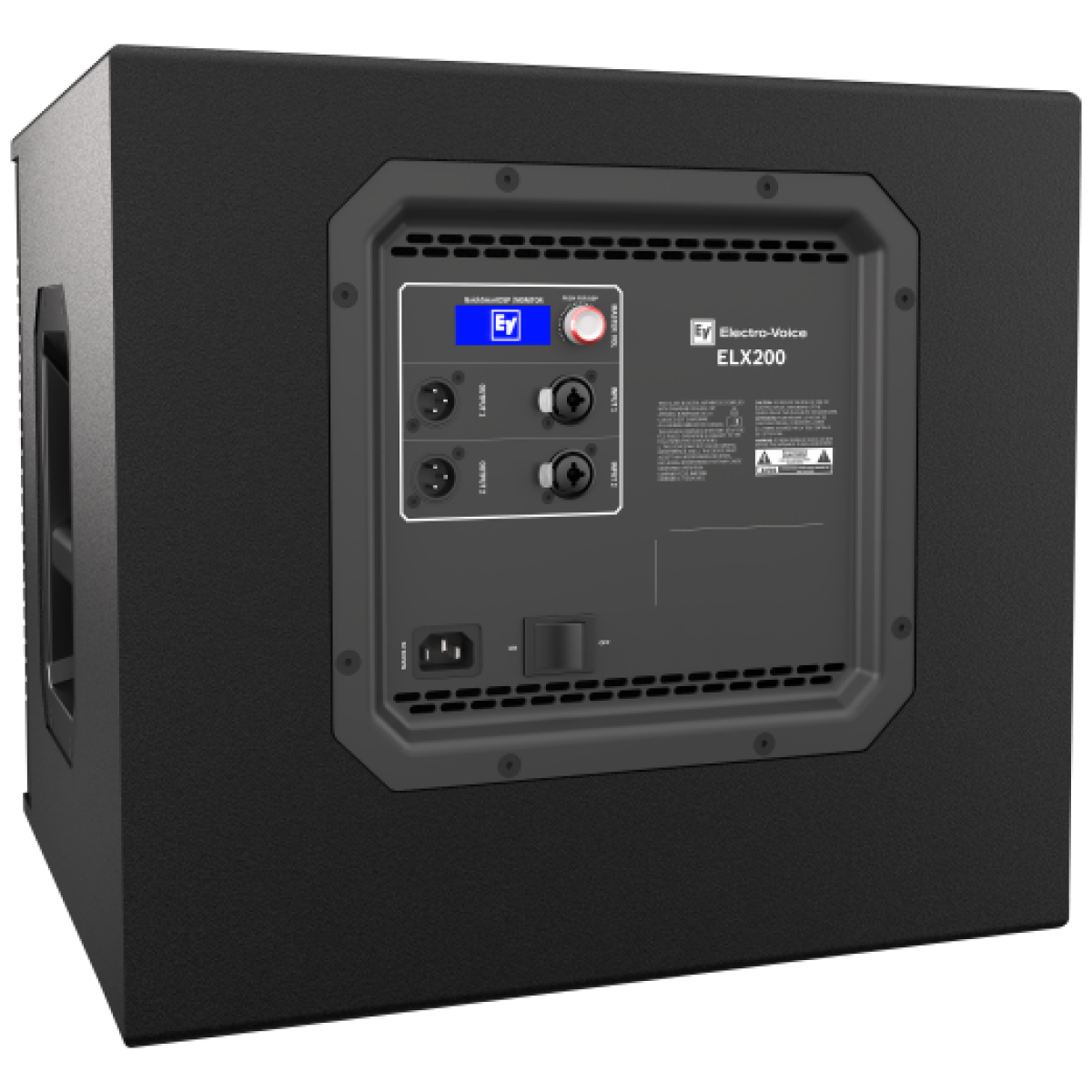

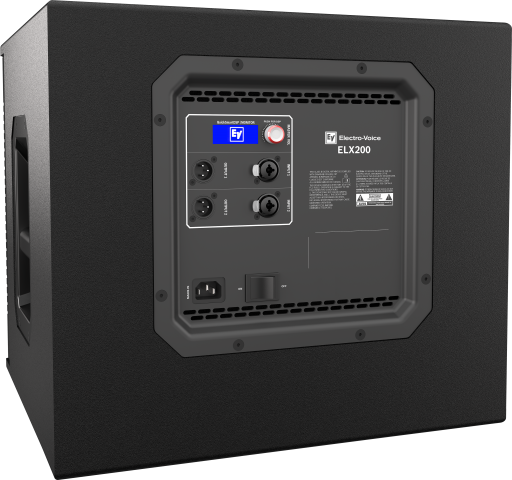

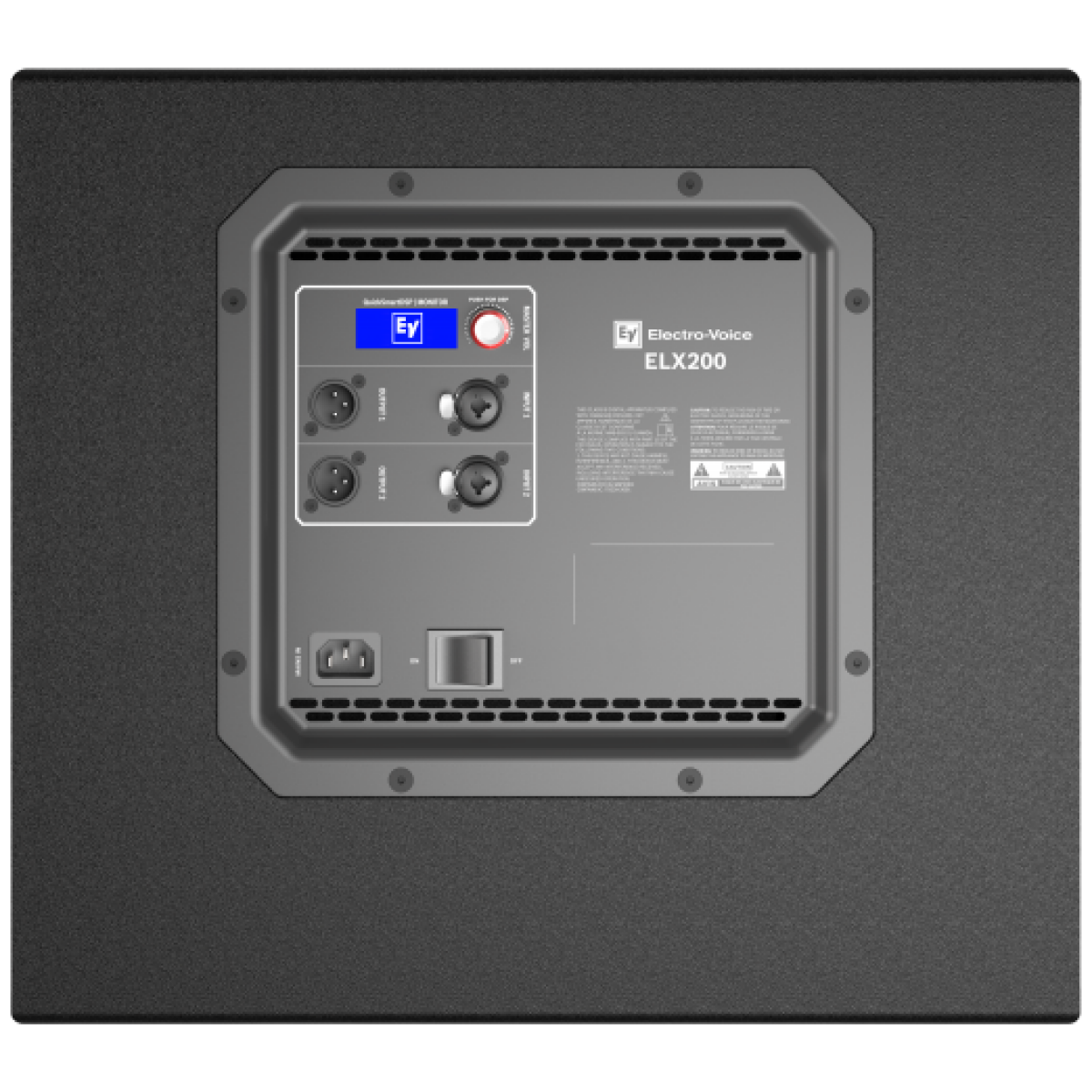

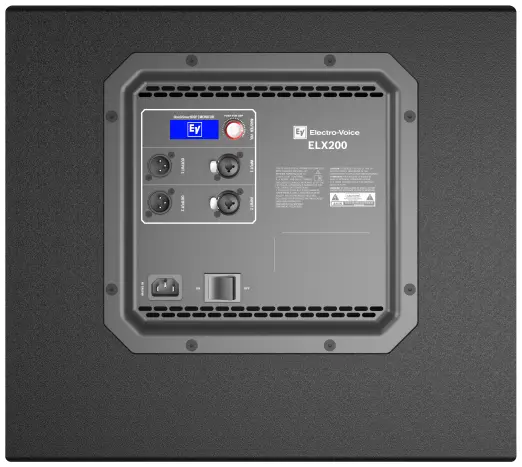

| Connectors | (2) XLR/TRS combo jacks and (2) XLR link outputs |
| Enclosure | 15 mm plywood with EVCoat |

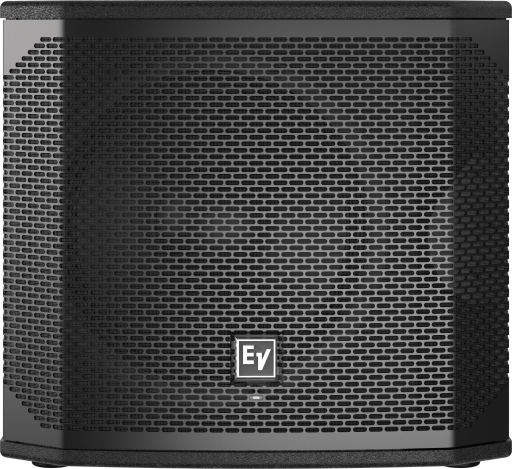

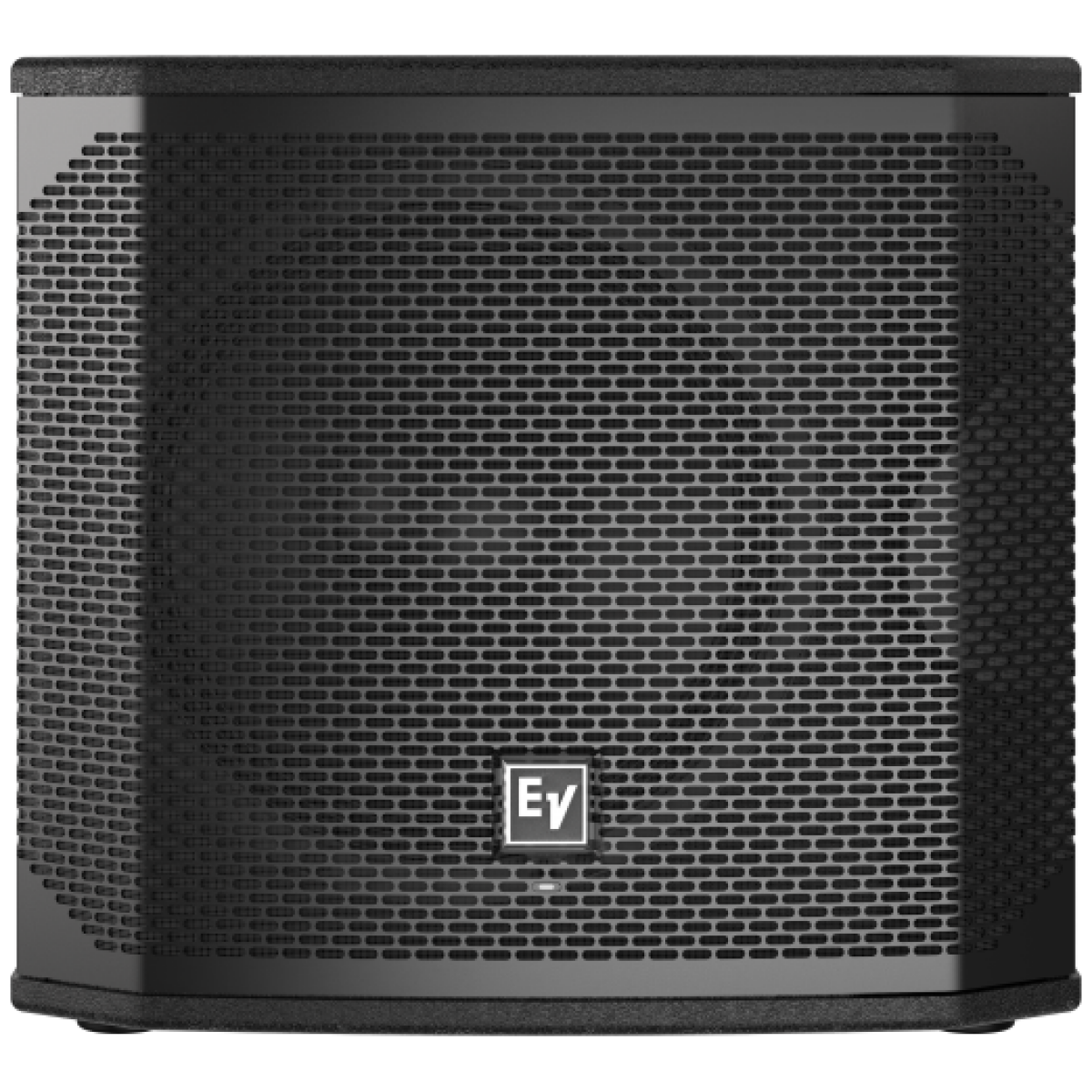

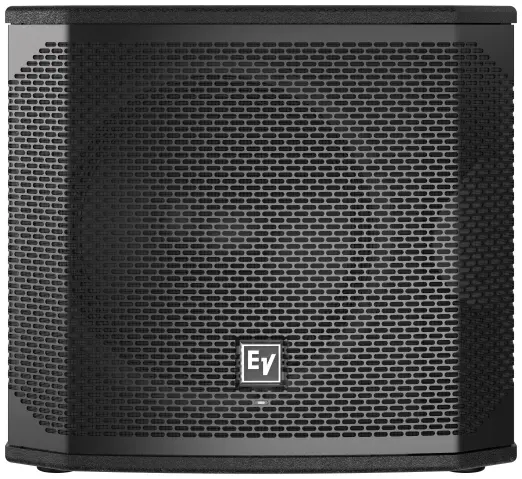

| Grille | 18 AWG steel with powdercoat |
| Color | Black or White |
| Dimensions (H x W x D) | 397 mm x 445 mm x 457 mm (16.7 in x 17.6 in x 18.0 in) |
| Net weight | 19.1 kg (42.2 lb) |
| Shipping weight | 22.3 kg (49.2 lb) |
| Power consumption | 100 – 240 V~, 50 – 60 Hz, 1.2 ~ 0.6A³ |
¹ Full space measurement using music DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.
