- QuickSmartDSP features best-in-class processing, EV’s signature single-knob user interface, and intuitive menu navigation via LCD.
- High-efficiency 1500 W Class D power amplifier delivers up to 132 dB peak SPL on the EKX-12P via high-sensitivity transducers designed and engineered by EV.
- Intelligent thermal management with a variable-speed fan controlled by multiple onboard sensors, ensuring superior performance and reliability in demanding environmental conditions.
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.

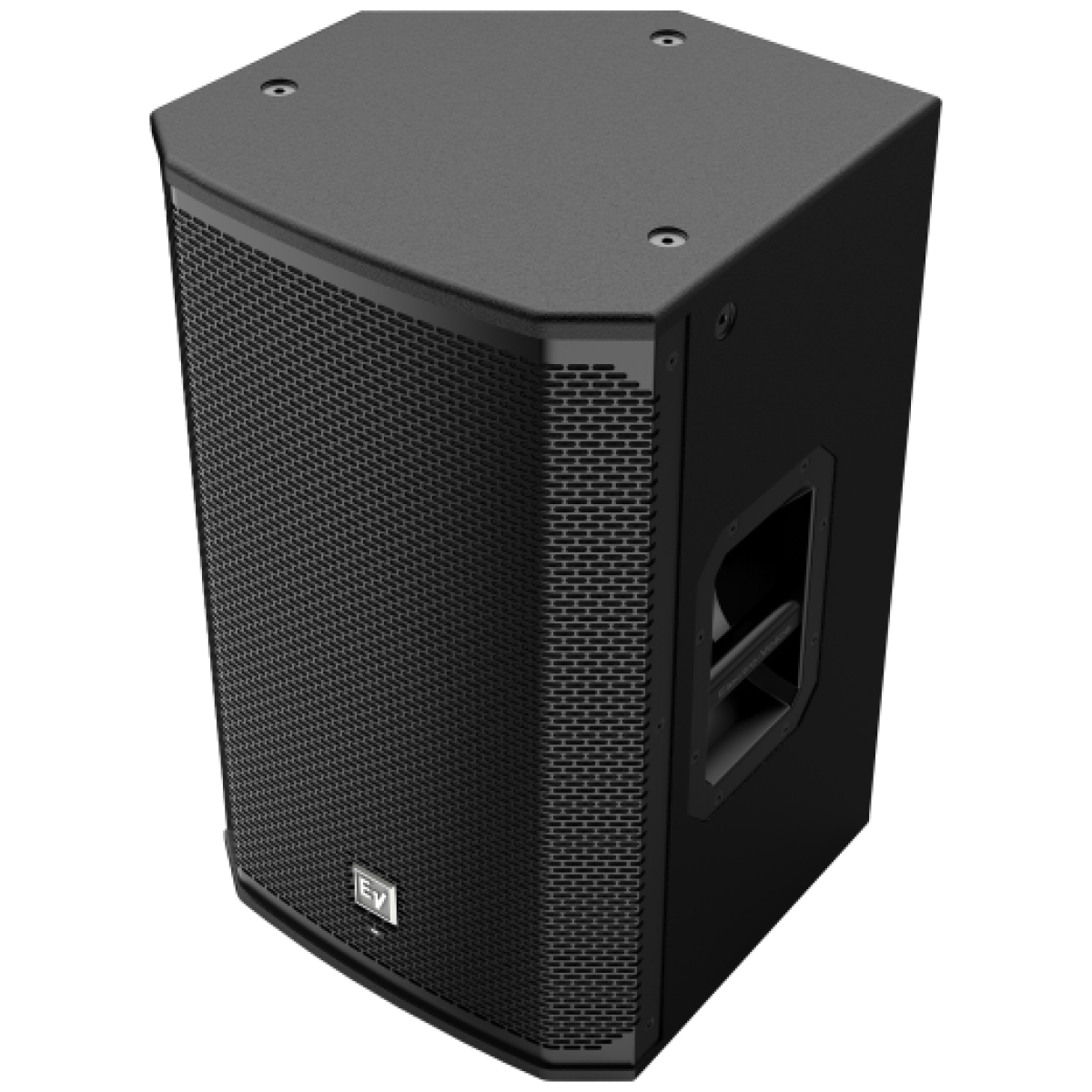

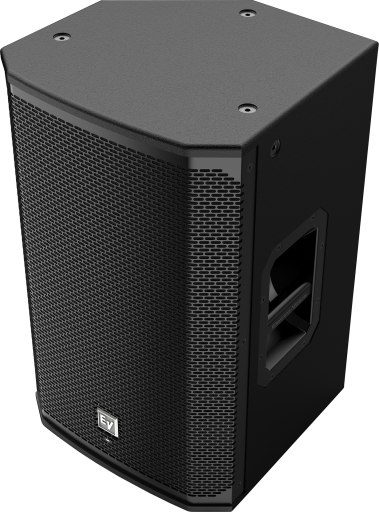

- Lightweight, compact 15-mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
Specifications
| Frequency Response (-3 dB) | 60 Hz – 18 kHz¹ |
| Frequency Range (-10 dB) | 50 Hz – 20 kHz¹ |
| Maximum SPL | 132 dB² |
Specifications |
|
| Coverage (H x V) | 90″ x 60″ |
| Power Rating | 1500 W |
| LF Transducer | EVS-12M 300 mm (12 in) |
| HF Transducer | DH-1M 1-inch titanium compression driver |
| Crossover Frequency | 1.7 kHz |

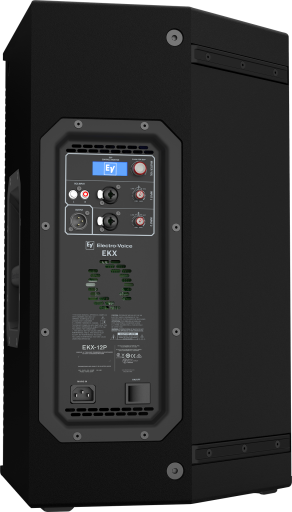

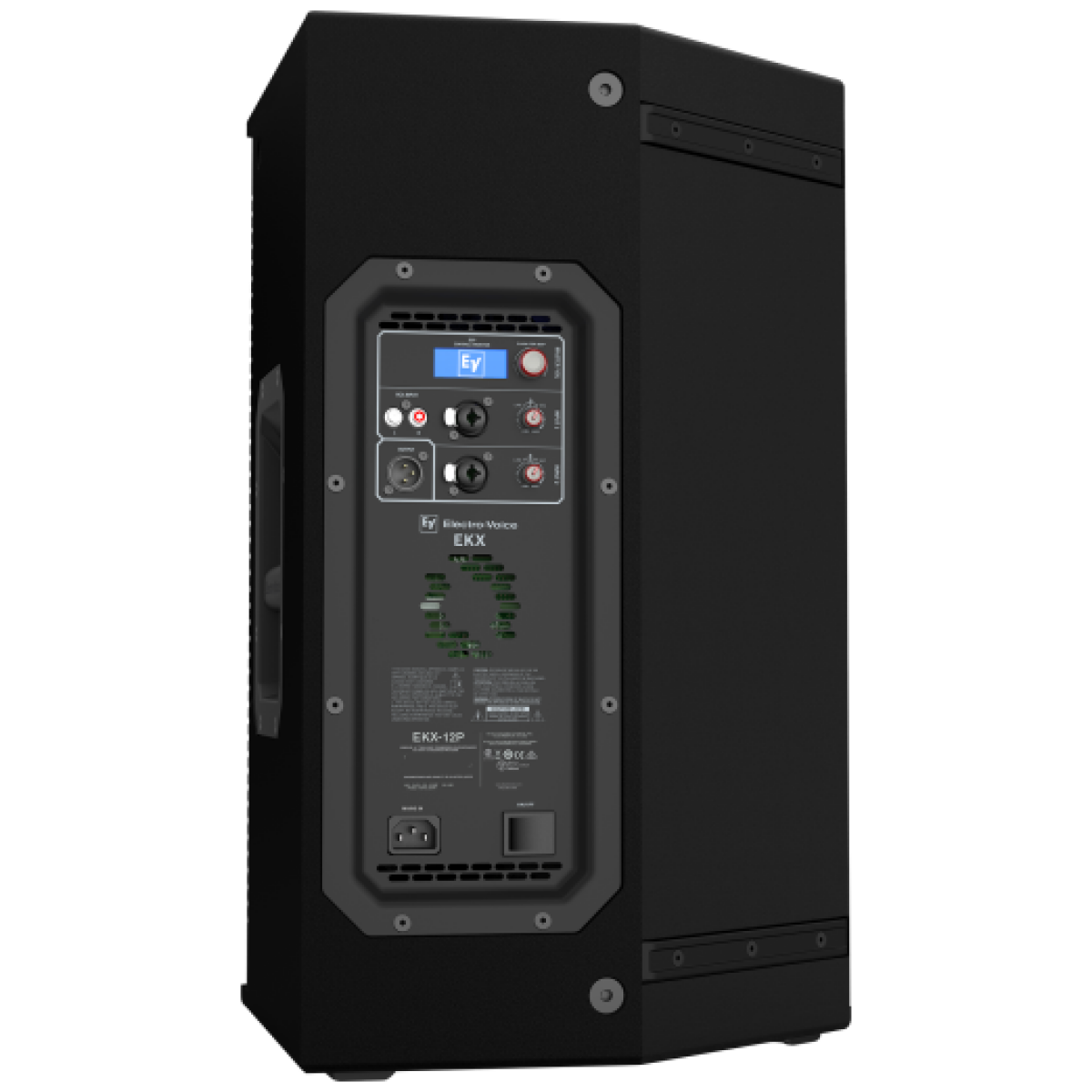

| Connectors | (1) Stereo RCA input, (2) XLR/TRS combo jack, and (1) XLR link output |
| Enclosure | 15 mm plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Suspension | (8) M10 threaded mounting points |
| Dimensions (H x W x D) | 607 mm x 375 mm x 356 mm (24 in x 15 in x 14 in) |
| Net Weight | 18.8 kg (41.4 lb) |
| Shipping Weight | 22.9 kg (50.4 lb) |
| Power Consumption | 1.8 A³ |
¹ Full space measurement using the music DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.
