- 15-inch LF SMX woofer
- 1.25-inch HF titanium compression driver
- 2000 W Class-D power amplifier with integrated FIR-Drive DSP
- 135 dB peak SPL
Specifications
| Frequency Response (-3 dB) | 48 Hz – 20 kHz1 |
| Frequency Range (-10 dB) | 40 Hz – 20 kHz1 |
| Maximum SPL | 135 dB peak2 |
Specifications |
|
| Coverage (H x V) | 90° x 60° |
| Power Rating | 2000 W |
| LF Transducer | SMX2150 380 mm (15 in) |
| HF Transducer | DH3-B 1.25-in titanium compression driver |
| Crossover Frequency | 1500 Hz |

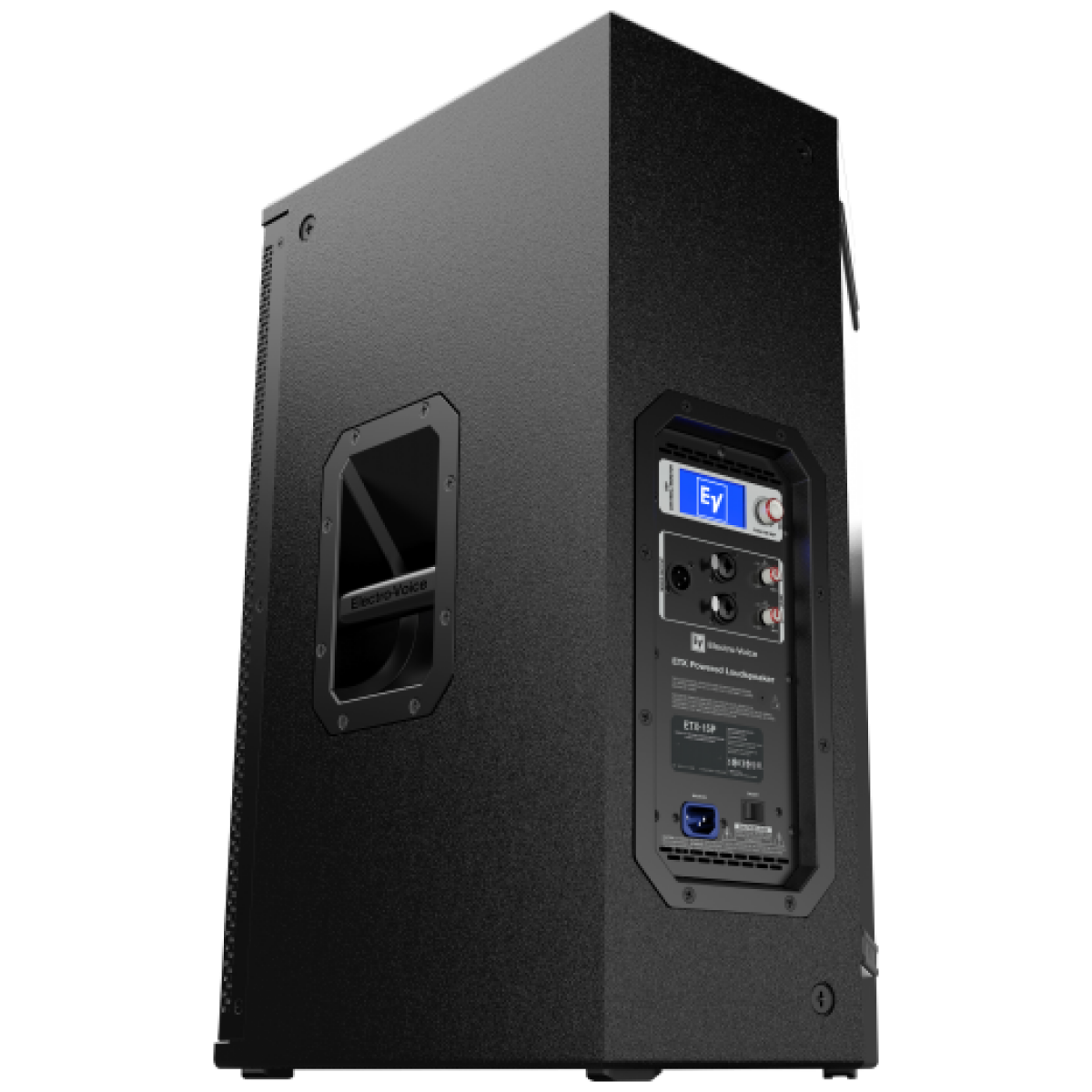

| Connectors | (2) XLR/TRS combo jack and (1) XLR link output |
| Enclosure | 18mm Plywood with EVCoat |
| Grille | 16AWG steel with powdercoat |

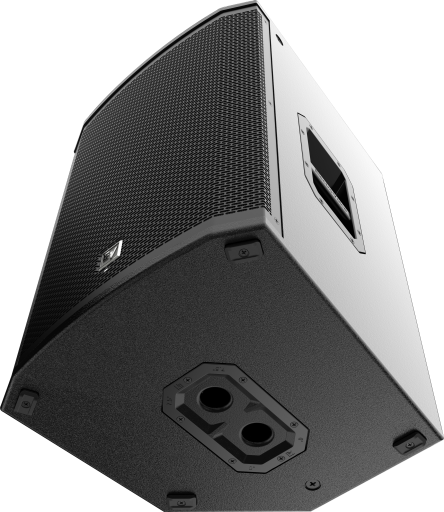

| Suspension | (8) M10 suspension points |
| Dimensions (H x W x D) | 691 mm x 431 mm x 447 mm (27 in x 17 in x 18 in) |
| Net Weight | 27.7 kg (61.1 lb) |
| Shipping Weight | 31.5 kg (69.5 lb) |
| Power Consumption | 100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A3 |
1 Full space measurement using the music DSP preset.
2 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
3 Current rating is 1/8 power.
