Specifications
| Application | Pole-mounted / monitor / kick-back |
| Transducers | 12” woofer, ferrite magnet 1” compression driver, neodymium magnet, ferrofluid cooled |
| Power rating (peak) | 400 W |
| SPL max1 | 126 dB |
| Coverage (H x V) | 100° x 60° |
| Frequency range (-10 dB)2 / response (-3 dB)3 | 45 Hz – 20 kHz / 55 Hz – 20 kHz |
Specifications |
|
| Material | Enclosure: polypropylene Grille: steel with powder coat |
| Digital signal processing | QuickSmartDSP features best-in-class processing powered by Dynacord. Easy setup via seven-band GEQ for main EQ, user-programmable presets, visual monitoring of limiter status, input level control and meters, digital effect control, and master volume control to optimize gain structure, all via LCD or the free QuickSmart Mobile app. |
| Remote control and monitoring | EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six EVERSE 12 systems simultaneously, and receive immediate notification during critical performance conditions. |
| Bluetooth audio streaming and true wireless stereo4 | YES |
| Crossover frequency | 2000 Hz |

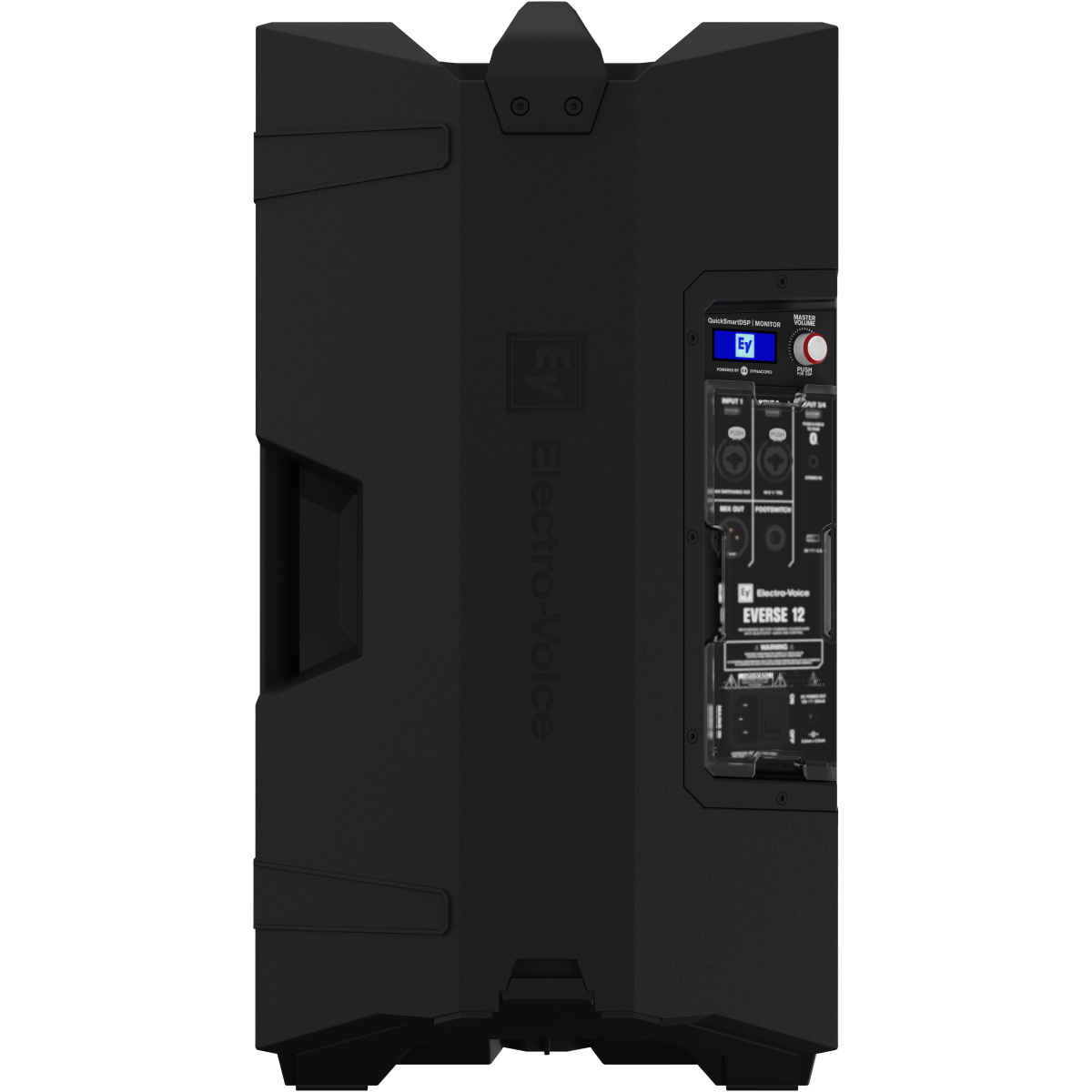

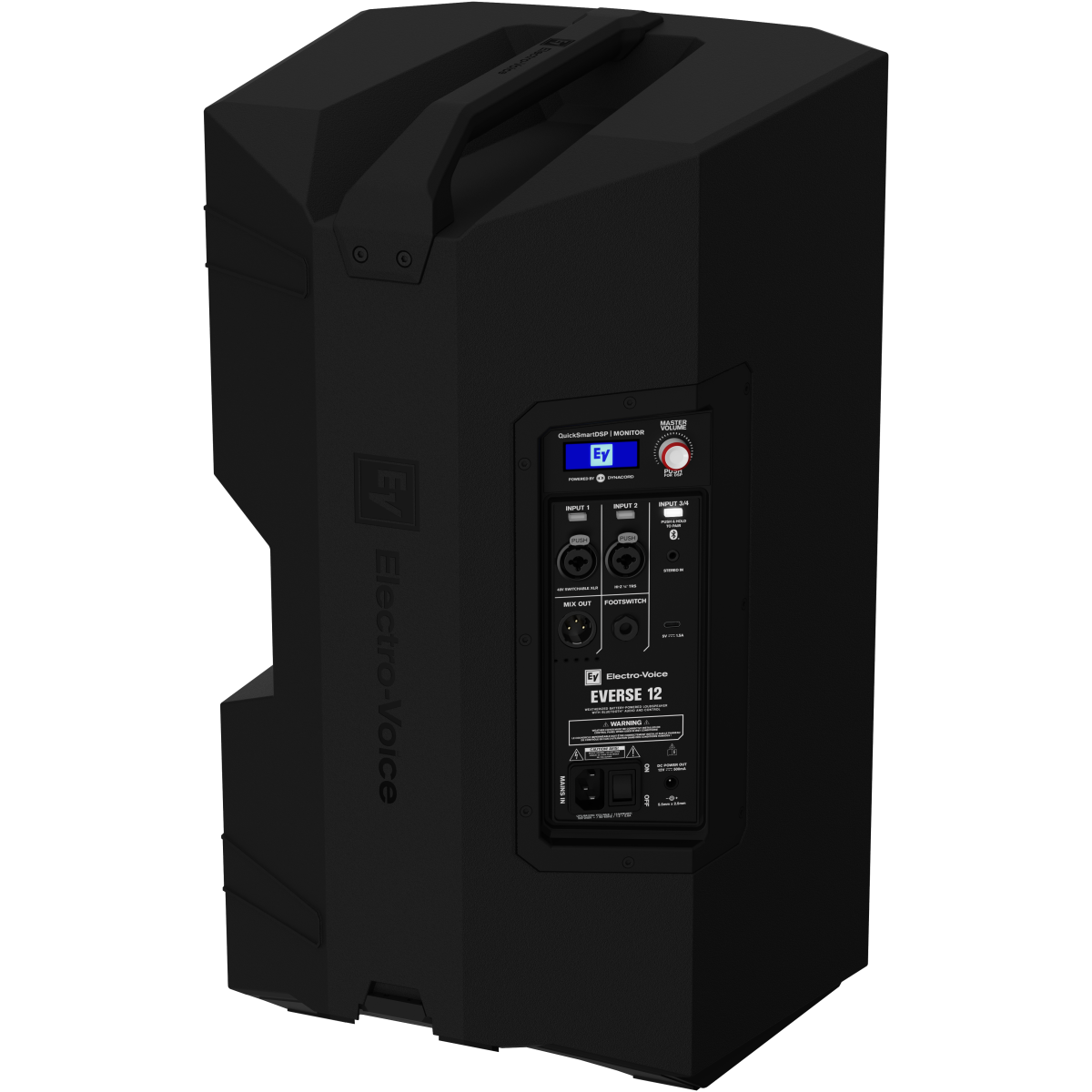

| Connectors | 2x XLR/TRS combo jack 1x charge port 1x XLR output 1x 12 V DC power output 1x 3.5mm stereo 1x TRS footswitch |
| USB charging | 1.5 A max, device-dependent |
| Power consumption5 | 100 – 240 V~, 50 – 60 Hz, 1.2 – 0.6 A |
| Battery capacity | 86.4 Wh |
| Battery run time (at max output)6,8 | 6+ hours |
| Battery run time (at moderate output)7,8 | 12+ hours |
| Weight | 14.16 kg (31.22 lbs) |
| Dimensions (W x H x D) | 345 mm x 597 mm x 347 mm (13.58″ x 23.5″ x 13.66″) |
| Kick-back / monitor angles | 25° / 55° |
| Colors | Black and white |
| Accessories | EVERSE12-TRAY-B mic receiver tray black EVERSE12-TRAY-W mic receiver tray white EVERSE-BAT-B battery pack black EVERSE-BAT-W battery pack white EVERSE-DUFFEL padded duffel bag EVERSE12-RAINCVR rain cover |
EV QuickSmart Mobile available in select countries. Apple, the Apple logo, iPhone®, iPad®, and App Store® are trademarks of Apple Inc., registered in the U.S. and other countries. Google Play and the Google Play logo are trademarks of Google LLC. EVERSE 8 and EVERSE 12 is available in select countries.
1 Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
2 Half-space measurement.
3 Full space measurement using music DSP preset.
4 Two EVERSE 8 or EVERSE 12 loudspeakers are required for true wireless stereo via a Bluetooth® connection. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bosch Security Systems, LLC is under license.
5 Current rating is 1/8 power.
6 Maximum output before loudspeaker limit indication, with typical program material.
7 Moderate output is approximately 100 dB SPL for EVERSE 12, with typical program material.
8 Powering external devices via the DC power jack, USB connection, and/or phantom power will reduce battery run time.
