EWIC SCB 100m Roll SBC-1960 Mic Cable

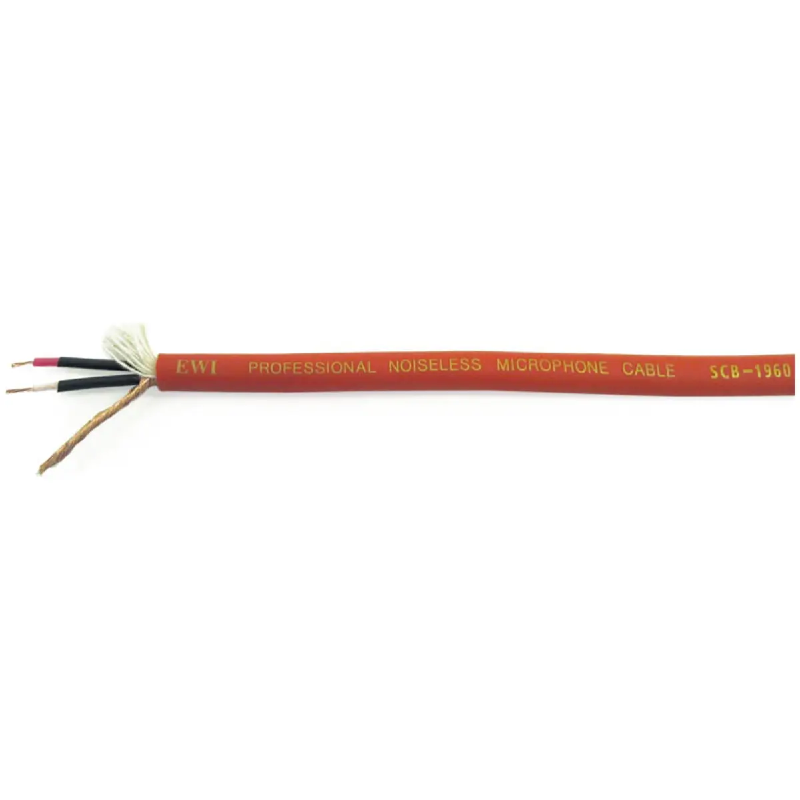

The EWI SCB-1960 is a professional-grade balanced microphone cable supplied on a 100-metre roll. Designed for studio, stage, and installation use, it provides excellent signal integrity and shielding against interference. This cable ensures low noise, high flexibility, and reliable long-term performance for audio engineers and system installers.

Key Features
Two conductive inner cores (2 × 0.22 mm² / 24 AWG)
High-density spiral shield with approximately 98% coverage for superior noise rejection
Durable PVC outer jacket with smooth flexibility for stage and install use
Capacitance: approximately 73 pF/m (conductor to conductor), 134 pF/m (conductor to shield)
Jacket diameter: 6.7 mm
Operating temperature: -20 °C to +70 °C
Available in multiple colours (typically black as standard)
Ideal for long microphone runs, patching, and permanent installations

Specifications
Type: 2-core balanced microphone cable
Conductor Gauge: 24 AWG (0.22 mm²)
Shield: Spiral copper, 48 strands (0.12 mm each)
Outer Diameter: 6.7 mm
Length: 100 m
Capacitance: 73 pF/m between conductors
Operating Temperature: -20 °C to +70 °C
Jacket Material: Flexible PVC
