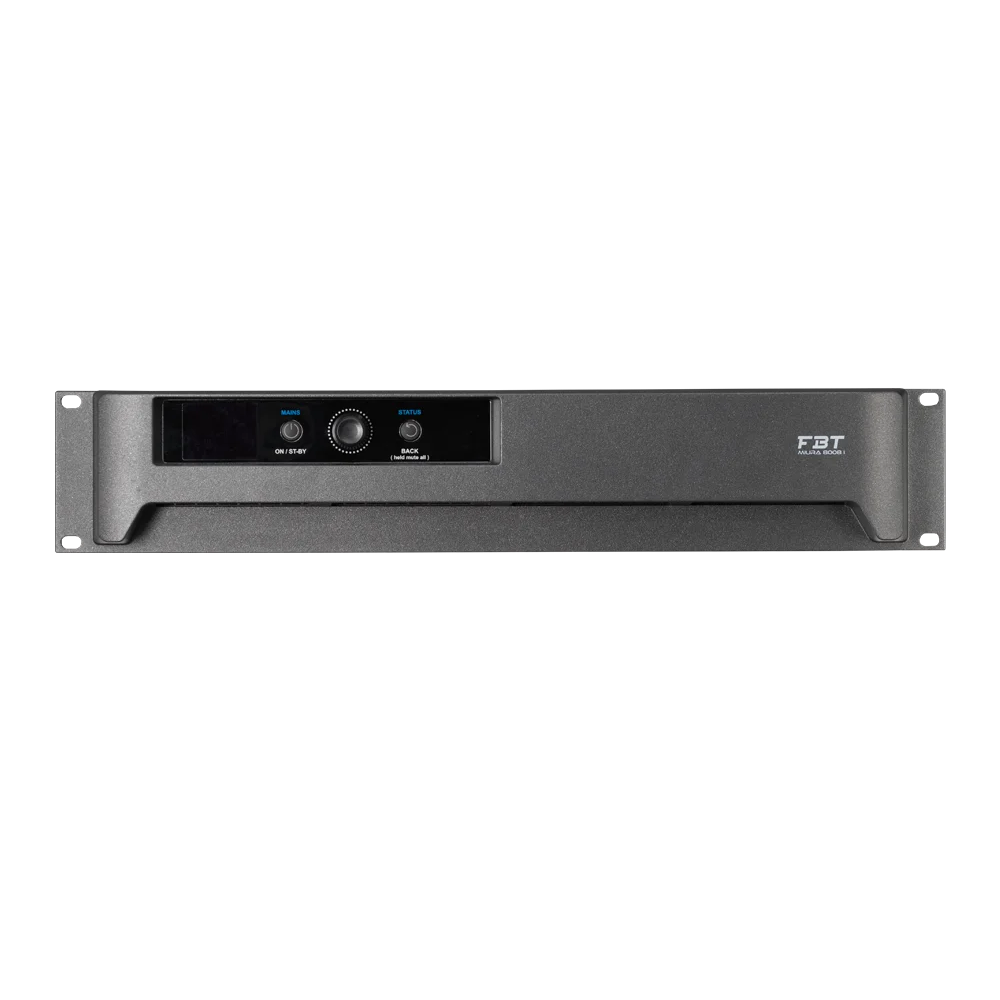

Fbt MIURA8008I Amplifier 8X 1000W 100V

The MIURA 8008I is a high-power, 8-channel Class D amplifier designed for fixed installations requiring flexibility, precision, and reliable high-output performance. Delivering up to 8×1000W at 4, or 4×2000W at 100V in bridge mode, it supports both low-impedance (4/8/16) and high-impedance (70/100V) lines with full asymmetric power distribution. Integrated Dante audio streaming (4 channels) and TCP/IP control (AES70 compatible) via EtherCON ports allow seamless integration into networked systems through INFINITO software. The amplifier also features AES3 digital inputs with link, to ensure compatibility with professional-grade systems. A front OLED display with encoder ensures onboard setup, while Euroblock I/O, GPIO, and comprehensive protection features guarantee safe, long-term operation in demanding installation environments.

Features:

• 8×1000W at 4 – 8×900W at 70V – 4×2000W at 100V BTL
• Class D architecture with ultra-low distortion
• 4-channel Dante receiver (24bit, 48–96kHz)
• TCP/IP AES70 control via INFINITO software
• Universal PSU with PFC, auto-standby, and high transient response
• Asymmetric loading per channel, with SE/BTL/Parallel modes
• Screw-type Euroblock I/O, 8-channel GPIO, EtherCON network ports

Specifications:

• Frequency response:20 – 20k (-0.5dB , 3dB below rated power)
• Class: Class D – PWM modulator with ultra low distortion
• Protections: Short Circuit, DC, Undervoltage, Temperature, Overload
• Net Dimensions (WxHxD):482 x 88 x 504 mm / 18.97 x 3.46 x 19.84 inch 2U Rack Mount
• Net weight: 9 Kg
