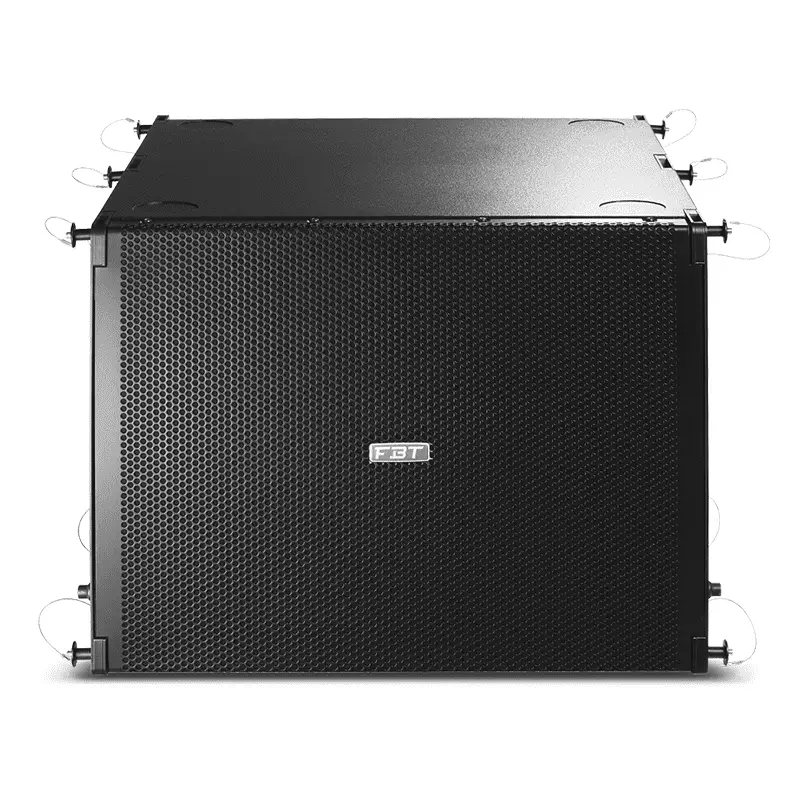

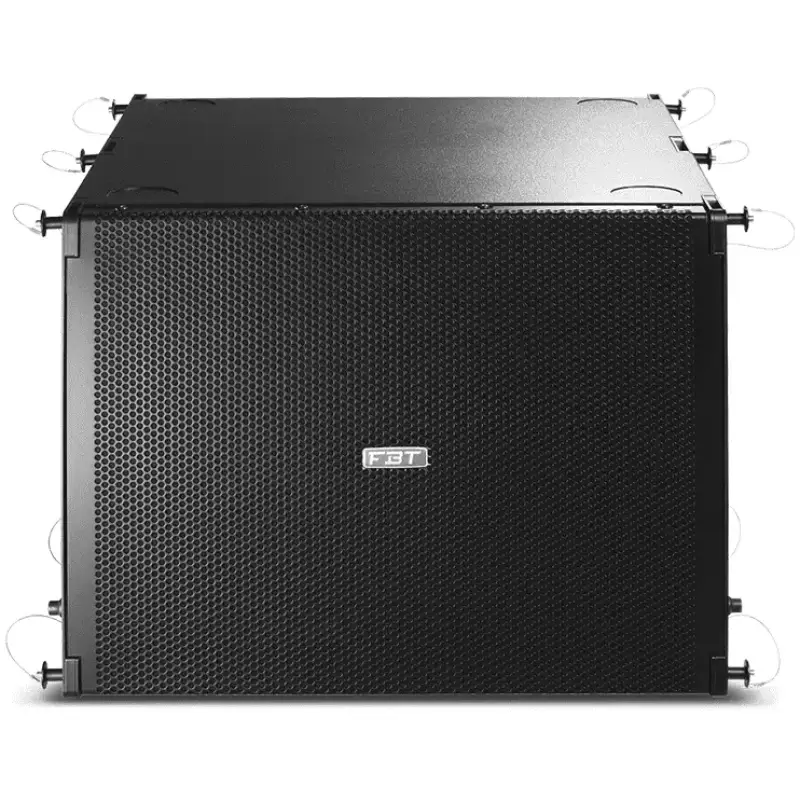

The FBT MUSE 118FSA powered subwoofer meet the following performance criteria: frequency response of 33Hz to 100Hz,Spl cont/peak of 135/139dB half-space. The FBT MUSE 118FSA/FSCAis a hybrid band-pass cardioid arrayable subwoofer design incorporating 1×18″ B&C neodymium magnet high excursion woofer with 3.5″ voice coil. Hybrid configuration permit to obtain extension and speed of vented with high SPL and acoustic filtering of band pass. The FBT MUSE 118FSA/FSCA can be suspended facing forward or rearward with capability of front-or rear mounting the grille and amp module for aesthetic uniformity in cardioid configuration (hardaware fully compatible with MUSE 210). The FBT MUSE 118FSA/FSCA provides a DSP with 8 presets; the control panel provides XLR «in&link», volume, preset, delay, phase 0°-180°, ground lift switch. The FBT MUSE 118FSA/FSCA feature Baltic birch plywood construction covered in a scratch resistant black paint. Ideal for small to medium sized applications in: Theatres, Concert Halls, Clubs, Places of Worship, Conference Rooms, Indoor Sports, Arenas & Stadiums
Features:
- 15mm / 0.59" birch plywood enclosure
- Class D amplifier delivering 1200W
- 460mm/1×18" B&C neodymium magnet with 88mm/3.5" coil
- Frequency response 33Hz – 100Hz
- DSPon board with 8 presets

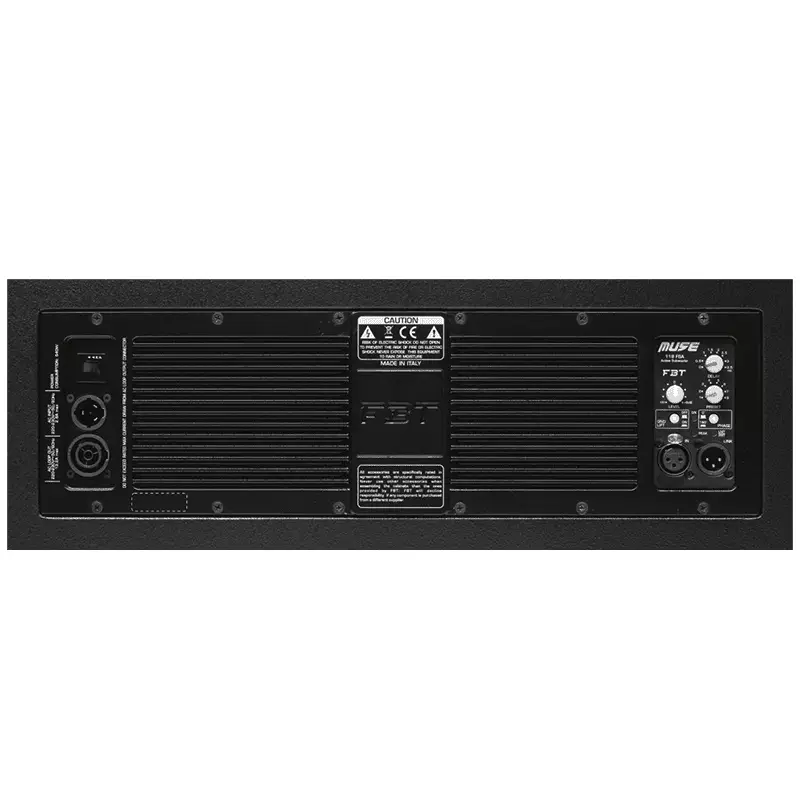

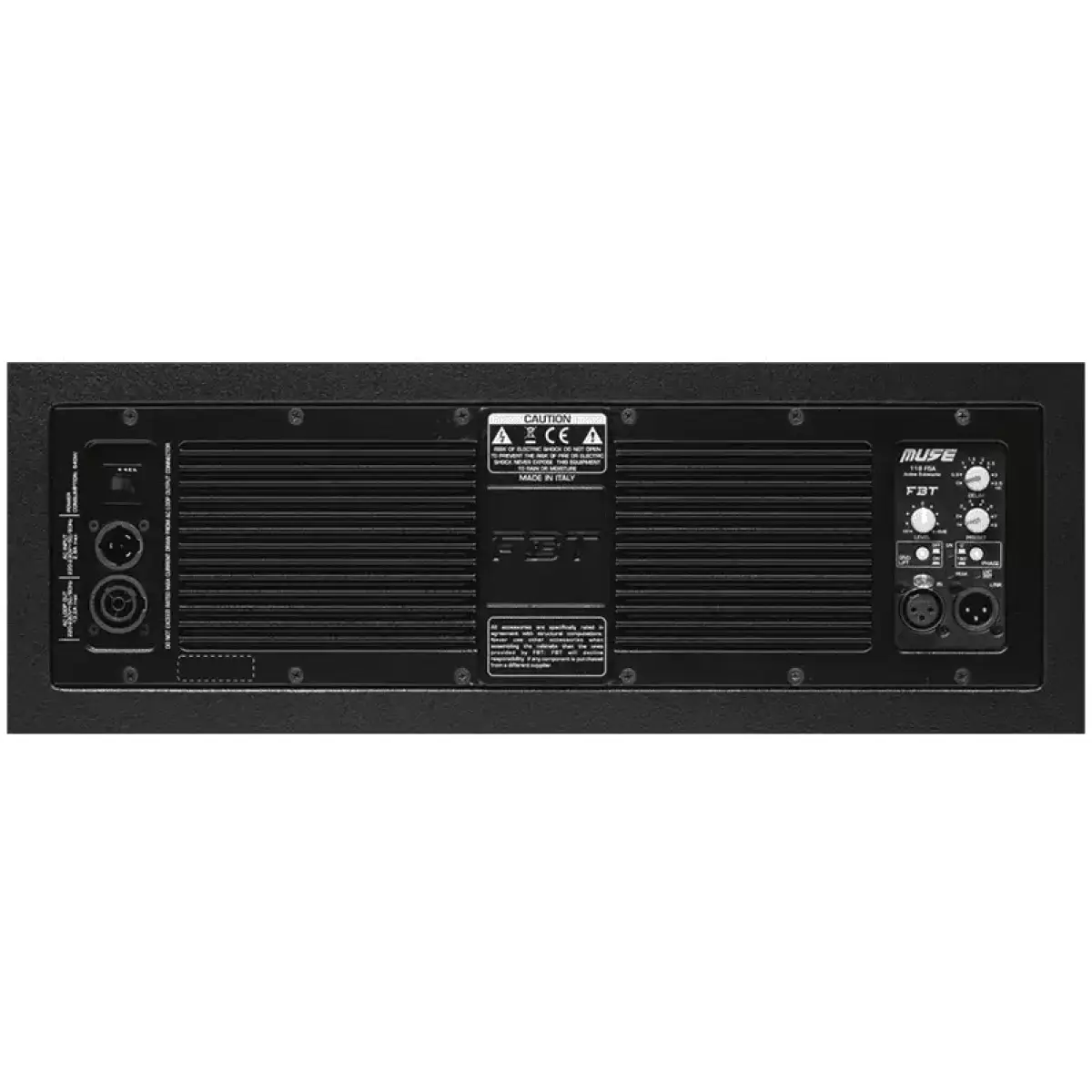

- Input panel with XLR «in&link», volume, preset, delay,
- phase, GND lift switch
- SPL(cont/peak) 135/139dB half-space
- Suspension hardware fully compatible with MUSE 210
- Completely Manufactured in Italy
Specifications:
- Configuration: 1 HYBRID BANDPASS way
- Built-in amplifier LF/HF: 1200 W RMS
- Built-in amplifier peak LF/HF: 2400 W
- Frequency response: 33Hz-100Hz -6dB
- Low Frequency woofer: 1X18 – 3.5 coil – neodymium inch
- Maximum SPL cont/peak: 135/139 half-space dB
- Dispersion: Omnidirectional HxV
- Input impedance: 22 Kohm
- Crossover Frequency: preset dependant KHz
- AC Power requirements: 640 VA
- Input connector: XLR with loop
- Power cord: 5/ 4 m
- Net Dimension (WxHxD): 652x500x750mm
- Net Weight: 67/147.70 kg/lb
- Transport Dimension (WxHxD): 700x650x800mm
- Transport Weight: 77Kg
