Fbt PROJECT1020SA Active Subwoofer 10INCH 150W Rms

PROJECT 1020SA is an active subwoofer designed to deliver powerful and accurate low-frequency extension for installations based on the PROJECT loudspeaker range. Equipped with a 10” woofer and a 150W RMS Class D amplifier, it offers extended bass response down to 40 Hz and a maximum SPL of 113 dB. The system includes stereo balanced XLR/TRS and unbalanced RCA inputs, with stereo XLR outputs featuring adjustable high-pass crossover (80–150 Hz), ensuring seamless integration with satellite loudspeakers.

A standby mode reduces power consumption when inactive. Built from MDF and finished with scratch-resistant paint, the bass-reflex cabinet is compact and robust. Ideal for background music systems, hospitality venues, and small-scale distributed installations. Available in black or white.

Features:

• Configuration: active subwoofer
• Low Frequency Woofer: 10″
• Integrated Amplifier: 150W RMS
• Max SPL: 113 dB

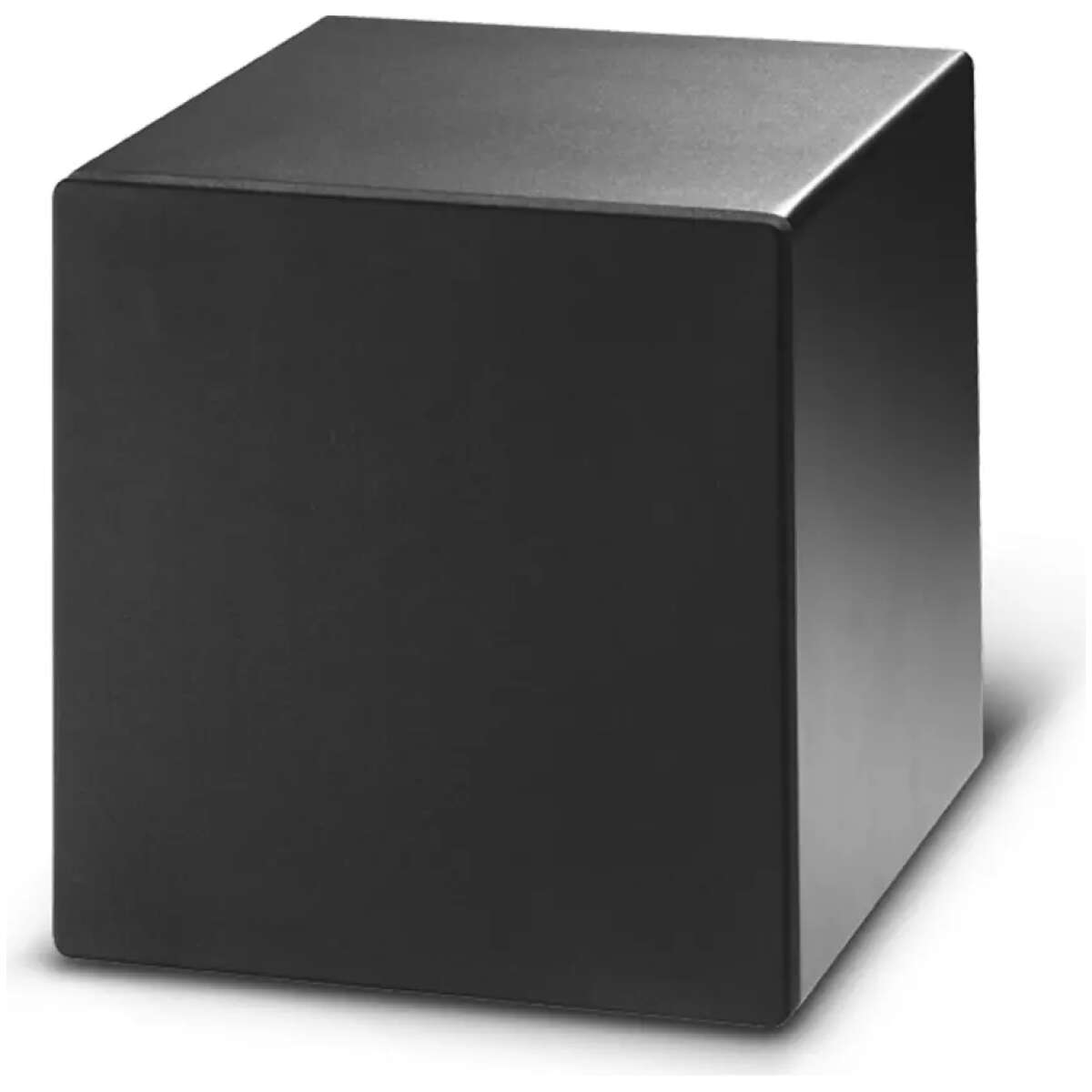

• Material: Bass-reflex MDF cabinet with scratch-resistant paint

Specifications:

• Configuration: Class AB design
• Built-in Amplifier LF/HF: 150 W RMS
• Frequency Response: 40 – 150 Hz
• Low Frequency Woofer: 10″ subwoofer / PP cone / big-roll edge
• Maximum SPL (Cont/Peak): 110 dB
• Input Impedance: 4 Ohm
• Crossover Frequency: 12 dB
• AC Power Requirements: 100 V / 240 V~ 50/60 Hz switchable

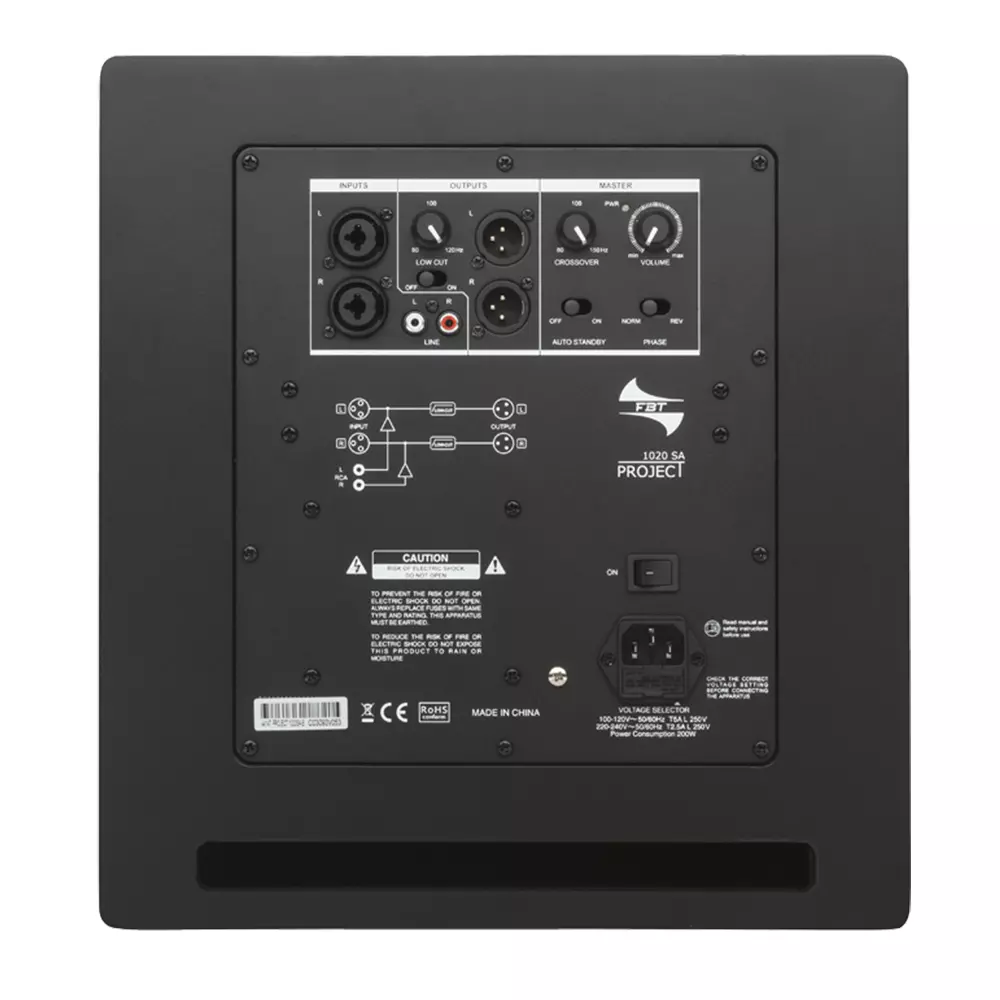

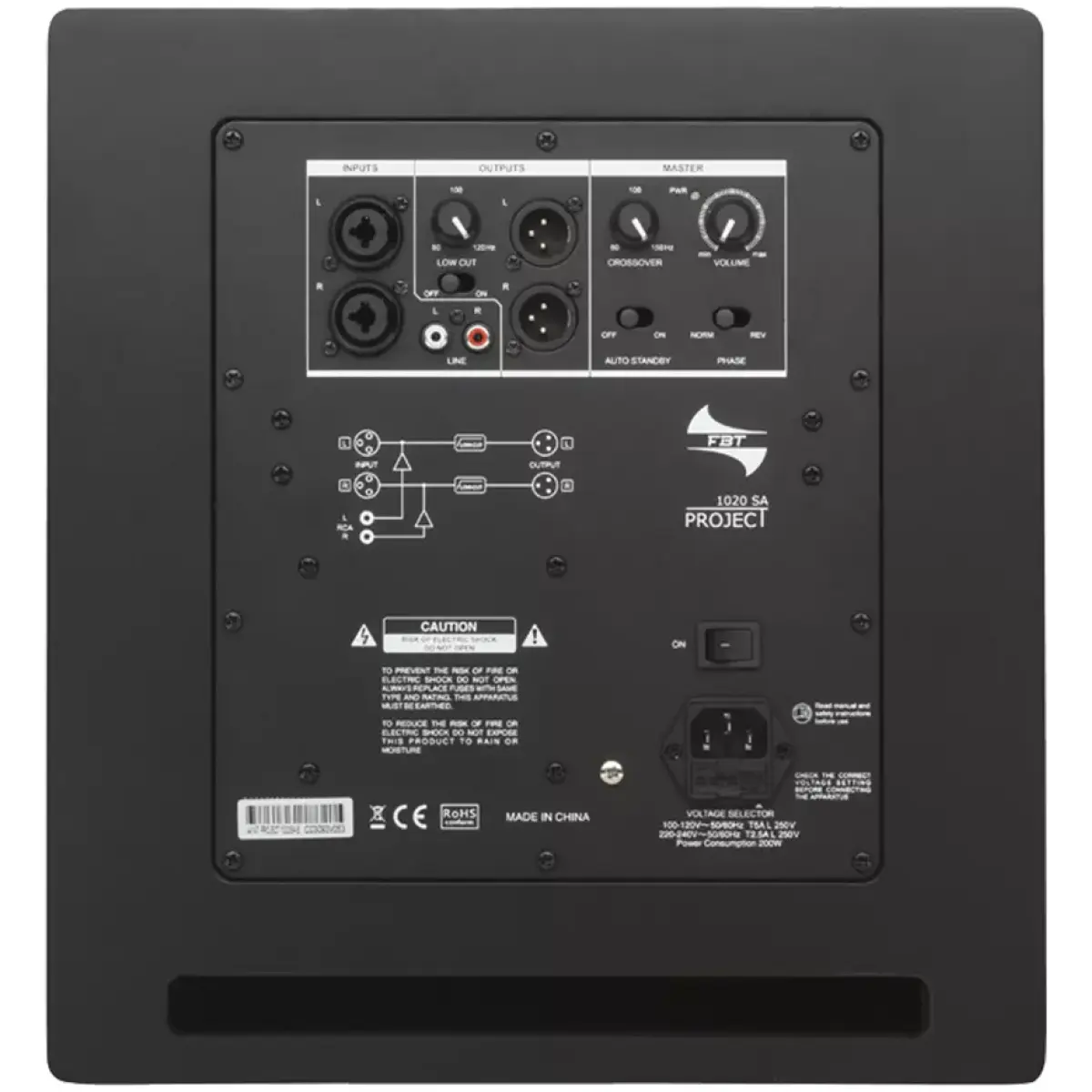

• Input Connector: Stereo XLR / TRS balanced – Stereo RCA unbalanced
• Power Cord: 2.5 m
• Net Dimensions (W × H × D): 330 × 367 × 365 mm / 12.9 × 14.4 × 14.4 in
• Net Weight: 16 kg
• Transport Dimensions (W × H × D): 460 × 420 × 420 mm
• Transport Weight: 18.6 kg
