Fbt – SUBLINE112SA Active Sub 12IN 700W Rms

The FBT SUBLINE 112SA is an extremely compact bass-reflex design subwoofer with high SPL and punch. The FBT SUBLINE 112SA feature 0,59″ birch plywood construction covered in a scratch resistant black paint with two aluminum carrying handles; an M20 top mounted stand adapter allows satellite speakers, such as the FBT speaker series and others, to placed above the subwoofer cab. The FBT SUBLINE 112SA features a 12in high excursion magnet woofer with 3in voice coil. The 112SA provides an FBT’s new Digital Signal Processor with 8 presets, 2 equalization with 2 LPF crossover settings, cardioid configuration. The FBT SUBLINE 112SA shall meet the following performance criteria: frequency response of 40Hz to 140Hz, max. SPL of 133dB peak, 700W RMS Class D power amplifier with switch mode power supply. The control panel features stereo XLR in/outs, livello, EQ presets, 8 steps delay, phase reversal switch, 3 status led indicators.

Features:

• Bass-reflex design with high SPL and punch
• 320mm (12”) high excursion magnet woofer with 75mm (3”) voice coil
• Frequency response from 40Hz to 140Hz
• New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
• Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration

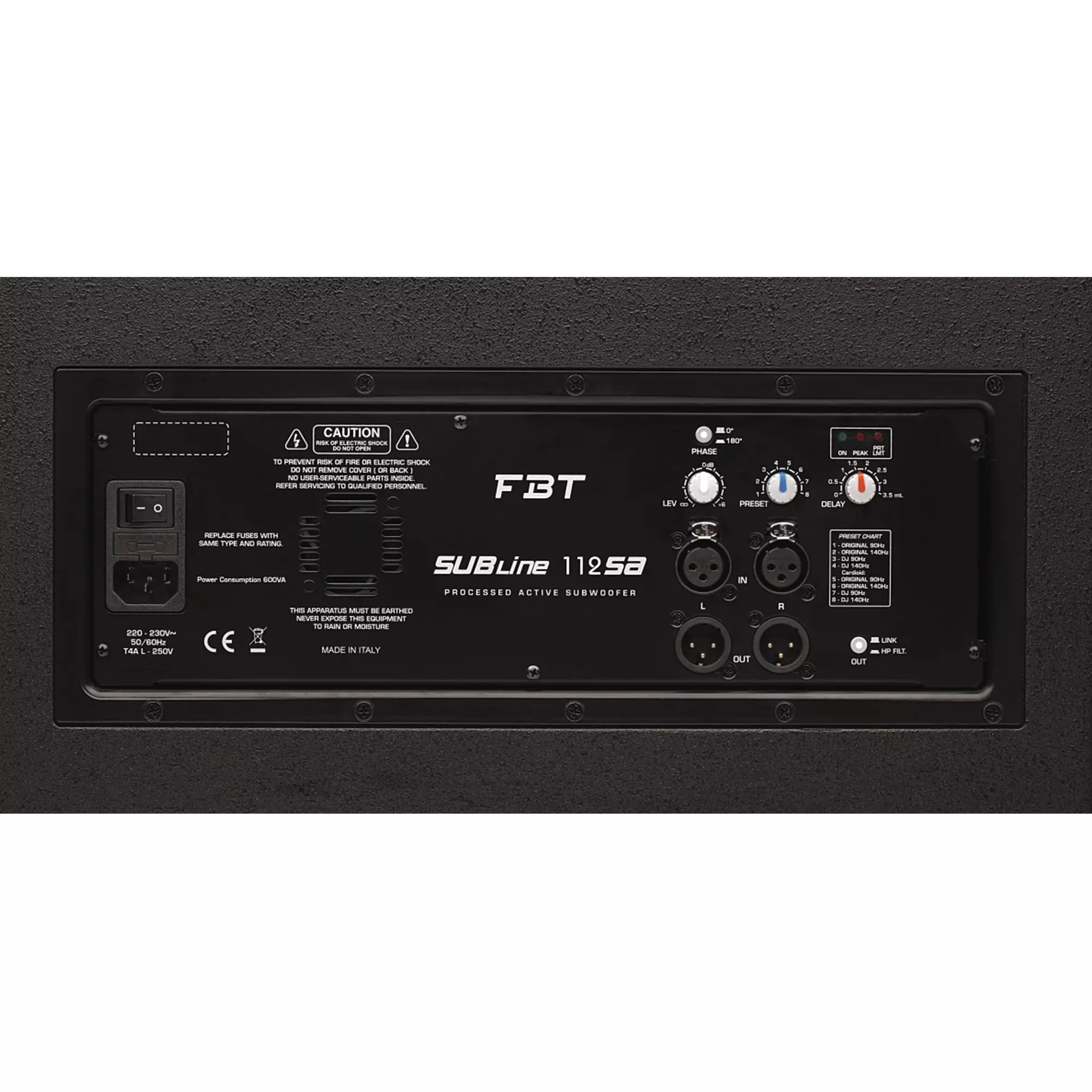

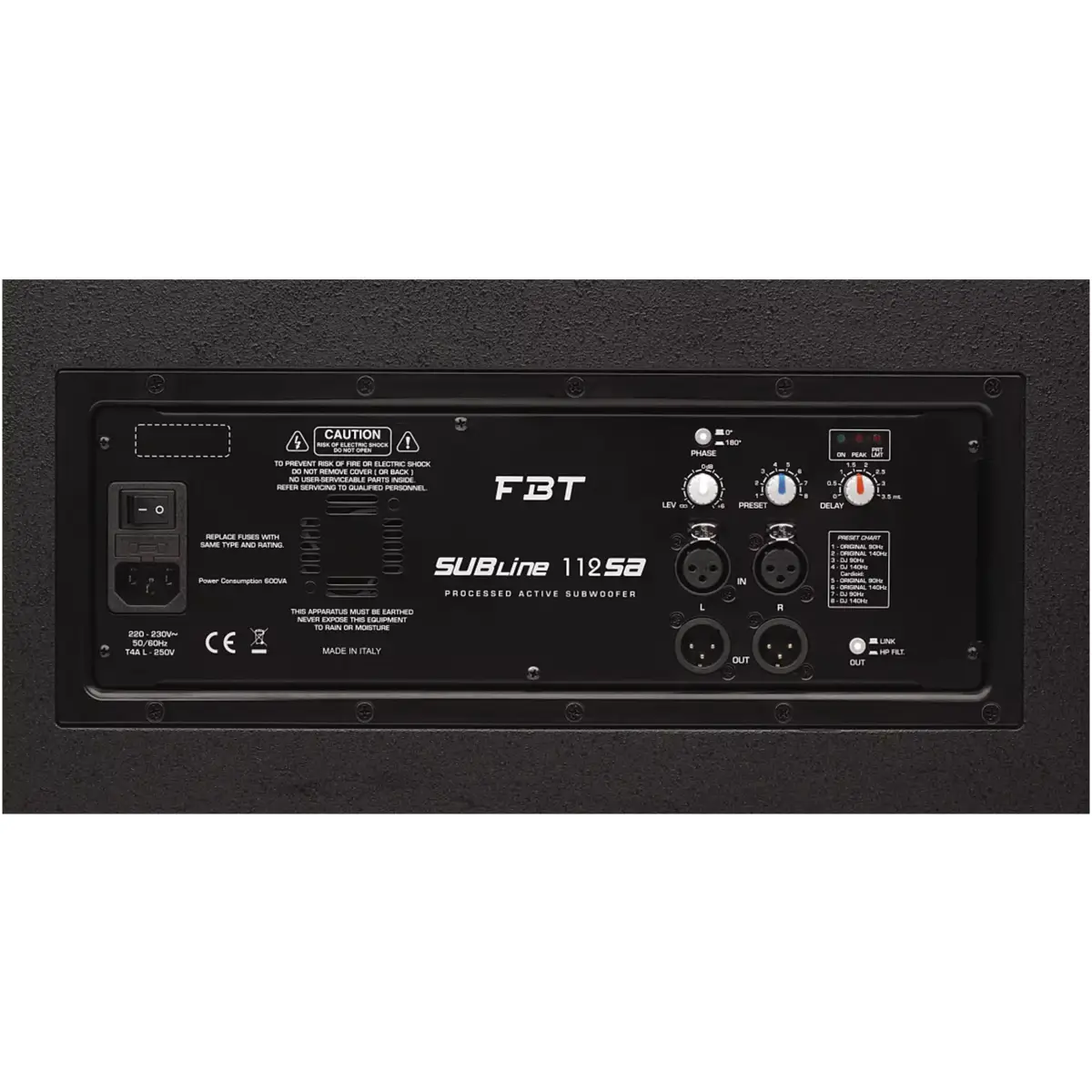

• Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators
• 15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
• M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles

Specifications:

• Built-in amplifier LF/HF: 700w
• Built-in amplifier peak LF/HF: 1400w
• Frequency response: 40Hz – 140Hz
• Low Frequency woofer: 12in (3in VC)
• Maximum SPL cont/peak: 130/133dB SPL
• Dispersion: Omnidirectional
• Input connector: Stereo XLR In/Out (High Pass/Link Out)
• Power cord: 5m IEC
• Net Dimension (WxHxD): 430 x 447 x 480mm
• Net Weight: 23 kg
• Transport Dimension (WxHxD): 530 x 547 x 580mm
• Transport Weight: 27 kg
