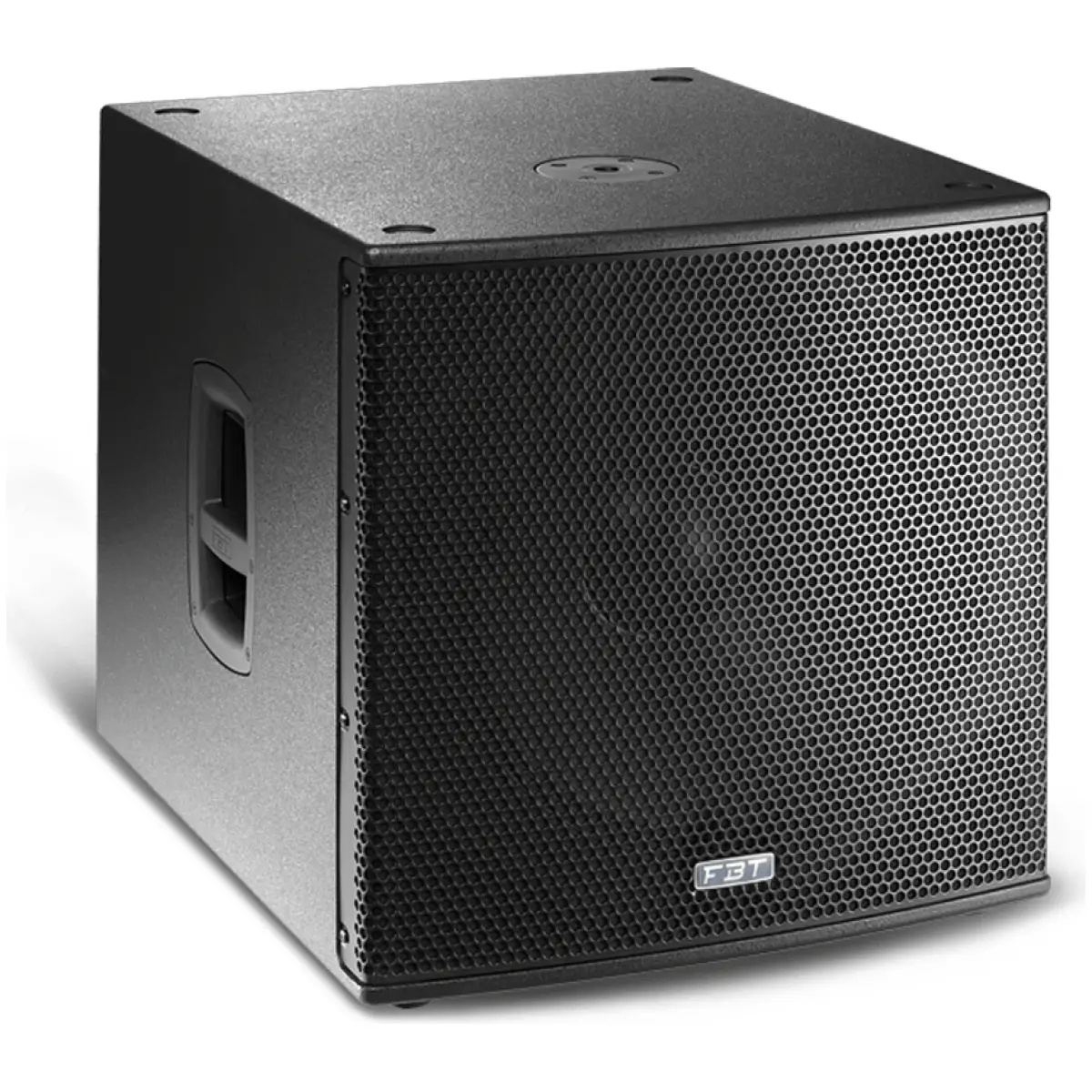

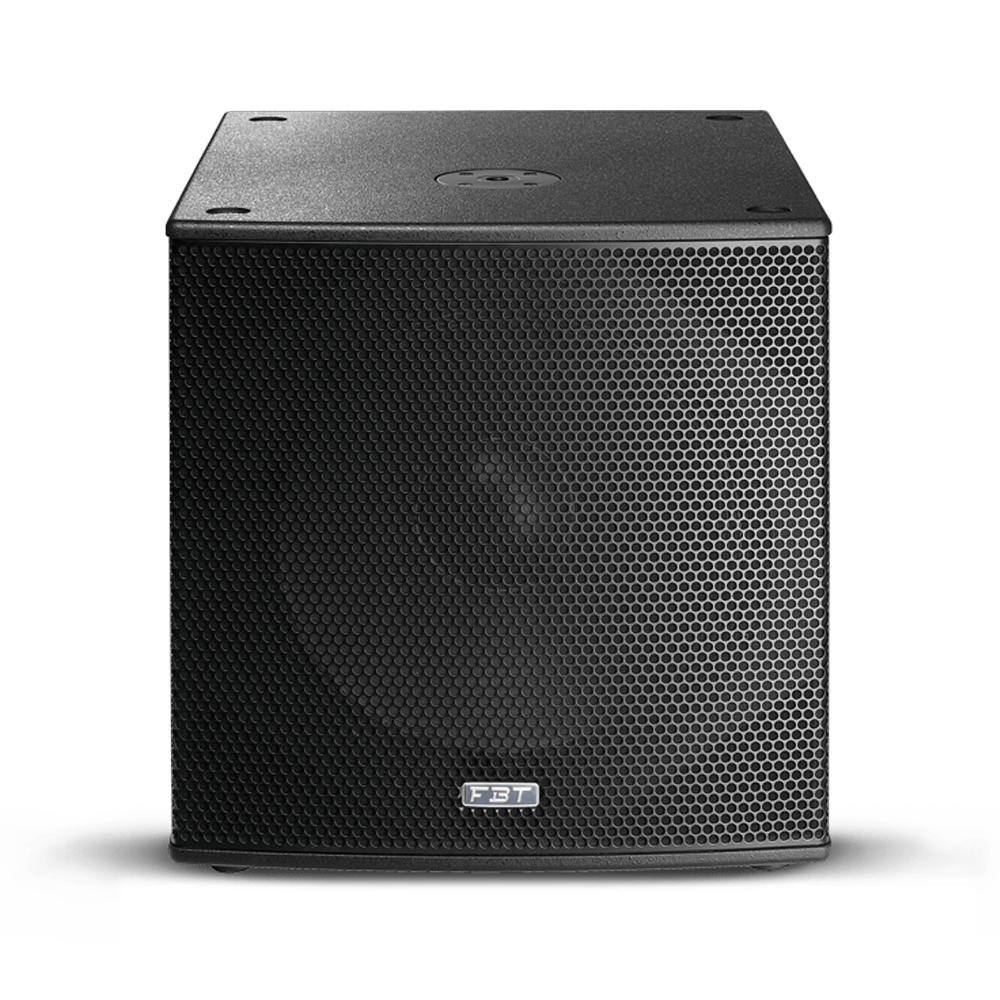

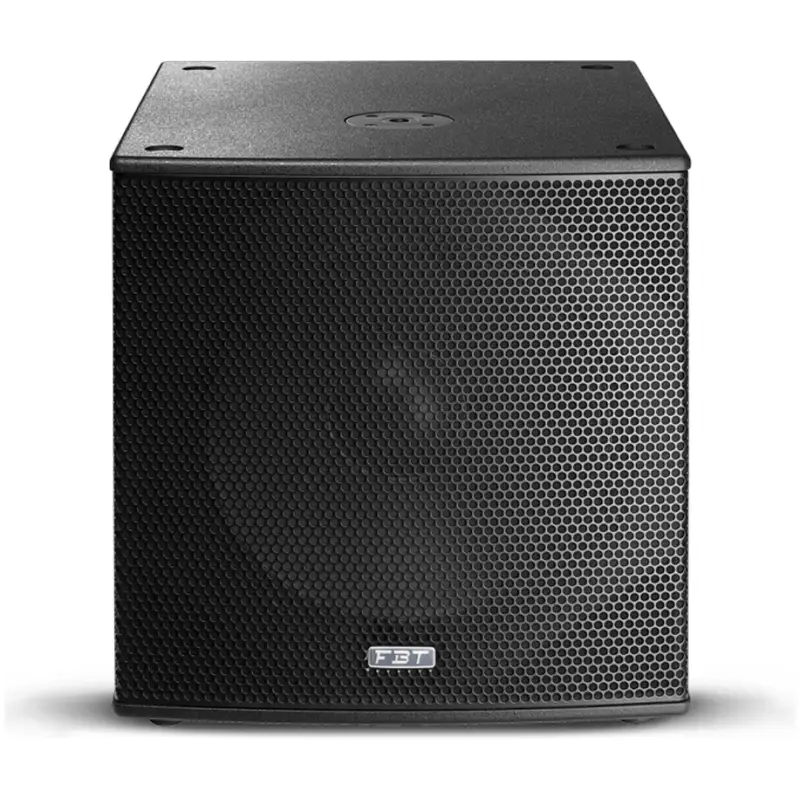

Fbt – SUBLINE118S Passive Sub

The SUBline series has been completely redesigned and consists of 112SA, 115SA, 118SA, 218SA active and 118S and 218S passive subwoofer models, all bass-reflex , built in birch plywood and aimed to extend the low frequency response to a wide range of FBT speaker systems. Created with the aim to maximize SPL/SIZE ratio, they have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker. With IN/OUT stereo connectors, it is possible to use only one subwoofer with Left and Right speakers Optional wheels, ergonomic integrated carrying handles and tour-grade plywood cabinets allow an easy transport

Features:

• Neutrik Speakon NL4MD-V connectors IN & LINK OUT
• External digital processor required: FBT DLM26 Digital Loudspeaker Management
• SL-C118 SPEAKER COVER FOR SUBLINE118 (412.250FB)
• MSA220BK TELESCOPIC SPEAKER POLE WITH M20 THREAD (393.300FB)

Specifications:

• Configuration: 1 reflex way
• Recommended amplifier: 1200 W RMS
• Long Term power: 600 W
• Short term power: 2400 W
• Nominal impedance: 4 ohm
• Frequency response: 33Hz – 400Hz -6dB
• Low Frequency woofer: 18 – 3 coil inch
• Sensitivity (@1W/1m): 98.5 dB
• Maximum SPL cont/peak: 133/136 half-space dB
• Dispersion: omnidirectional HxV
• Crossover Frequency: external active KHz
• Recommended HP filter: 28Hz – 24dboct
• Input connector: 2 x Speakon NL4 in & throu
• Net Dimension (WxHxD): 555x572x666mm
• Net Weight: 42Kg
• Transport Dimension (WxHxD): 800x642x800mm
• Transport Weight: 52kg
