Fbt – SUBLINE118SA Active Sub 18IN 1200W Rms

The FBT SUBLINE 118SA is an extremely compact bass-reflex design subwoofer. The FBT SUBLINE 118SA feature 0,70″ birch plywood construction covered in a scratch resistant black paint with two aluminum carrying handles an M20 top mounted stand adapter allows satellite speakers, such as the FBT speaker series and others, to placed above the subwoofer cab. The FBT SUBLINE 118SA features a 18″ high excursion woofer with 3″ voice coil. The FBT SUBLINE 118SA provides a Digital Signal Processor with 6 presets, 4 equalization with 2 LPF crossover settings, cardioid configuration. The FBT SUBLINE 118SA shall meet the following performance criteria: frequency response of 33Hz to 100Hz, max. SPL of 137dB peak, 1200W RMS Class D power amplifier with switch mode power supply; the control panel features stereo XLR in/out, level, EQ presets, 6 steps delay, phase reversal switch 0°-180°, 3 status led indicators.

Features:

• Bass-reflex design subwoofer
• 460 mm (18”) high excursion woofer with 75 mm (3”) voice coil, custom made for FBT by B&C
• Frequency response from 33Hz – 100Hz
• 1200W RMS Class D power amplifier with switch mode power supply
• Digital Signal Processor with 6 presets, 4 equalization with 2 LPF Crossover Settings, 6 step digital delay line up to 3.5m

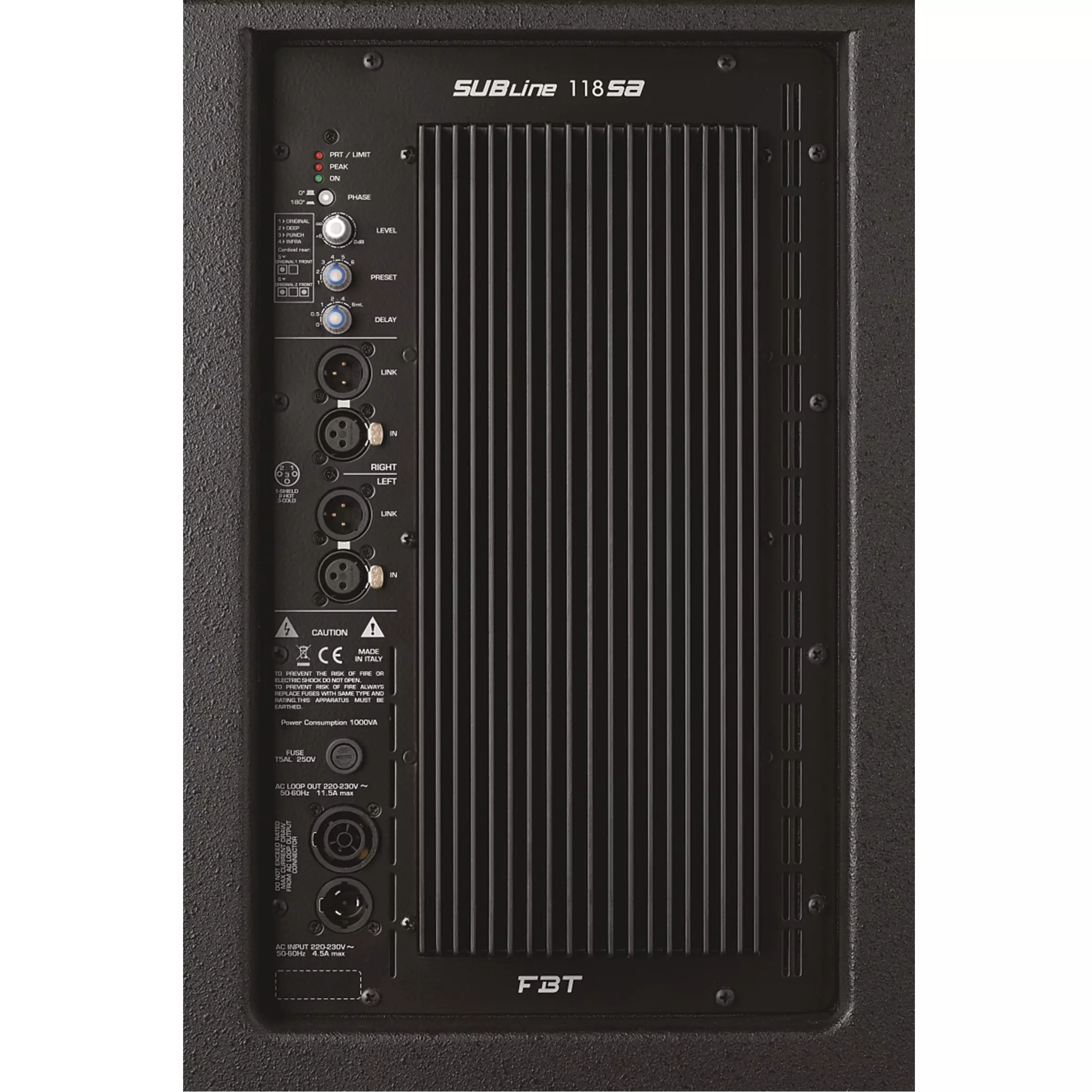

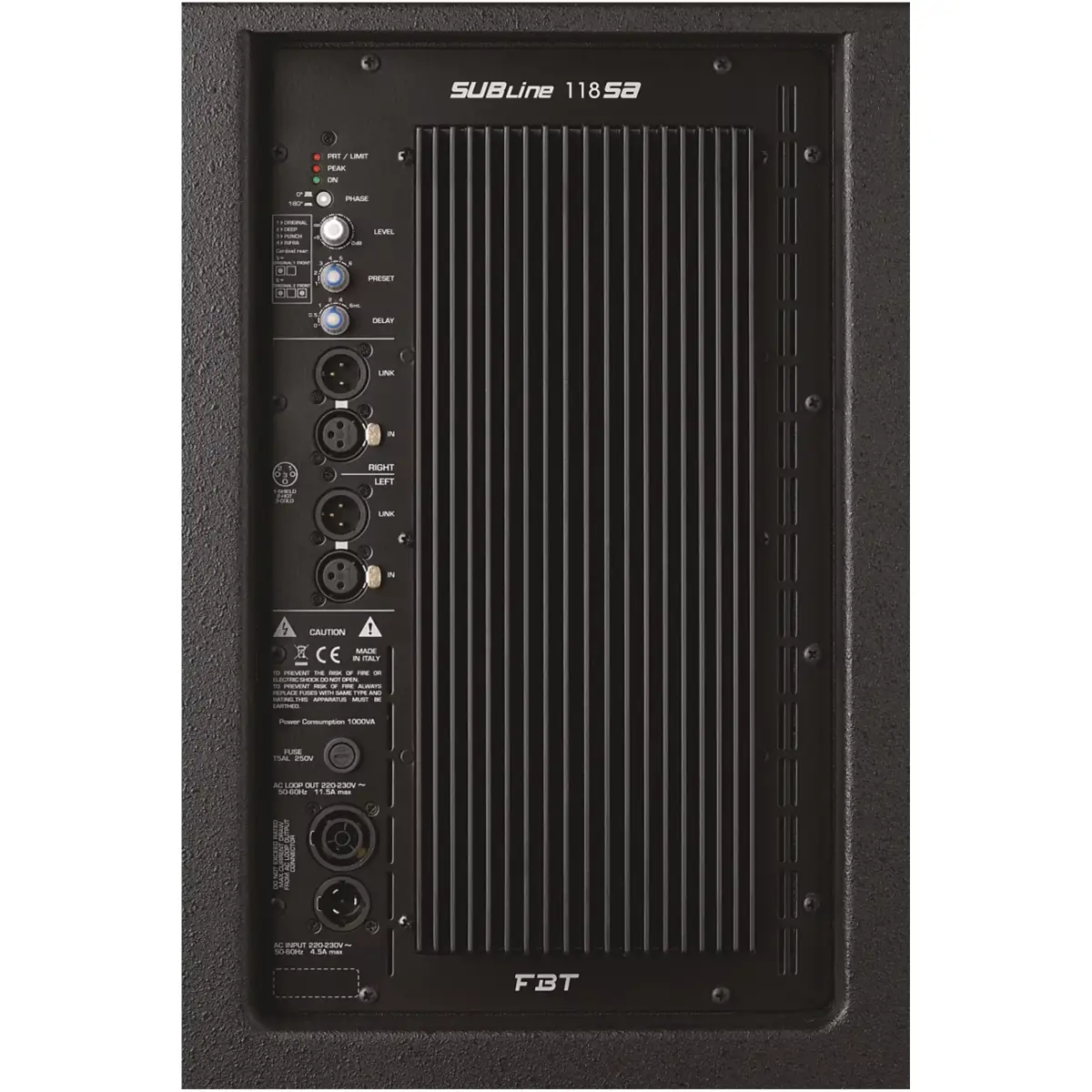

• Control Panel with Stereo XLR in/outs, Volume, EQ Presets, Delay, Phase Reversal Switch 0°-180°, 3 status LED indicators
• 15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
• M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
• MSA220BK TELESCOPIC SPEAKER POLE WITH M20 THREAD (393.300FB)

Specifications:

• Configuration: 1 way
• Built-in amplifier LF/HF: 1200 W RMS
• Built-in amplifier peak LF/HF: 2400 W
• Frequency response: 33Hz-100Hz -6dB
• Low Frequency woofer: 18 – 3 coil inch
• Maximum SPL cont/peak: 134/137 half-space dB
• Dispersion: omnidirectional HxV
• Input impedance: 22 Kohm
• Crossover Frequency: 100Hz KHz
• AC Power requirements: 800 VA
• Input connector: stereo XLR with loop
• Power cord: 7 m
• Net Dimension (WxHxD): 555x572x666 mm
• Net Weight: 44.5 kg
• Transport Dimension (WxHxD): 800x642x800 mm
• Transport Weight: 54.5 Kg
