Fbt – VENTIS112MA Active Stage Monitor 12IN 900W Rms

The new coaxial monitors in bass reflex Ventis 112MA and Ventis 115MA expand the active and passive range of the series. Thanks to the B&C custom transducers they are capable of a 132dB SPL. The two enclosures are built with a 15mm birch plywood and they can also be used for fixed installation and FOH thanks to 35mm pole mount sockede and to the insert for optional mounting bracket.

Features:

• 2-way bi-amplified, bass-reflex design
• 320 mm (12”) coaxial custom woofer with 64 mm (2.5’’) voice coil, 25mm (1”) exit throat B&C with 44mm (1.7”) voice coil
• Frequency response from 55Hz to 20kH
• DSP with 6 factory presets (ORIG, HI-CUT/DRUM-FILL, LO-CUT/DOUBLE,
• FOH, VOCAL, TOURING)
• 90° conical dispersion

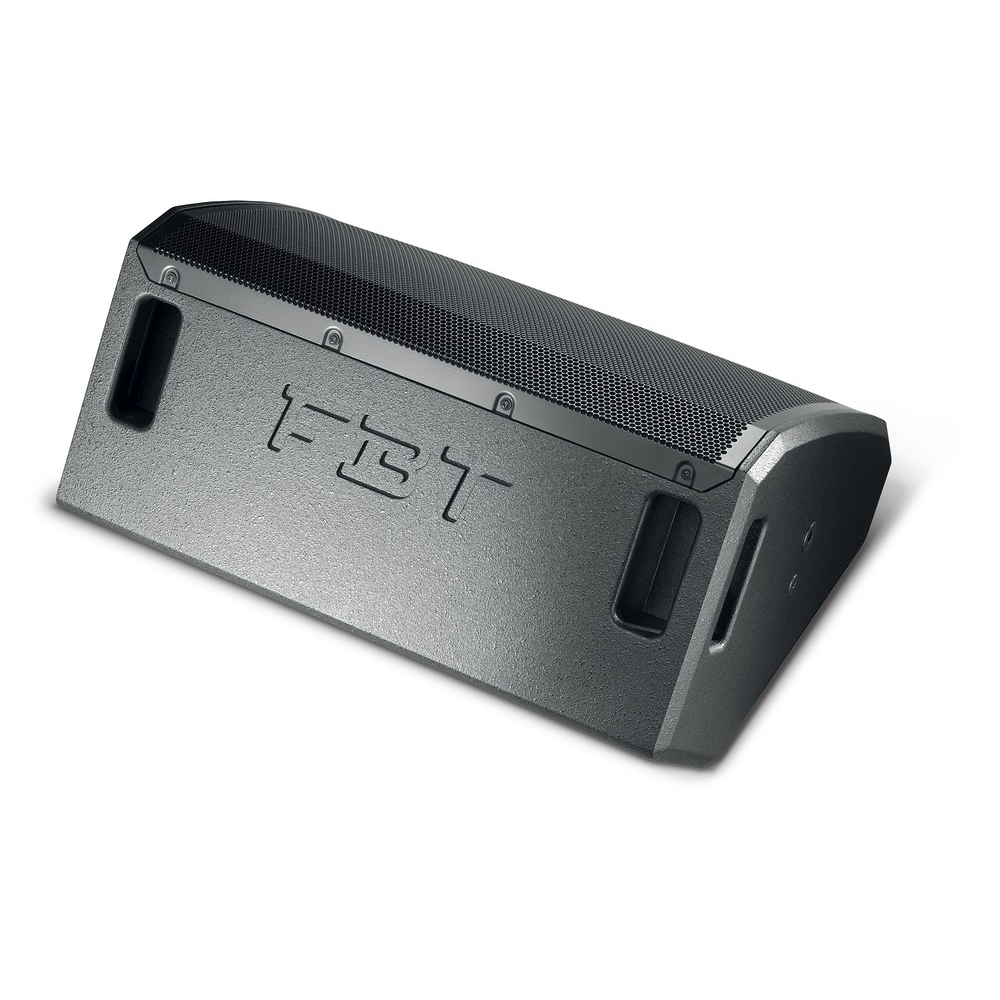

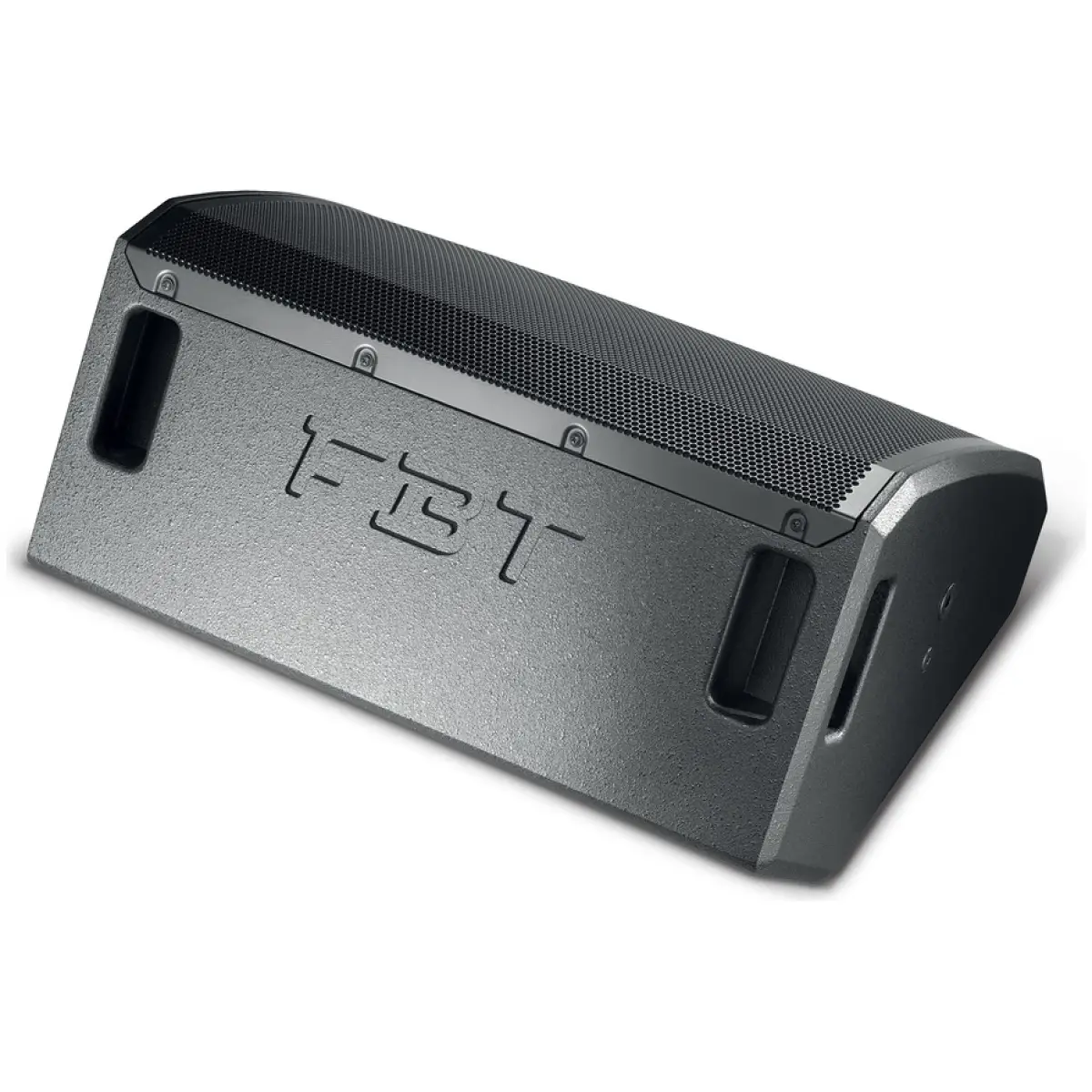

• 35 mm (1.38’’) stand socket, two integrated handles and optional wall mount bracket?

Specifications:

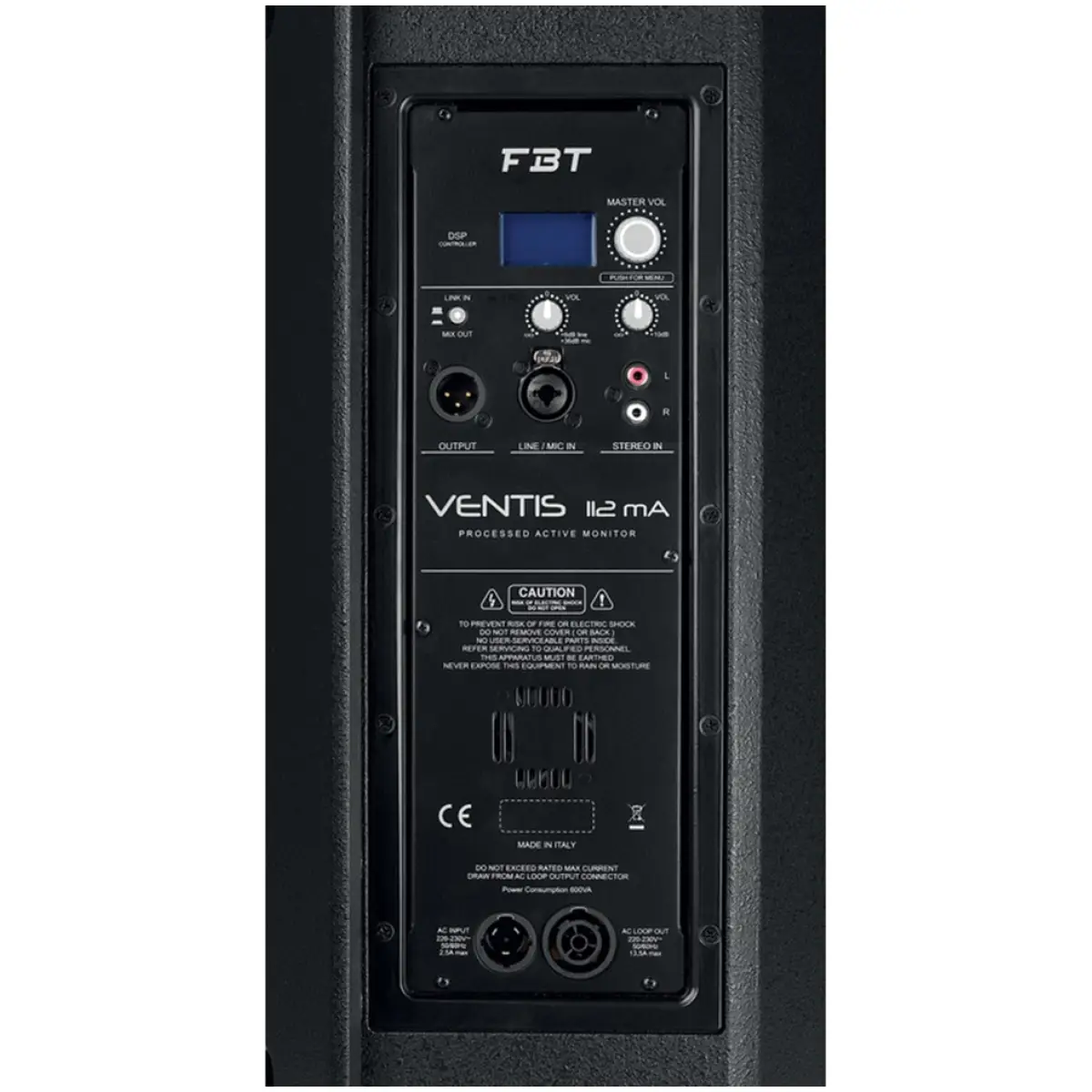

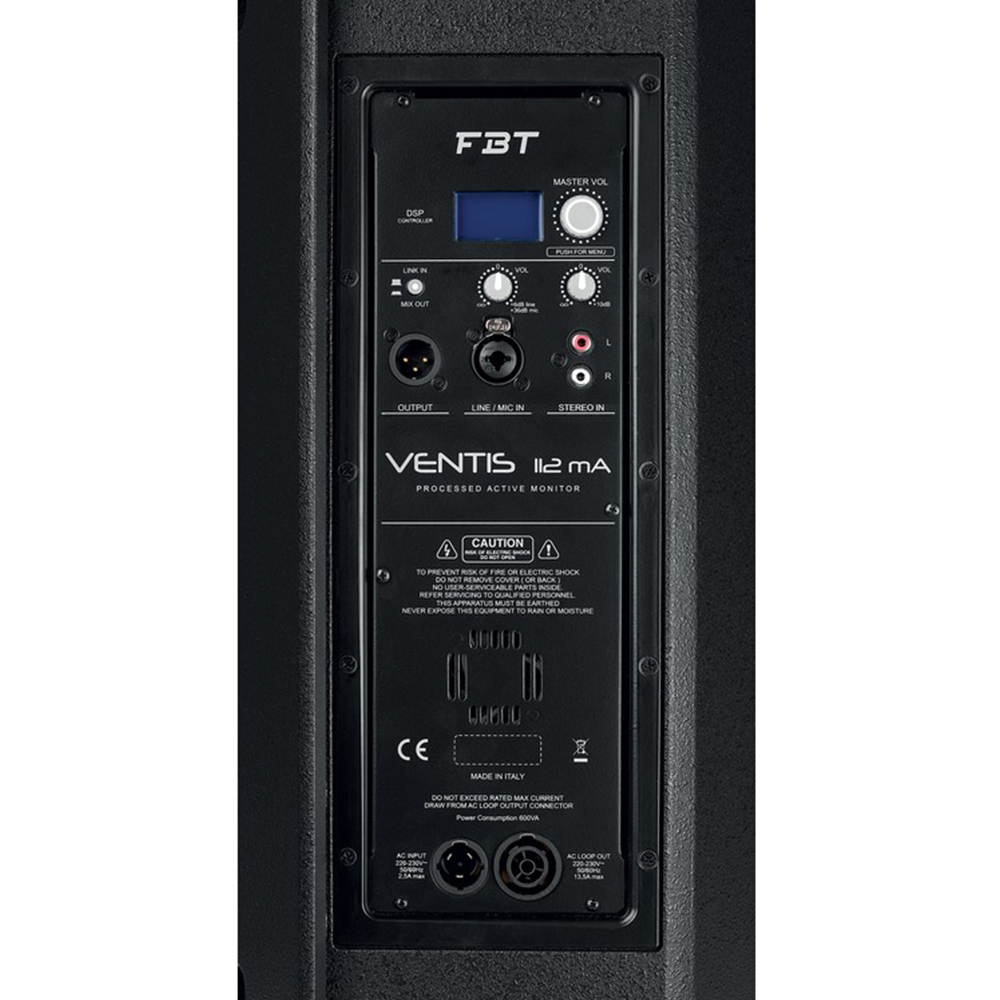

• INPUT CONNECTOR: XLR with loop, RCA ST
• POWER CORD: 5/16.4 m/ft
• NET DIMENSION (WXHXD): 563x311x452 / 22.2×12.2×17.8 mm/inch
• NET WEIGHT: 17.5/38.6 kg/lb
• HIGH FREQUENCY DRIVER: 1 – 1.7 coil inch
• TRANSPORT DIMENSION (WXHXD): 663x411x552 / 26.1×16.2×21.7 mm/inch
• MAXIMUM SPL CONT/PEAK: 126/133 dB
• TRANSPORT WEIGHT: 22/48.5 kg/lb
• DISPERSION: 90° HxVNPUT IMPEDANCE:22 Kohm
• AC POWER REQUIREMENTS: 640 VA
• BUILT-IN AMPLIFIER LF/HF: 700/200 W RMS
• BUILT-IN AMPLIFIER PEAK LF/HF: 1400/400 W
• FREQUENCY RESPONSE: 55Hz – 20KHz -6dB
• LOW FREQUENCY WOOFER: 12 – 2.5 coil inch
• CODE: 41215
• CONFIGURATION: 2 way
