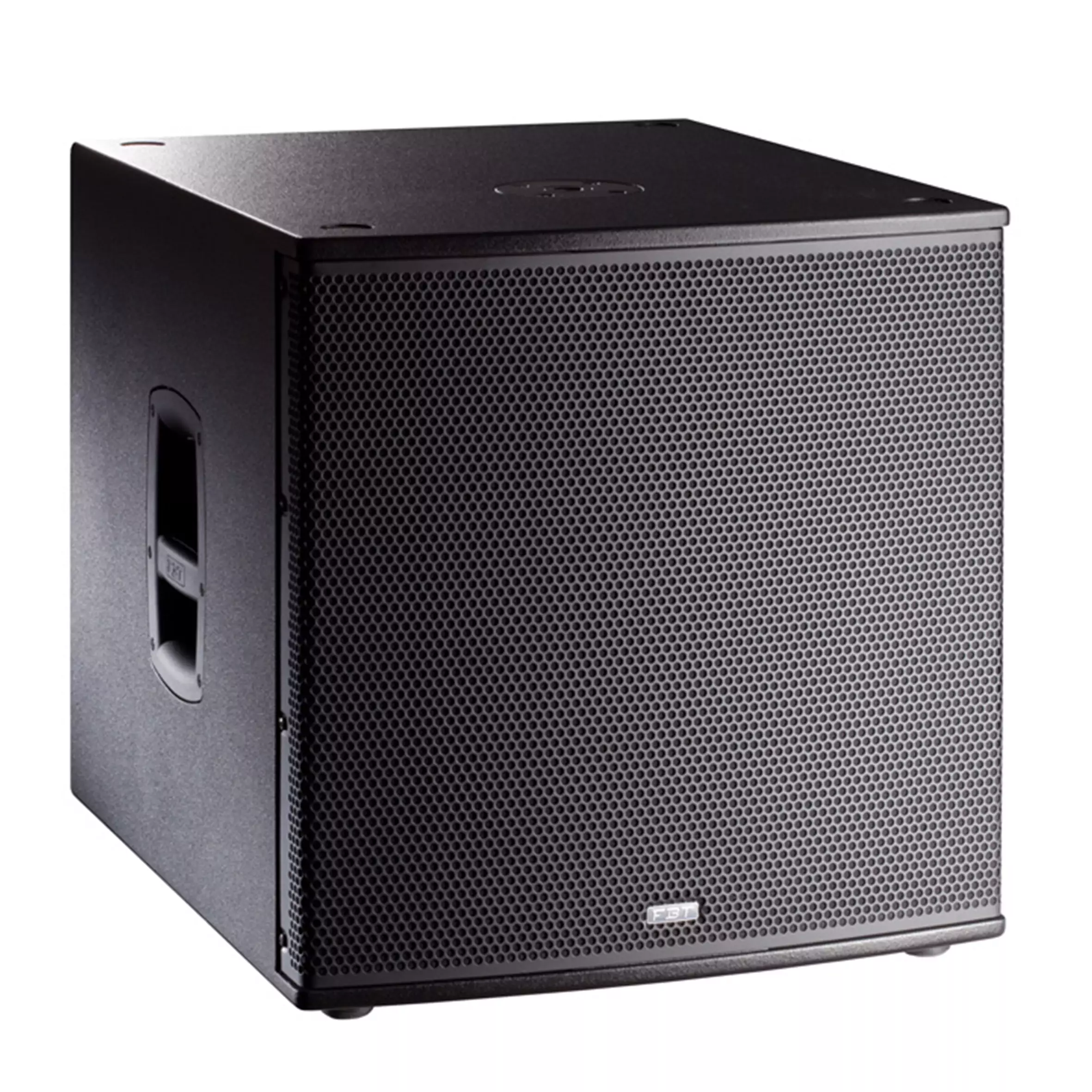

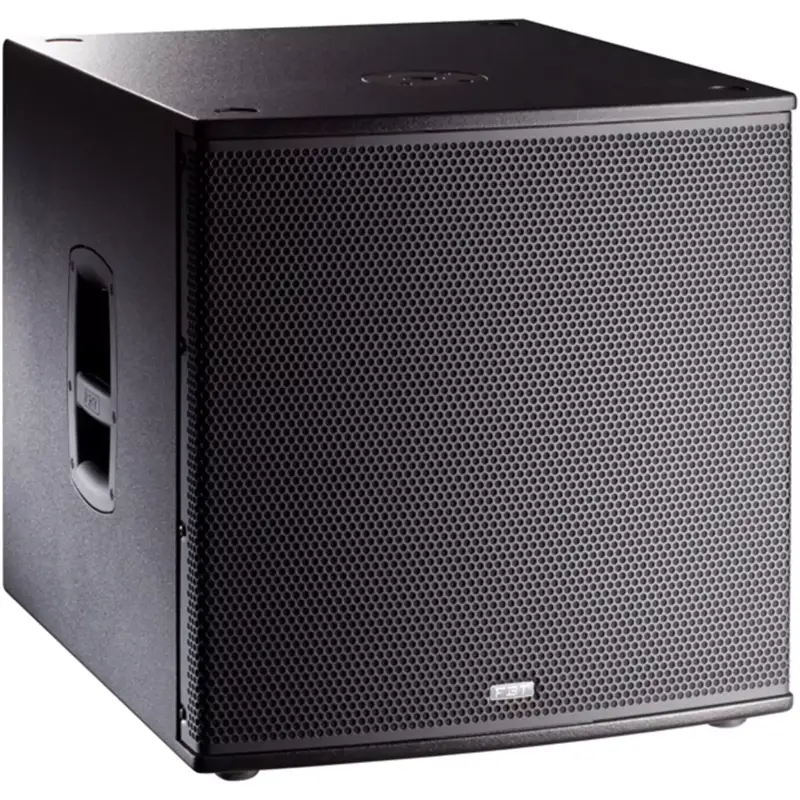

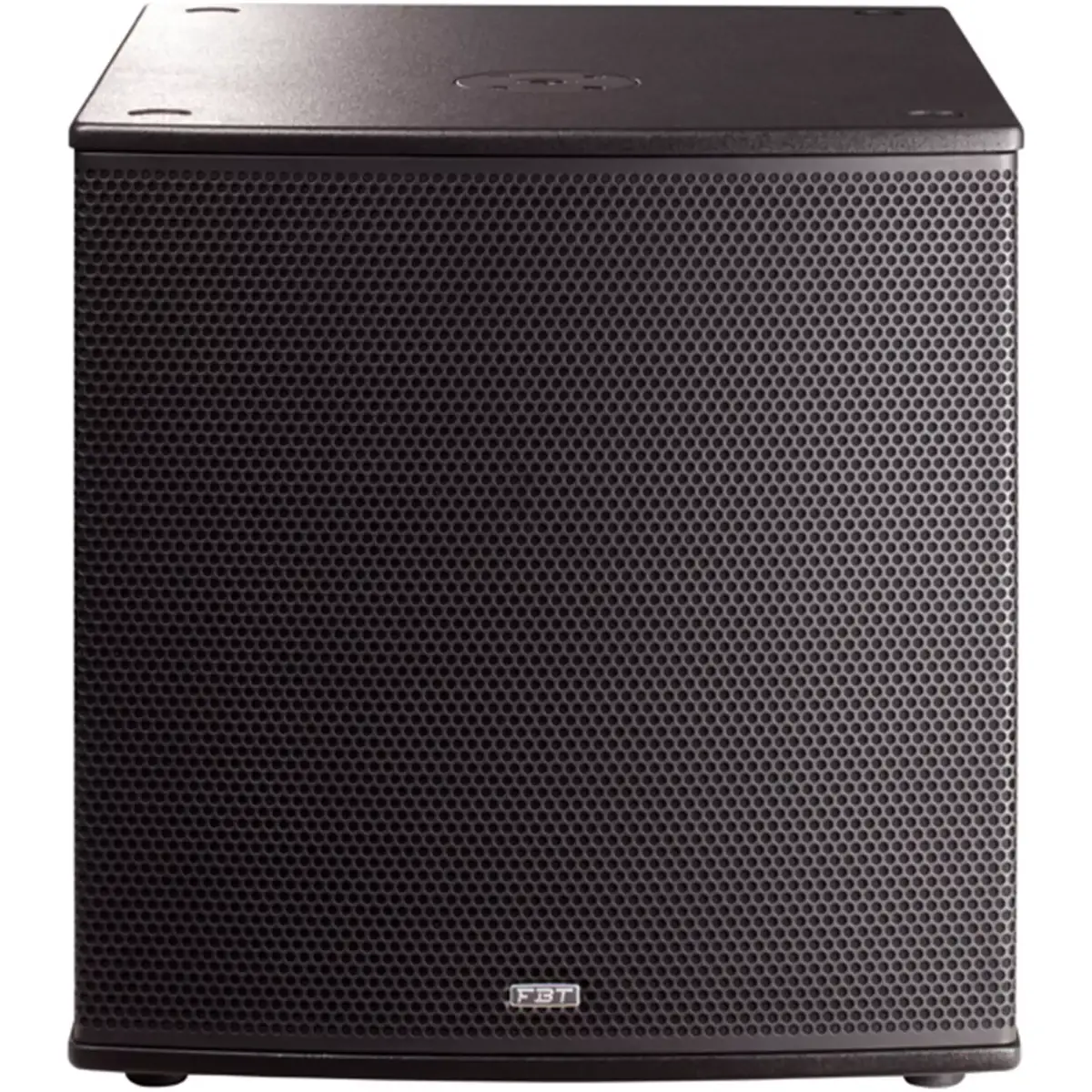

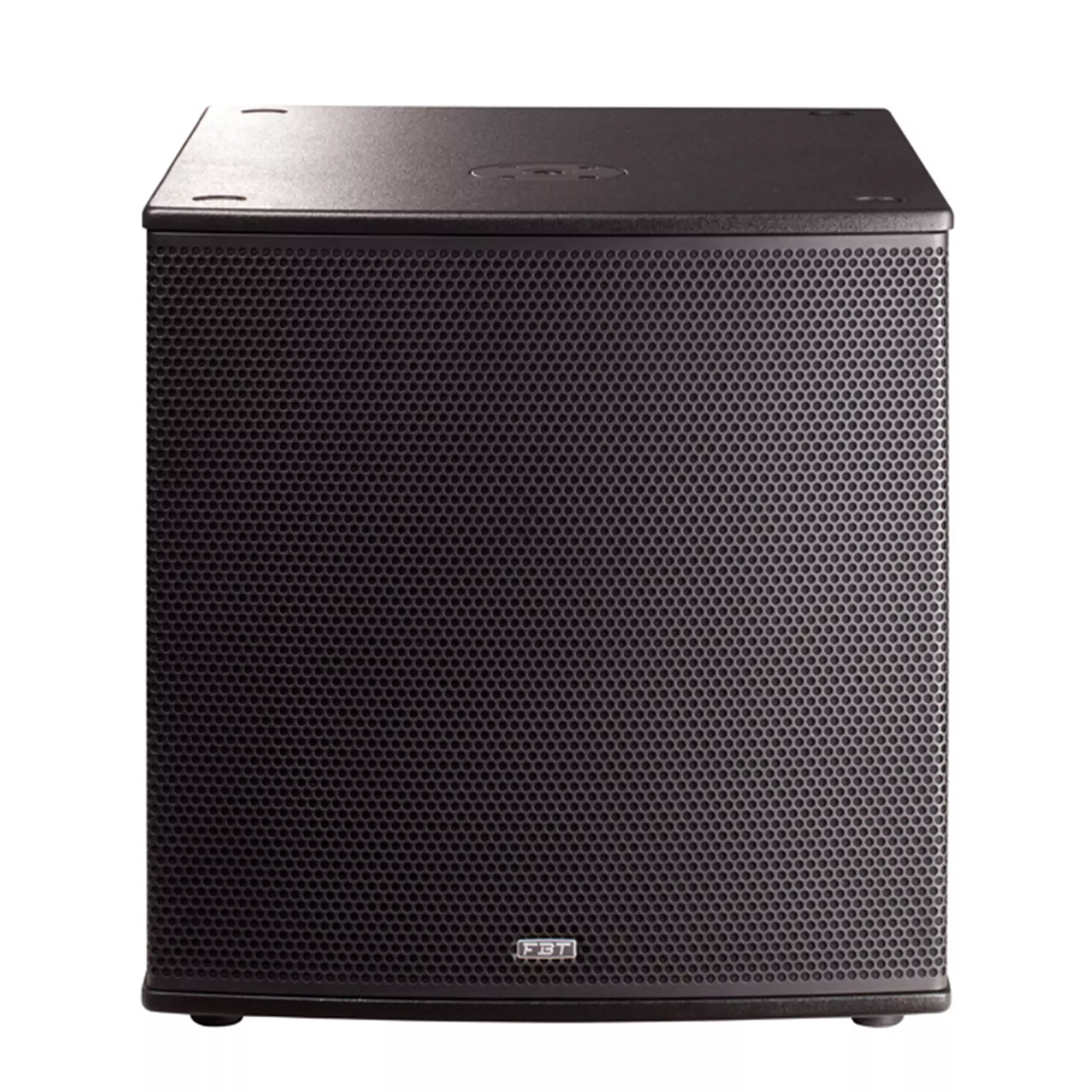

Fbt – VERTUSCLA118SA Active Sub

The FBT VERTUS CLA 118SA processed active subwoofer is the perfect low frequency extension and reinforcement of the FBT VERTUS CLA406Aarray. FBTVERTUS CLA 118SA Neutrik Powercon Cable Duplex power supply connectors. The FBTVERTUS CLA118SAshall meet the following performance criteria: frequency response of 33Hz to 120Hz, maximum SPL of 138dB, Class D 1200W RMS amplifier with switch mode power supply, 1 x 18″ B&C high excursion woofers with 3″ voice coil. The FBTVERTUS CLA118SA provides a DSPprocessor with 8 available presets. The feature 0,59″ birch plywood construction coated with a textured black finish and the front shall be protected by a heavy duty metal grille. The control panel provides XLR in&link, Volume, Preset, Delay, 0°-180° phase switch, 3 status led, Neutrik Powercon Cable Duplex power supply connectors.

Features:

• Active subwoofer in bass-reflex design
• 460mm (18”) B&C high excursion woofer with 75mm (3”) voice coil
• Frequency response from 33Hz to 100Hz
• 1200W RMS Class D power amplifier with swittching mode power supply
• Processor DSP with 8 presets, cardioid configuration, delay

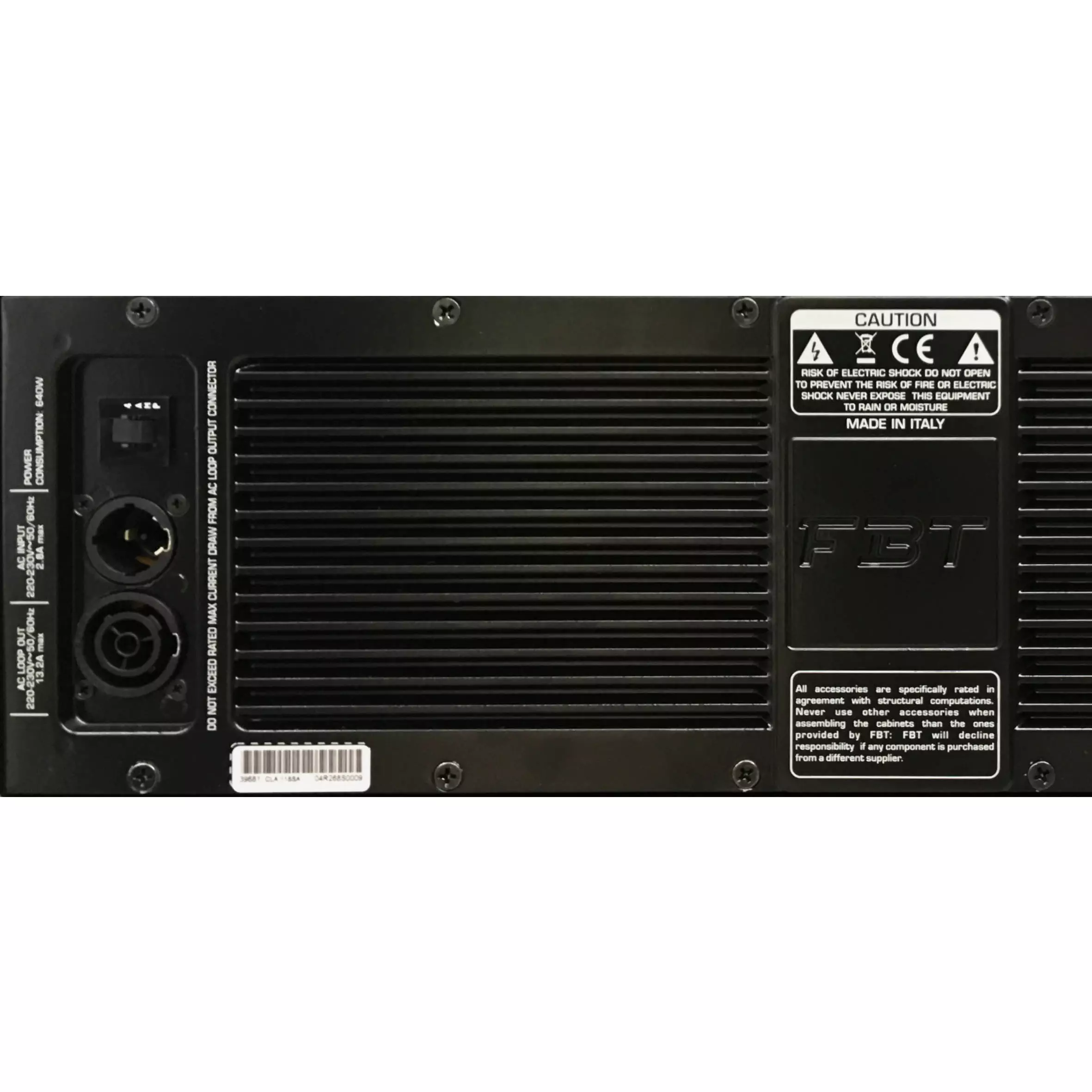

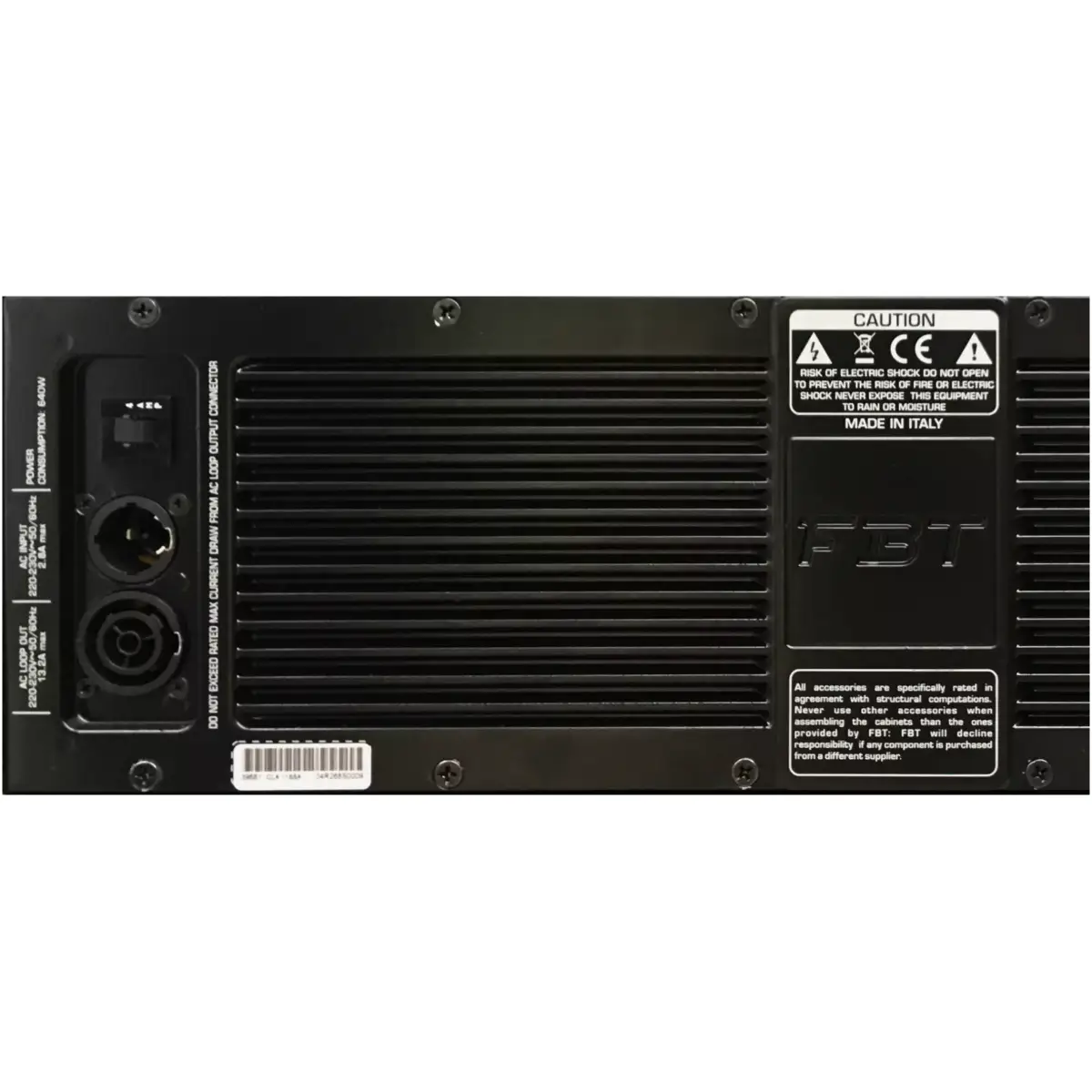

• Control Panel with XLR input and link, volume, presets, delay, phase 0 ° -180 °, ground-lift
• Neutrik powerCON power IN and LINK connectors
• 15mm (5/8”) birch plywood with scratch-resistant coating Stackable
• M20 (20mm) top mount speaker stand socket, two diecast aluminium carrying handles with rubber inserts
• Optional 4 swivel-mount casters 80mm (3.15”) on request
• Suitable for low frequency extension and reinforcement of the CLA406A array, especially for live performance

Specifications:

• Configuration: 1 reflex way
• Built-in amplifier LF/HF: 1200 W RMS
• Built-in amplifier peak LF/HF: 2400 W
• Frequency response: 33Hz – 120Hz -6dB
• Low Frequency woofer: 1×18 -3 coil inch
• Maximum SPL cont/peak: 134/138 half-space dB
• Dispersion: omnidirectional HxV
• Input impedance: 22 Kohm
• Crossover Frequency: preset dependant KHz
• AC Power requirements: 640 VA
• Input connector: XLR with loop
• Power cord: 5 m
• Net Dimension (WxHxD): 550x550x660 mm
• Net Weight: 40 kg
• Transport Dimension (WxHxD): 700x700x800 mm
• Transport Weight: 50 Kg
