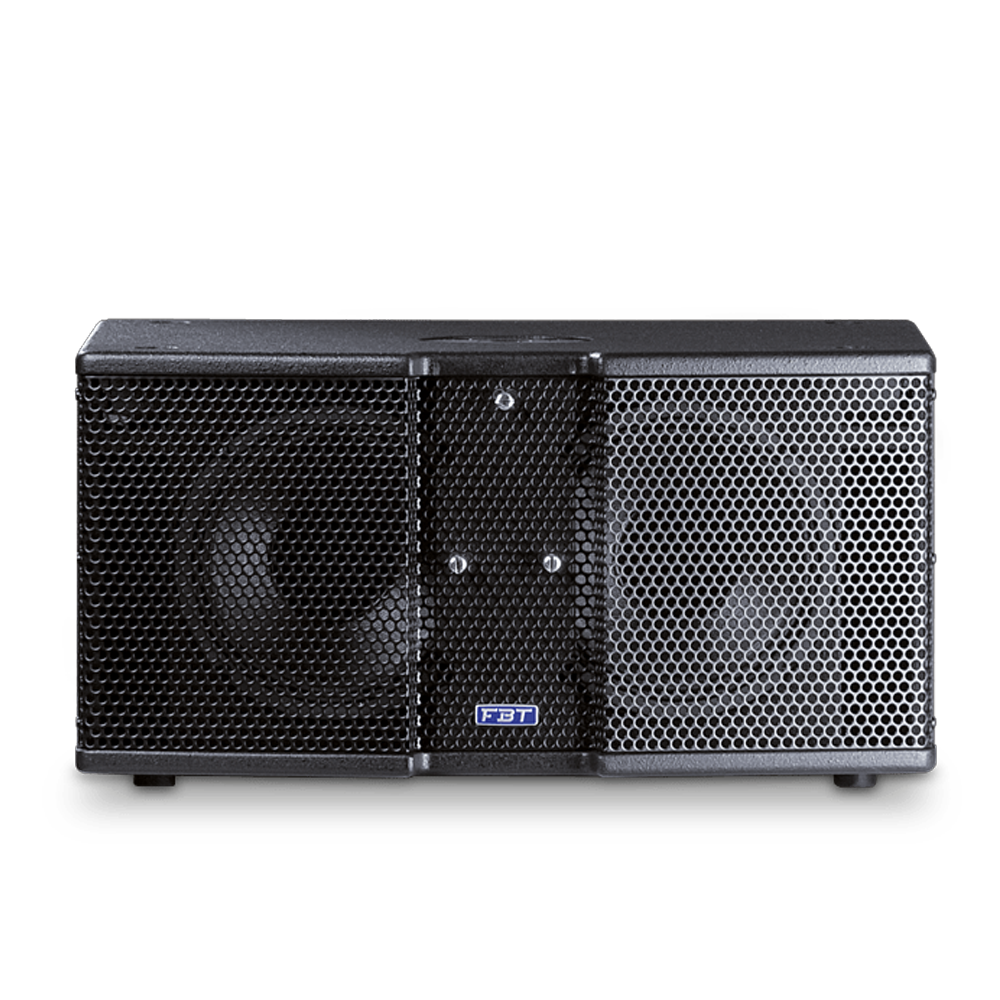

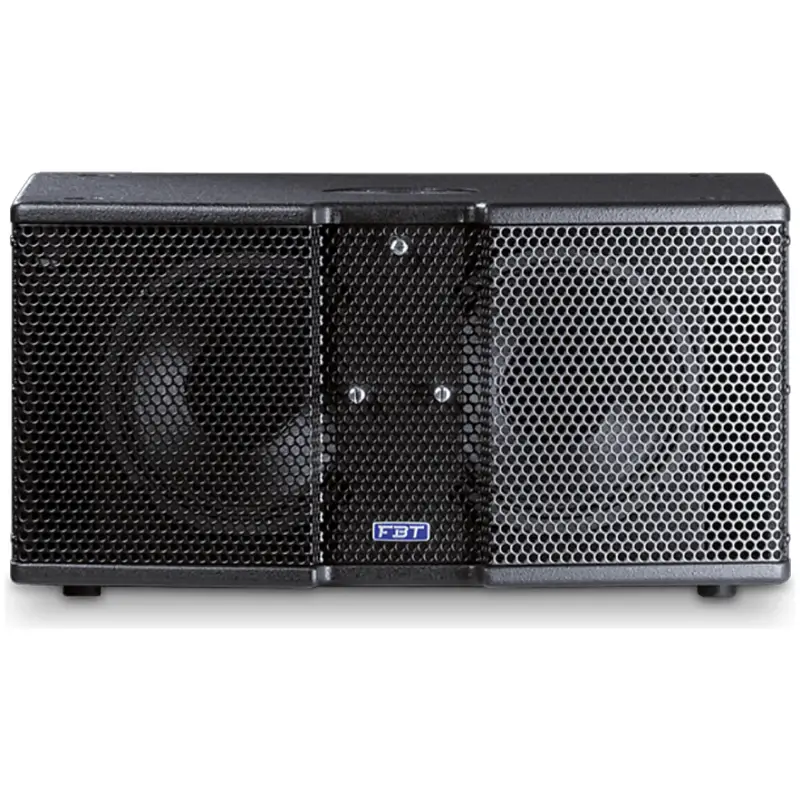

Fbt – VERTUSCLA208SA Active Sub 2X 8IN 600W Rms

The FBT VERTUS CLA 208SA processed active subwoofer is the perfect low frequency extension and reinforcement of the CLA604A array. FBTVERTUS CLA208SA The FBT VERTUS CLA 208SA shall meet the following performance criteria: frequency response of 50Hz to 200Hz, maximum SPL of 129dB, Class D 600W RMS amplifier with switch mode power supply, 2 x 8″ custom high excursion woofers with 2″
voice coil. The FBTVERTUS CLA208SA provides a DSP processor with 4 available presets. The feature 15mm birch plywood construction and the front shall be protected by a heavy duty metal grille. The control panel provides combo XLR/jack stereo in & link, XLR Hi-pass out stereo, volume, preset, 0°-180° phase switch, 3 status led, Neutrik powercon in & link. The rapid latching system with pins on front serves as the base support for the CLA 604A column speaker for the expansion of the system to form a unified column with an absolute and coherent source integration.

Features:

• Active subwoofer in bass-reflex design
• 2 x 8″ (200mm) custom, high-excursion woofer with 2″ (50 mm) voice coil
• 50Hz to 180Hz frequency response
• Class D 600W RMS amplifier with switch mode power supply
• DSP processor with 4 available presets
• Control panel with combo XLR/Jack stereo input and link, XLR Hi-pass out stereo, volume, presets, 0°-180° phase switch, status LED
• Neutrik POWERCONN input and link
• 15mm birch plywood enclosure with anti-scratch paint finish, stackable
• M20 stand adapter, 2 integrated handles, front hardware to sustain CLA206LA modules
• Suitable for low frequency extension and reinforcement of the CLA604A array, especially for live performance
• Vertus is also available in white colour

Specifications:

• Configuration: 1 way
• Built-in amplifier LF/HF: 600 W RMS
• Built-in amplifier peak LF/HF: 1200 W
• Frequency response: 50Hz – 180Hz -6dB
• Low Frequency woofer: 2 x 8″ – 2″ coil inch
• Maximum SPL cont/peak: 125/129 half space dB
• Dispersion: Omnidirectional HxV
• Input impedance: 22 Kohm
• Crossover Frequency: 0.15 KHz
• AC Power requirements: 450 VA
• Input connector: stereo XLR with loop,HP out
• Power cord: 5 m
• Net Dimension (WxHxD): 550x270x500 mm
• Net Weight: 20 / 16.4 kg
• Transport Dimension (WxHxD): 690x370x625 mm
• Transport Weight: 23.5 Kg
