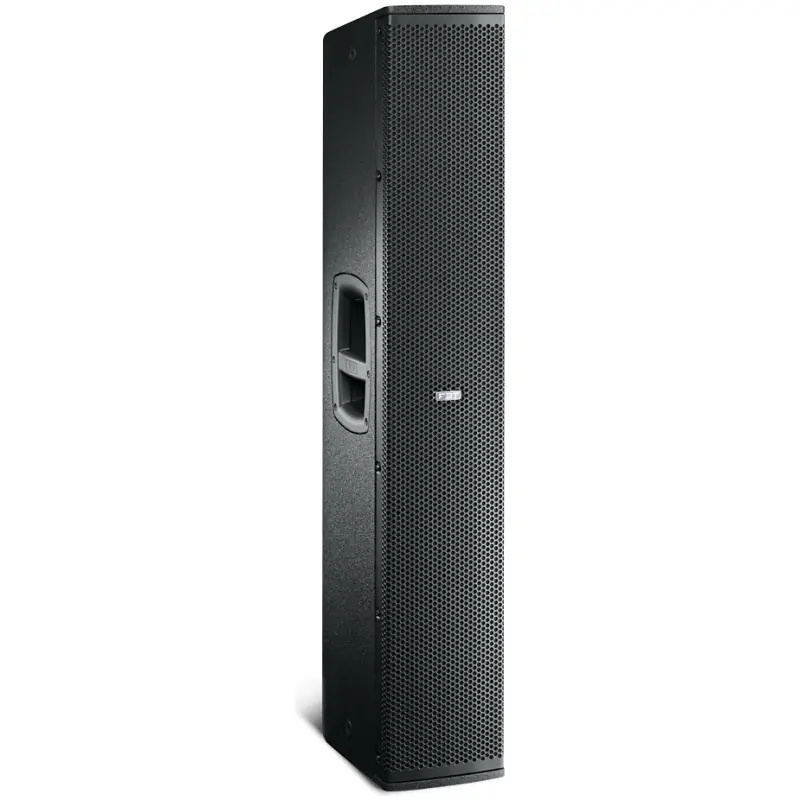

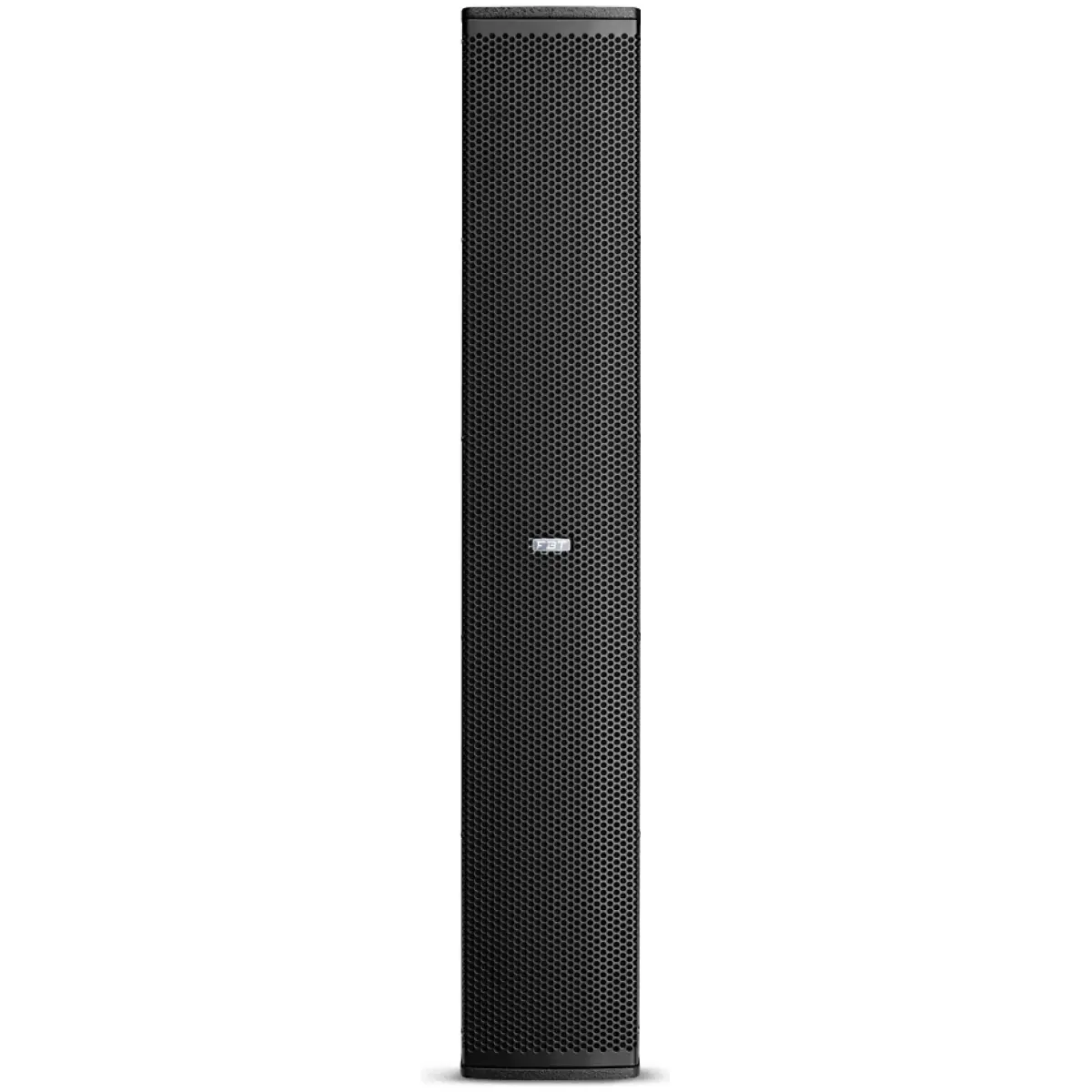

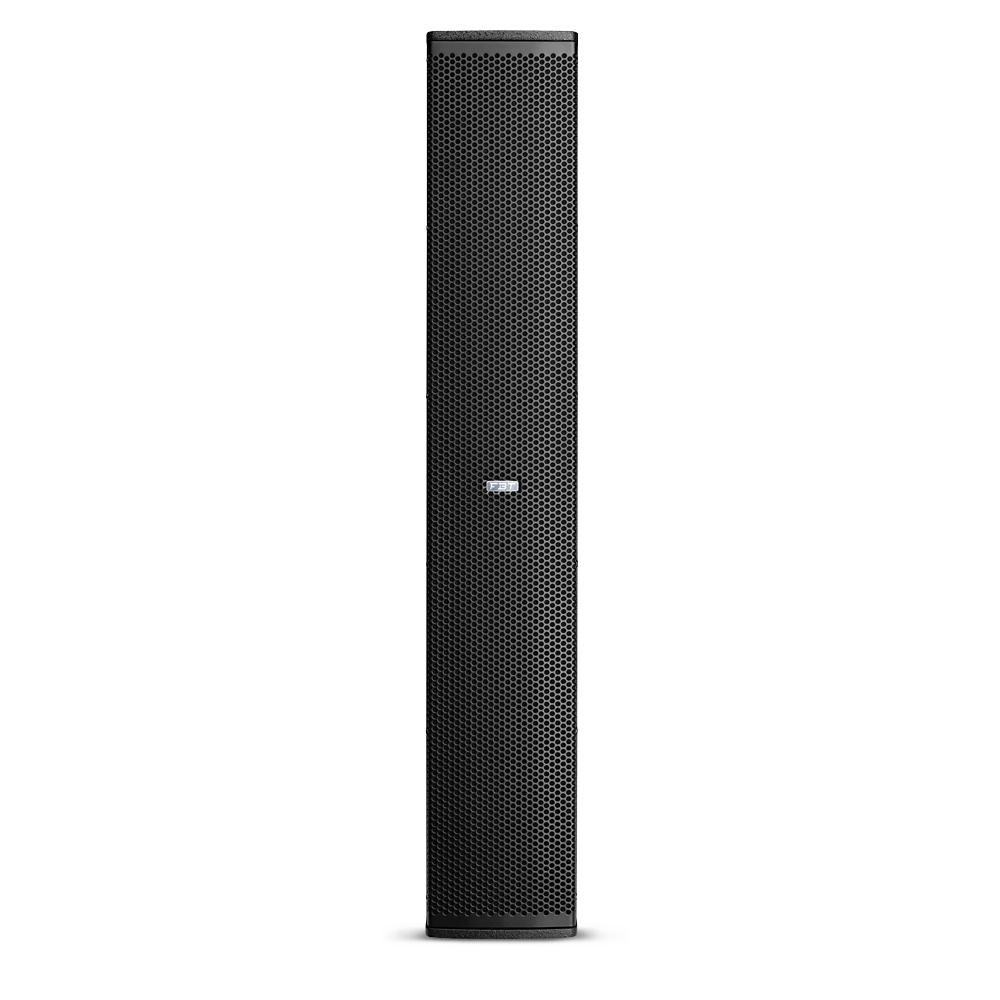

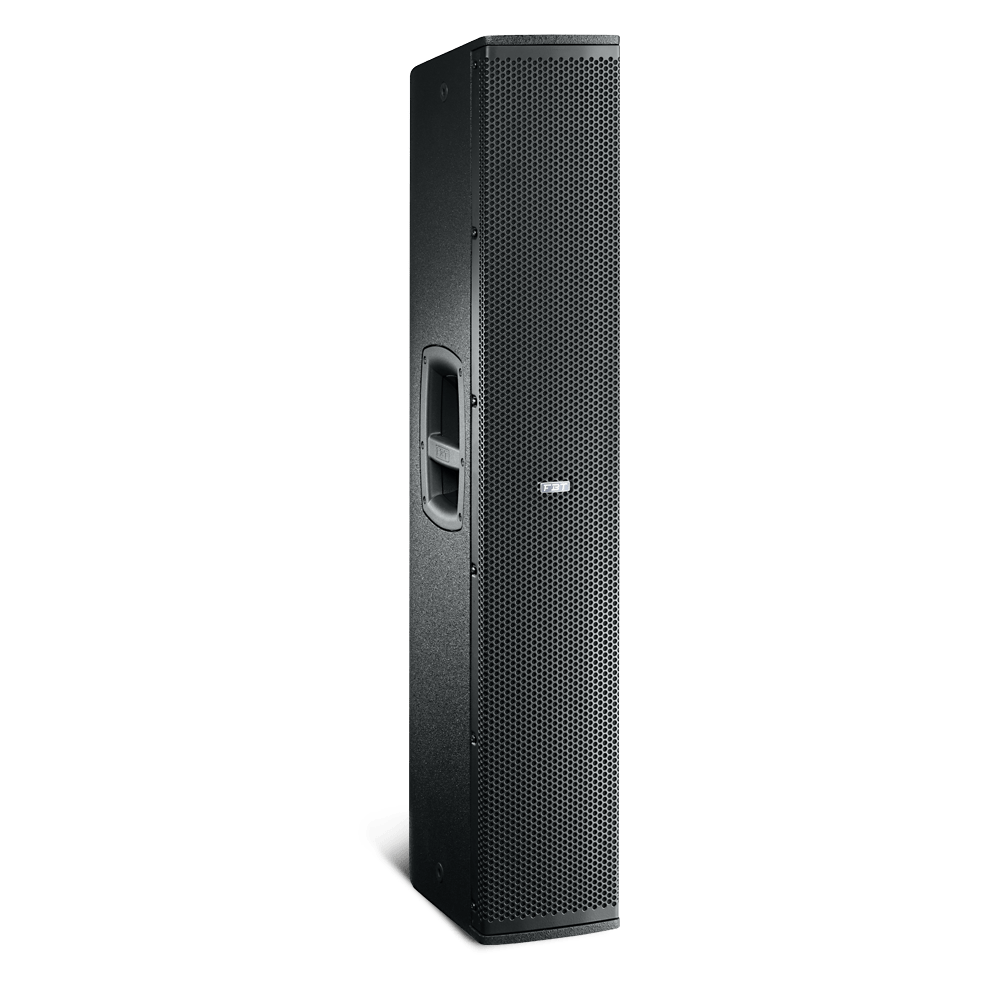

Fbt – VERTUSCLA4062A Active Column Line Array

The FBTVERTUS CLA406A two-way bi-amplified speaker system incorporates 4 x 6,5” custom woofer with 1,5” voice coil and 1 x 1,4″ B&C HF neodymium driver with 2,5 voice coil. The internal Class D amplifier module constructed in die-cast aluminum delivers 600W for LF, 300W for HF and DSP processor with 8 equalization presets provide unexpected dynamics in a system of these dimensions. The FBT VERTUS CLA 406A shall meet the following performance criteria: frequency response from 65Hz to 20kHz, maximum SPL of 133dB. The FBT VERTUS CLA 406A feature a 0,47″ birch plywood with internal metal bracing and the front shall be protected by a heavy duty metal grille. The control panel provides Level control, HF level, Preset, HPfilter, Gnd lift, 3 status led ( on, peak, prt/limit ), XLR input & link and Neutrik Powercon Cable Duplex for power supply. Via optional hardware it is possible to couple two systems with angles of 0°, 10°, 20° and additional accessories are available for system suspension. It can be integrated elegantly and with minimal intrusion into any environment; it is ideal for live applications, assisted by sub CLA118SA, which for fixed installations.

Features:

• 2-way bi-amplified line array column system
• 4 x 165mm (6.5”) custom woofer voice coil 38mm (1.5”)
• B&C HF neodymium driver with 36mm (1.4”) exit and 64mm (2.5”) voice coil
• Waveguide FBT large format with dispersion 100 ° H x 25 ° V
• Frequency response from 65Hz to 20KHz
• Amplifiers Class D 600Wrms for LF and HF 300Wrms with switching power supply
• Processor DSP with 8 EQ presets

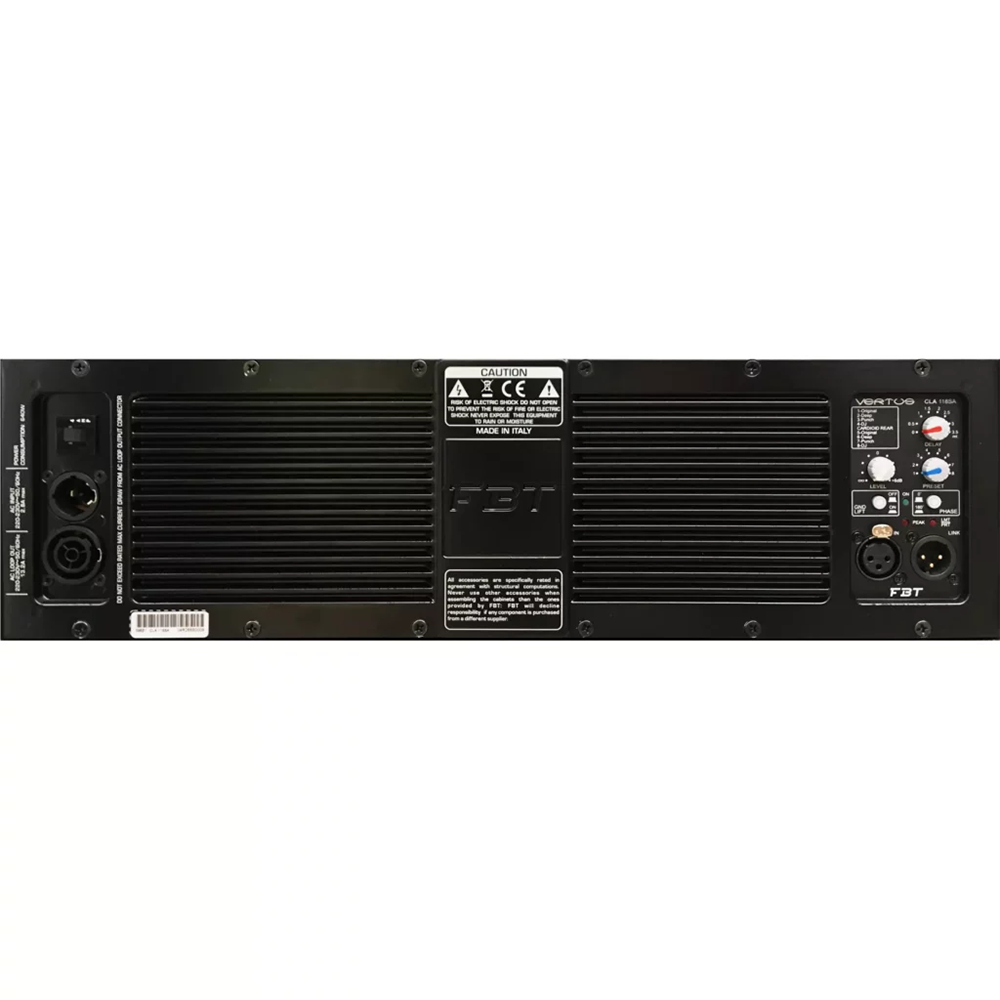

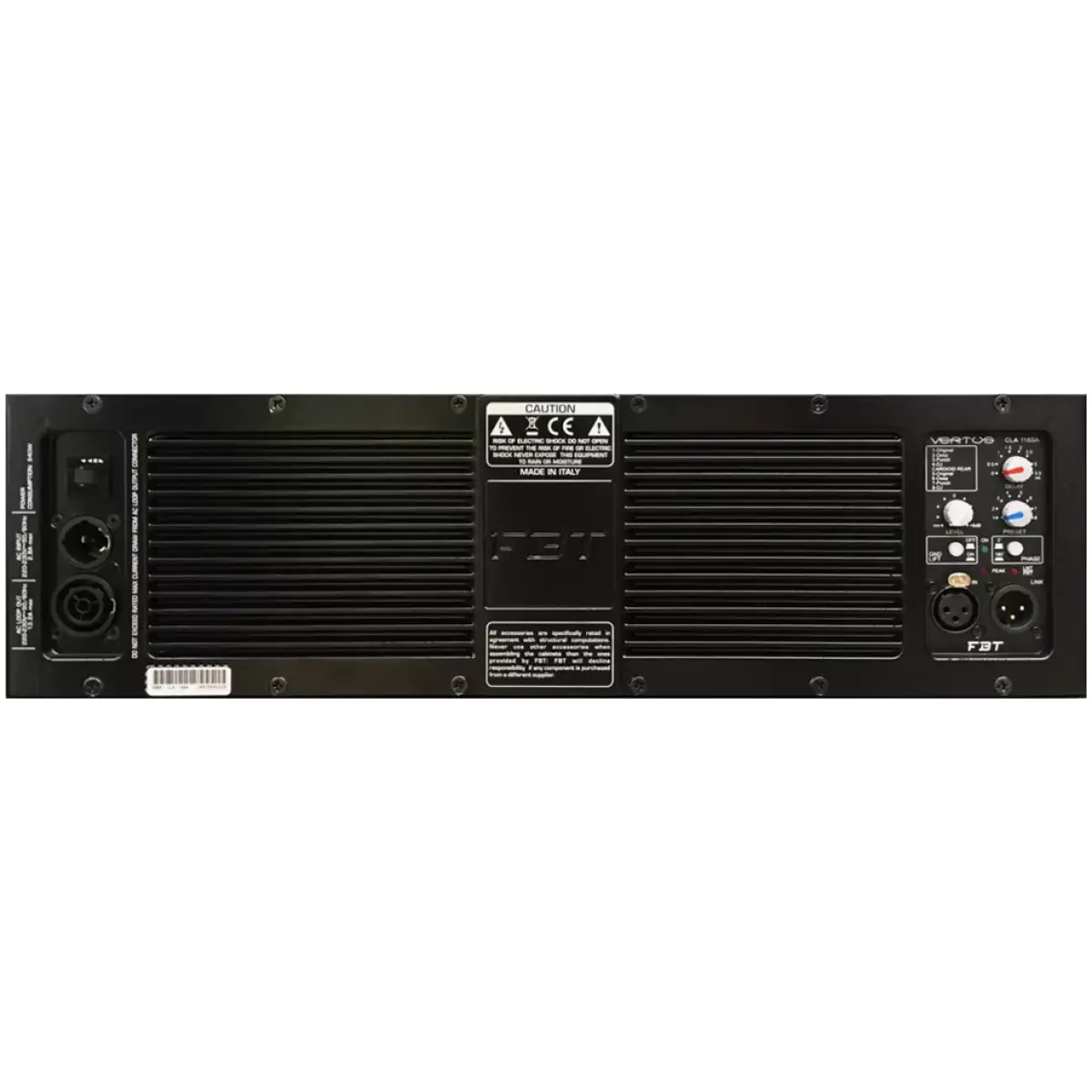

• Control Panel with XLR input and link, volume, presets, filter-HP, ground-lift
• Neutrik powerCON power IN and LINK connectors
• 12mm (1/2”) birch plywood with scratch-resistant coating
• 12 attachment points above and below for the optional hardware that allows the installation of hanging or pair two CLA406A with angle of 0 ° – 10 ° – 20 ° in the vertical plane
• Top side tilted 10 ° for the inclination of two columns without damaging gap between the waveguides for a wavefront extremely consistent over the 18kHz
• 35mm (1.3/8”) top hat for stand mount facility
• It is ideal for live applications, assisted by sub CLA 118SA, which for fixed installations

Specifications:

• Built-in amplifier LF/HF: 600/300 W RMS
• Built-in amplifier peak LF/HF: 1200/600 W
• Frequency response: 65Hz – 20KHz -6dB
• Low frequency woofer: 4×6.5 – 1.5 coil inch
• High frequency driver: 1×1.4 – 2.5 coil – neodymium inch
• Maximum SPL cont/peak: 133 dB
• Dispersion: 100°x25° H x V
• Input impedance: 22 Kohm
• Crossover frequency: 1.2 KHz
• Ac power requirements: 640 VA
• Input connector: XLR with loop
• Power cord: 5 mm
• Net Dimension (WxHxD): 190x1235x290 mm
• Net weight: 27 kg
• Transport Dimension (WxHxD): 290x1235x390 mm
• Transport weight: 32 kg
