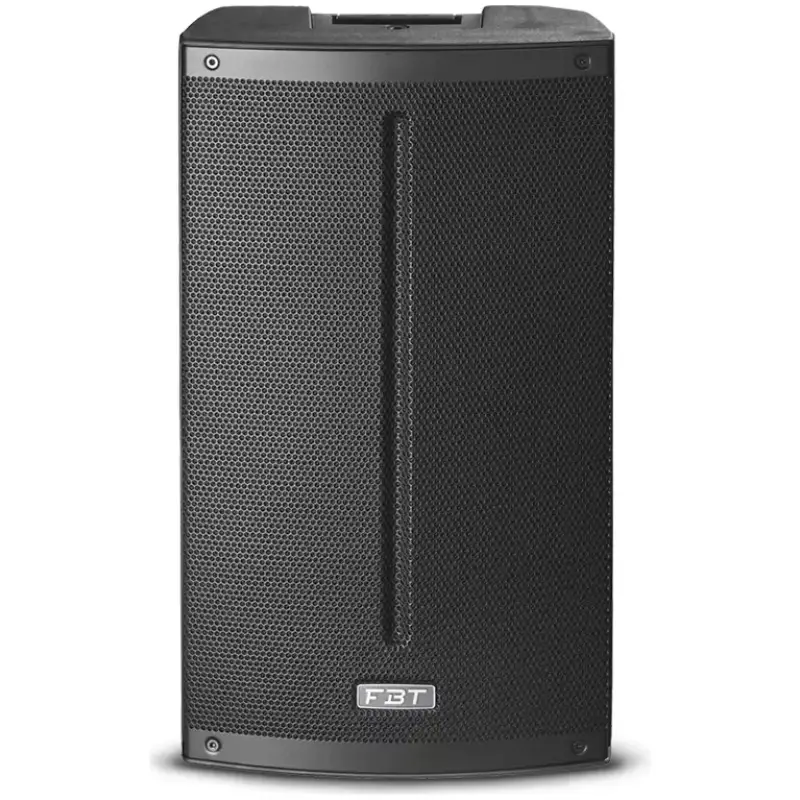

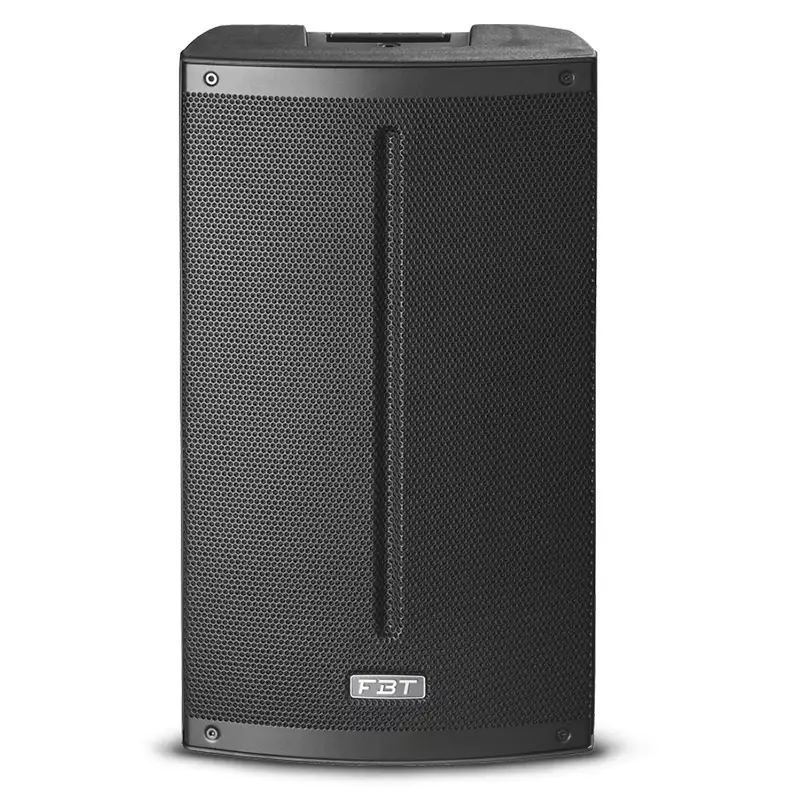

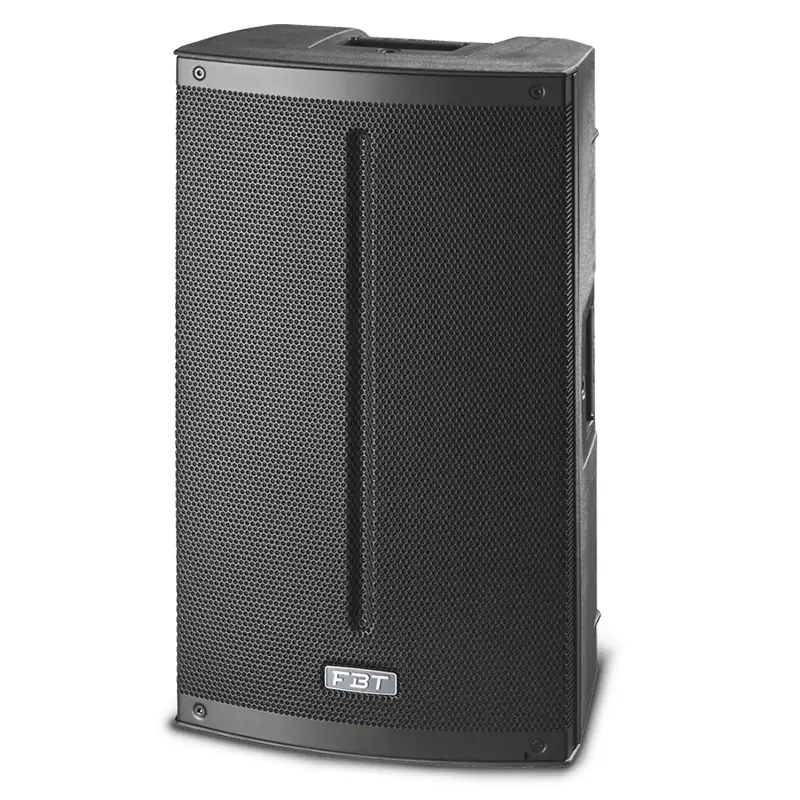

Fbt – X – LITE115 15″ Passive Speaker 400W Rms

The FBT X-LITE 115 series speakers feature lightweight, yet rugged gas injected molded polypropylene cabinet construction. Available in black finish the FBT X-LITE 115 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor.

The asymmetrical shape of the FBT X-LITE 115 cabinet also allows use as a floor stage monitor. The FBT X-LITE 115 is two way design incorporating an 15″ low frequency woofer and 1″ HF compression driver coupled to a 90°H x 60°V constant directivity horn. With a frequency range of 50Hz – 20kHz the FBT X-LITE 115 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 127.5dB.

Ideal for small fixed installations the FBT X-LITE 115 speaker have an impedance of 8 Ohm and the internal crossover is at a fixed frequency of 1.6kHz. The control panel features 2 x NL4 Neutrik speakon. 4 x M10 rigging points built into the cabinet along with the optional mounting brackets allow the FBT X-LITE 115 speaker to be surface mounted on walls or ceilings. A standard 1,38″ speaker stand socket allows the FBT X-LITE 115 to be mounted on speaker stand. A front face steel grille protects the speaker from external damage.

Features:

• Polypropylene cabinet with gas injection moulding designed to eliminate unwanted resonance
• High-efficiency custom FBT speakers with high linear excursion capacity
• Compression drivers with 25mm aperture and 35mm coil
• 1200W LF and 300W HF high dynamic Class D amplifier
• Universal switching power supply 100-240Vac
• Bluetooth 5.0
• DSP processor with 4 equalization presets
• Advanced filtering algorithms, dynamic equalization of low frequencies, energy control that change depending on the preset chosen
• 3-channel mixer: one dedicated BLUETOOTH 5.0 channel, two independent micro/line channels with separate volume and one with stereo jack input, balanced XLR MIX output or CH1 LINK
• Built-in handles, M10 anchor points for suspended installation, stand support, 30° and 45° diffuser monitor profile.

Specifications:

• CONFIGURATION: 2
• RECOMMENDED AMPLIFIER: 400W RMS
• LONG TERM POWER: 200W
• SHORT TERM POWER: 800W
• NOMINAL IMPEDANCE: 8Ohm
• FREQUENCY RESPONSE: 50 Hz – 20kHz
• LOW FREQUENCY WOOFER: 15 – 2.5 coil inch
• HIGH FREQUENCY DRIVER: 1 – 1.4 coil inch
• SENSITIVITY (@1W/1M): 98dB
• MAXIMUM SPL CONT/PEAK: 124.5 / 127.5dB
• DISPERSION: 90° x 60° HxV
• CROSSOVER FREQUENCY: 1.6kHz
• RECOMMENDED HP FILTER: HP 45Hz – 12/24dB oct
• RECOMMENDED EXTERNAL FILTER: FBT DSP Processor
• INPUT CONNECTOR: 2 x Speakon
• NET DIMENSION (WXHXD): 433 x 706.5 x 400 mm
• NET WEIGHT: 20.5 Kg
