Features
- High-Performance 2 x 2 USB-C Interface – Custom low-latency drivers (macOS/Windows) for responsive, real-time recording.
- MAX-HD Mic Preamp with 75 dB Gain – Transparent, low-noise capture for any microphone, from delicate condensers to gain-hungry ribbons.
- Fender-Designed Instrument Input – Optimized for guitars, basses, and other instruments for plug-and-play clarity.
- Integrated Line Input — for connecting external gear like mic pres, synths, mixers, and other line-level devices.
- Balanced TRS Outputs & Headphone Amp – Flexible monitoring for home, studio, or mobile setups.
- Loopback Audio – Stream, podcast, or create monitor mixes easily.
- Standalone Mixer Mode – Use LT 2 as an analog mixer without a computer or DAW.
- Software Integration – Seamless connectivity with Fender Studio Pro and Universal Control for remote mix adjustments.
- Built-in MyFender Access – Quick setup, registration, and support.
- Includes 6-month Fender Studio Pro trial – Professional DAW with Mustang and Rumble plug-ins
Specs
General
Product Name

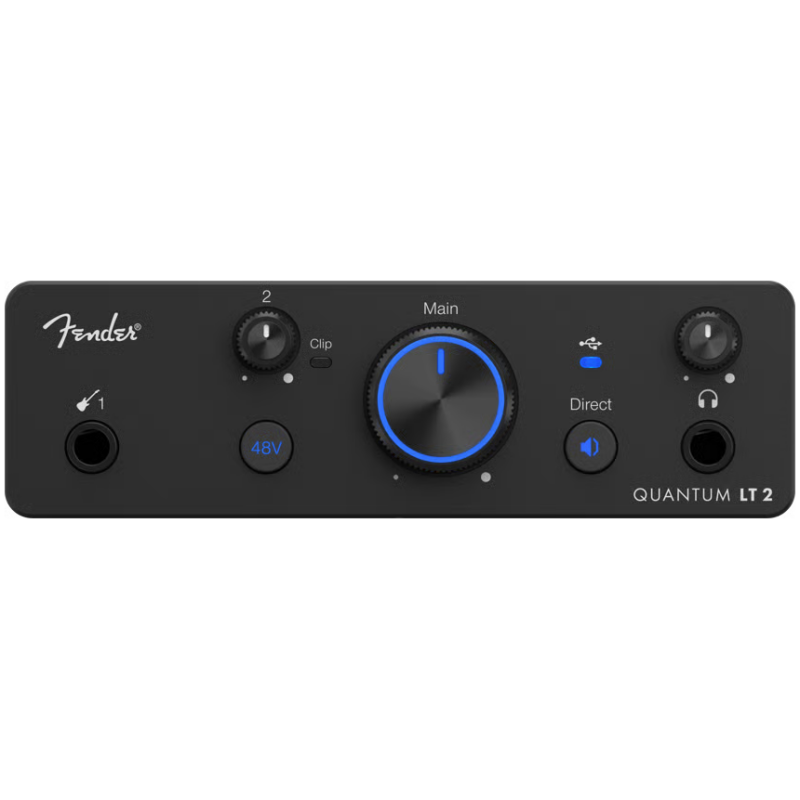

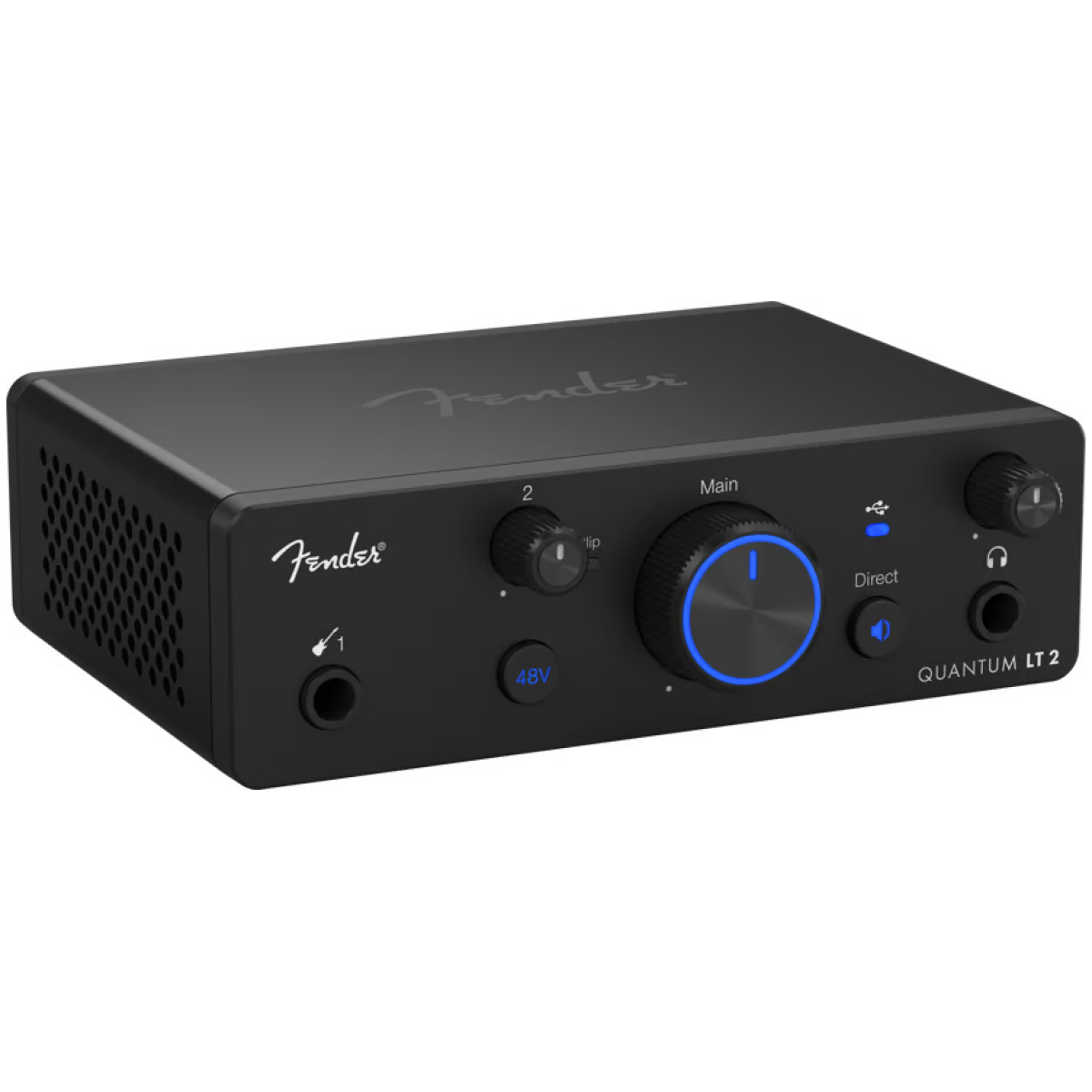

Quantum LT 2 USB-C Audio Interface
Series
Quantum
Color
Black
Microphone Inputs
Connection Type
XLR Female (Combo), Balanced
Frequency Response
20 Hz to 20 kHz
Dynamic Range
115 dB
EIN
-128.9 dBu
THD+N
0.001%
Gain Range
75 dB
Maximum Input Level
+14 dBu
Phantom Power
+48 VDC
Line Inputs
Connection Type
1/4″ TRS, Balanced
Frequency Response
20 Hz to 20 kHz
Dynamic Range
115 dB
THD+N
0.001%
Gain Range
-20 dB to +20 dB
Maximum Input Level
+15 dBu
Instrument Inputs
Connection Type
1/4” TS Female, Unbalanced, Hi-Z
Frequency Response
20 Hz to 20 kHz
THD+N
0.001%
Maximum Input Level
+12.9 dBu
Main Outputs
Connection Type
1/4″ TRS Female
Headphone Outputs
Connection Type
1/4″ TRS Female
Frequency Response
20 Hz to 20 kHz
Dynamic Range
113.6 dB
THD+N
0.001 %
Maximum Output Level
47mW @ 0.006%
Power
Voltage
USB Bus Powered
Voltage Requirements
100-240 VAC, 50-60 Hz
Digital Audio
Connectivity
USB-C® Compatible USB 2.0 Connection (Bus-Powered)
Bit Depth
24 bit
Dynamic Range
115 dB
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Measurements
Height
1.75″ (4.45 cm)
Depth
3.5″ (8.8 cm)
Width
5.5″ (139.7 mm)
Weight
1.125 lbs (0.51 kg)
