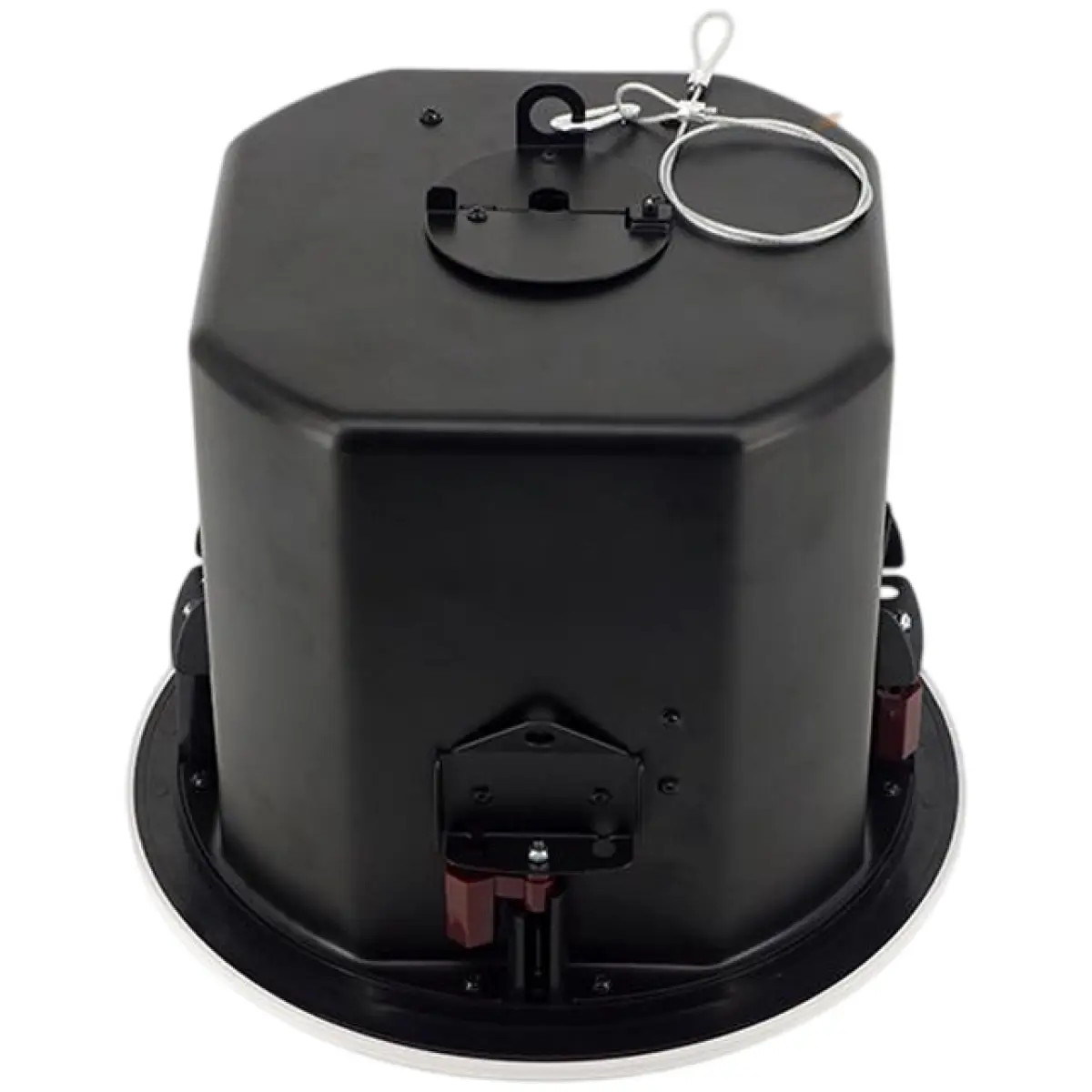

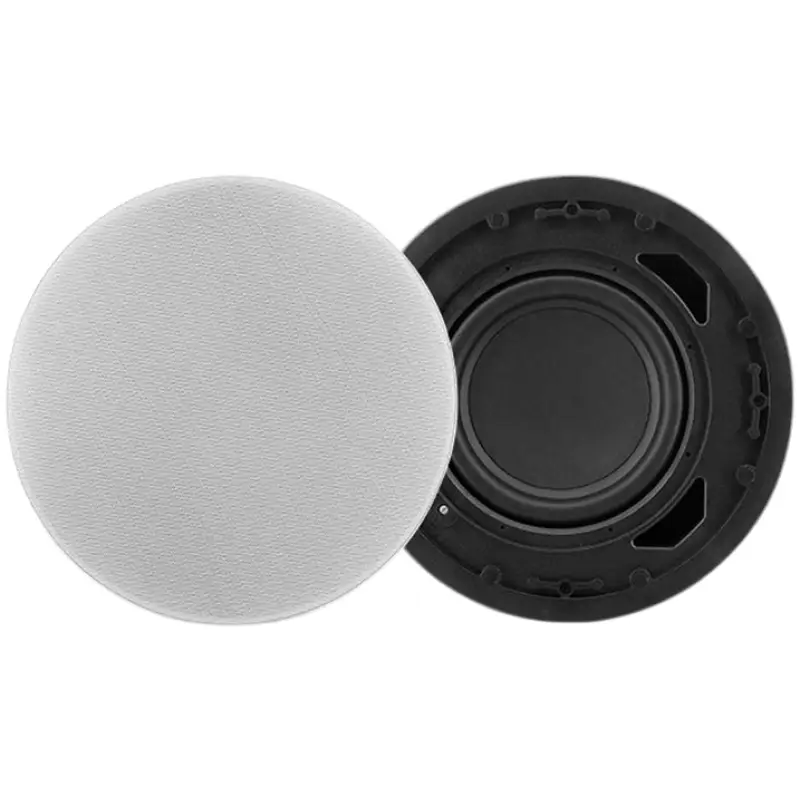

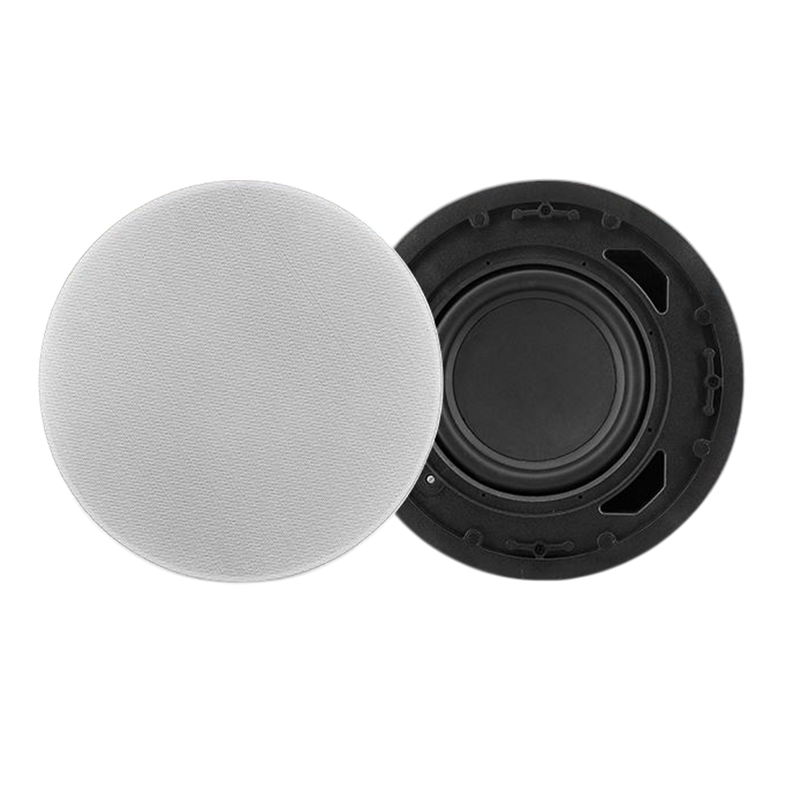

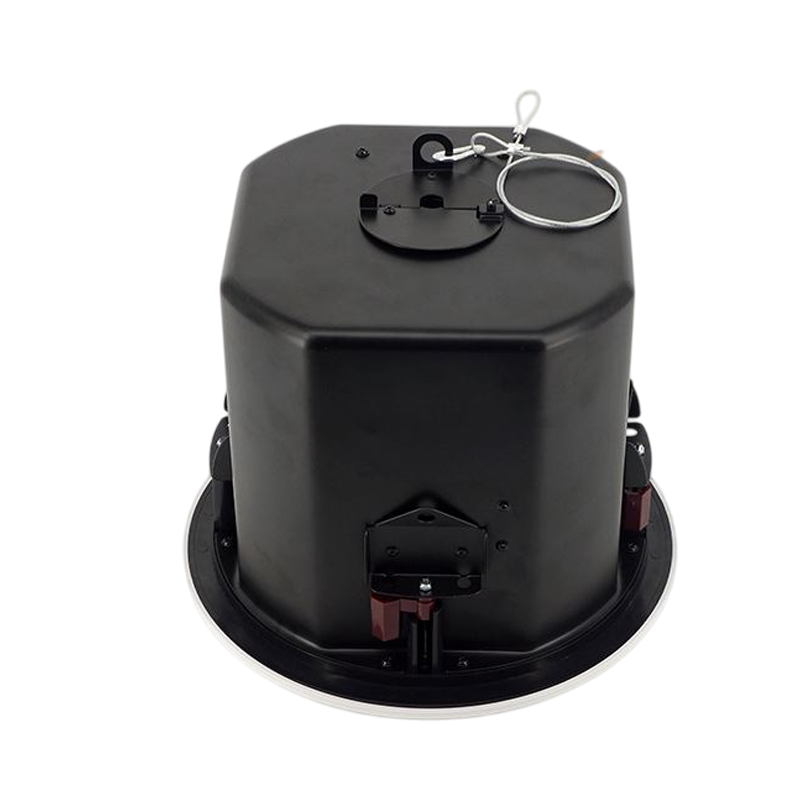

FILO CSW8W CEILING SUBWOOFER 8INCH WHITE 120W 100V

The FILO CSW8W Ceiling Subwoofer 8″ delivers powerful 120W bass performance with 8-ohm impedance and 98dB sensitivity for rich, balanced sound.

Specifications:

• Maximum Power: 120W
• Rated Power: 10W/20W/40W/80W/4Ω(100V) 5W/10W/20W/40W/80W/4Ω(70V)
• Rated Tap(100V): 10W/20W/40W/80W/4Ω
• Rated Tap(70V): 5W/10W/20W/40W/80W/4Ω
• SPL: 85dB (1M/1W)
• Rated Frequency Range: 50Hz-250Hz
• Rated Frequency Range (-10dB): 50Hz-250Hz
• Opening Angle (1kHz/-6dB): 170°
• Nominal Voltage: 100V/70V
• Nominal Impedance(100V): 1KΩ/500Ω/250Ω/125Ω/4Ω±20%(100V)
• Nominal Impedance(70V): 1KΩ/500Ω/250Ω/125Ω/61Ω/4Ω±20%(70V)
• Connector: 4-bit Wiring Terminals
• Size: Φ320 x 245mm
• Weight: 5.45kg/1PC
• Mesh Color: White
• Back Color: Black
• Horn Unit Size: 8″Bass*1
• Working Temperature: -25°C to +55°C
• Storage Temperature : -40°C to +70°C
• Relative Humidity: ≤95%
