Simple transmission path for line signals. The FLY-16SET from IMG STAGELINE is a very compact, lightweight and easy-to-use wireless system for line signals which provides a perfect sound. The operation is licence-free in the EU. During our tests, the wireless connection has always been reliable and interference-free. The power is provided either via standard batteries AA size or via the supplied micro USB cable.

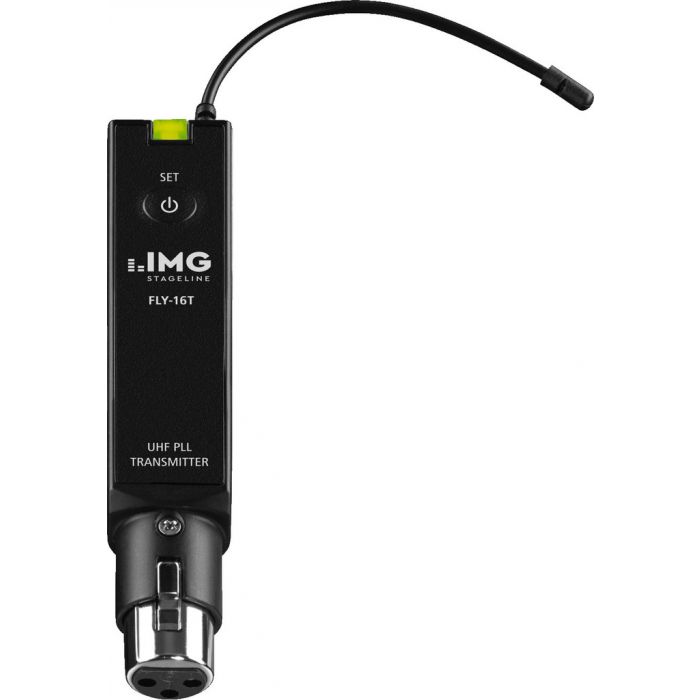

16-channel wireless PA audio transmitter, with UHF PLL technology.
- For analogue wireless transmission of line audio signals in PA systems
- Frequency range: 823-832 MHz
- 16 pre-programmed channels, selectable
- Up to 8 intermodulation-free channels
- Audio transmission range: 30-17,000 Hz
- Indication for channel and battery status
- 3-pole XLR jack
- Power supply via 1 x 1.5 V battery AA size (not supplied) or micro USB jack (5 V/150 mA)
- Supplied with USB cable
- Dimensions: 22 x 23 x 116 mm
| Description | 16-channel wireless PA audio transmitter |
| Carrier frequency range | 823-832 MHz |
| Audio frequency range | 30-17,000 Hz |
| Channels | 16 |
| THD | 0.3% |
| Admiss. ambient temp. | 0-40 °C |
| Specifications transmitter | |
| Transmitting power | 10 mW |
| Operating range | approx. 90 m |
| Power supply transmitter | 1 x 1.5 V batt. AA size,DC 5 V/150 mA via micro USB jack |
| Width transmitter | 22 mm |
| Height transmitter | 23 mm |
| Depth transmitter | 116 mm |
| Weight transmitter | 54 g |
| Connections transmitter | 3-pole XLR jack |
