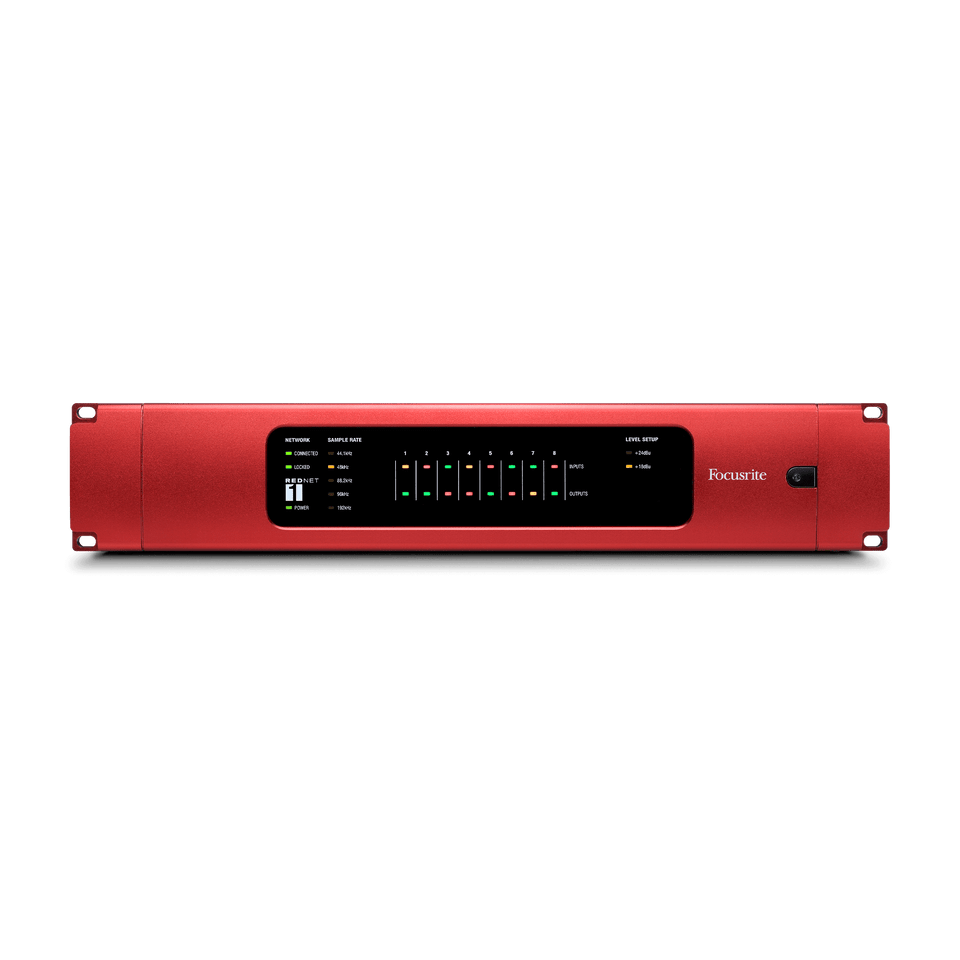

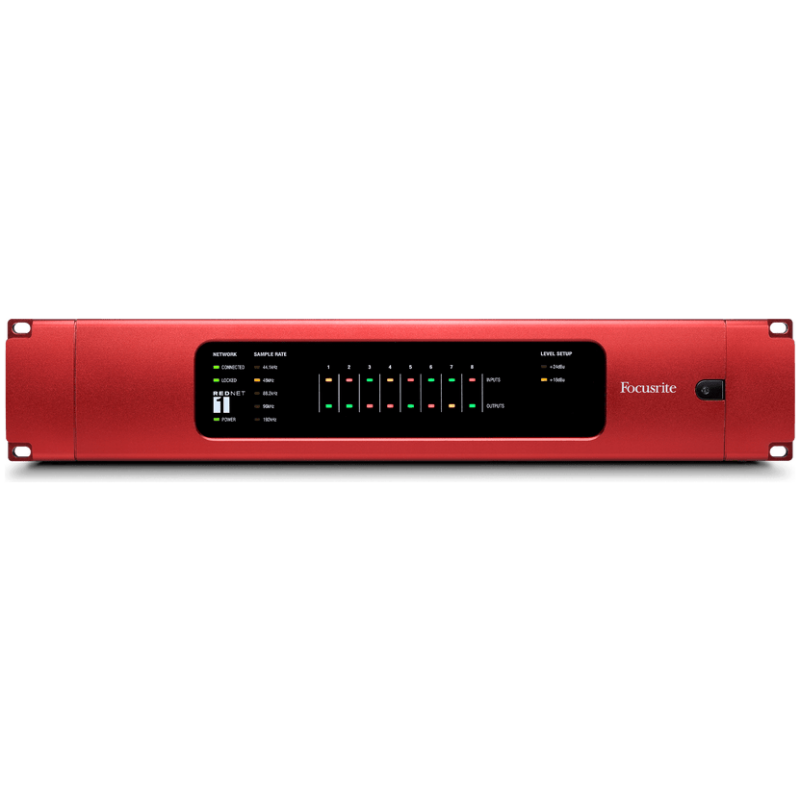

Focusrite RedNet 1 8-Channel A-D/D-A Interface

The Focusrite RedNet 1 is a professional 8-channel A-D/D-A audio interface designed for Dante Audio-over-IP networks. It provides pristine 24-bit / 192 kHz conversion, reliable low-latency performance, and seamless integration into studio, live sound, and broadcast environments. As part of Focusrite’s RedNet range, it delivers transparent audio quality and flexible network connectivity for scalable systems.

Key Features

• 8 Channels of Analog I/O – Eight balanced line-level inputs and outputs on DB25 connectors.

• Pristine Conversion – High-quality 24-bit / 192 kHz A-D and D-A converters for clean, accurate sound.

• Dante Audio-over-IP – Integrates with any Dante-enabled system for networked audio transmission over standard Ethernet.

• Ultra-Low Latency – Sub-millisecond performance over Gigabit Ethernet.

• Clocking & Sync Options – Internal, Word Clock, and Dante network sync ensure precision timing.

• Compact 1U Design – Ideal for rack-mounted studio, broadcast, or live sound installations.

• RedNet Control Software – Easy remote configuration and monitoring of levels, sample rate, and clock source.

• Scalable System Integration – Perfect for expanding I/O in Dante-based recording or mixing setups.

Technical Specifications

• Analog Inputs: 8 × Balanced line-level (DB25, 25-pin female)

• Analog Outputs: 8 × Balanced line-level (DB25, 25-pin female)

• Dynamic Range (A/D): 118 dB (A-weighted)

• Dynamic Range (D/A): 119 dB (A-weighted)

• THD+N: < 0.001%

• Frequency Response: 20 Hz – 20 kHz ±0.05 dB

• Sample Rates: 44.1 kHz – 192 kHz

• Bit Depth: 24-bit

• Network Interface: Primary + Secondary Gigabit Ethernet (RJ45)

• Clocking: Internal, Word Clock I/O (BNC), or Dante sync

• Latency: Sub-3 ms round trip at 96 kHz

• Power Supply: Internal (100–240 V AC auto-switching)
