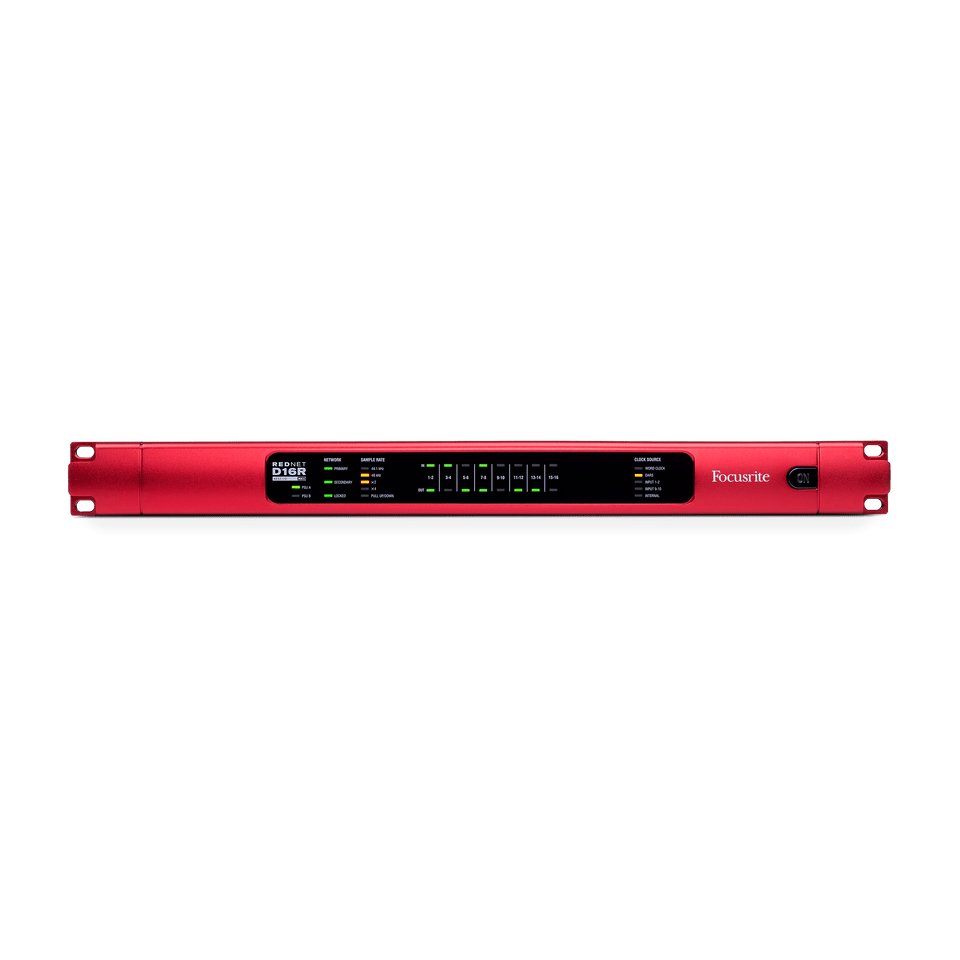

The Focusrite RedNet D16R MkII is a professional 16-channel AES3 interface designed for Dante Audio-over-IP networks. It provides seamless integration between digital audio equipment and Dante-enabled systems, offering transparent 24-bit / 192 kHz conversion, dual power supplies, network redundancy, and precision clocking for mission-critical studio, live, and broadcast applications.
Key Features
-
16 Channels of AES3 I/O – 8 stereo AES3 inputs and outputs on XLR connectors (16 channels total).
-
Dante Network Integration – Connects AES3 digital devices to Dante networks via Gigabit Ethernet.
-
Redundant Network & Power – Dual Ethernet and dual internal power supplies for complete fail-safe operation.
-
Word Clock & DARS Support – Sync options include Word Clock, Dante, or AES3 Digital Audio Reference Signal.
-
High-Resolution Conversion – 24-bit / up to 192 kHz for pristine digital audio transmission.
-
Comprehensive Clock Management – Flexible sample rate conversion and clock source configuration per input pair.
-
Remote Configuration – Manage all functions via RedNet Control software.
-
Additional Connectivity – AES10 (MADI) and S/PDIF I/O for maximum flexibility.
-
Compact 1U Rack Design – Ideal for broadcast racks, OB trucks, and networked facilities.
Technical Specifications
-
Inputs:
-
8 × AES3 digital stereo pairs (16 channels total) via XLR
-
1 × DARS input (AES3 on XLR)
-
1 × Word Clock input (BNC)
-
-
Outputs:
-
8 × AES3 digital stereo pairs (16 channels total) via XLR
-
1 × Word Clock output (BNC)
-
-
Network Interface: Dual Gigabit Ethernet (Dante Primary & Secondary)
-
Sample Rates: 44.1 kHz – 192 kHz
-
Bit Depth: 24-bit
-
Dynamic Range: 118 dB (A-weighted)
-
THD+N: < 0.0009%
-
Latency: Sub-1 ms (network-dependent)
-
Power Supply: Dual redundant internal (100–240 V AC auto-switching)
