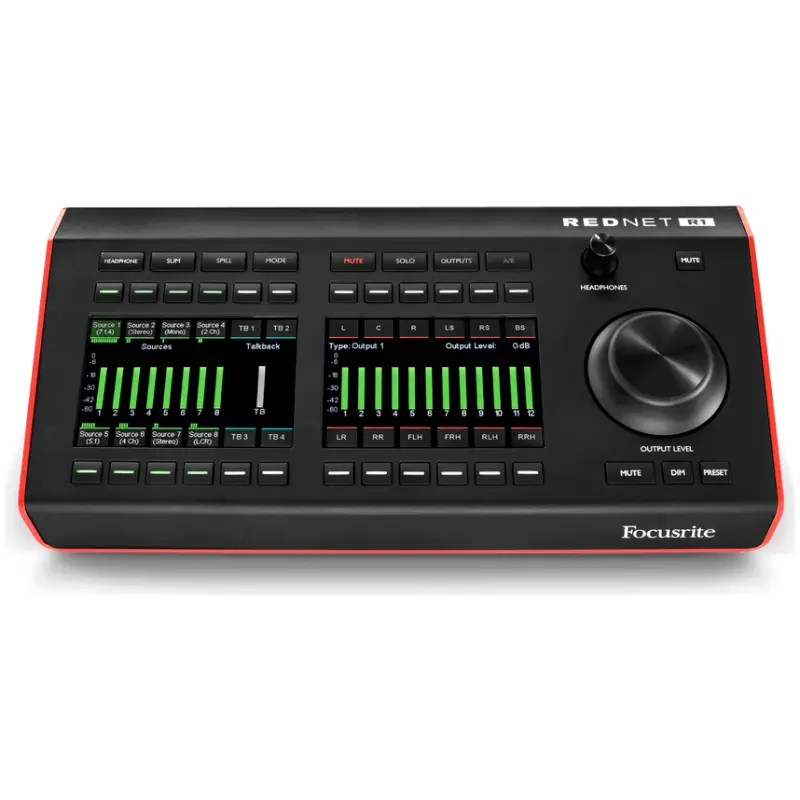

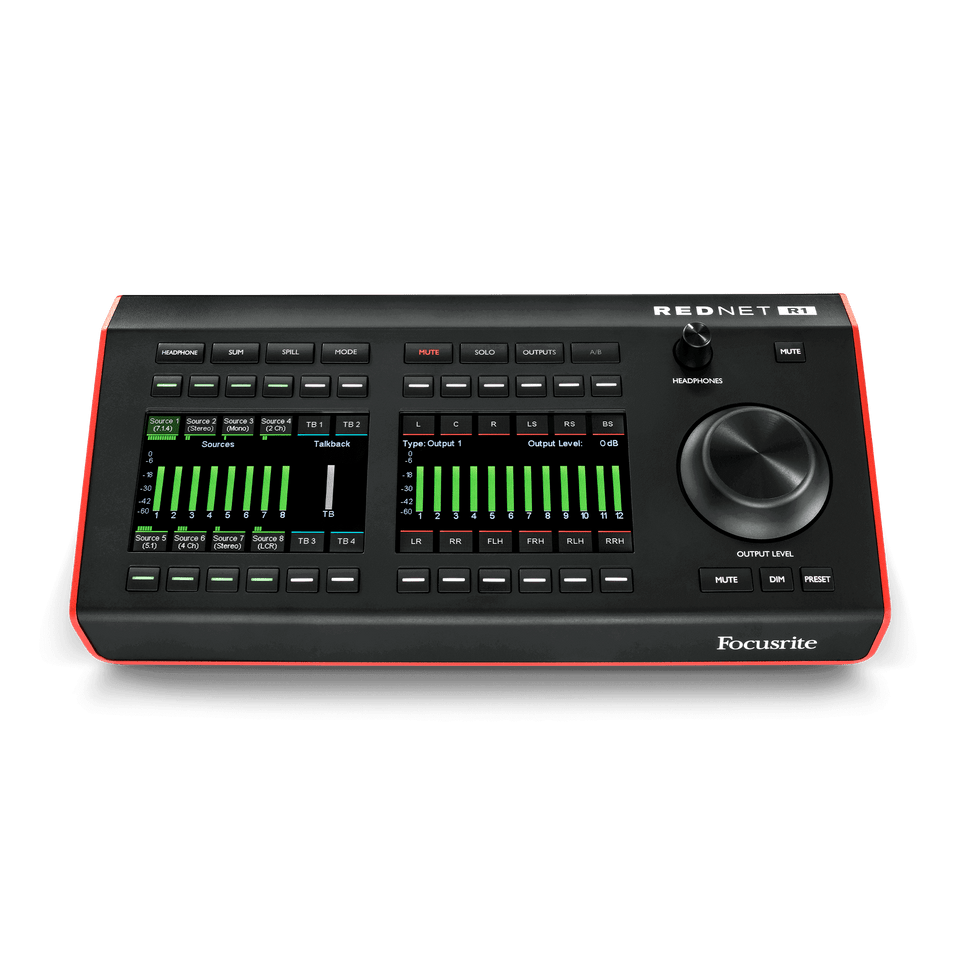

The Focusrite RedNet R1 is a dedicated desktop remote controller and monitor management interface designed specifically for Focusrite Red range interfaces (such as Red 8Line, Red 16Line, and Red 4Pre). It provides hands-on control over monitor levels, source selection, talkback, and headphone mixes — making it the centerpiece of professional studio, post-production, and broadcast monitoring setups.
Key Features
-
Seamless Red Interface Integration – Designed exclusively for use with Focusrite Red and RedNet interfaces via RedNet Control software.
-
Comprehensive Monitor Control – Manage up to 7.1.2 surround and immersive speaker setups, with individual speaker trim, solo, mute, and fold-down functions.
-
Flexible Source Selection – Switch instantly between multiple inputs, outputs, and monitoring presets.
-
High-Quality Headphone Output – Independent headphone control for artist or engineer monitoring.
-
Talkback Functionality – Built-in talkback mic and external mic input for communication with recording rooms or cue mixes.
-
Assignable Function Buttons – Six user-definable buttons for customized control (e.g., DIM, CUT, MONO, preset selection).
-
Bright, Clear TFT Display – Shows metering, routing, and volume levels at a glance.
-
Network-Powered Operation – Connects via Ethernet and powered through Power over Ethernet (PoE) — no additional PSU needed.
-
Compact and Ergonomic Desktop Design – Perfect for control desks, post suites, and mixing workstations.
Technical Specifications
-
Compatibility: Red 4Pre, Red 8Pre, Red 8Line, Red 16Line, RedNet interfaces (via RedNet Control)
-
Maximum Monitor Configuration: Up to 12 channels (7.1.4 Atmos or 7.1.2 surround)
-
Headphone Output: ¼″ TRS stereo jack
-
Talkback Mic: Integrated condenser with external mic input (¼″ TRS)
-
Network Interface: Gigabit Ethernet (Dante / RedNet connection with PoE)
-
Power: Power over Ethernet (IEEE 802.3af)
-
Display: Full-color TFT screen with encoder knob and function buttons
-
Control Software: RedNet Control 2 or later
