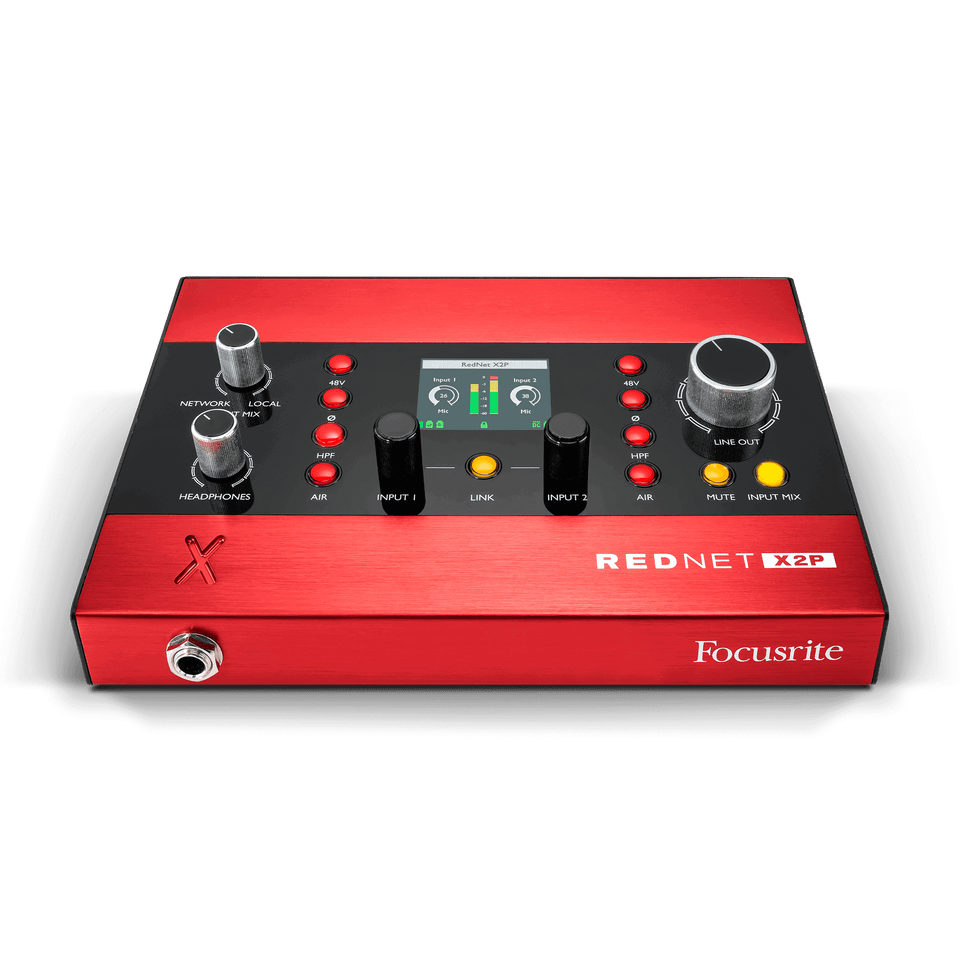

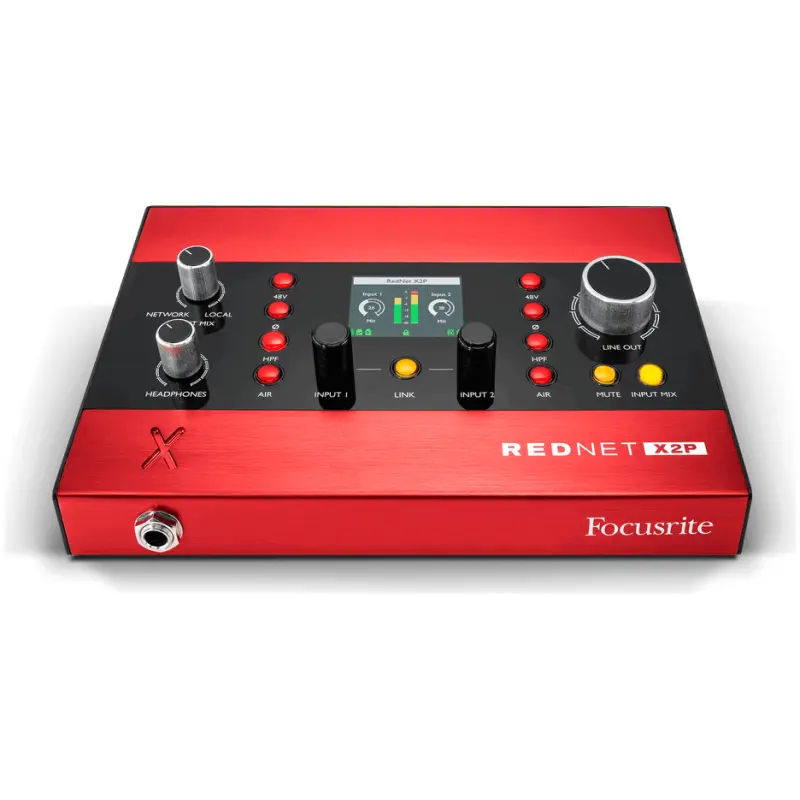

The Focusrite RedNet X2P is a compact, high-performance 2×2 Dante Audio-over-IP interface featuring two Red Evolution mic preamps, high-quality headphone amplification, and line outputs. Designed for remote recording, studio monitoring, and live sound applications, it delivers Focusrite’s world-class sound quality and networked audio flexibility — all powered by Power over Ethernet (PoE).
Key Features
-
2 Red Evolution Mic Preamps – Remotely controlled, ultra-clean preamps offering up to 63 dB of gain, switchable 48V phantom power, Air mode, and pad control.
-
24-bit / 192 kHz Conversion – Pristine A-D/D-A conversion for professional-grade clarity and accuracy.
-
Dante Audio-over-IP Connectivity – Integrates seamlessly into any Dante network for flexible routing and remote control.
-
Power over Ethernet (PoE) – Single Ethernet connection for audio, power, and control; no separate PSU required.
-
High-Power Headphone Amplifier – Drives high-impedance headphones with zero-latency monitoring.
-
Line Outputs – Two balanced TRS line-level outputs for connecting monitors, outboard gear, or stage systems.
-
Local Control Lockout – Prevents accidental setting changes in studio or live environments.
-
RedNet Control & Dante Controller Software – Full configuration and remote operation via networked devices.
-
Compact, Portable Design – Ideal for stage boxes, small studio setups, or remote performer stations.
Technical Specifications
-
Inputs:
-
2 × XLR/TRS combo mic/line/instrument inputs (remote-controlled)
-
-
Outputs:
-
2 × ¼″ balanced TRS line outputs
-
1 × ¼″ TRS headphone output
-
-
Mic Gain Range: 0–63 dB (1 dB steps)
-
Frequency Response: 20 Hz – 20 kHz ±0.05 dB
-
Dynamic Range (A/D): 118 dB (A-weighted)
-
Dynamic Range (D/A): 119 dB (A-weighted)
-
THD+N: < 0.001%
-
Sample Rates: 44.1, 48, 88.2, 96, 176.4, and 192 kHz
-
Bit Depth: 24-bit
-
Network Interface: 1 × Gigabit Ethernet (Dante / PoE IEEE 802.3af compliant)
-
Power Supply: Power over Ethernet only
