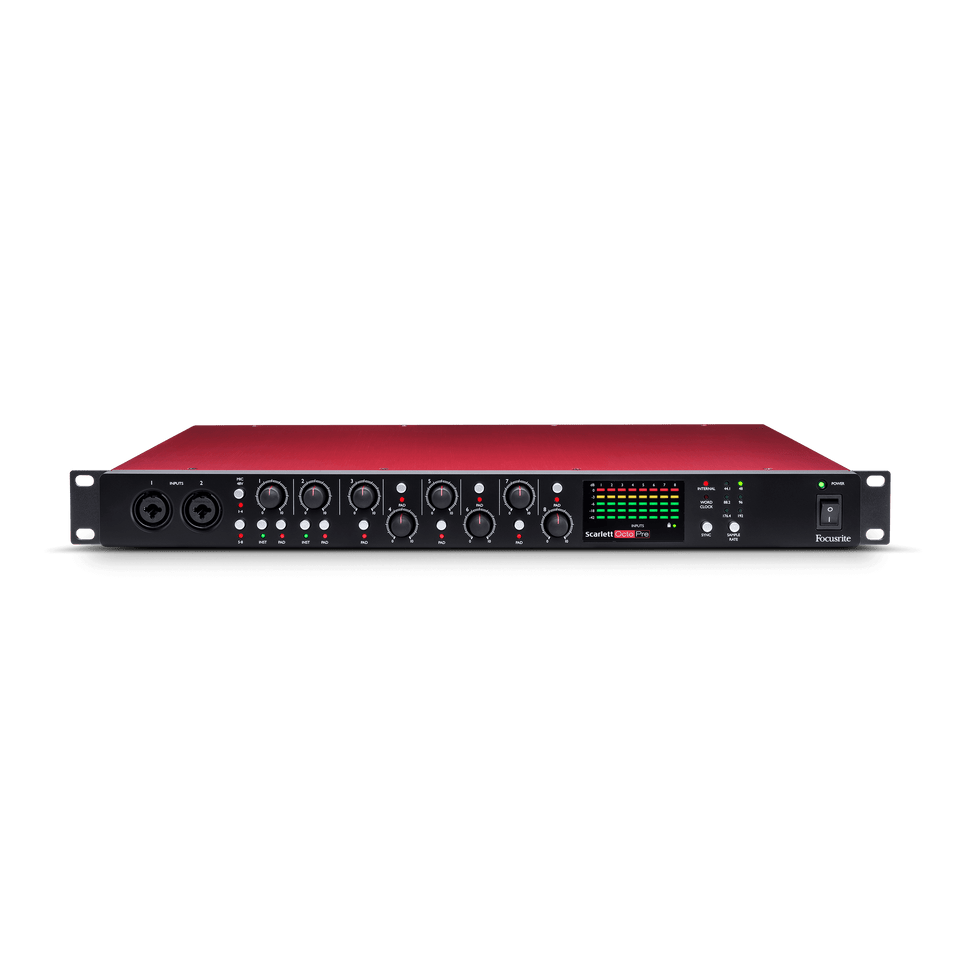

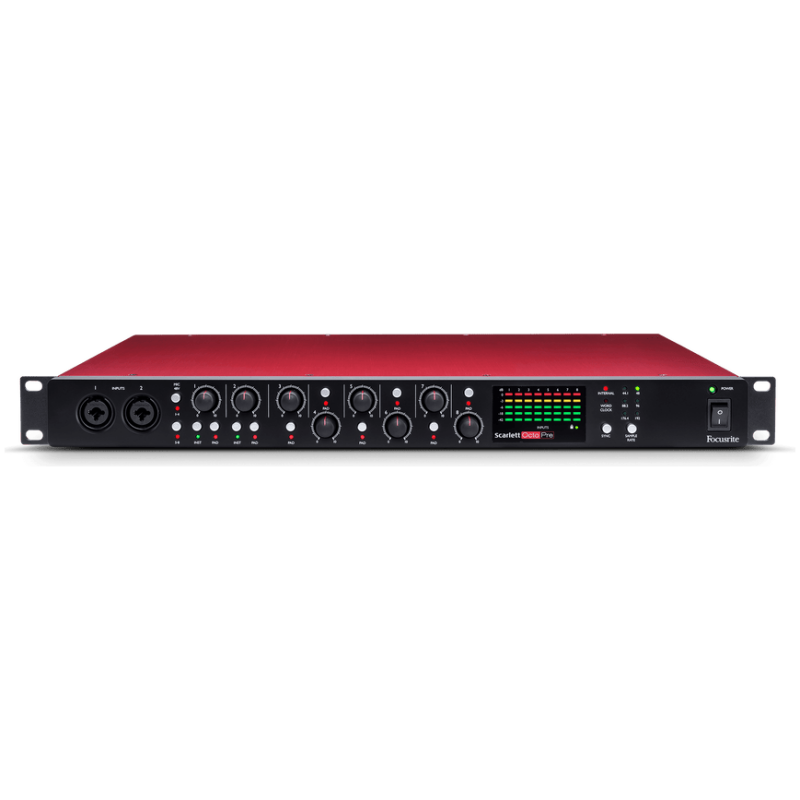

The Focusrite Scarlett OctoPre is a professional 8-channel microphone preamplifier and ADAT expander, designed to add high-quality mic, line, or instrument inputs to your existing audio interface or recording system. It features the latest Scarlett mic preamp design, pristine 24-bit/192 kHz conversion, and extensive connectivity — making it the perfect way to expand your studio setup.
Key Features
-
8 Scarlett Mic Preamps – Transparent, low-noise preamps with up to 50 dB gain, providing clean and detailed sound capture.
-
High-Quality A-D Conversion – 24-bit / 192 kHz converters ensure crystal-clear, accurate digital audio transfer.
-
ADAT Optical Output – Expands your existing interface with 8 additional input channels over a single optical cable.
-
Dual Combo XLR/TRS Inputs – Record microphones, instruments, or line-level sources with ease.
-
Pad Controls – Each channel includes an 8 dB pad to accommodate louder sources like drums or guitar amps.
-
Front-Panel LEDs – Clear input metering for every channel.
-
48V Phantom Power – Individually switchable for condenser microphones.
-
Word Clock I/O – BNC connectors for sync integration with external digital systems.
-
Solid Build Quality – Rugged 1U metal chassis, ideal for studios or mobile racks.
Technical Specifications
-
Inputs: 8 × XLR/TRS combo (Mic/Line/Instrument)
-
Outputs: 1 × ADAT optical (8 channels), 1 × Word Clock BNC out
-
Mic Gain Range: 0–50 dB
-
Dynamic Range (A/D): 109 dB (A-weighted)
-
Frequency Response: 20 Hz – 20 kHz ±0.1 dB
-
THD+N: < 0.002%
-
Phantom Power: +48 V (per channel pair)
-
Bit Depth / Sample Rate: 24-bit / 44.1–192 kHz
-
Power Supply: Internal (100–240 V AC, auto-switching)
