Specifications
Concept Active 2-way loudspeaker
Cabinet principle Bass reflex
Max. SPL average2 126 dB
Max. SPL peak3 135 dB
Crossover frequency 2.3 kHz
Frequency range -6 dB58 Hz – 16 kHz
Frequency range -10 dB49 Hz – 18 kHz
Dispersion angle -6 dB (horizontal x vertical)90° x 55°
Index
Index 2)1 x unit @ 1 m, 10 % THD, 58 Hz – 12 kHz, (EN 60268-21), half space
Index 3)1 x unit @ 1 m, 10 % THD, half space
Components
Mid/high frequency 1 x 15″ cone speaker, 2.5″ voice coil
High frequency 1 x 1″ compression driver, 1″ voice coil
Horn Constant directivity horn

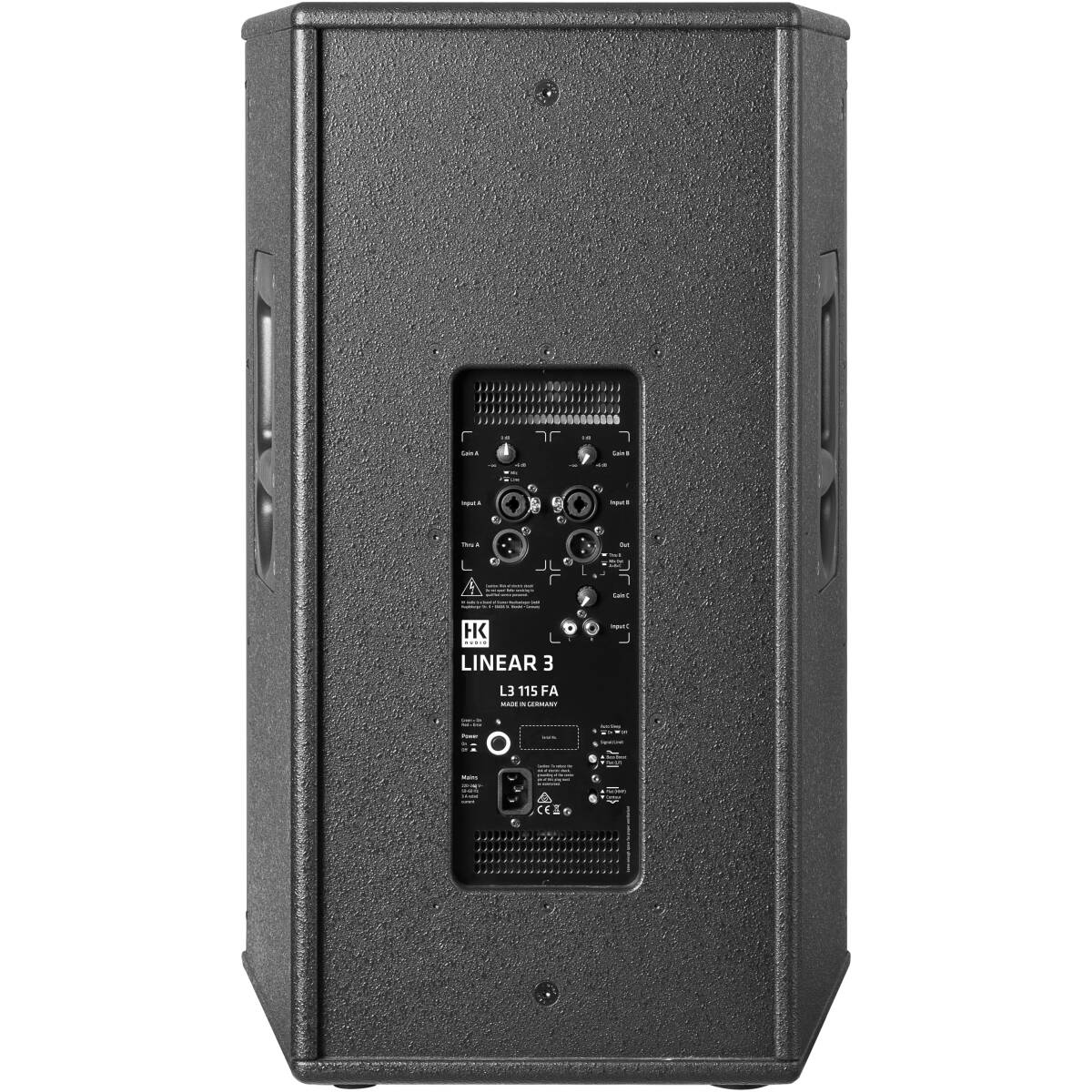

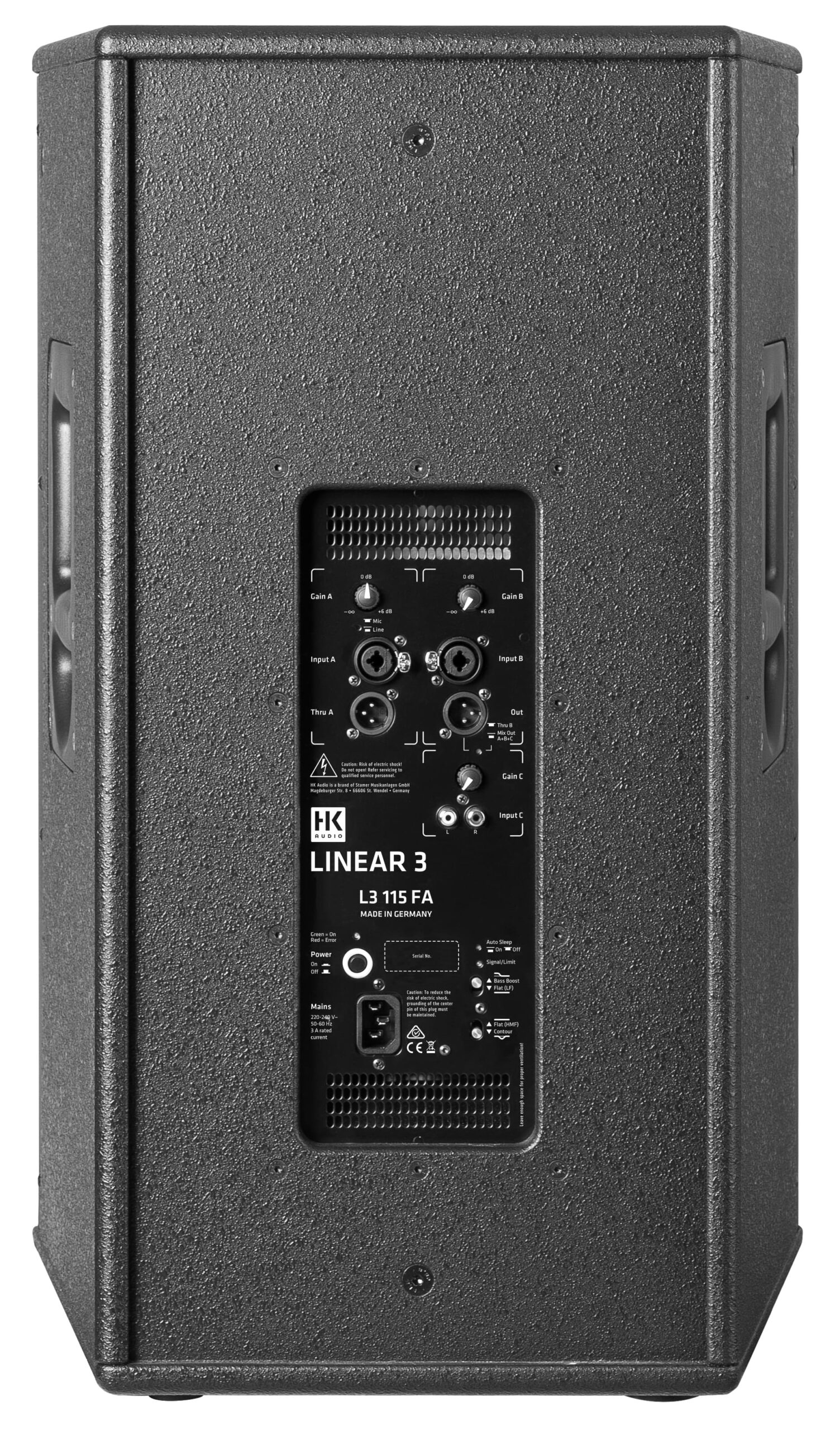

Connections
Analog input 2 x XLR/jack combo symm. (Input A Mic/Line), 1 x Stereo Cinch
Analog output 1 x XLR-Thru symm.
Mix output 1 x XLR-Thru/XLR-Mix Out symm. switchable
Electronical data
Preamplifier DSP preamplifier
Power amplifier Class D – Biamped
Power amplifier output peak1200 W
Power consumption3 A / 220-240 V (6 A / 100-120 V) according to EN 60065
Speaker protection Subsonic Filter, Peak-, RMS-, Multiband-Limiter
Remote app Flat, Bass Boost, Contour
Mechanical data

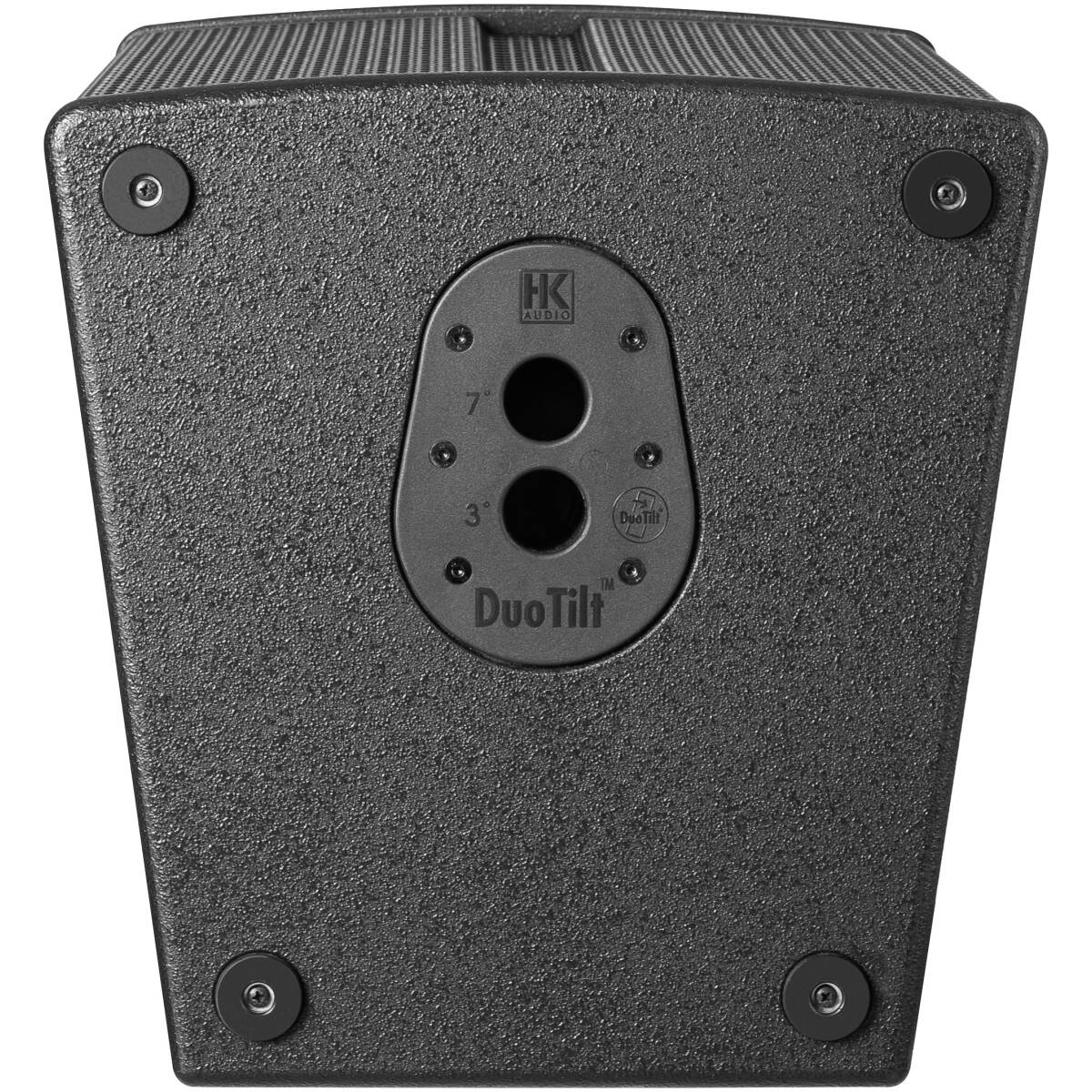

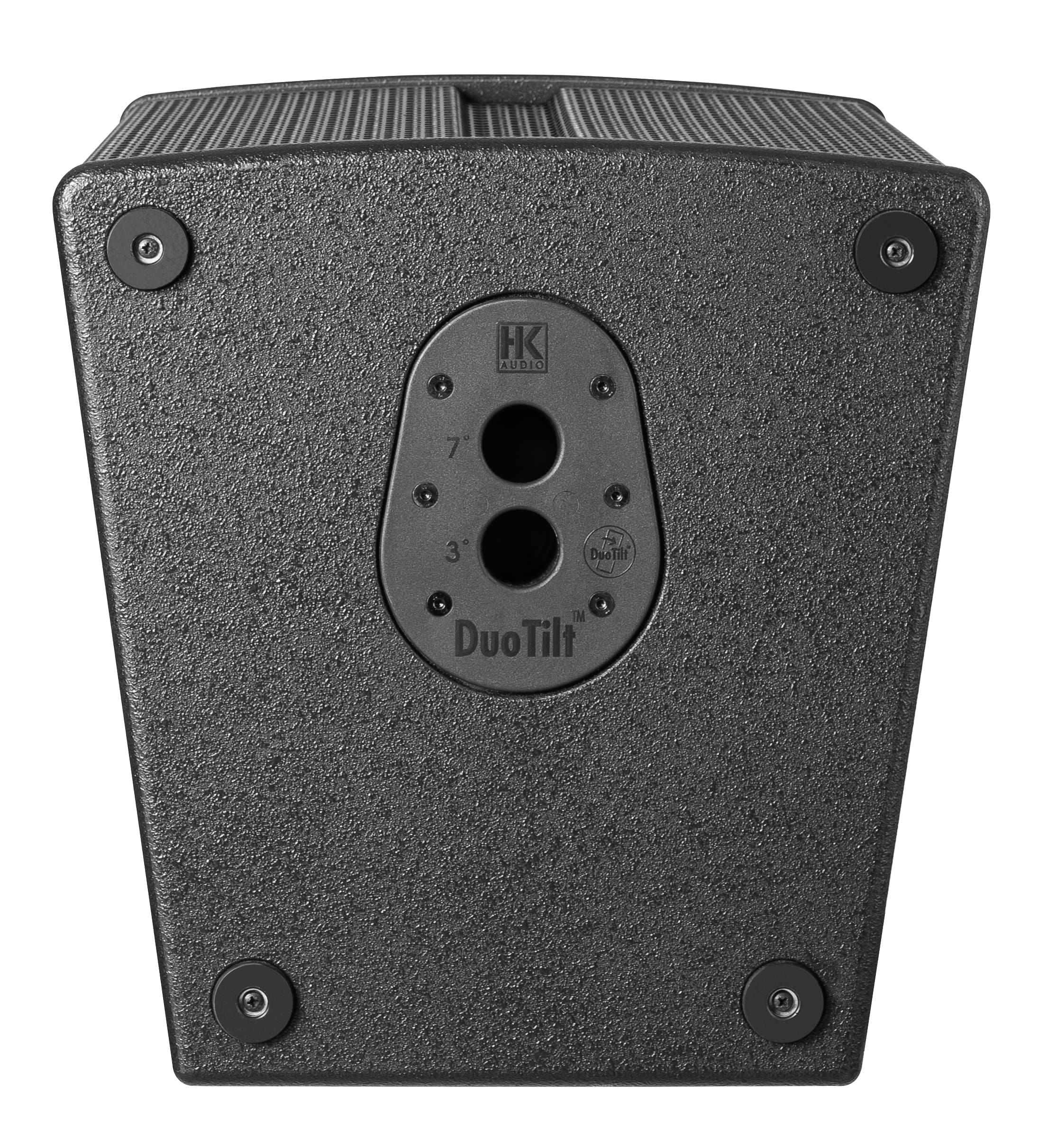

Cabinet features/rigging pole mount HK Audio DuoTilt 3°/7°, 4 x rigging point M8

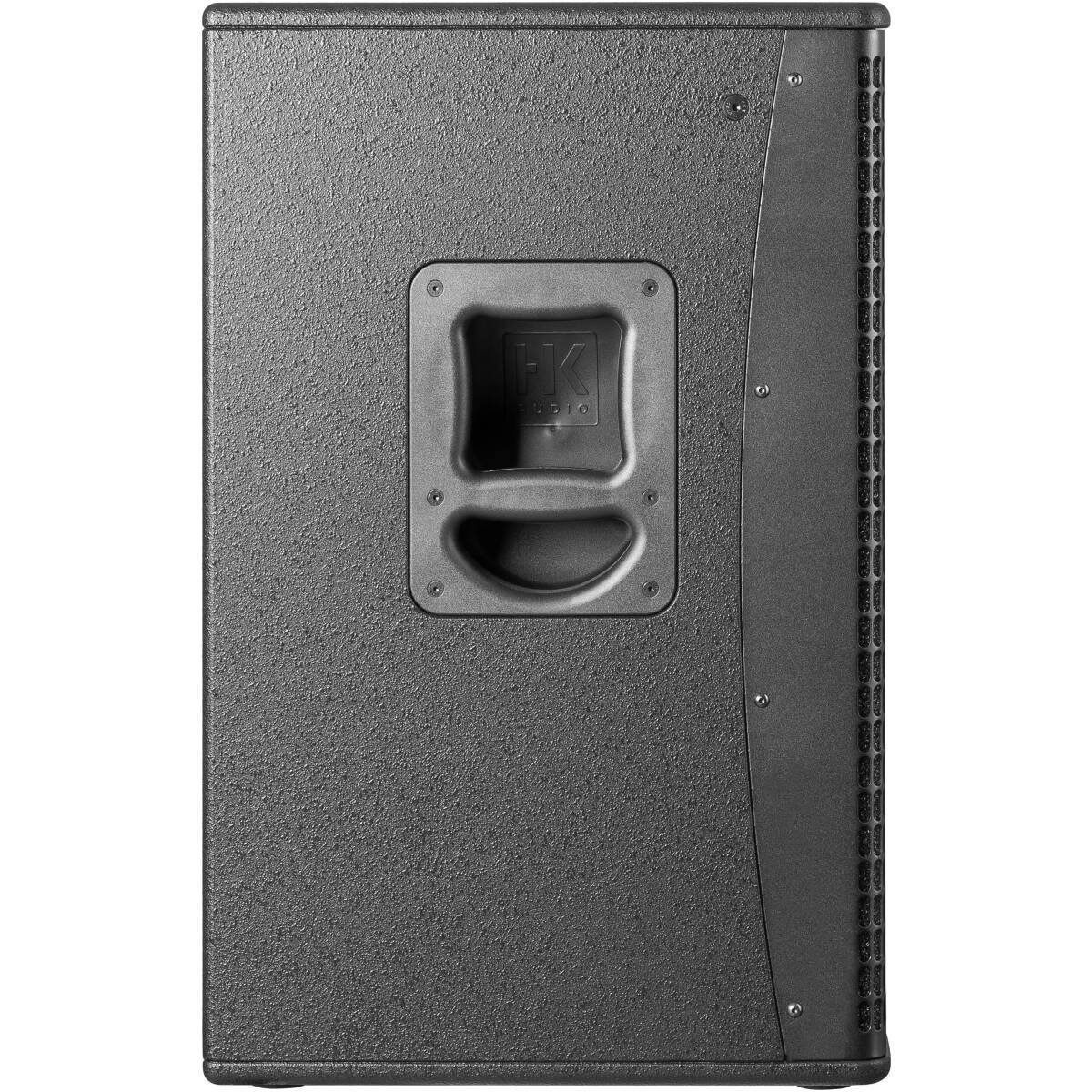

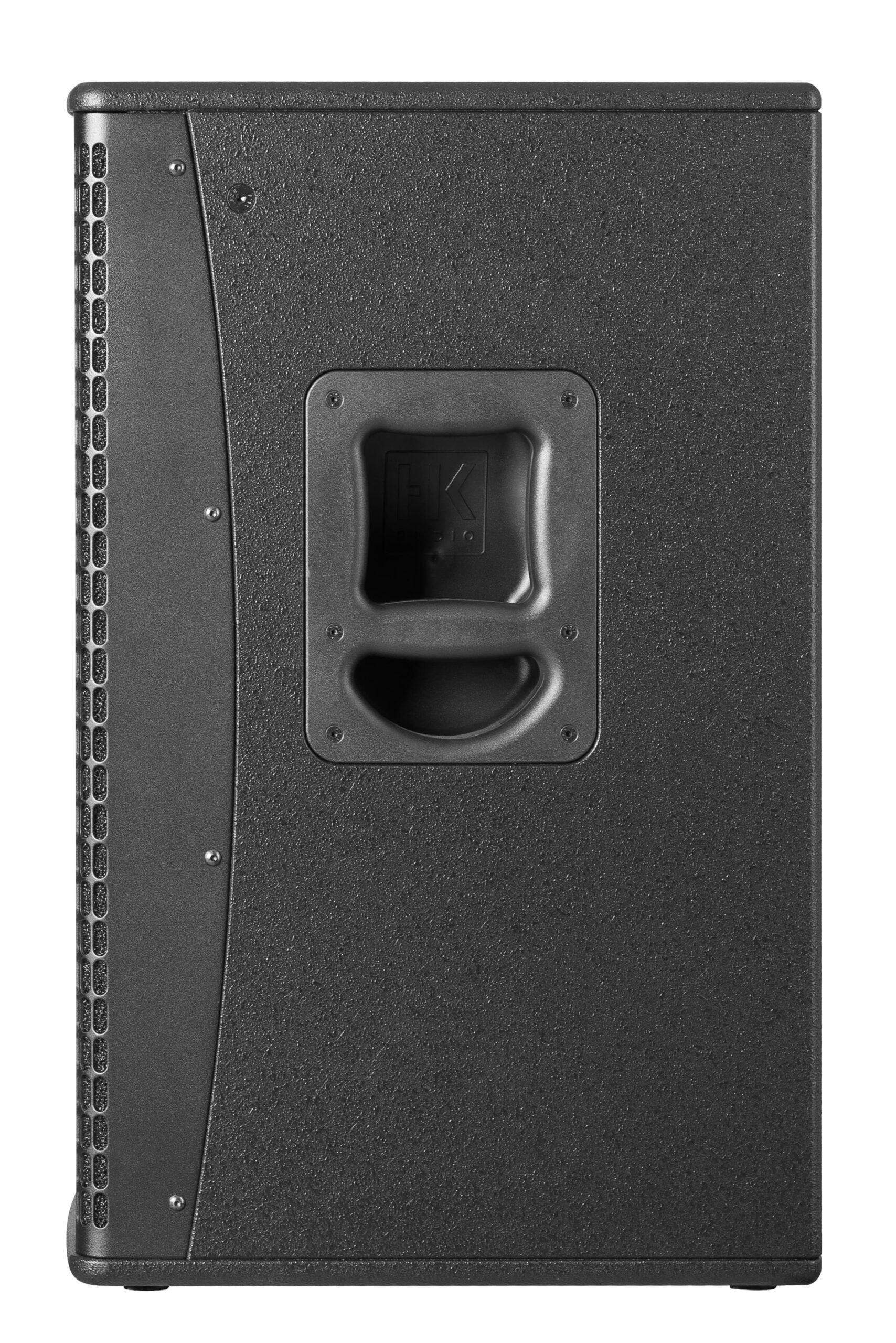

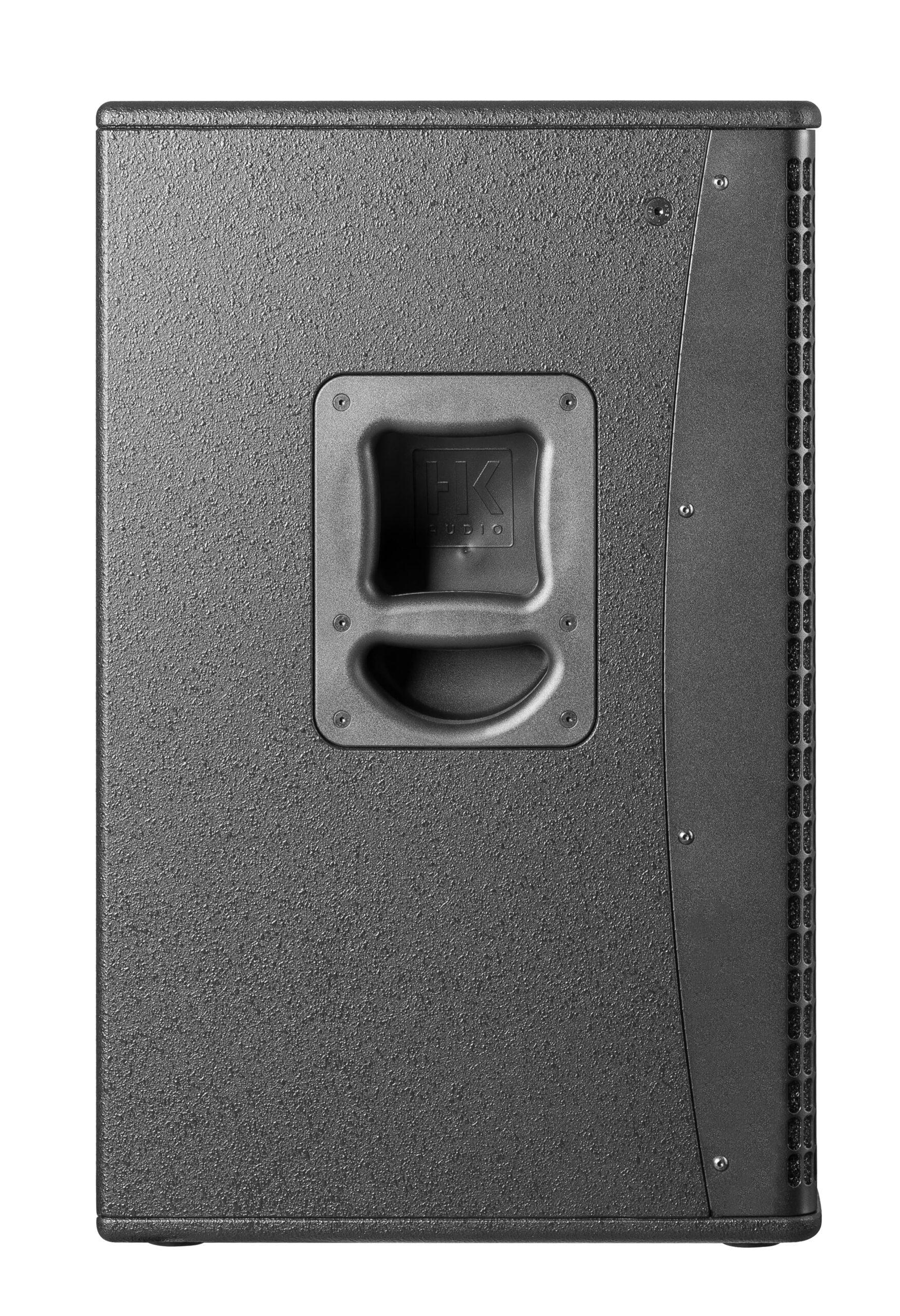

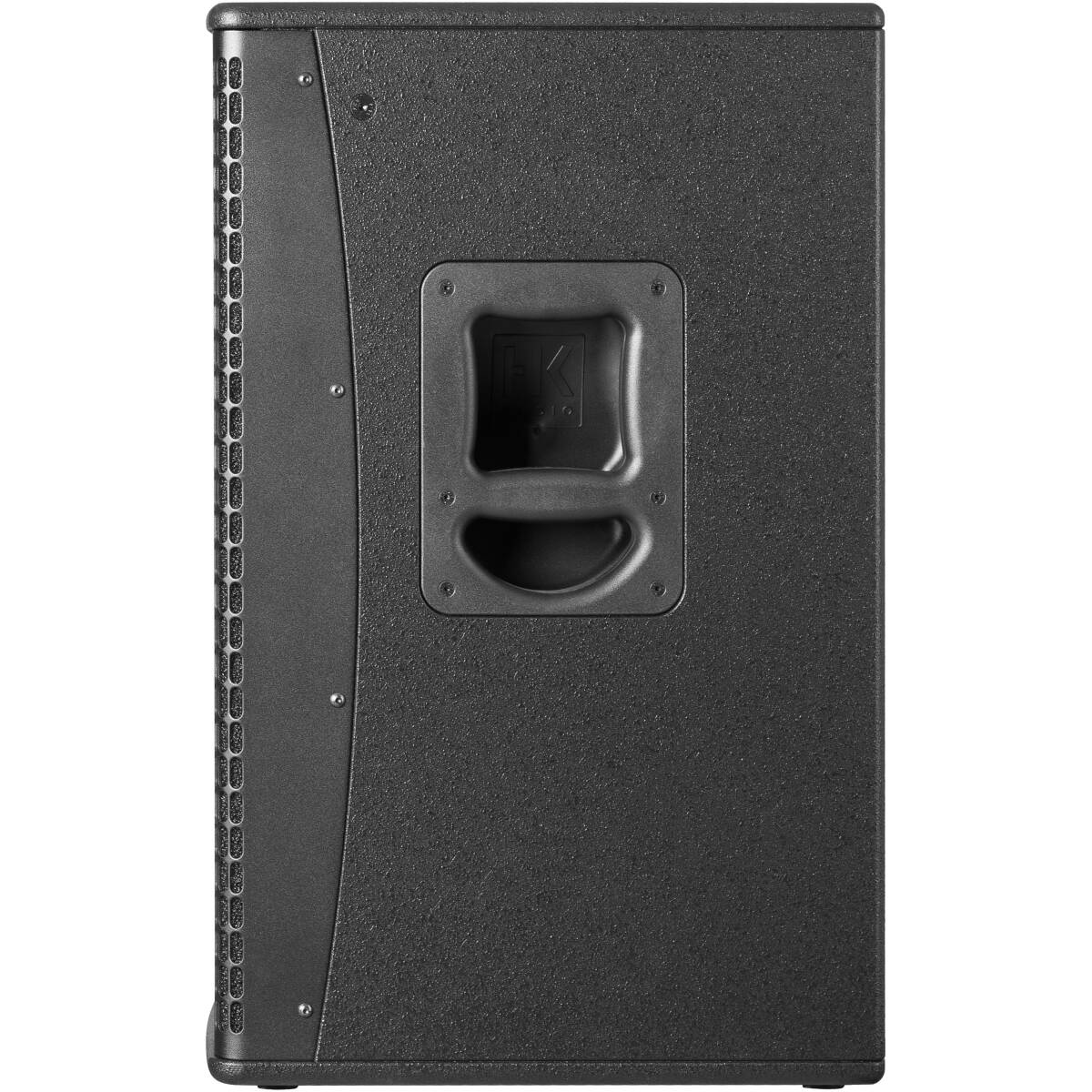

Carrying handles 2 x HK Audio MultiGrip
Cabinet material MDF
Cabinet surface acrylic enamel
Color Jet black (RAL 9005)

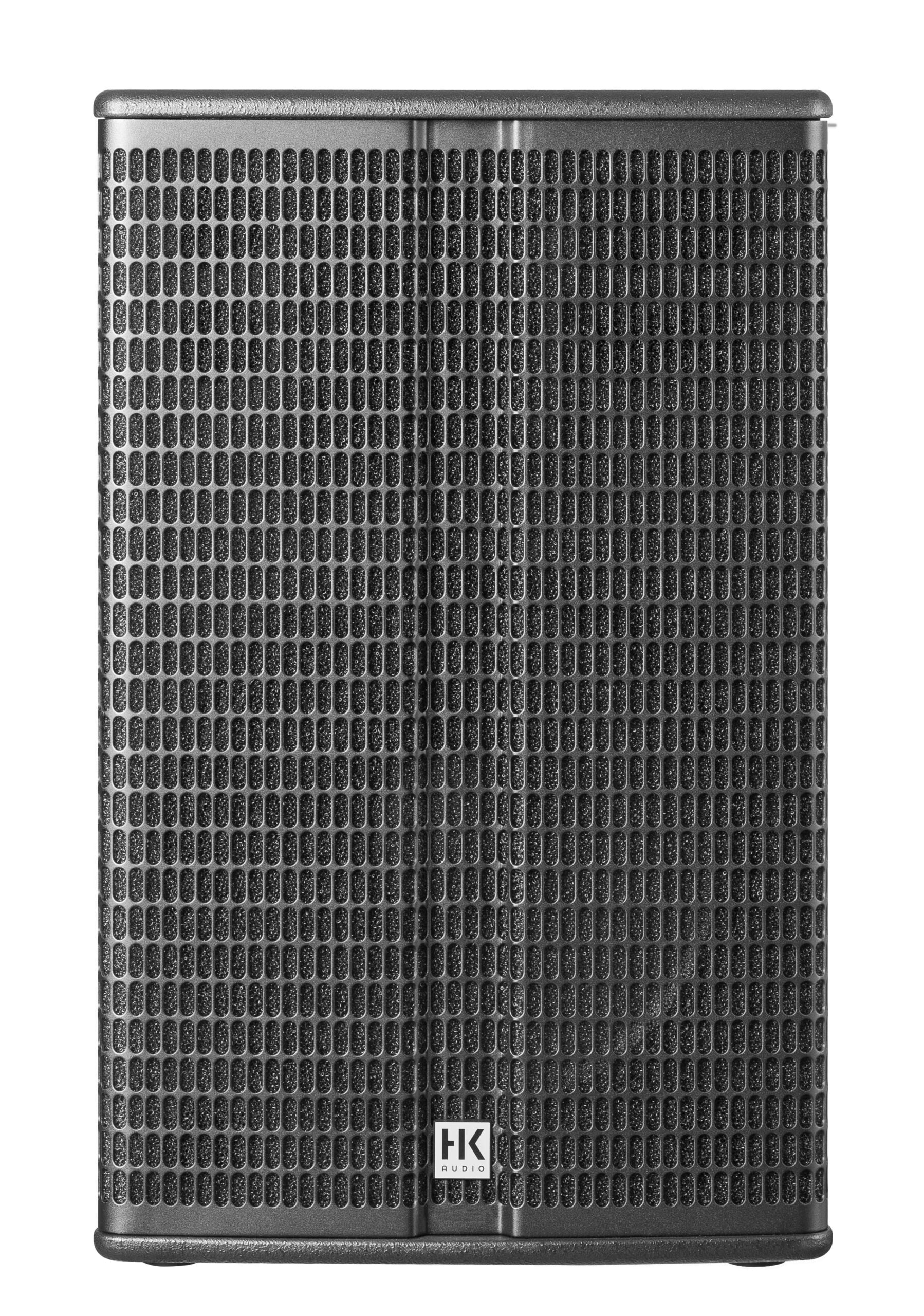

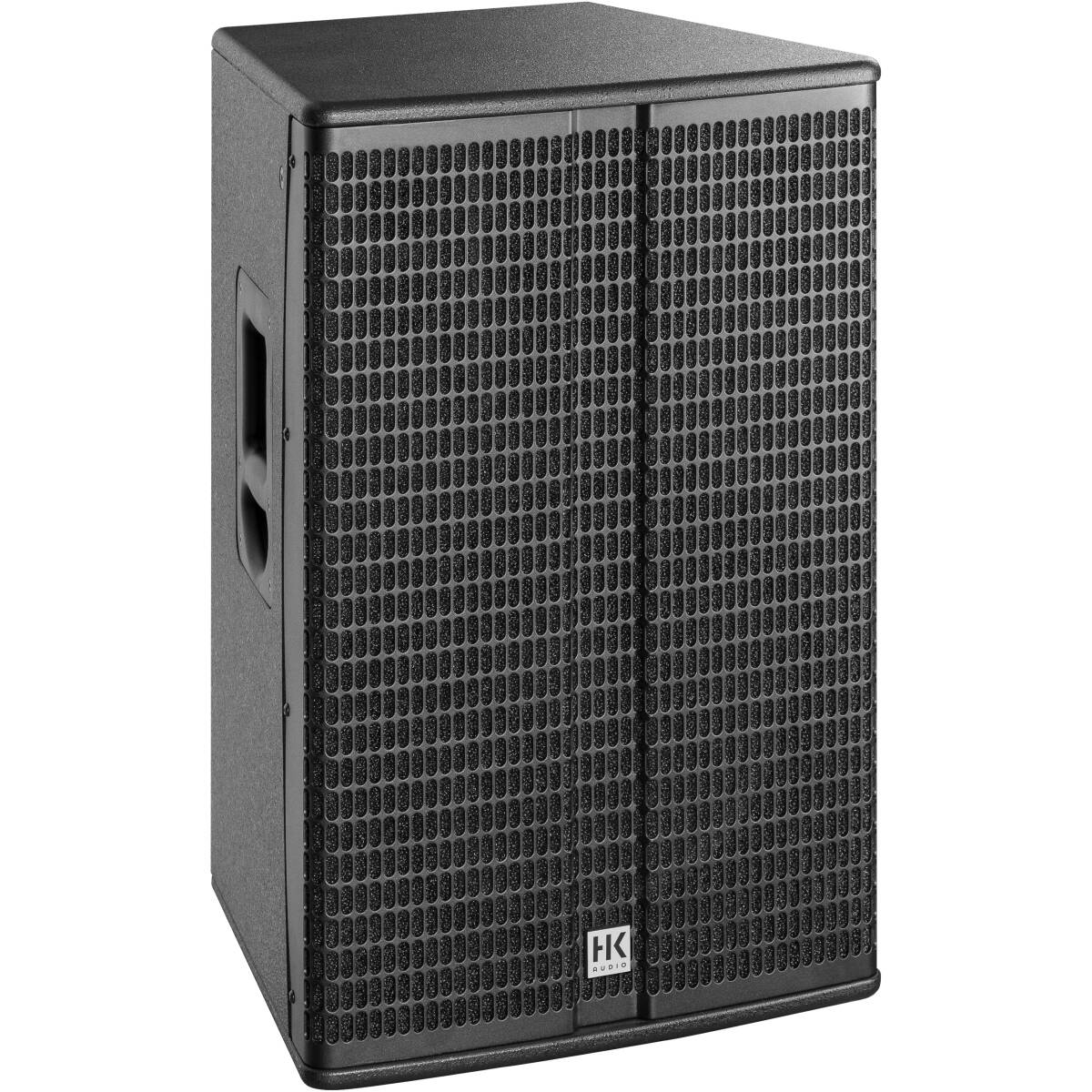

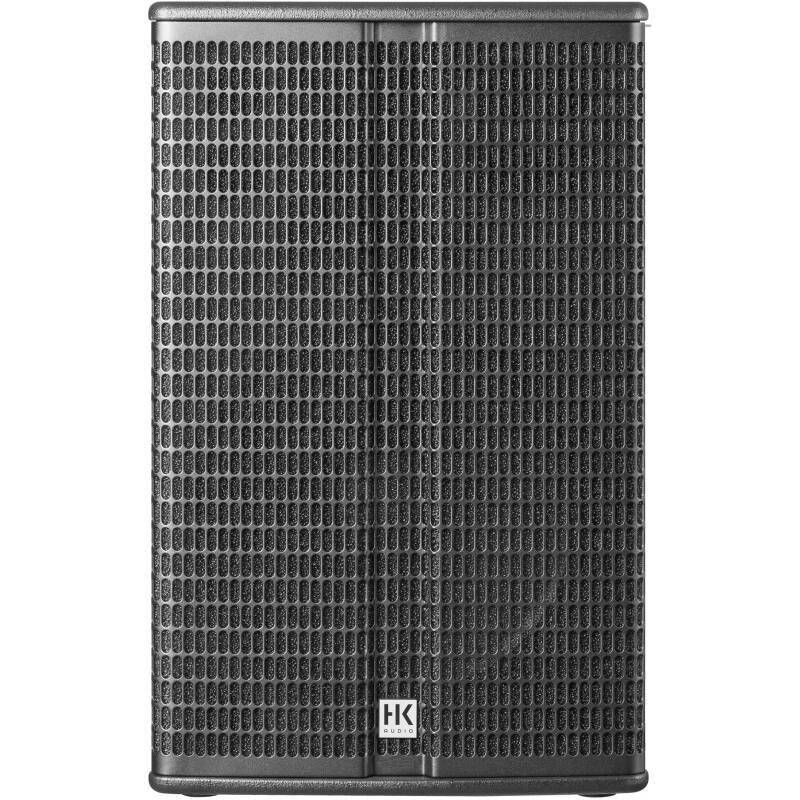

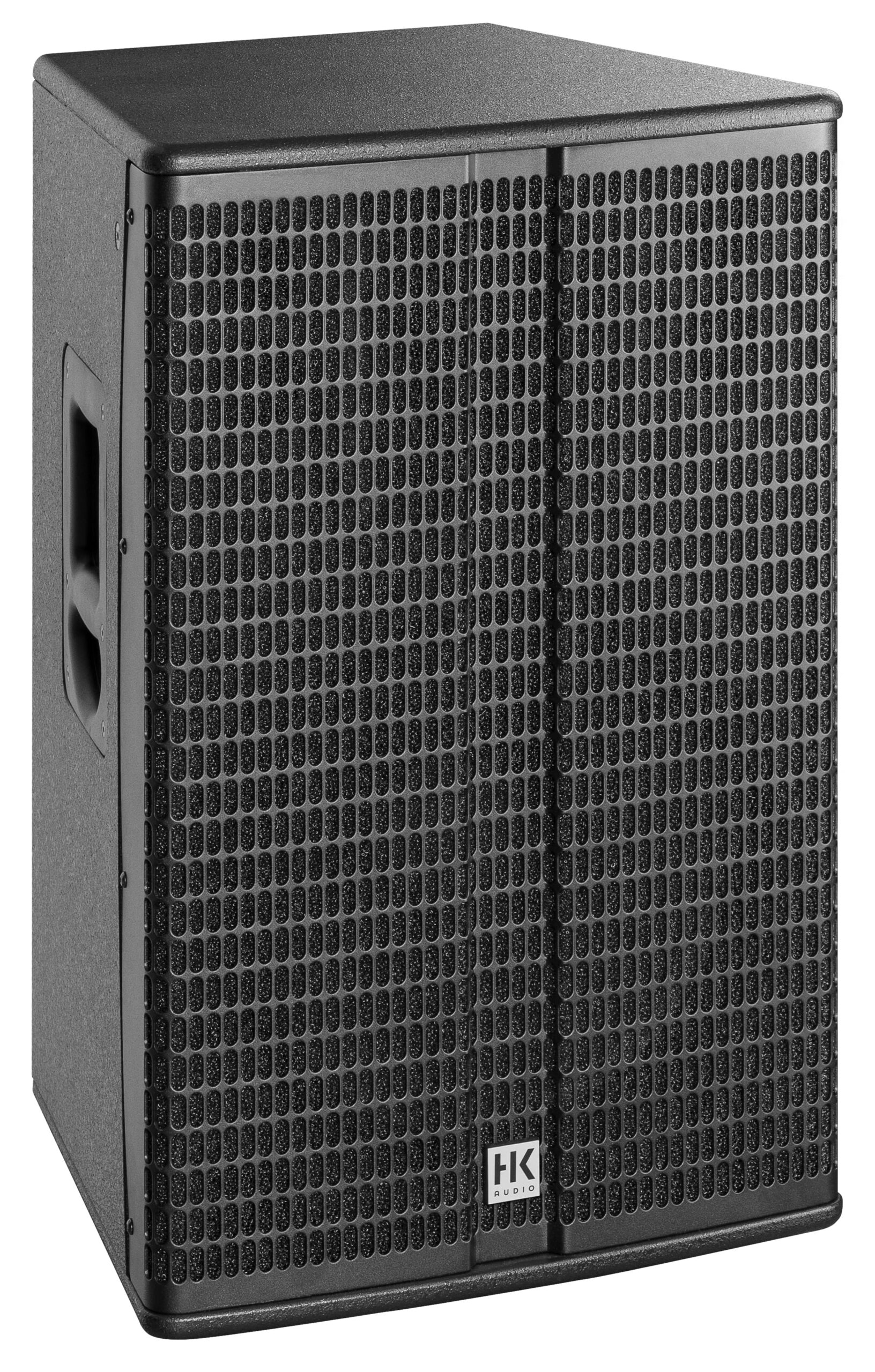

Front grille Steel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric 44 x 69 x 44.5 cm
Dimensions (W x H x D), imperial 17-5/16 x 27-5/32 x 17-17/32 inch
Weight, metric 27.9 kg
Weight, imperial 61.5 lbs
