Specifications
Concept Active 2-way loudspeaker
Cabinet principle Bass reflex
Max. SPL average2 127 dB
Max. SPL peak3 135 dB
Crossover frequency 2.1 kHz
Frequency range -6 dB74 Hz – 18 kHz
Frequency range -10 dB68 Hz – 19 kHz
Dispersion angle -6 dB (horizontal x vertical) 80° x 60°, rotatable
Index
Index 2)1 x unit @ 1 m, 10 % THD, 70 Hz – 12 kHz, (EN 60268-21), half space
Index 3)1 x unit @ 1 m, 10 % THD, half space
Components
Mid/high frequency 1 x 10″ cone speaker, 2″ voice coil
High frequency 1 x 1″ compression driver, 1.4″ voice coil
Horn Constant directivity horn, rotatable

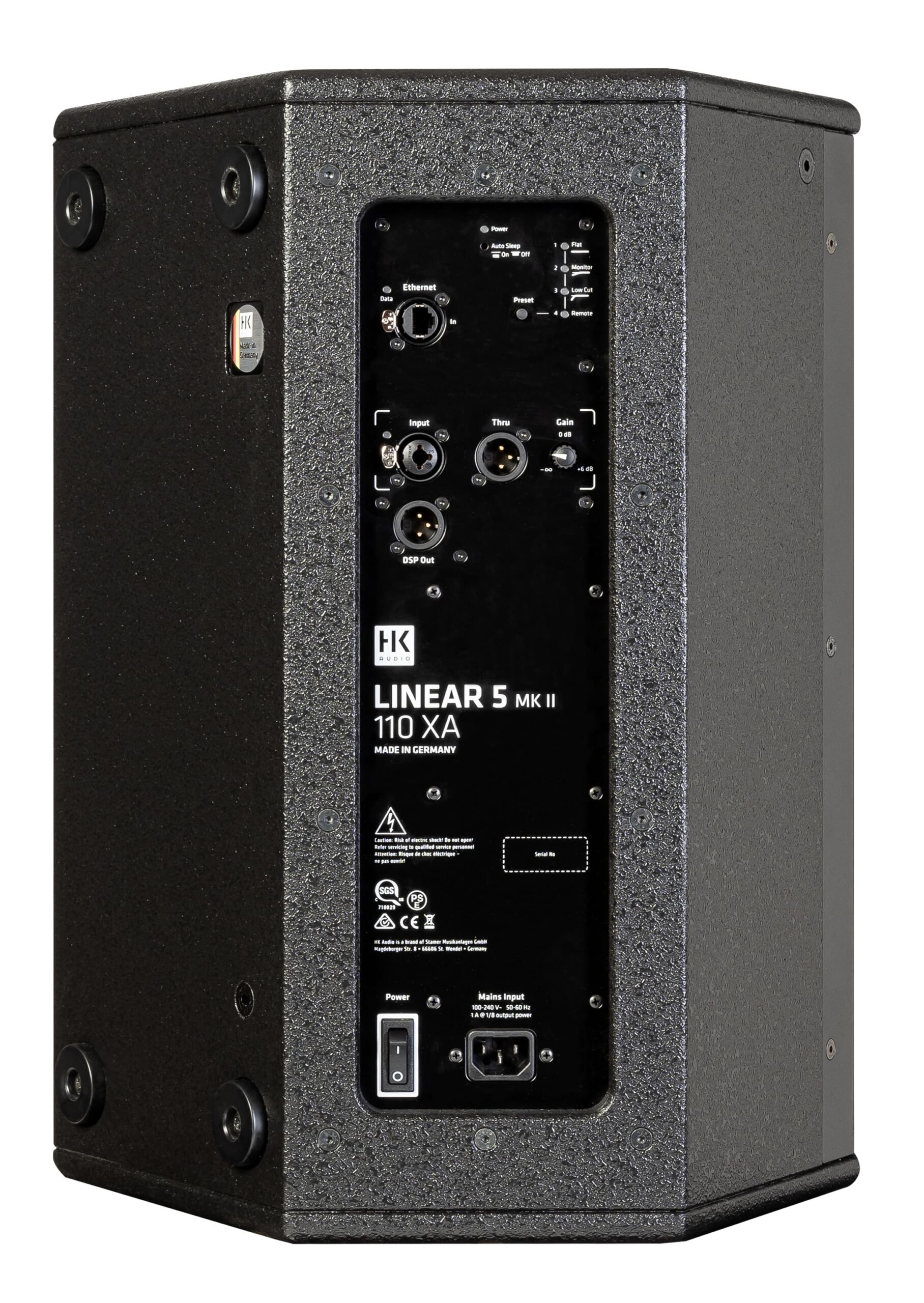

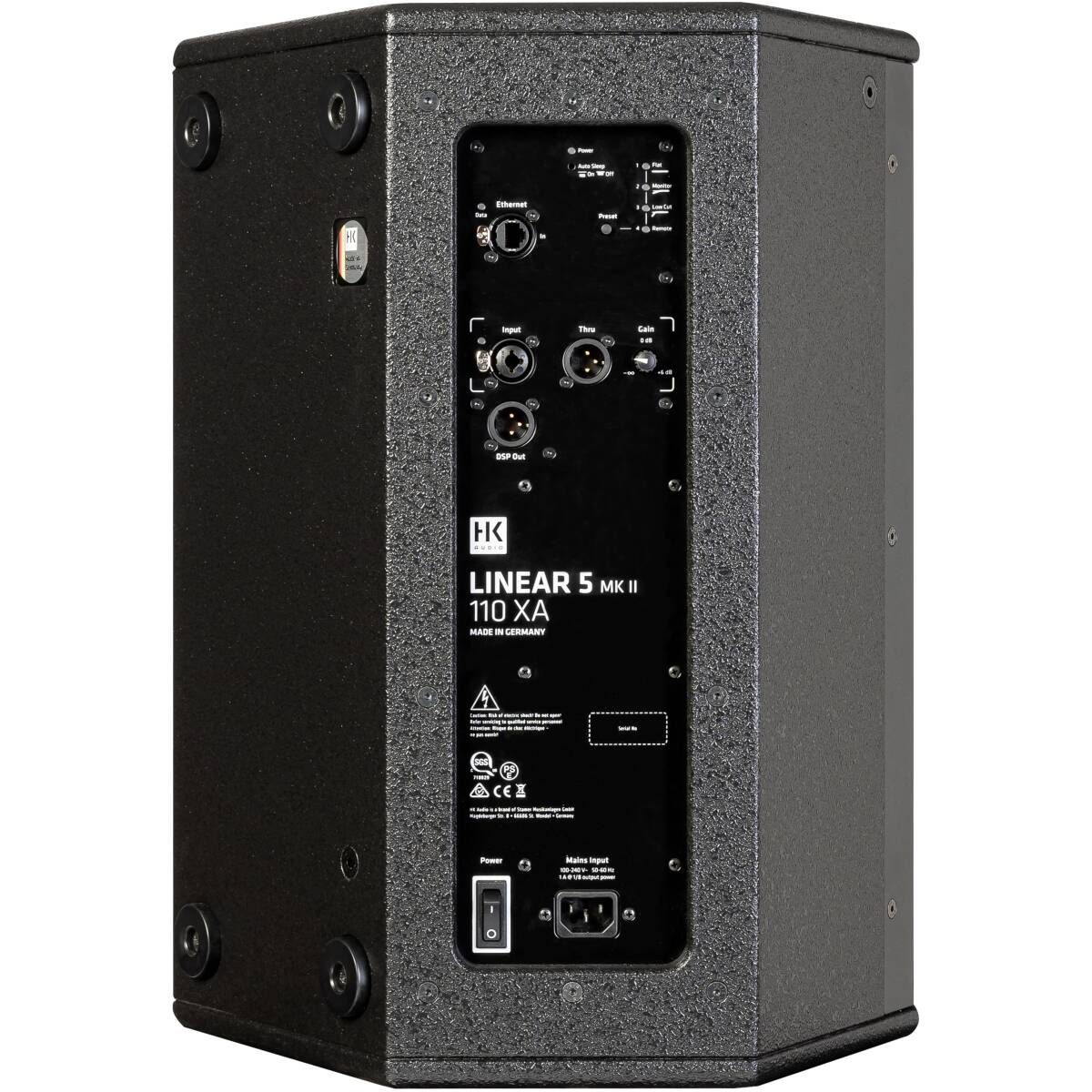

Connections
Analog input 1 x XLR/jack combo symm.
Analog output 1 x XLR symm.
DSP output 1 x XLR symm.
Network input 1 x Ethercon RJ45
Electronical data
Preamplifier DSP preamplifier
Power amplifier Class D-Biamped
Power amplifier output RMS600 W
Power amplifier output peak 1200 W
Power consumption1 A / 100-240 V nominal according to EN 62368-1
Maximum input level+20 dBu
Speaker protection RMS-/Peak-Limiter
Sample rate48 kHz
Latency under 2 ms
DSP functions parametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute
Remote software HK Audio DSP CONTROL (Windows, Mac OS)
Filter presets Flat, Monitor, Low Cut, Remote
Digital audio transmission MILAN
Mechanical data
Cabinet features/rigging pole mount HK Audio DuoTilt 3°/7°, monitor angle: 31°, 3 x rigging point M8
Carrying handles1 x Single Grip
Cabinet material Hybrid (Birch plywood/MDF)
Cabinet surface acrylic enamel
Color Jet black (RAL 9005)
Front grille Steel front grille with anti corrosive coating and backed acoustic foam
Dimensions (W x H x D), metric 36 x 52.5 x 30 cm
Dimensions (W x H x D), imperial 14-3/16 x 20-21/32 x 11-13/16 inch
Weight, metric 14.9 kg
Weight, imperial 32.8 lbs
