Specifications
Concept Active 2-way loudspeaker
Cabinet principle Bass reflex
Max. SPL average2128 dB
Max. SPL peak3135 dB
Crossover frequency1.6 kHz
Frequency range -6 dB70 Hz – 18 kHz
Frequency range -10 dB55 Hz – 19 kHz
Dispersion angle -6 dB (horizontal x vertical)60° x 40°, rotatable
Index
Index 2)1 x unit @ 1 m, 10 % THD, 70 Hz – 12 kHz, (EN 60268-21), half space
Index 3)1 x unit @ 1 m, 10 % THD, half space
Components
Low frequency–
Mid/high frequency 1 x 12″ cone speaker, 2.5″ voice coil
High frequency 1 x 1″ compression driver, 1.7″ voice coil
Horn Constant directivity horn, rotatable

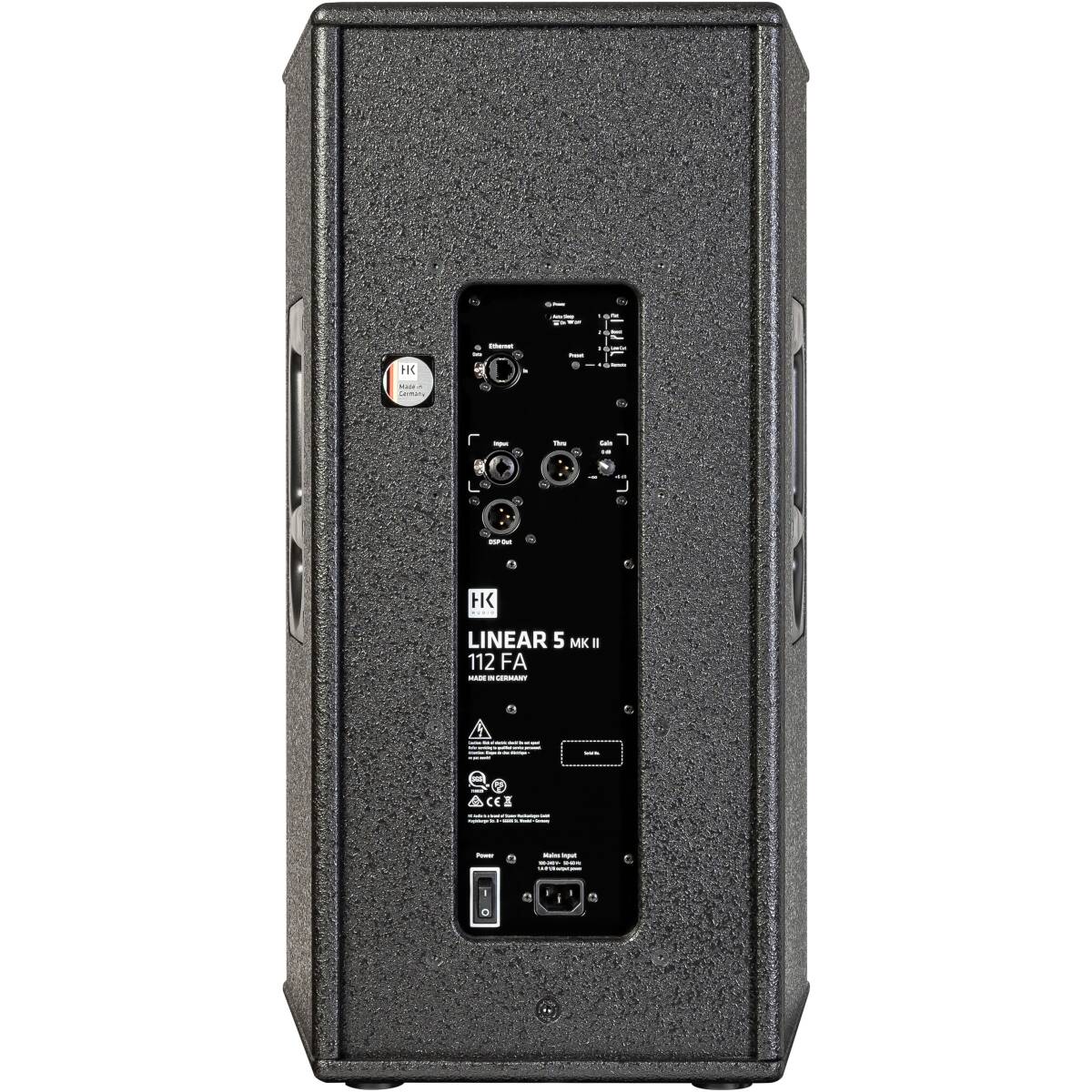

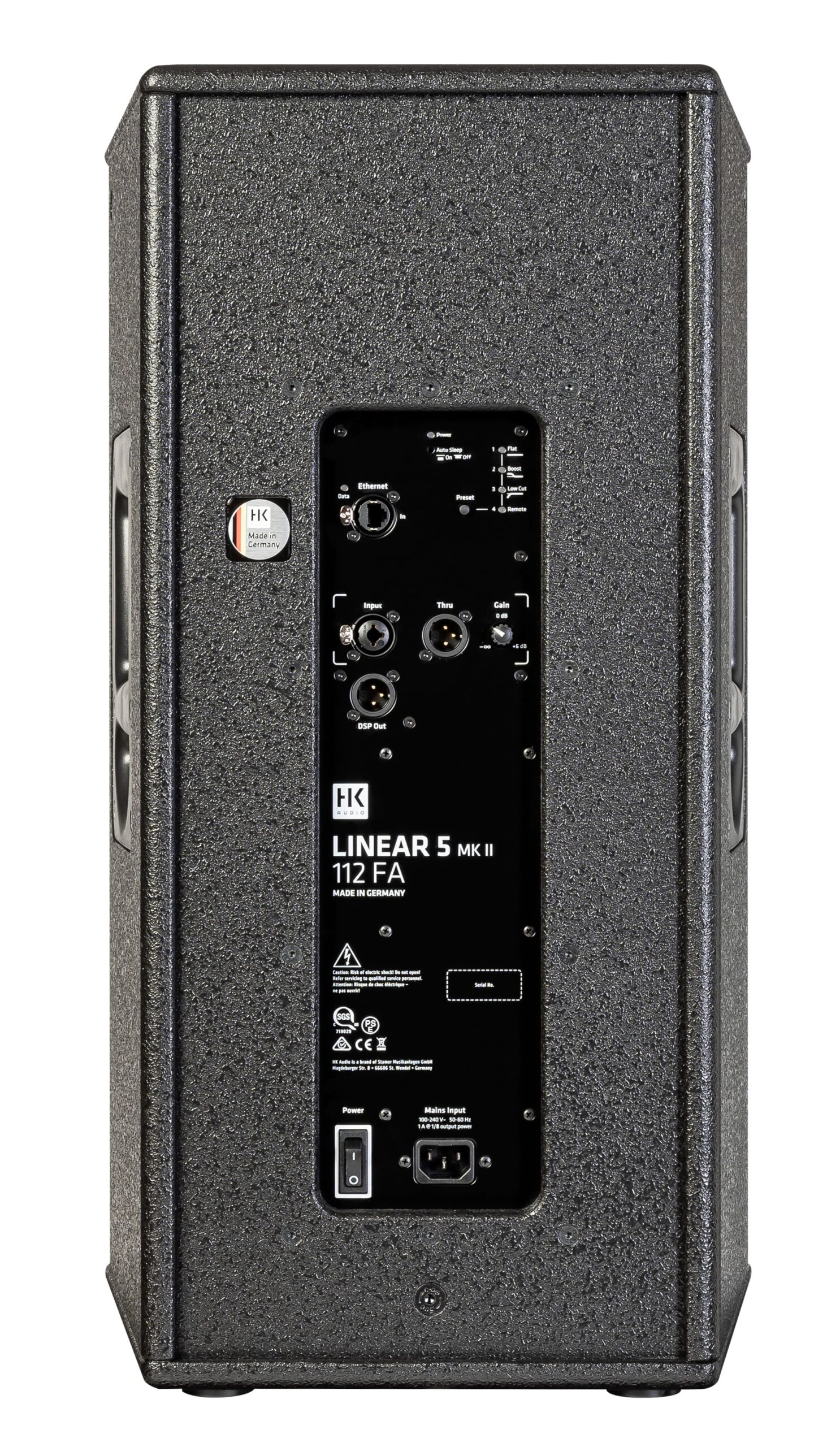

Connections
Analog input 1 x XLR/jack combo symm.
Analog output 1 x XLR symm.
DSP output 1 x XLR symm.
Network input 1 x Ethercon RJ45
Electronical data
Preamplifier DSP preamplifier
Power amplifier Class D-Biamped
Power amplifier output RMS600 W
Power amplifier output peak1200 W
Power consumption1 A / 100-240 V nominal according to EN 62368-1
Maximum input level+20 dBu
Speaker protection RMS-/Peak-Limiter
Sample rate48 kHz
Latency under 2 ms
DSP functions parametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute
Remote software HK Audio DSP CONTROL (Windows, Mac OS)
Filter presets Flat, Boost, Low Cut, Remote
Digital audio transmission MILAN
Mechanical data
Cabinet features/rigging pole mount HK Audio DuoTilt 3°/7°, monitor angle: 31°, 3 x rigging point M8

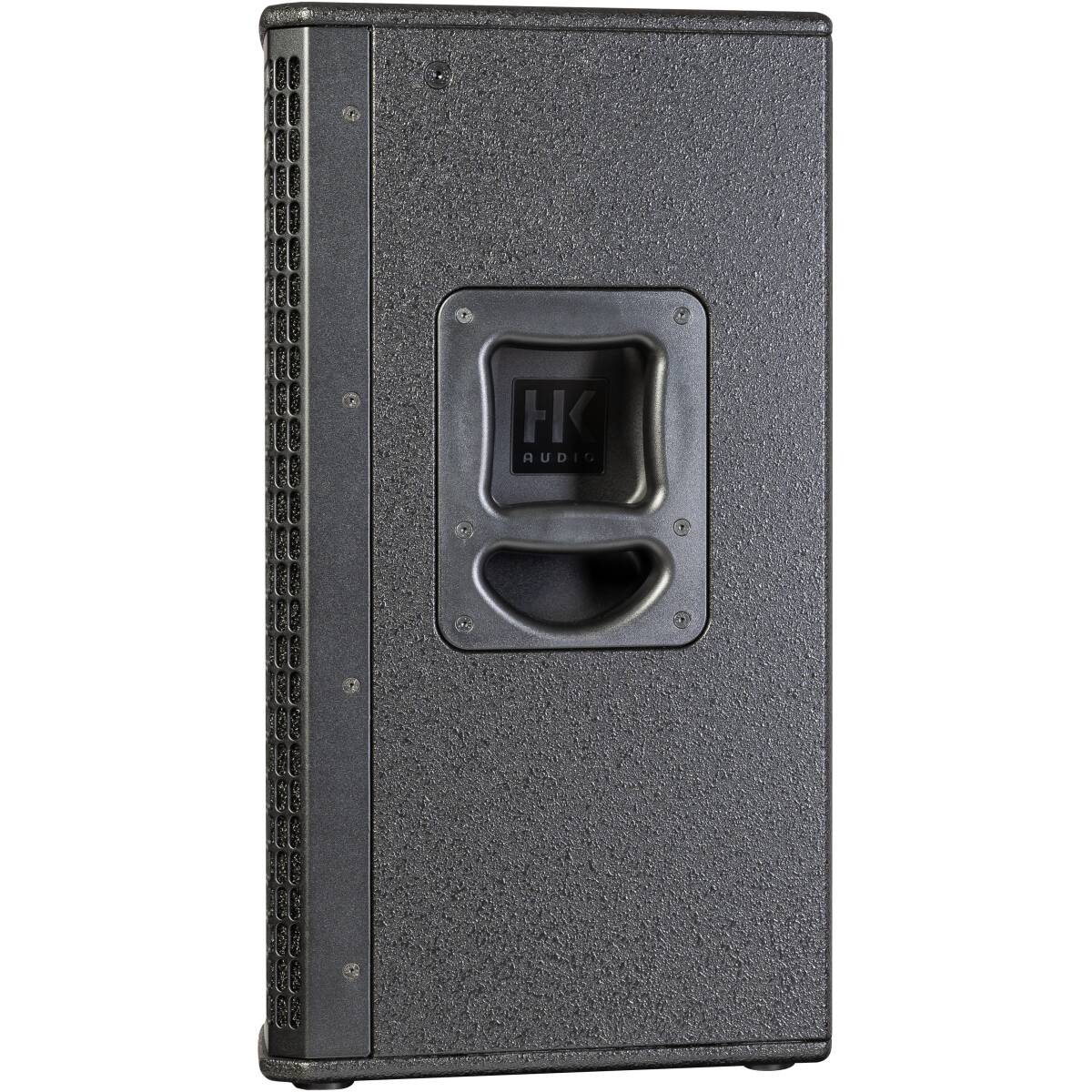

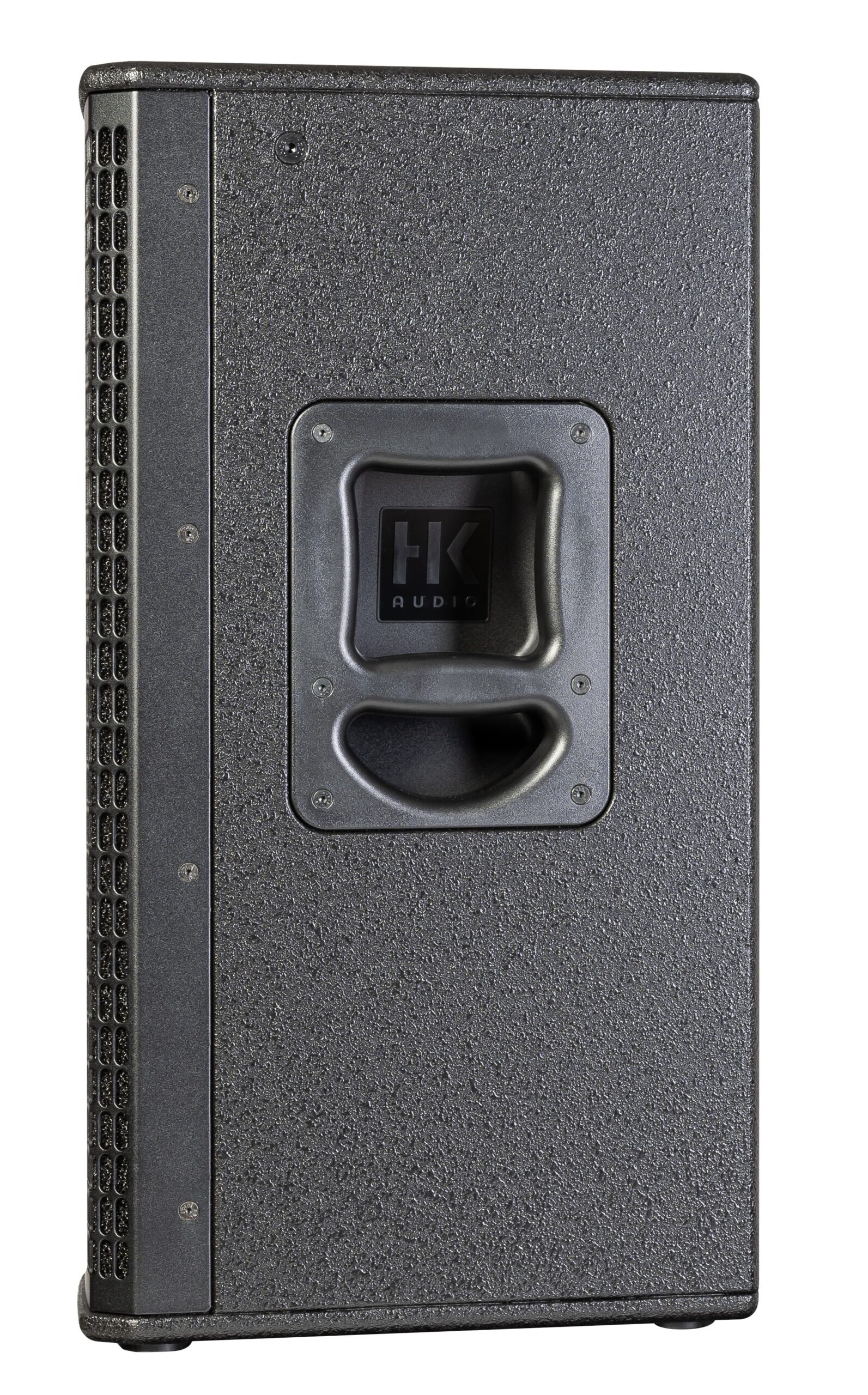

Carrying handles 2 x HK Audio MultiGrip
Cabinet material Hybrid (Birch plywood/MDF)
Cabinet surface acrylic enamel
Color Jet black (RAL 9005)

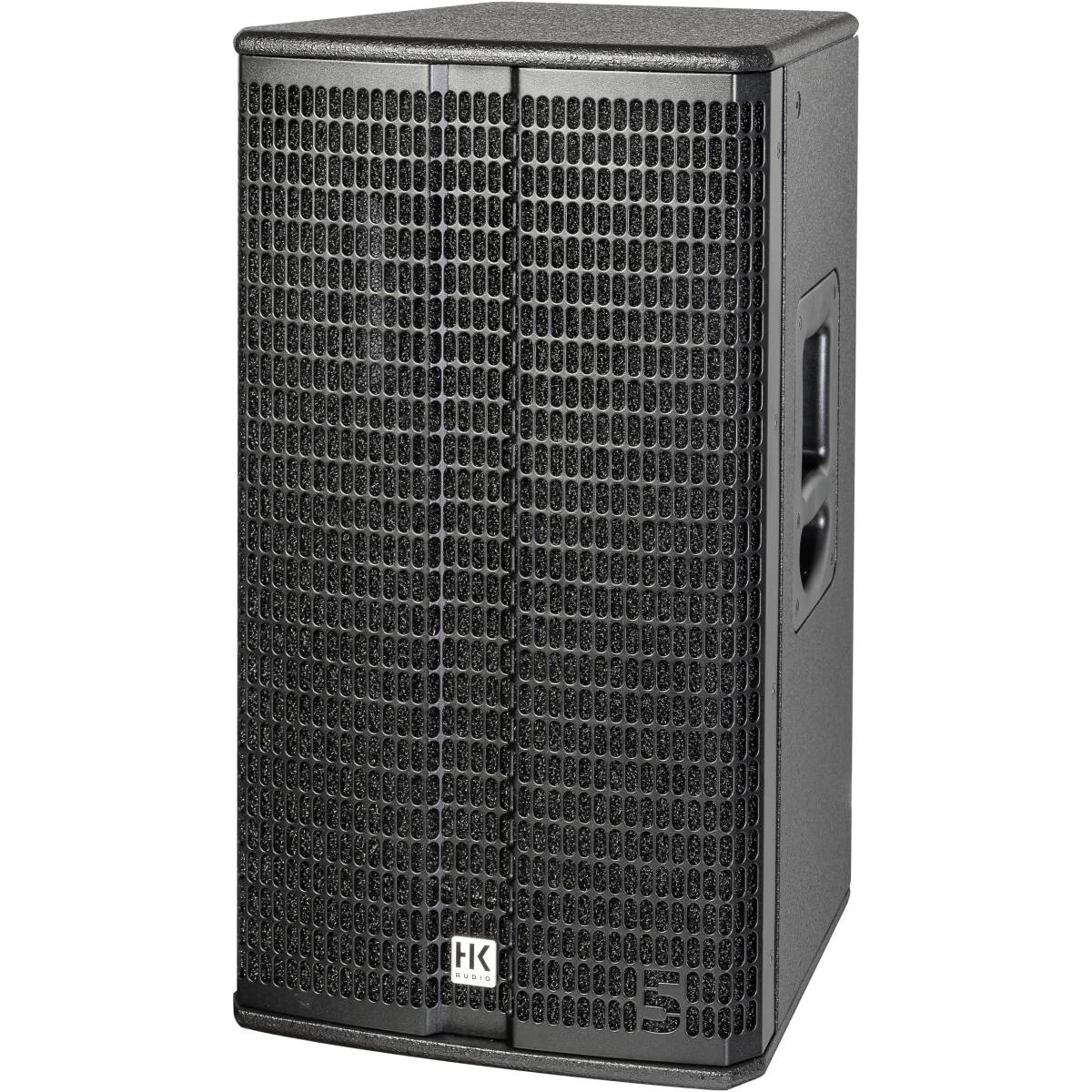

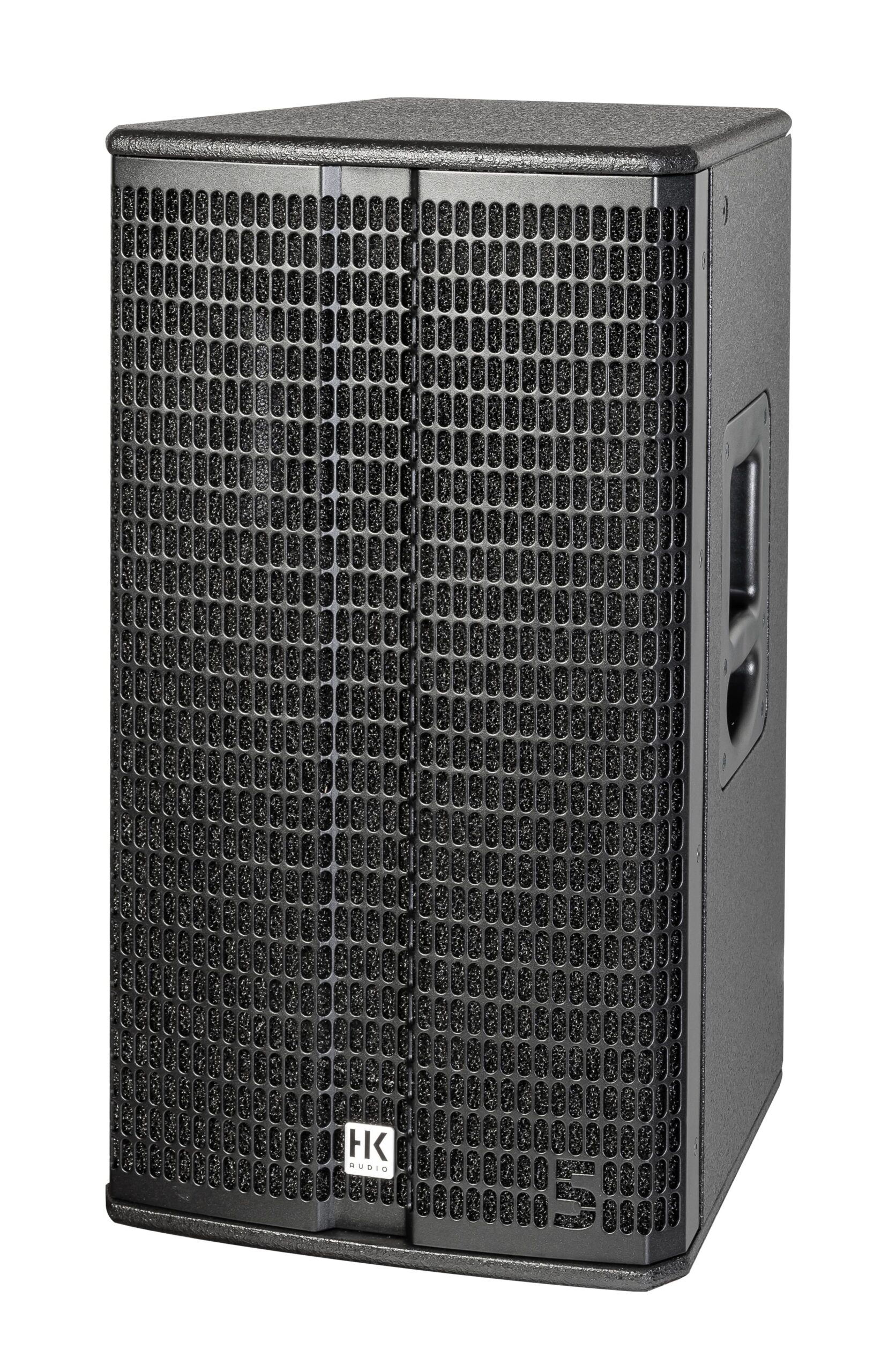

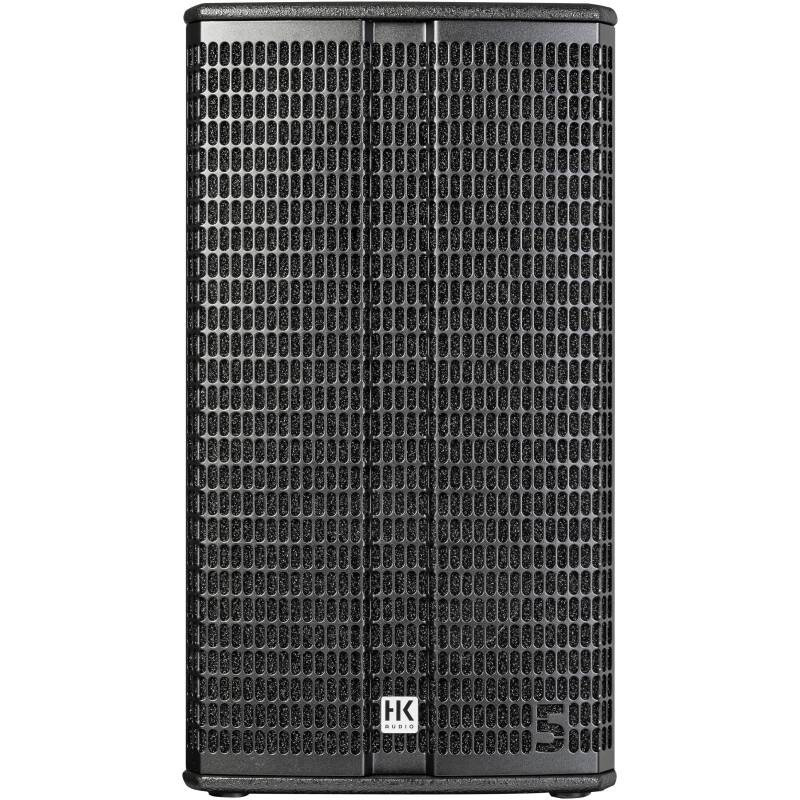

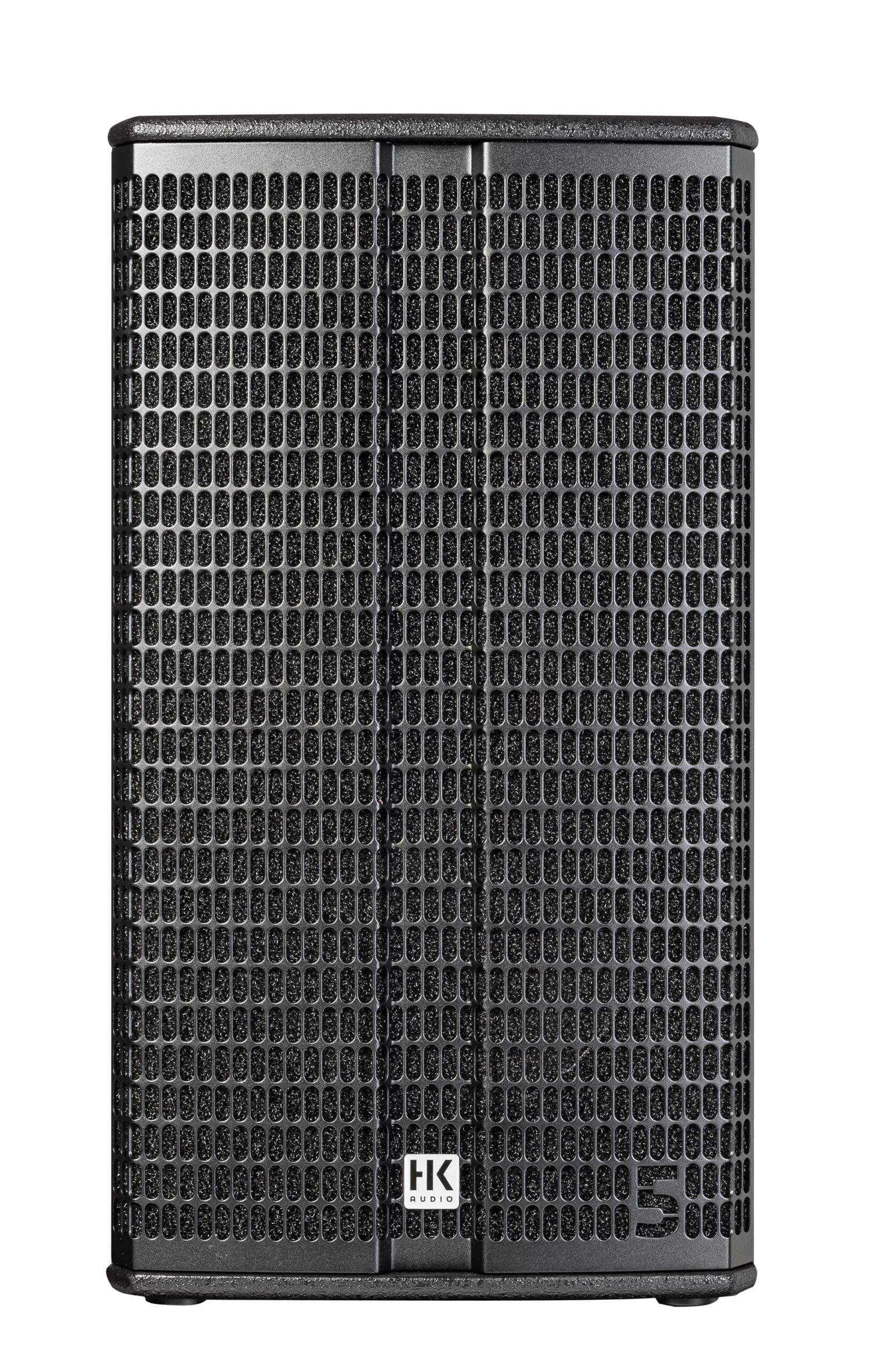

Front grille Steel front grille with anti corrosive coating and backed acoustic foam
Dimensions (W x H x D), metric 37.0 x 67 x 36.5 cm
Dimensions (W x H x D), imperial 14-9/16 x 26-3/8 x 14-3/8 inch
Weight, metric 21.9 kg
Weight, imperial 48.3 lbs
