Specifications
Concept Active subwoofer
Cabinet principle Bass reflex
Max. SPL average2127 dB
Max. SPL peak3130 dB
Frequency range -6 dB44 Hz- X-over
Frequency range -10 dB40 Hz – X-Over
Index
Index 2)1 x Subwoofer @ 1 m, 10 % THD, 42 Hz – 100 Hz, (EN 60268-21), half space
Index 3)1 x Subwoofer @ 1 m, 10 % THD, half space
Components
Low frequency 1 x 15″ cone speaker, 3″ voice coil

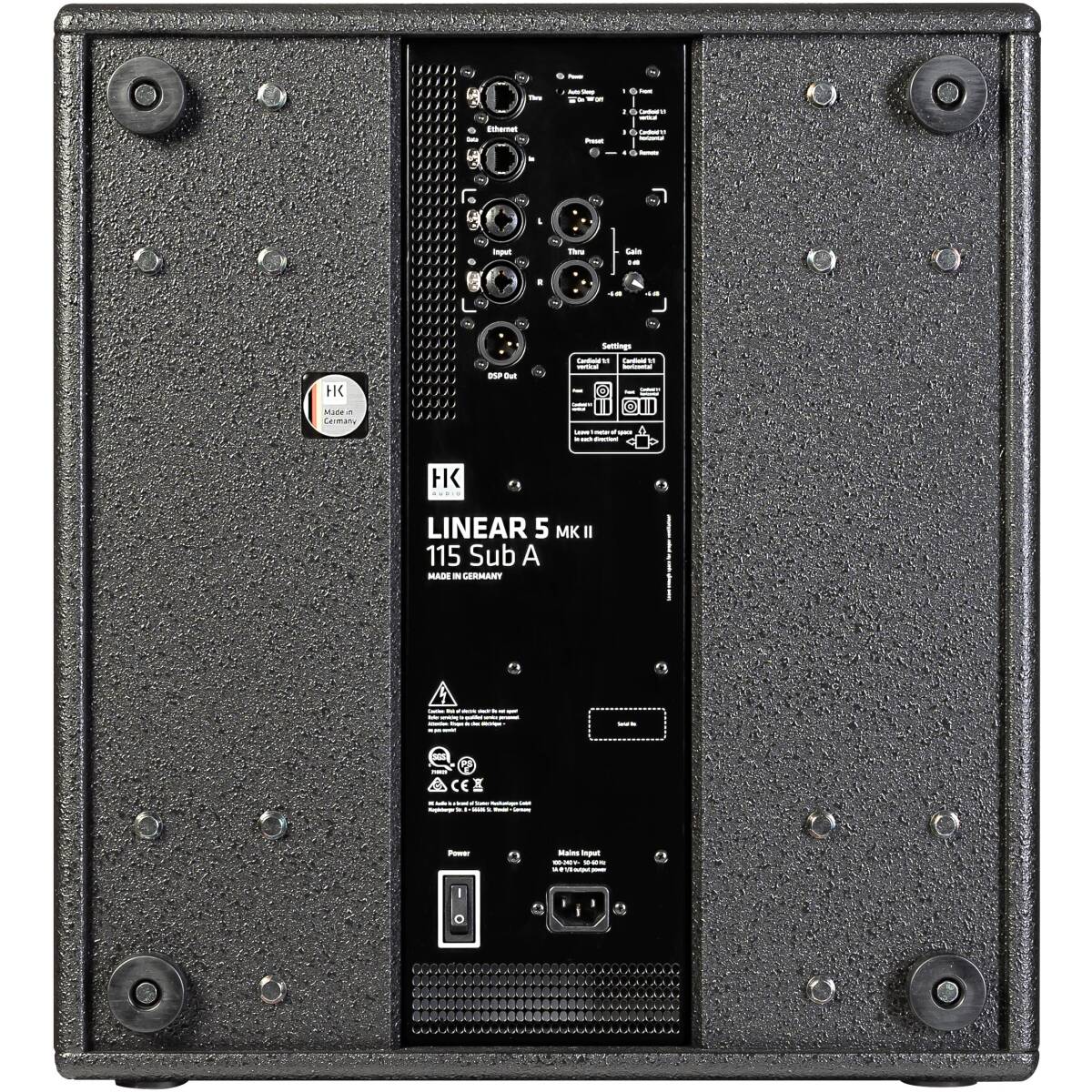

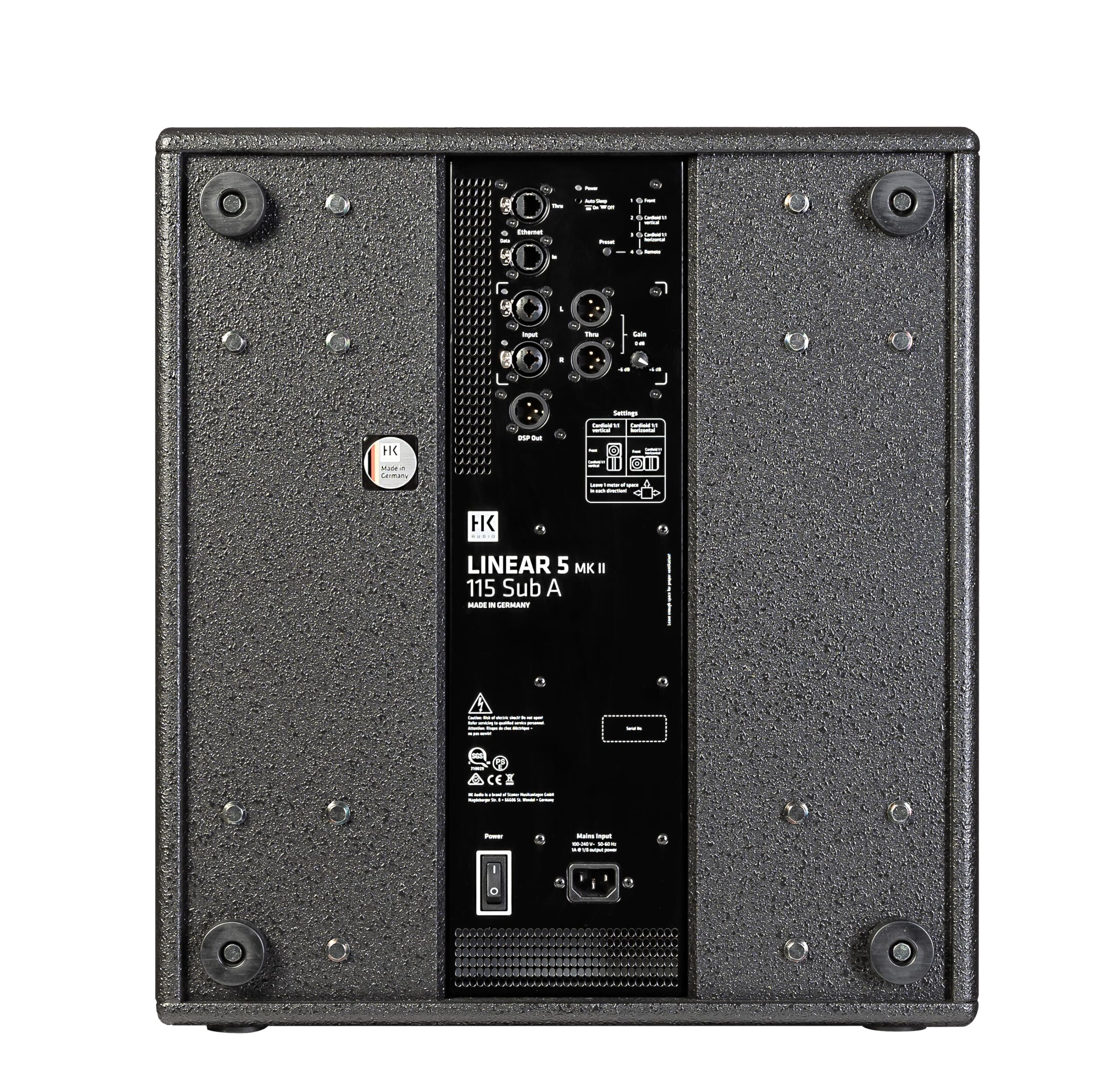

Connections
Analog input 2 x XLR/jack combo symm.
Analog output 2 x XLR symm.
DSP output 1 x XLR symm.
Network input 1 x Ethercon RJ45
Network output 1 x Ethercon RJ45
Electronical data
Preamplifier DSP preamplifier
Power amplifier Class D
Power amplifier output RMS 600 W
Power amplifier output peak 1200 W
Power consumption1 A / 100-240 V nominal according to EN 62368-1
Maximum input level+20 dBu
Speaker protection RMS-/Peak-Limiter
Sample rate48 kHz
Latency under 2 ms
DSP functions parametric 10-band EQ with variable filter characteristics, low-pass filter, polarity, level, delay, limiter, mute
Remote software HK Audio DSP CONTROL (Windows, Mac OS)
Filter presets Front, Cardioid 1:1 vertical, Cardioid 1:1 horizontal, Remote
Digital audio transmission MILAN
Mechanical data
Cabinet features/rigging 1 x pole mount M20

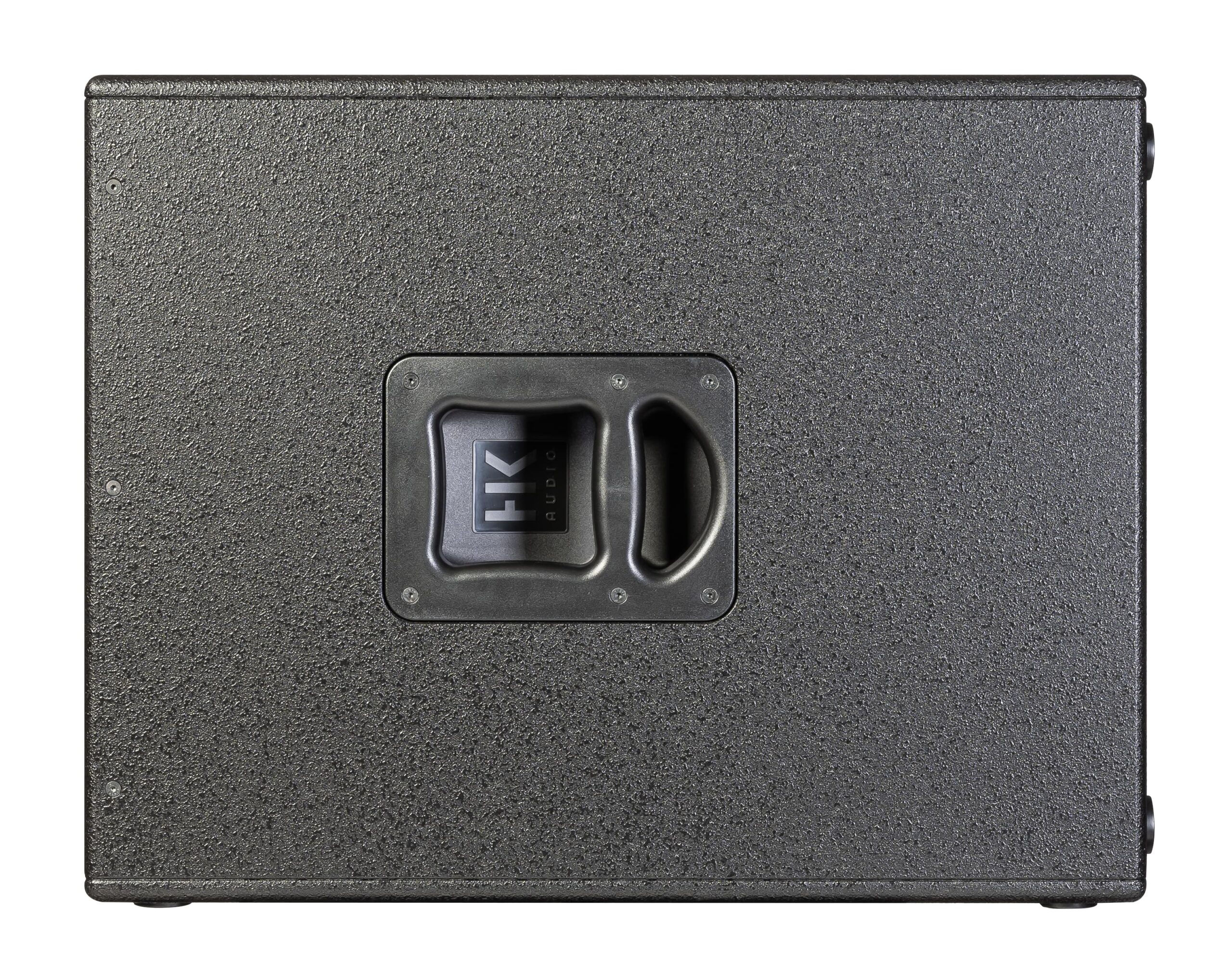

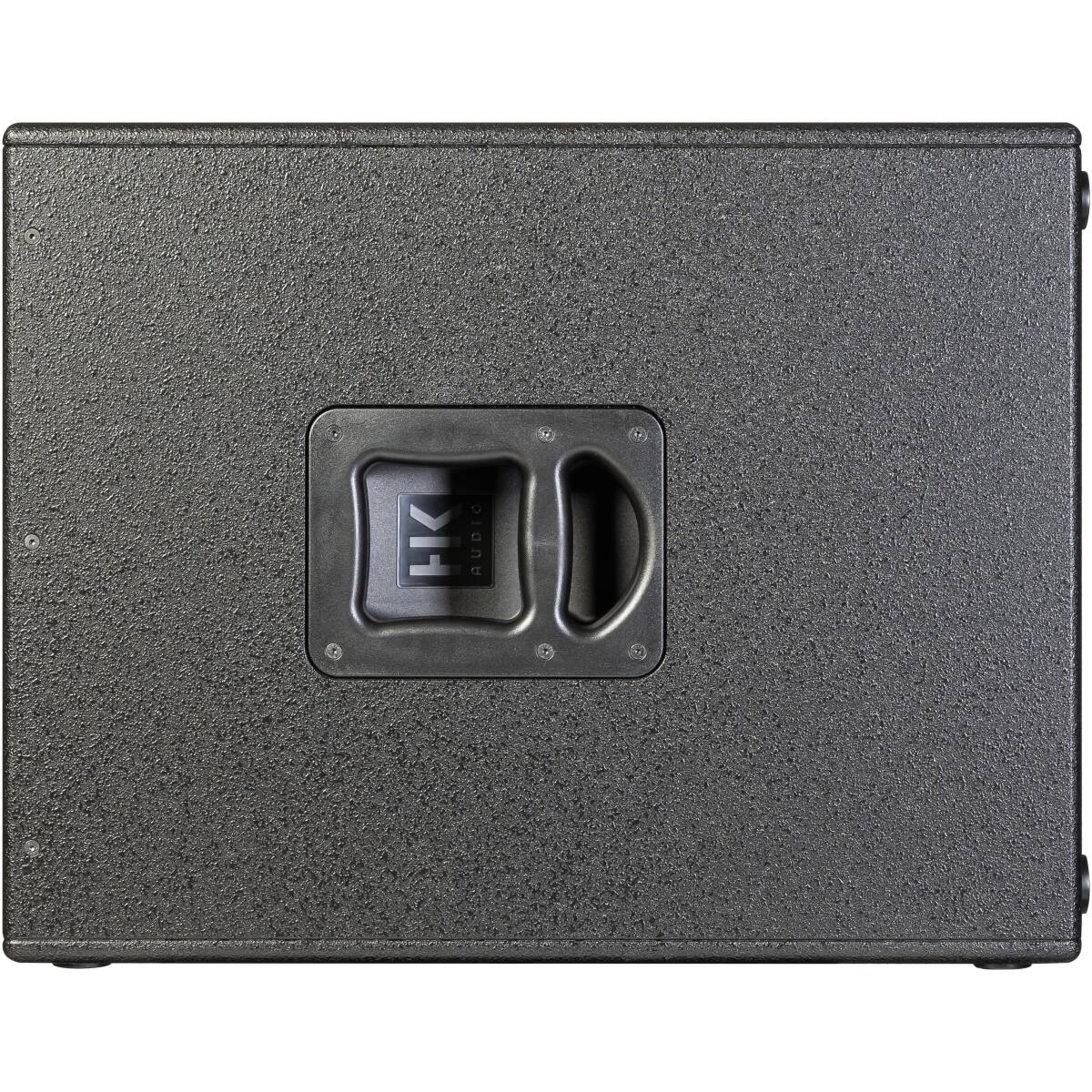

Carrying handles 2 x HK Audio MultiGrip
Cabinet material Hybrid (Birch plywood/MDF)
Cabinet surface bacrylic enamel
ColorbJet black (RAL 9005)

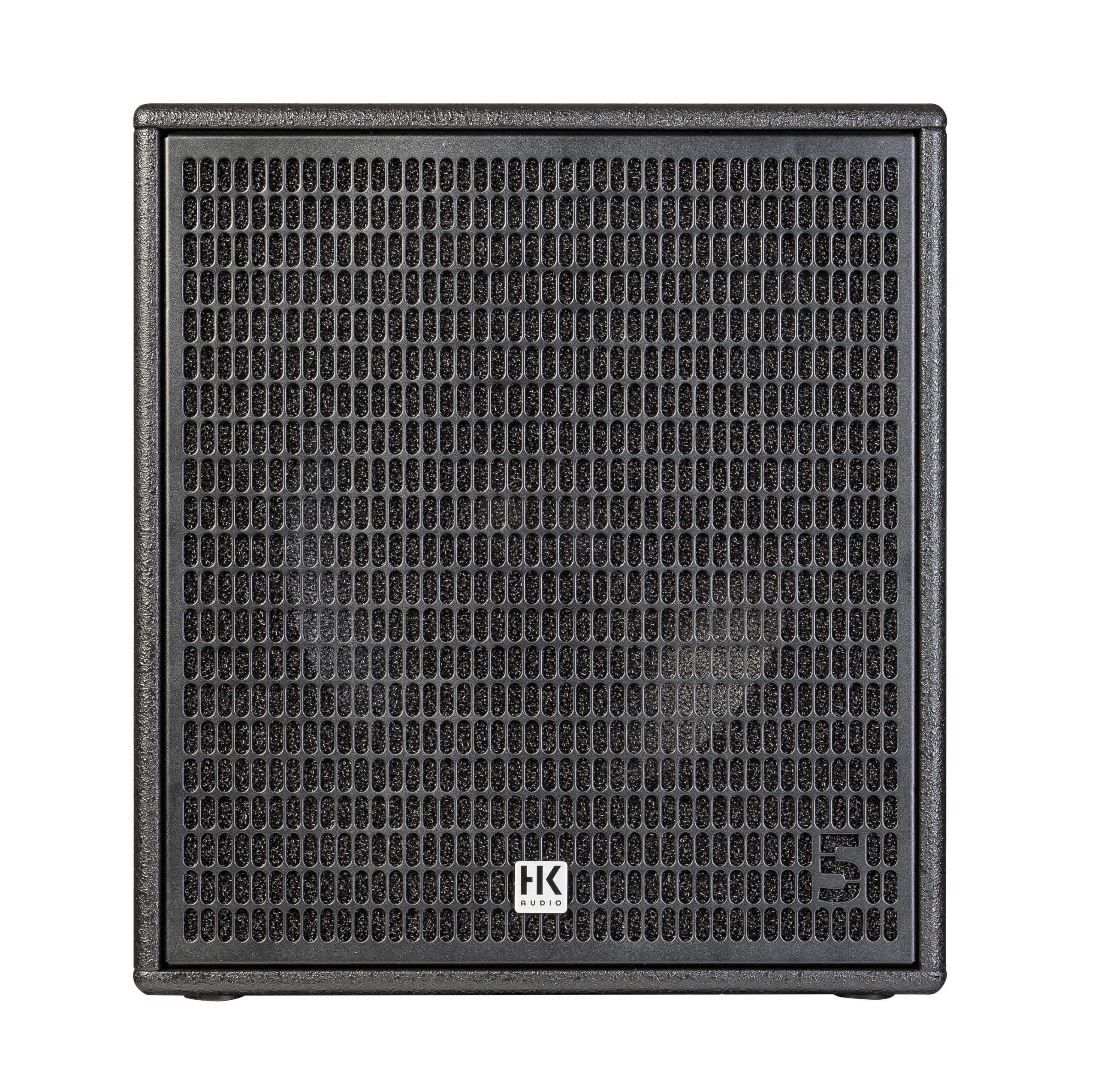

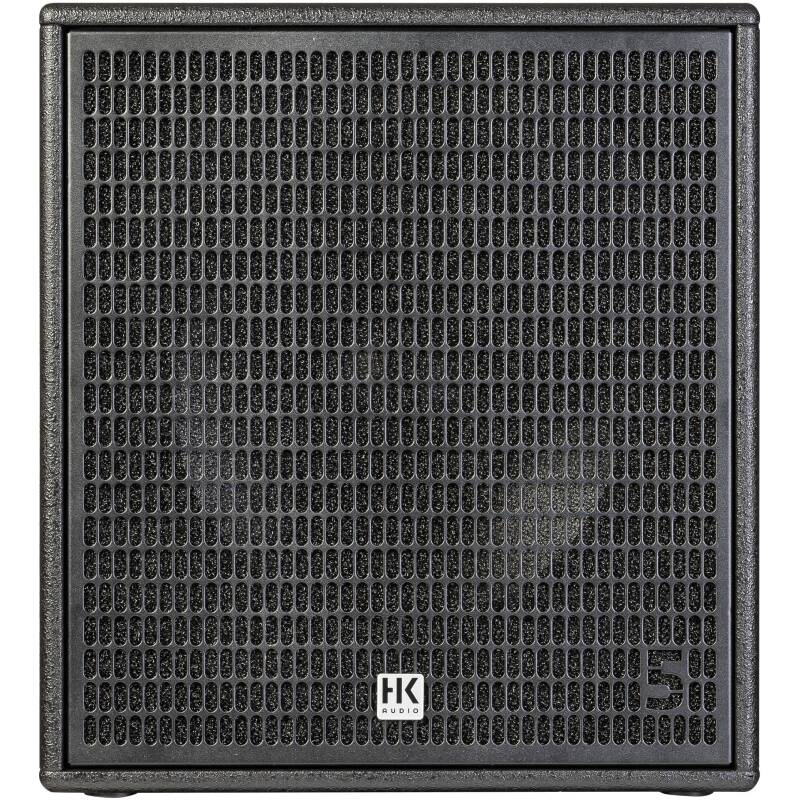

Front grille Steel front grille with anti corrosive coating and backed acoustic foam
Dimensions (W x H x D), metric 48 x 53.5 x 67.5 cm
Dimensions (W x H x D), imperial 18-29/32 x 21-1/16 x 26-9/16 inch
Weight, metric 32.9 kg
Weight, imperial 72.5 lbs
