Specifications
Concept Active subwoofer
Cabinet principle Bass reflex
Max. SPL average2 130 dB
Max. SPL peak3 131 dB
Frequency range -6 dB36 Hz – X-Over
Frequency range -10 dB33 Hz – X-Over
Index
Index 2)1 x Subwoofer @ 1 m, 10 % THD, 36 Hz – 100 Hz, (EN 60268-21), half space
Index 3)1 x Subwoofer @ 1 m, 10 % THD, half space
Components
Low frequency 1 x 18″ cone speaker, 4″ voice coil

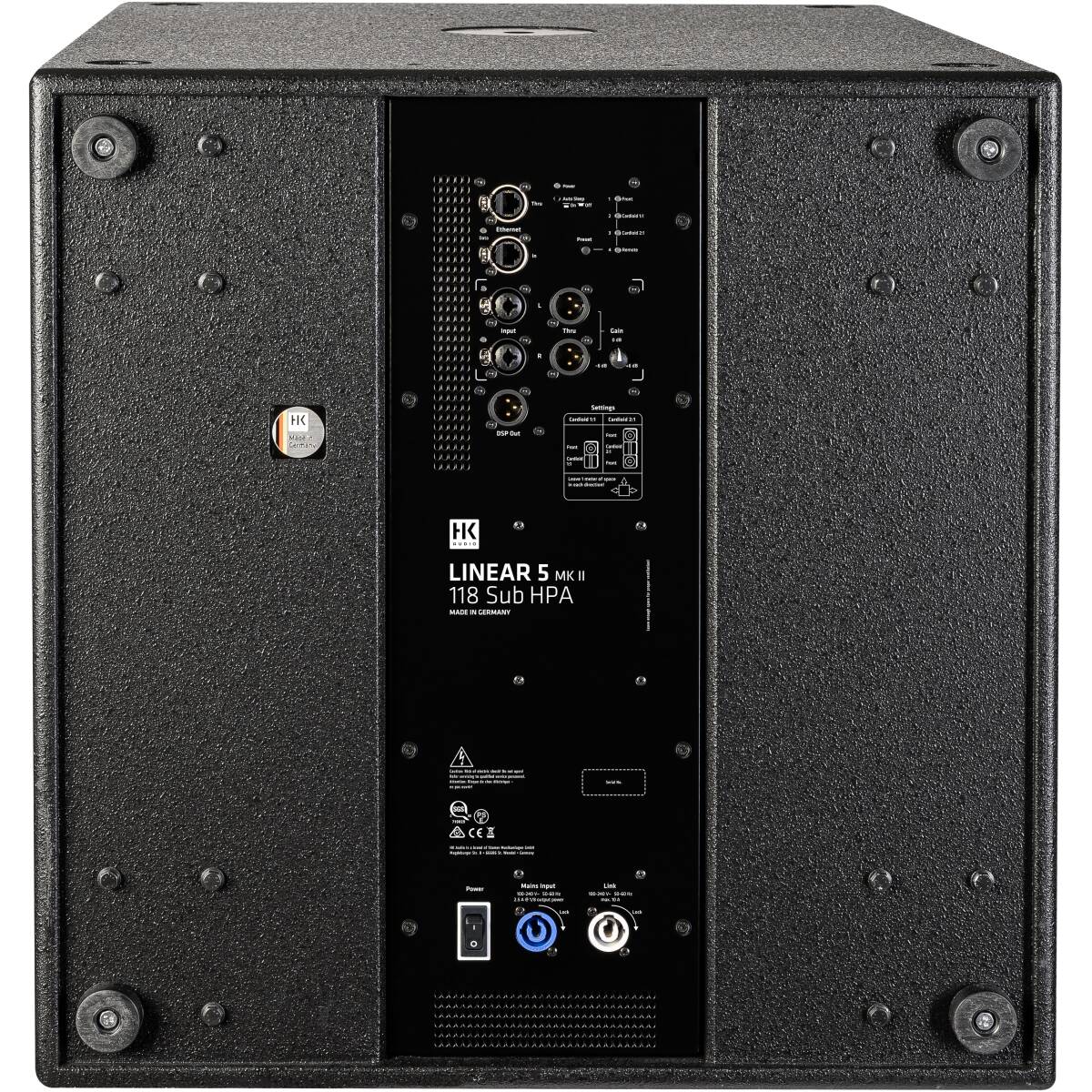

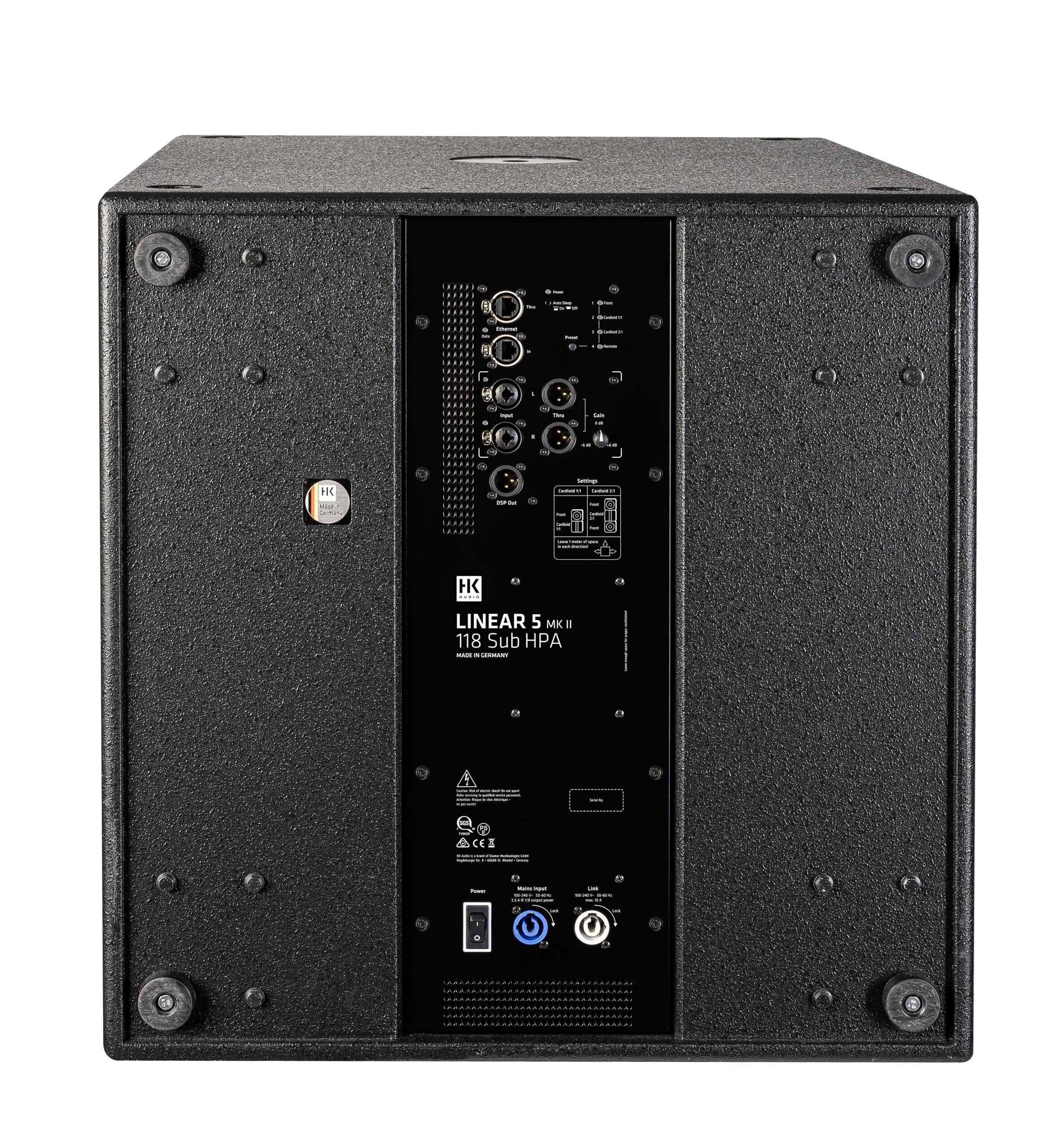

Connections
Analog input 2 x XLR/jack combo symm.
Analog output 2 x XLR symm.
DSP output 1 x XLR symm.
Network input 1 x Ethercon RJ45
Network output 1 x Ethercon RJ45
Electronical data
Preamplifier DSP preamplifier
Power amplifier Class D
Power amplifier output RMS1500 W
Power amplifier output peak3000 W

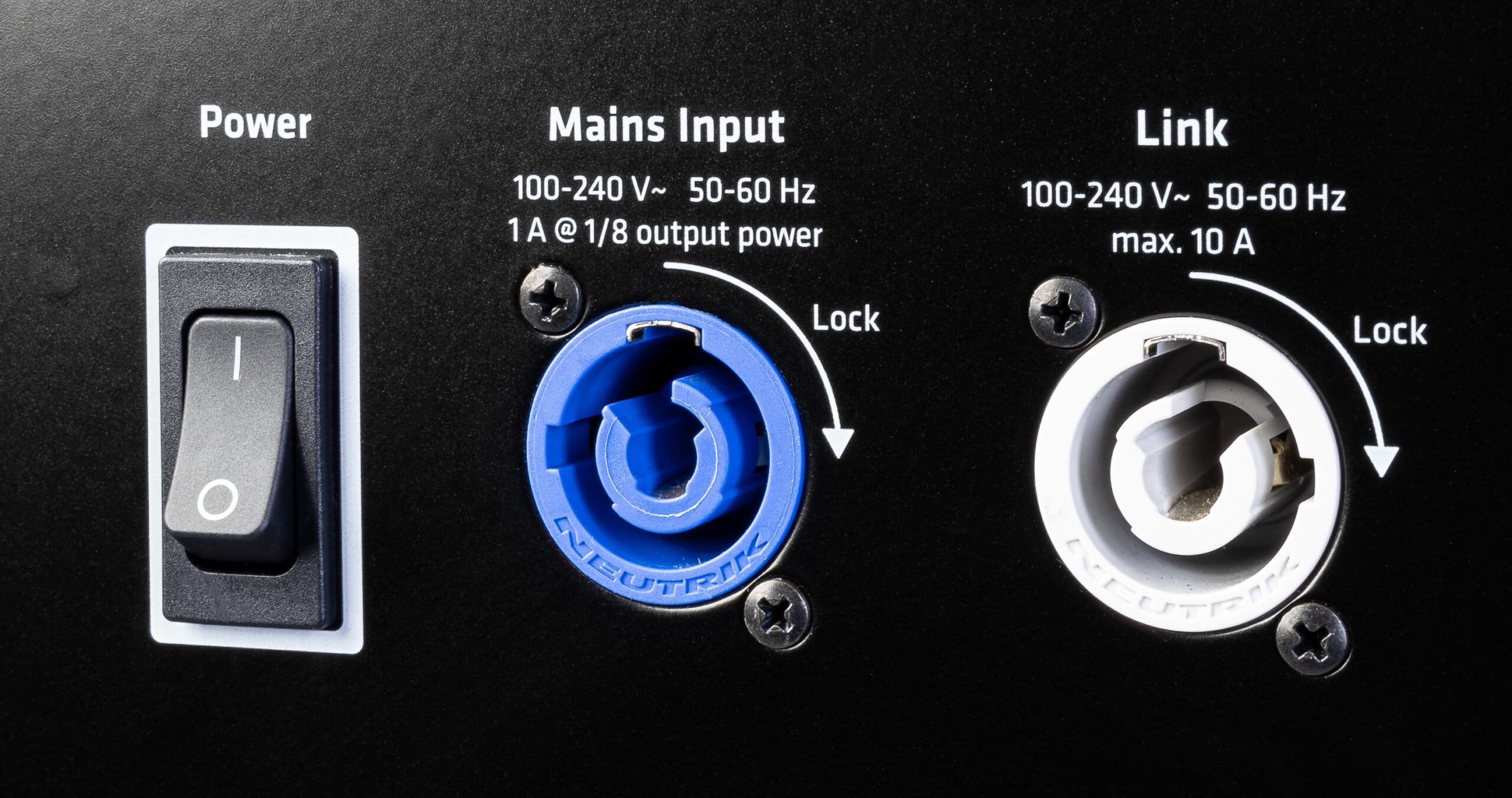

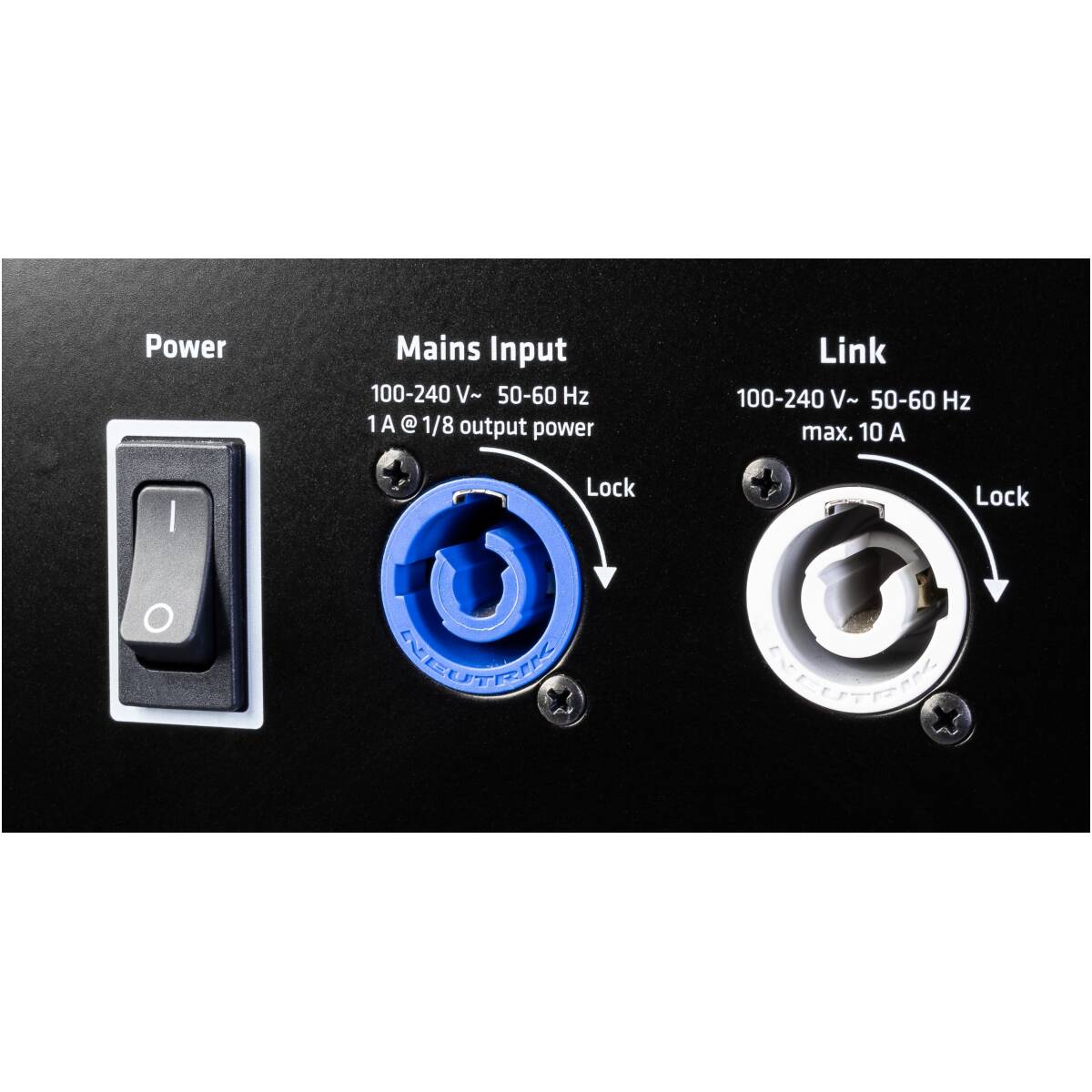

Power consumption2.5 A / 100-240 V nominal according to EN 62368-1
Maximum input level+20 dBu
Speaker protection RMS-/Peak-Limiter
Sample rate48 kHz
Latency under 2.6 ms
DSP functions parametric 10-band EQ with variable filter characteristics, low-pass filter, polarity, level, delay, limiter, mute
Remote software HK Audio DSP CONTROL (Windows, Mac OS)
Filter presets Front, Cardioid 1:1 vertical, Cardioid 2:1 vertical, Remote
Digital audio transmission MILAN
Mechanical data
Cabinet features/rigging 1 x pole mount M20

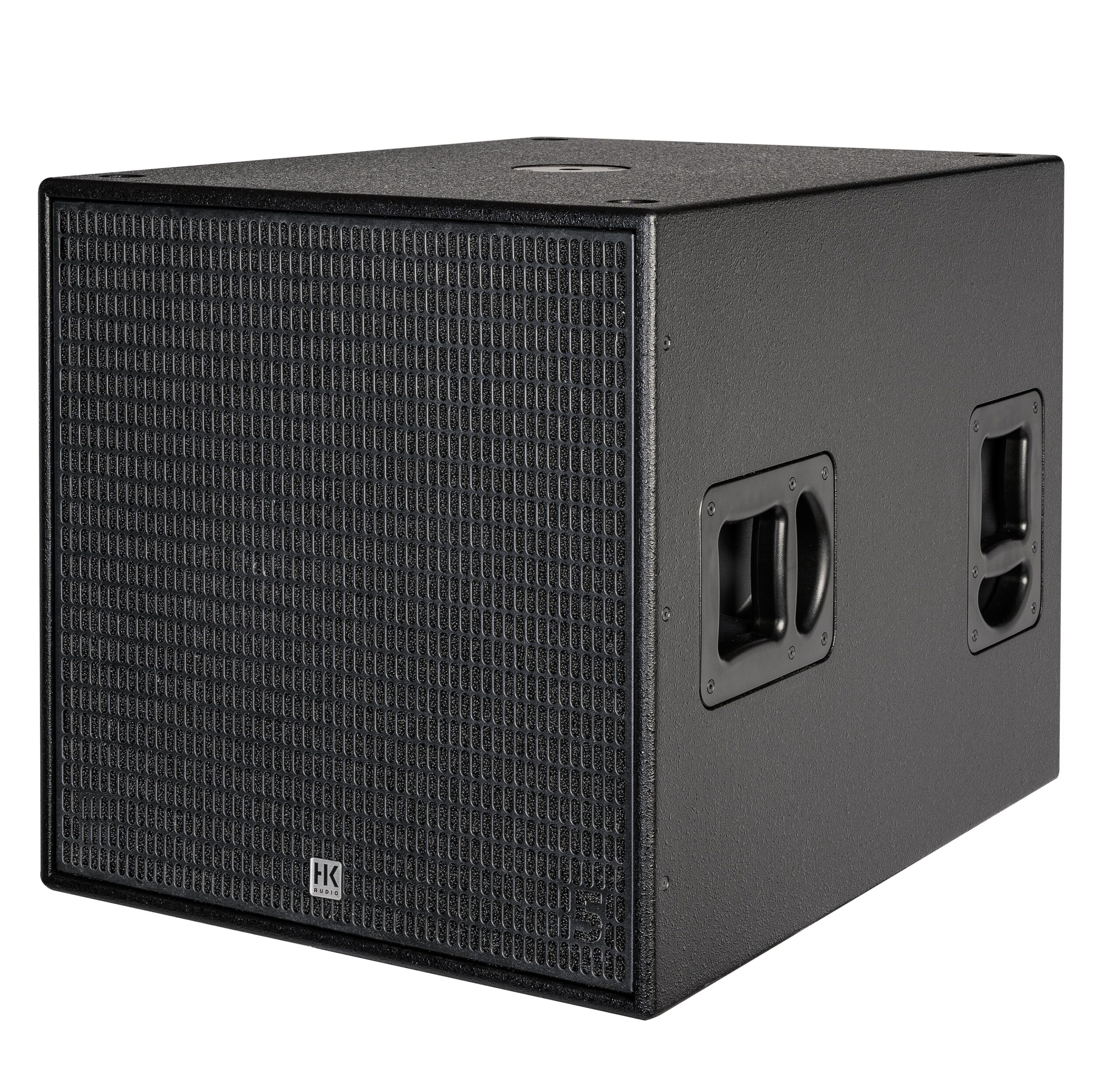

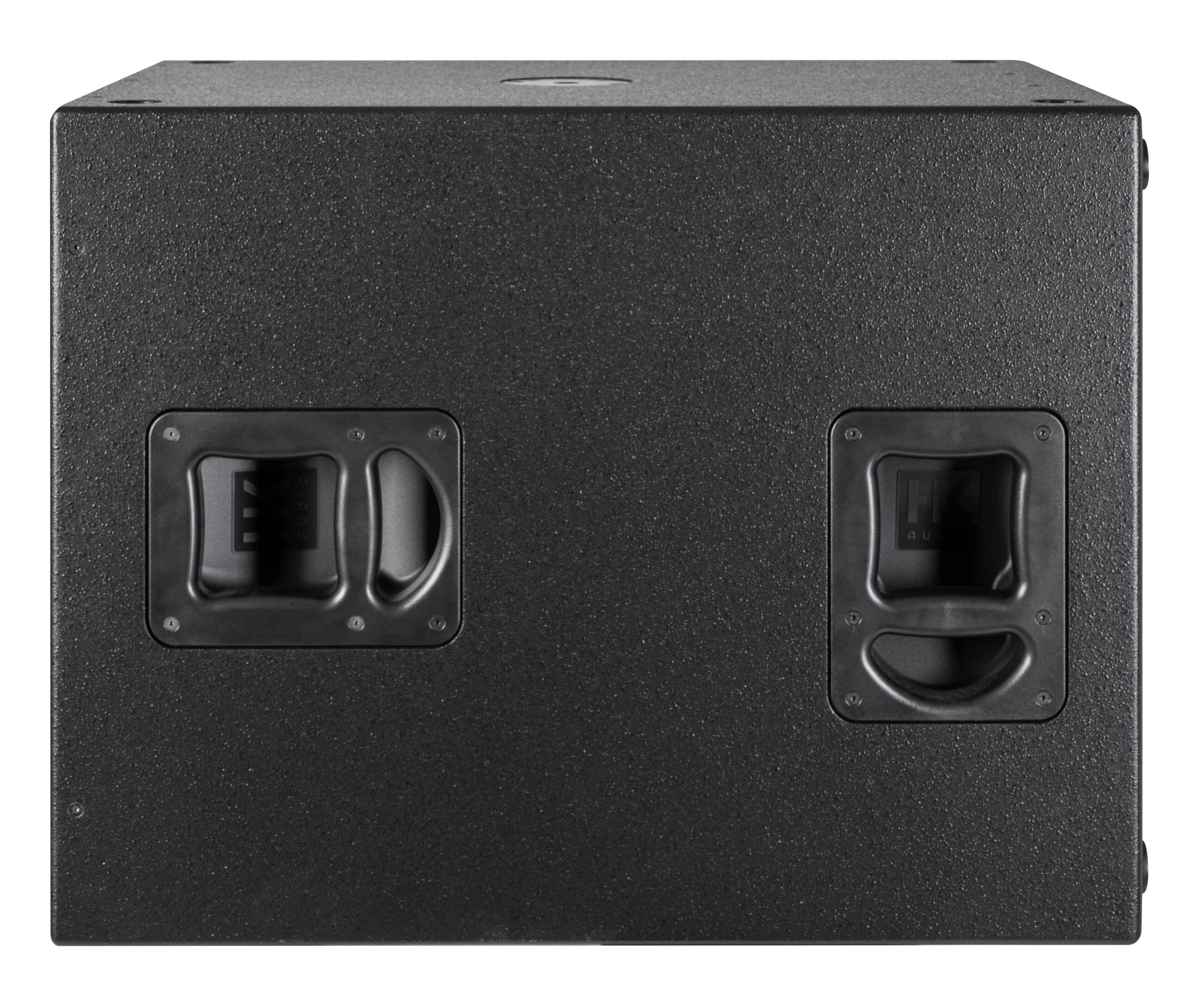

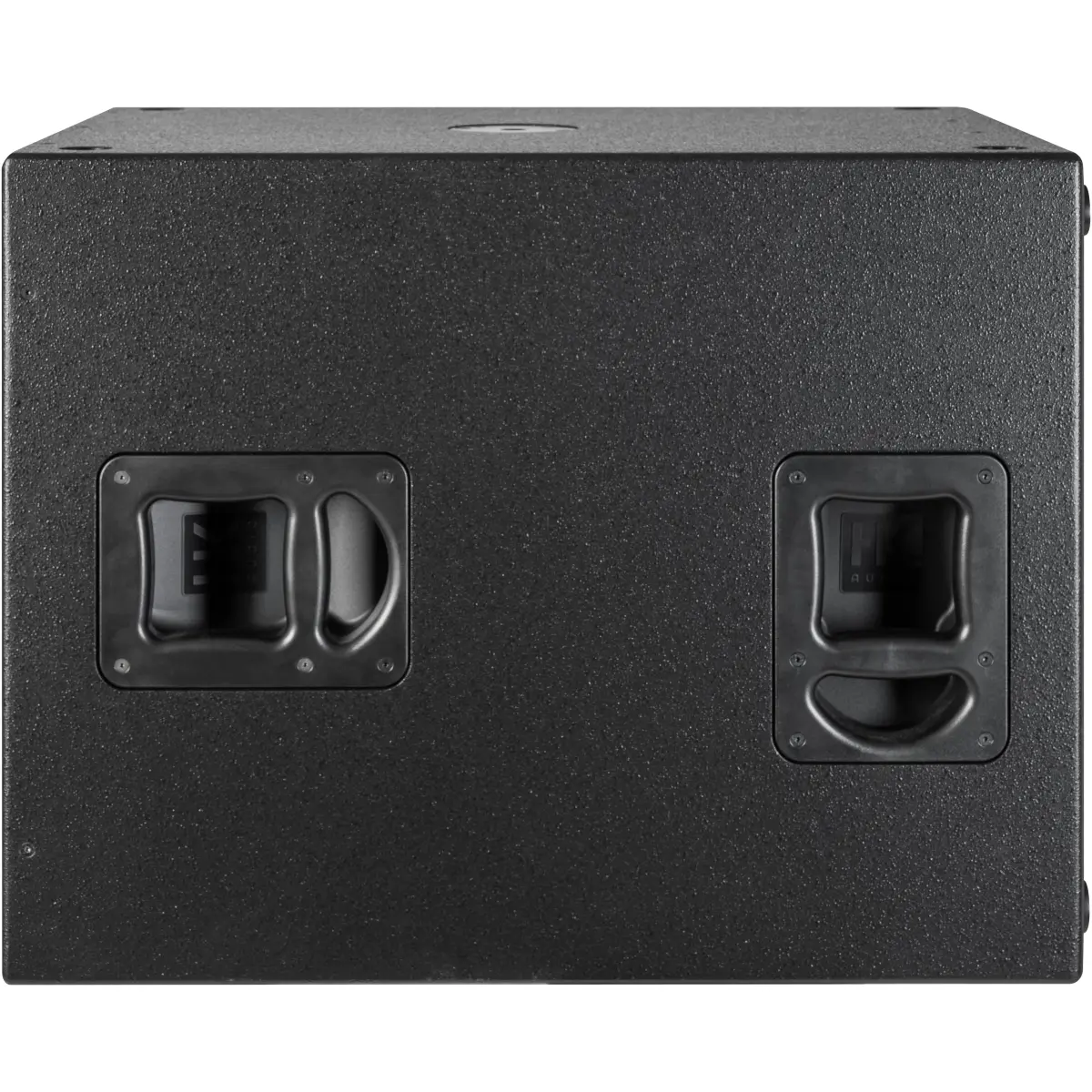

Carrying handles 4 x HK Audio MultiGrip
Cabinet material Birch plywood
Cabinet surface acrylic enamel
Color Jet black (RAL 9005)

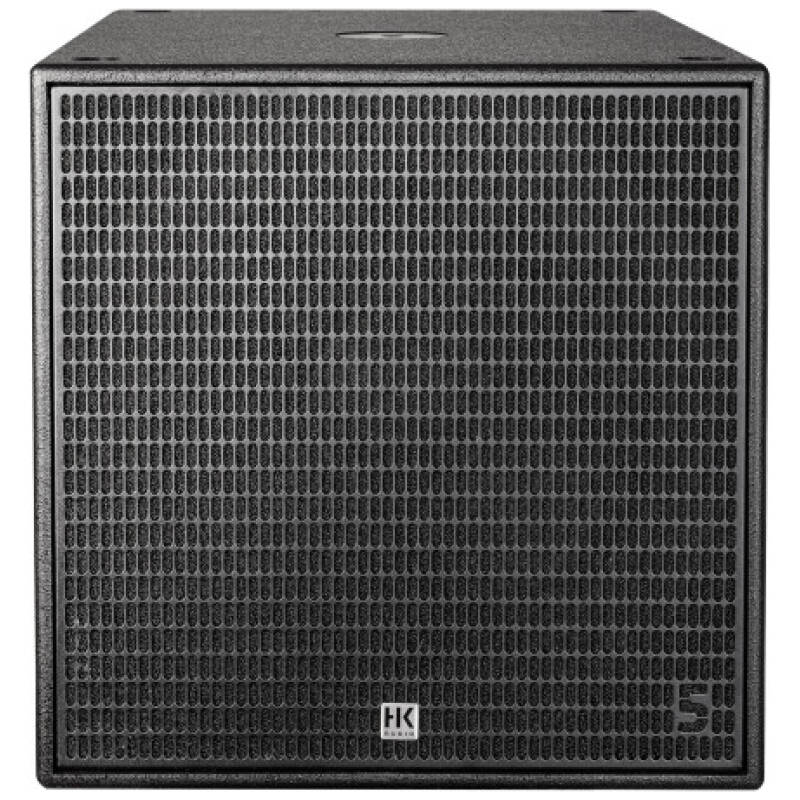

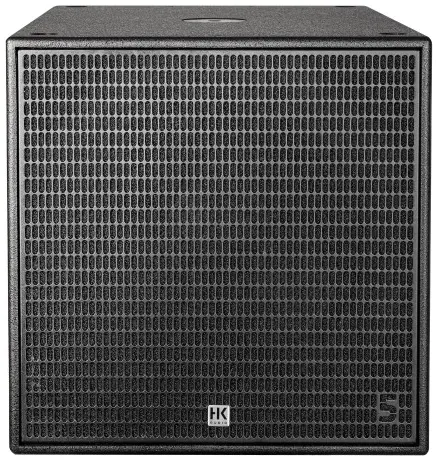

Front grille Steel front grille with anti corrosive coating and backed acoustic foam
Accessories included RCS (Rain-Cover-Set)
Dimensions (W x H x D), metric 60 x 60.8 x79 cm
Dimensions (W x H x D), imperial 23-5/8 x 23-15/16 x 31-3/32 inch
Weight, metric 56.8 kg
Weight, imperial 125.2 lbs
