Specifications
Concept Active 2-way loudspeaker
Cabinet principle horn loaded, bass reflex
Max. SPL average2 133 dB
Max. SPL peak3 138 dB
Crossover frequency 1.6 kHz
Frequency range -6 dB105 Hz – 18kHz
Frequency range -10 dB98 Hz – 19 kHz
Dispersion angle -6 dB (horizontal x vertical)60° x +5/-25° (asymm.)
Index
Index 2)1 x unit @ 1 m, 10 % THD, 100 Hz – 12 kHz, (EN 60268-21), half space
Index 3)1 x unit @ 1 m, 10 % THD, half space
Components
Mid/high frequency 3 x 8″ cone speaker, 1.5″ voice coil
High frequency 1 x 1″ compression driver, 1.7″ voice coil
Horn MCT-Horn

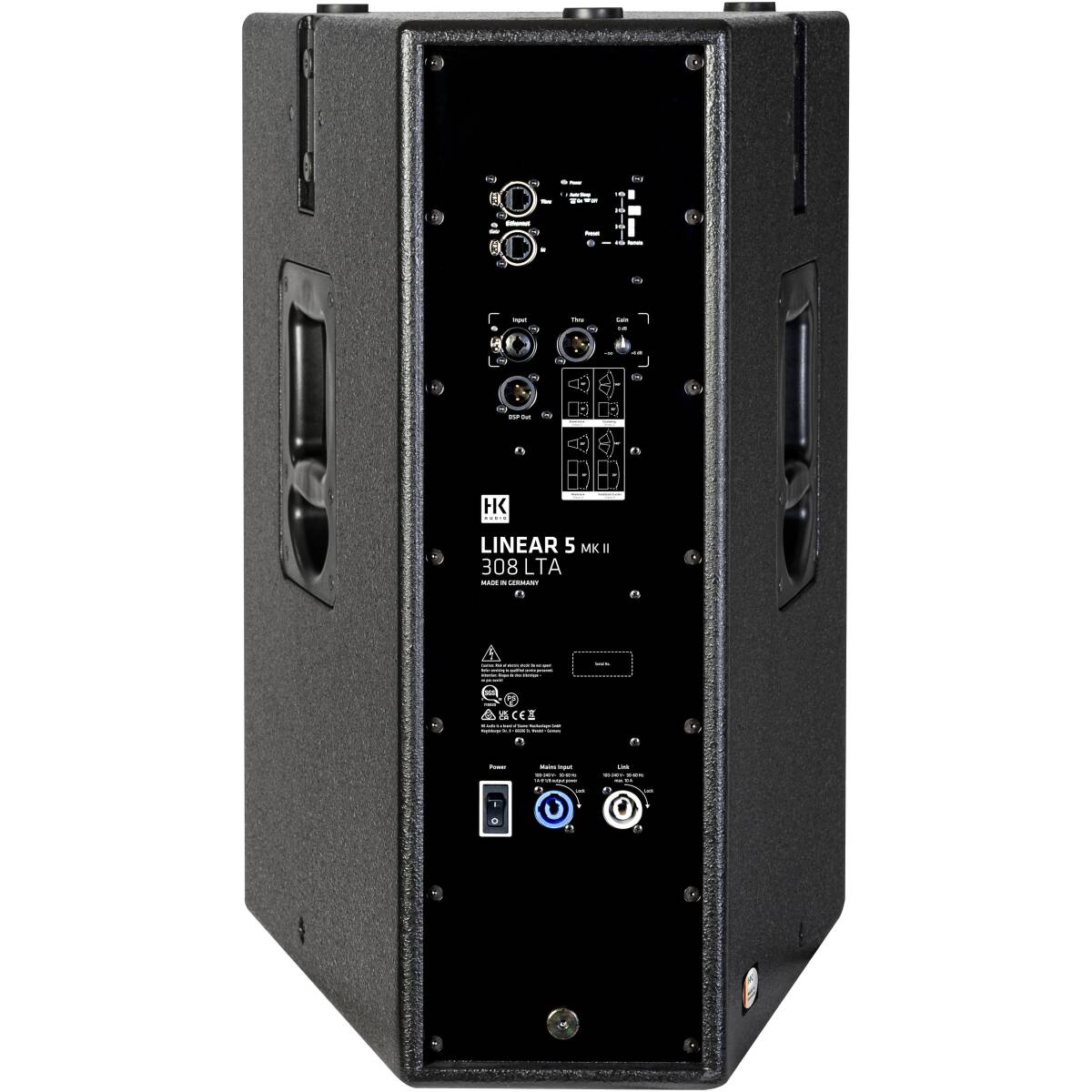

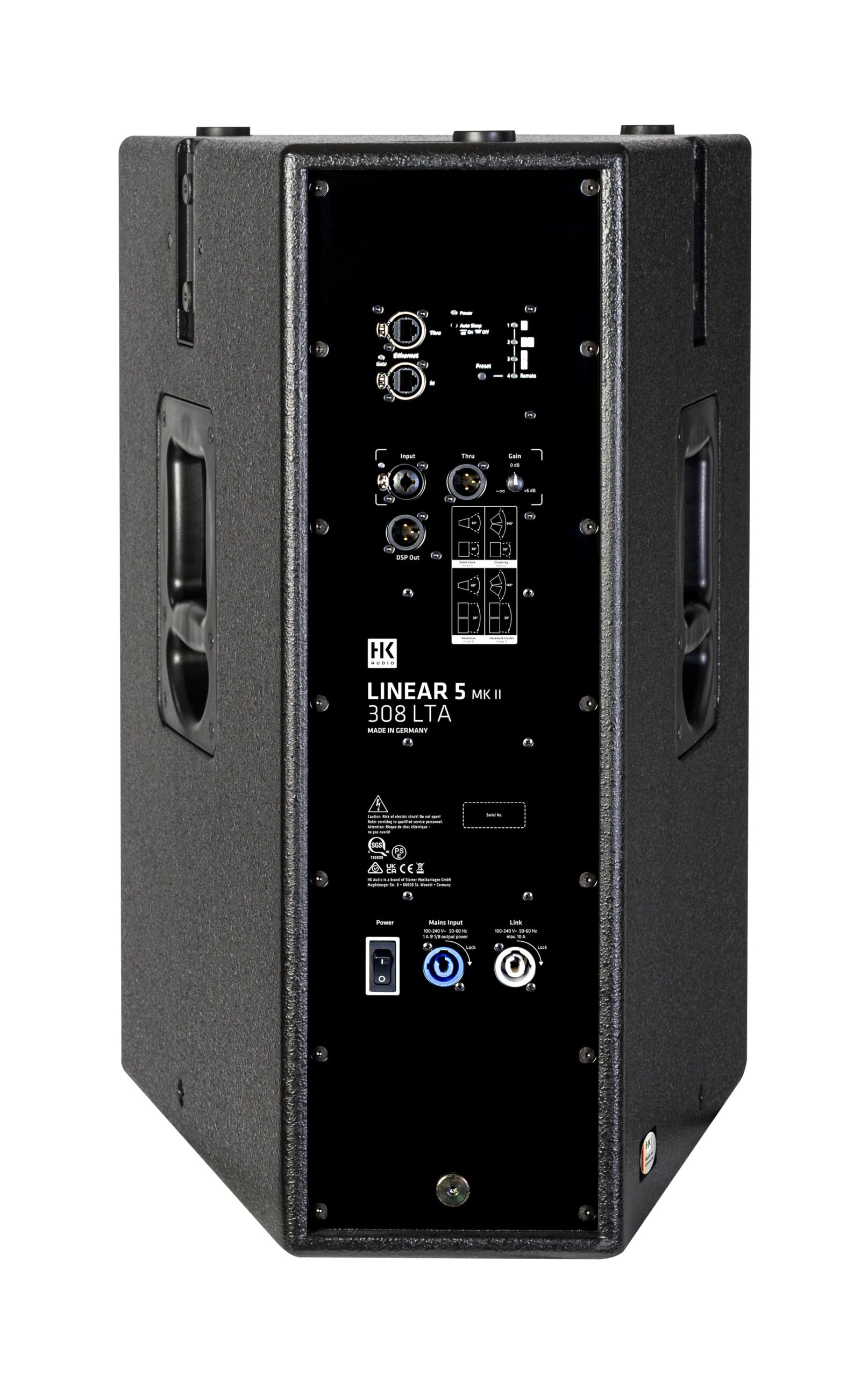

Connections
Analog input 1 x XLR/jack combo symm.
Analog output 1 x XLR symm.
DSP output 1 x XLR symm.
Network input 1 x Ethercon RJ45
Network output 1 x Ethercon RJ45
Electronical data
Preamplifier DSP preamplifier
Power amplifier Class D-Biamped
Power amplifier output RMS 600 W
Power amplifier output peak 1200 W
Power consumption1 A / 100-240 V nominal according to EN 62368-1
Maximum input level+20 dBu
Speaker protection RMS-/Peak-Limiter
Sample rate48 kHz
Latency under 2.9 ms
DSP functions parametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute
Remote software HK Audio DSP CONTROL (Windows, Mac OS)
Filter presets Single, Cluster, Headstack, Remote
Digital audio transmission MILAN
Mechanical data
Cabinet features/rigging pole mount MonoTilt 0°, 5 x rigging point M8

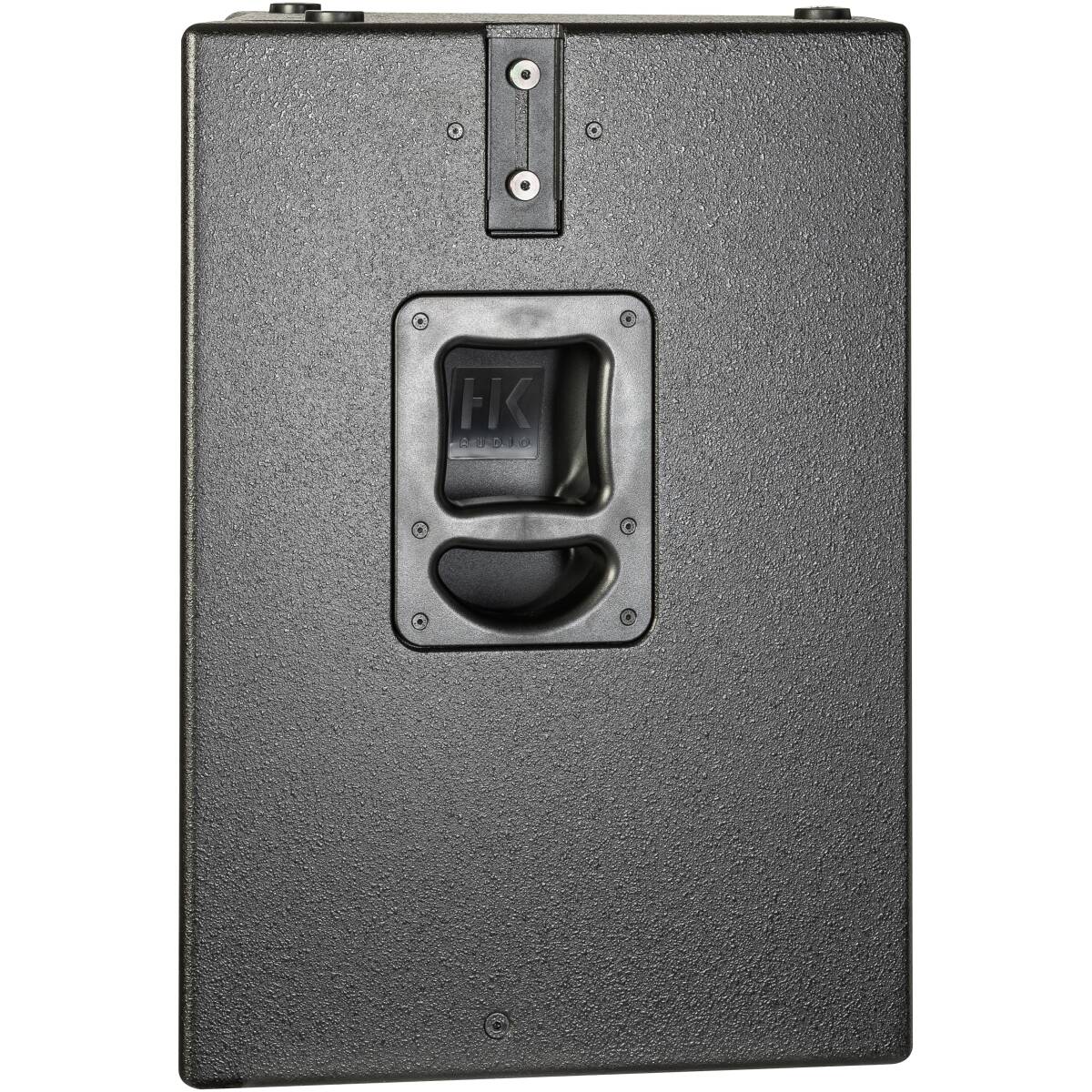

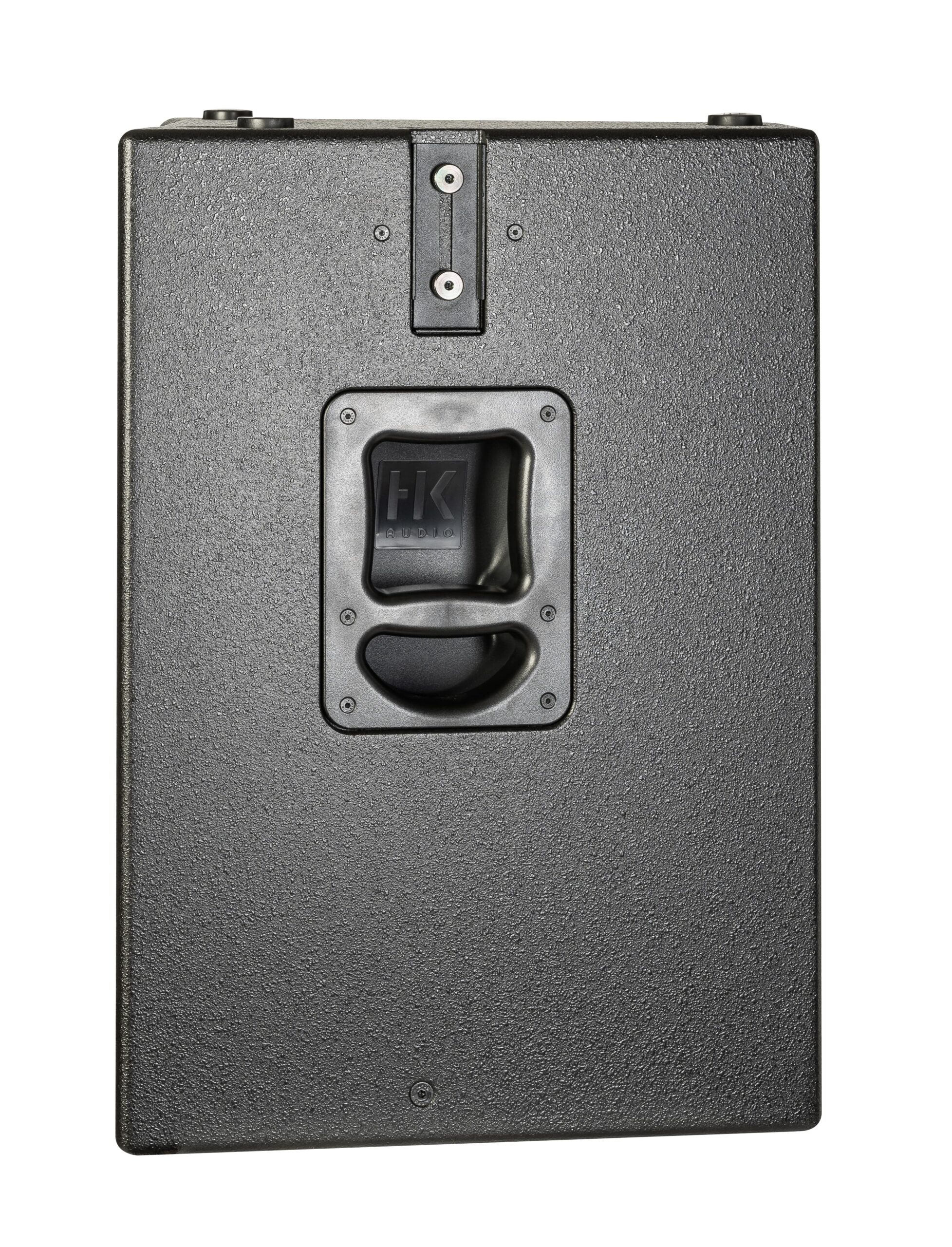

Carrying handles 2 x HK Audio MultiGrip
Cabinet material Birch plywood
Cabinet surface acrylic enamel
Color Jet black (RAL 9005)

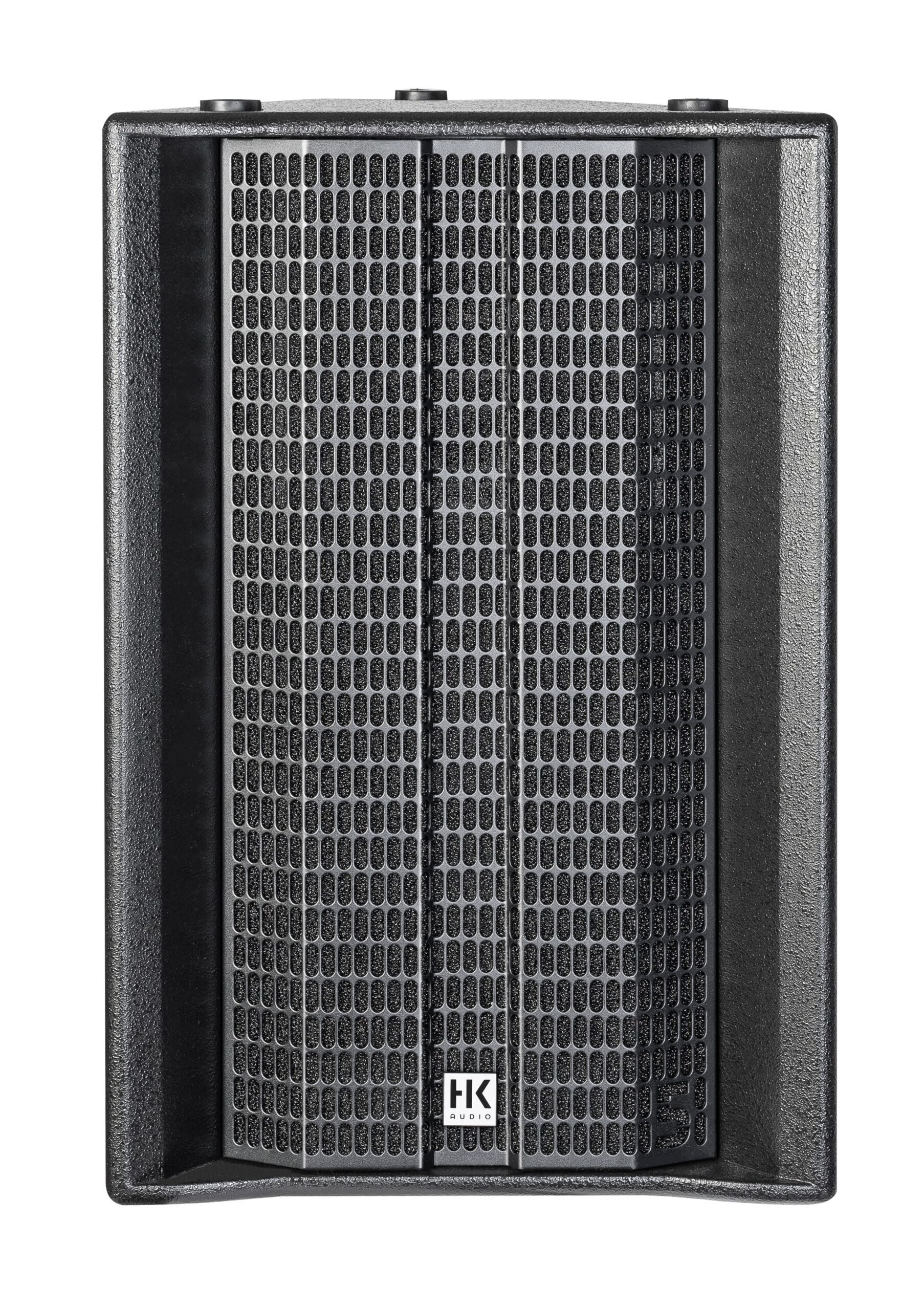

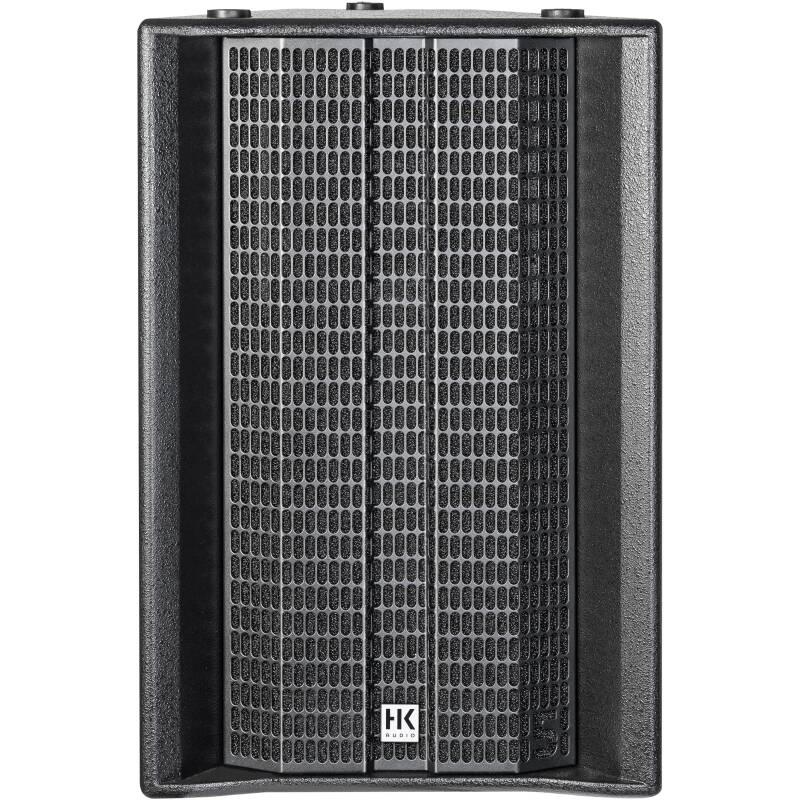

Front grille Steel front grille with anti corrosive coating and backed acoustic foam
Accessories included RCS (Rain-Cover-Set)
Dimensions (W x H x D), metric 44 x 68 x 46 cm
Dimensions (W x H x D), imperial17-5/16 x 26-25/32 x 18-1/8 inch
Weight, metric 25 kg
Weight, imperial 55.1 lbs
