Specifications

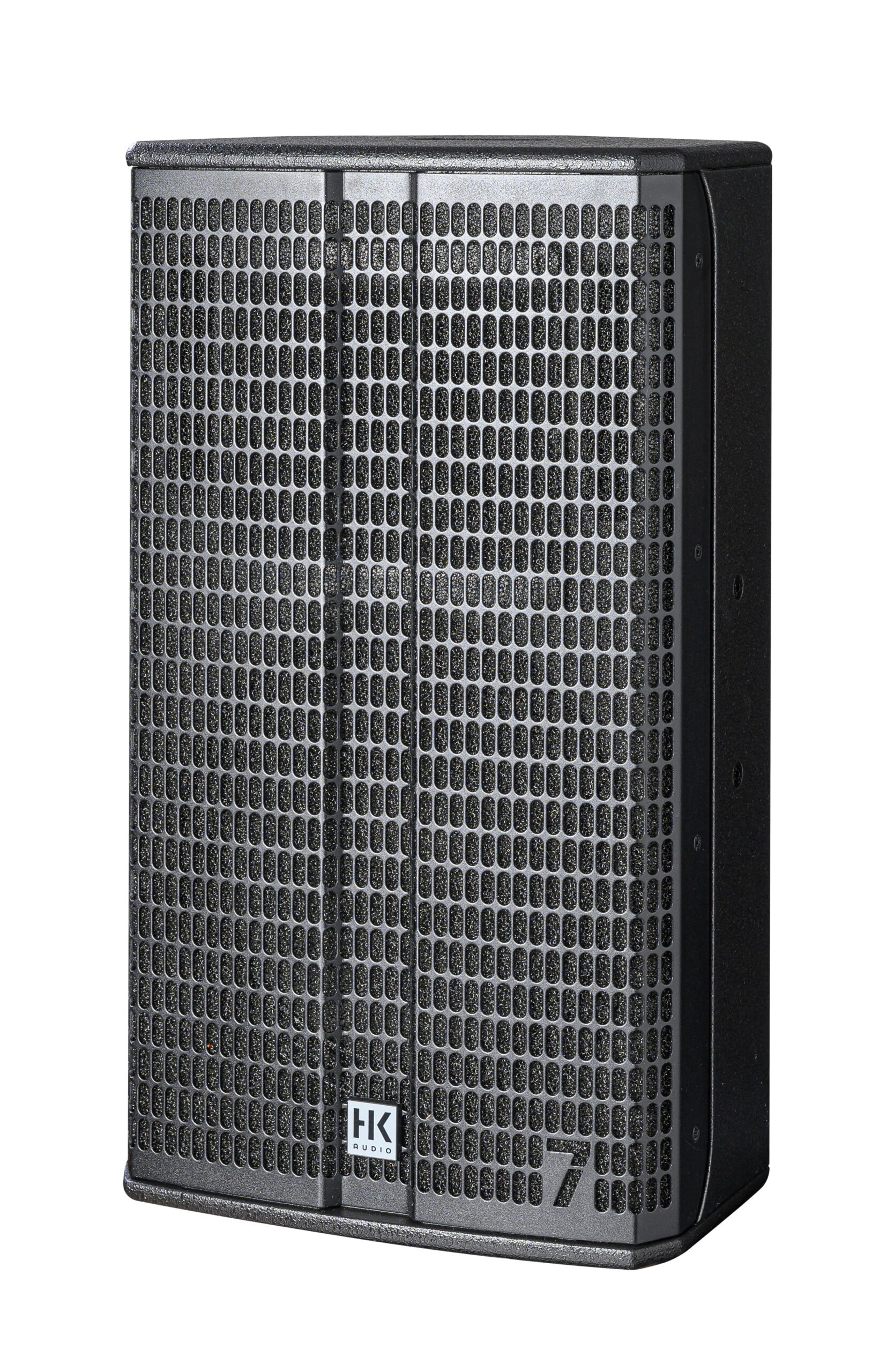

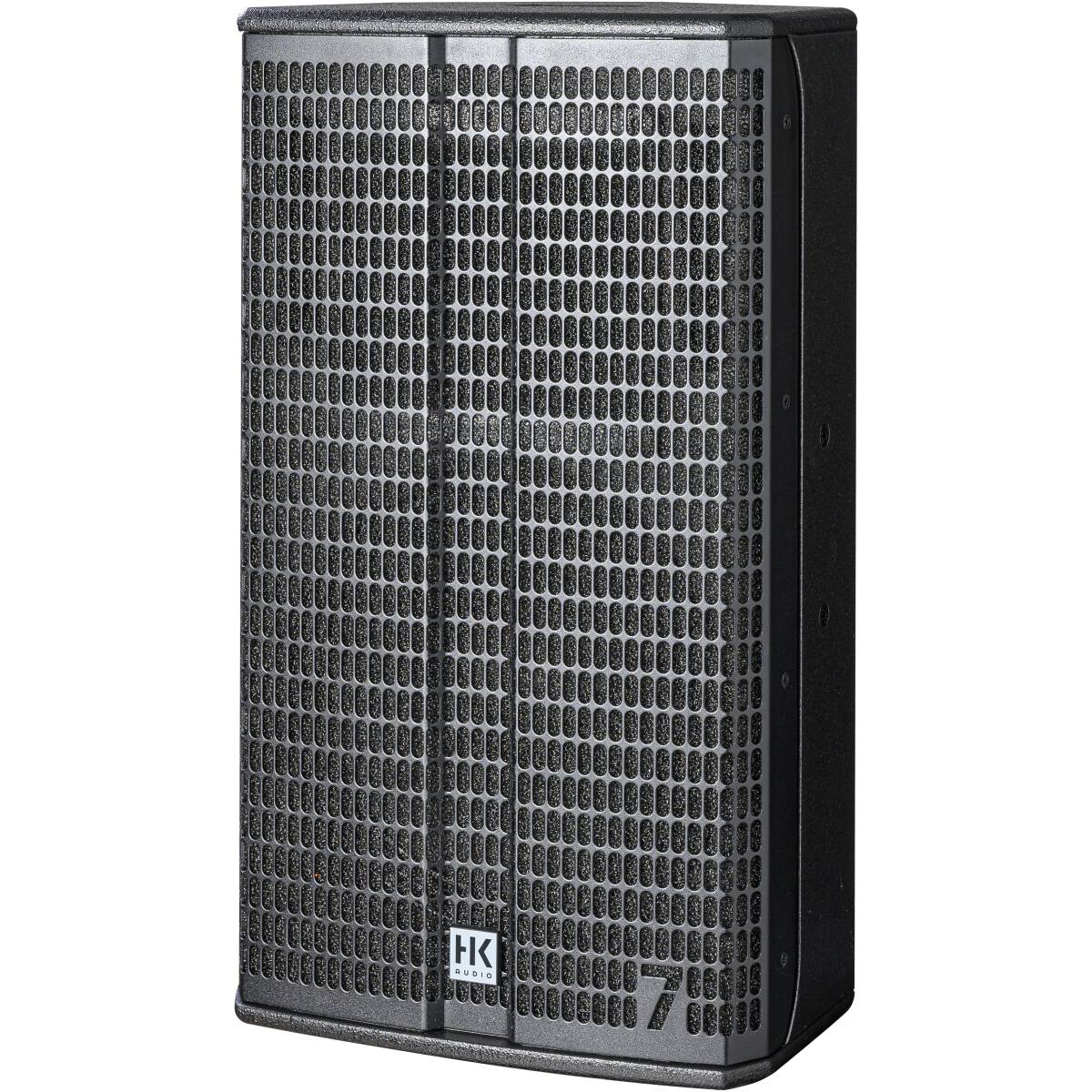

Concept Active 2-way loudspeaker
Cabinet principle Bass reflex
Max. SPL average2 128 dB
Max. SPL peak3 131 dB
Crossover frequency 1.6 kHz
Frequency range -6 dB64 Hz – 19 kHz
Frequency range -10 dB55 Hz – 20 kHz
Dispersion angle -6 dB (horizontal x vertical)70° x 50°, rotatable
Index
Index 2)1 x unit @ 1 m, 10 % THD, 70 Hz – 12 kHz, (EN 60268-21), half space
Index 3)1 x unit @ 1 m, 10 % THD, half space
Components
Mid/high frequency 1 x 12″ cone speaker, 2.5″ voice coil
High frequency 1 x 1″ compression driver, 1.7″ voice coil
Horn Constant directivity horn, rotatable

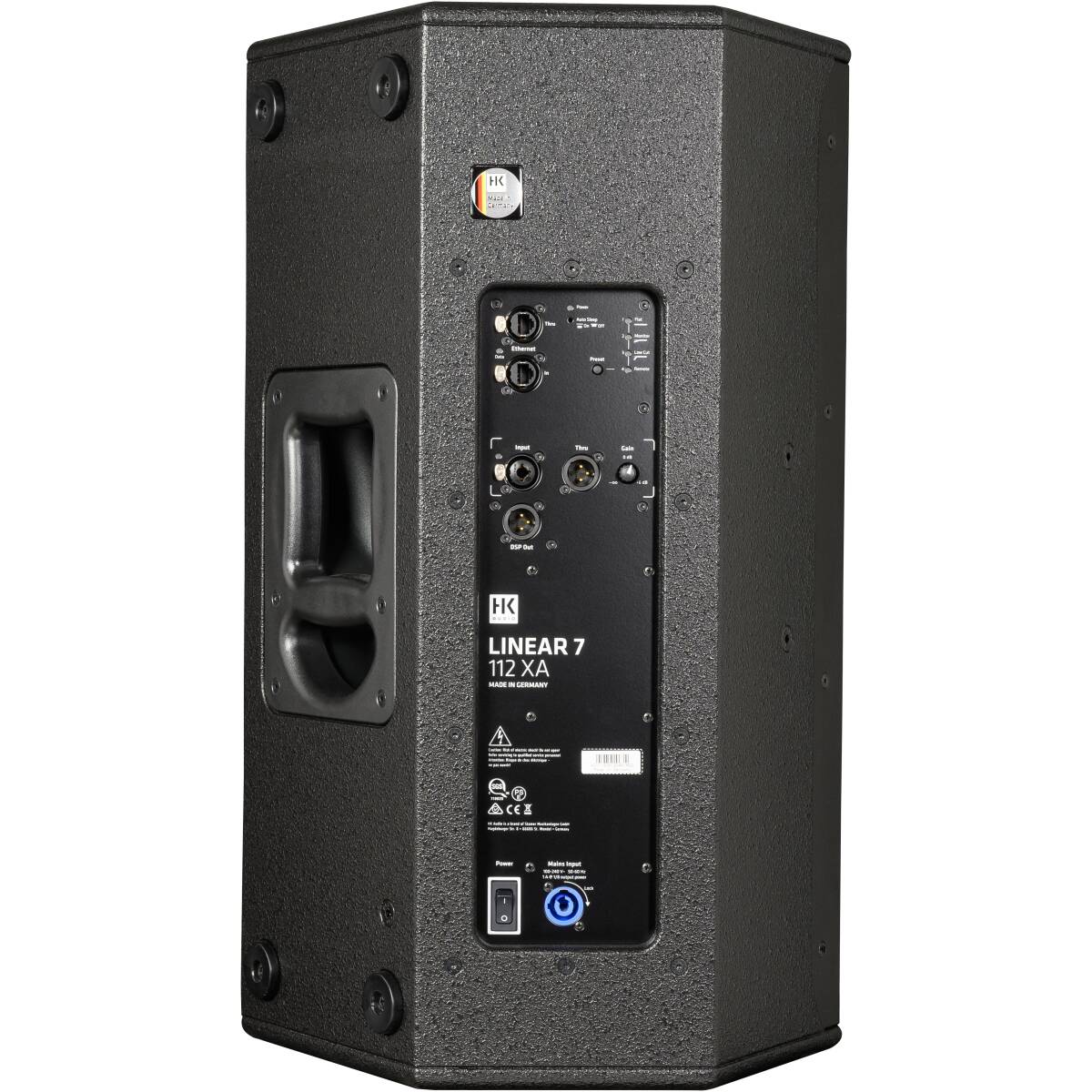

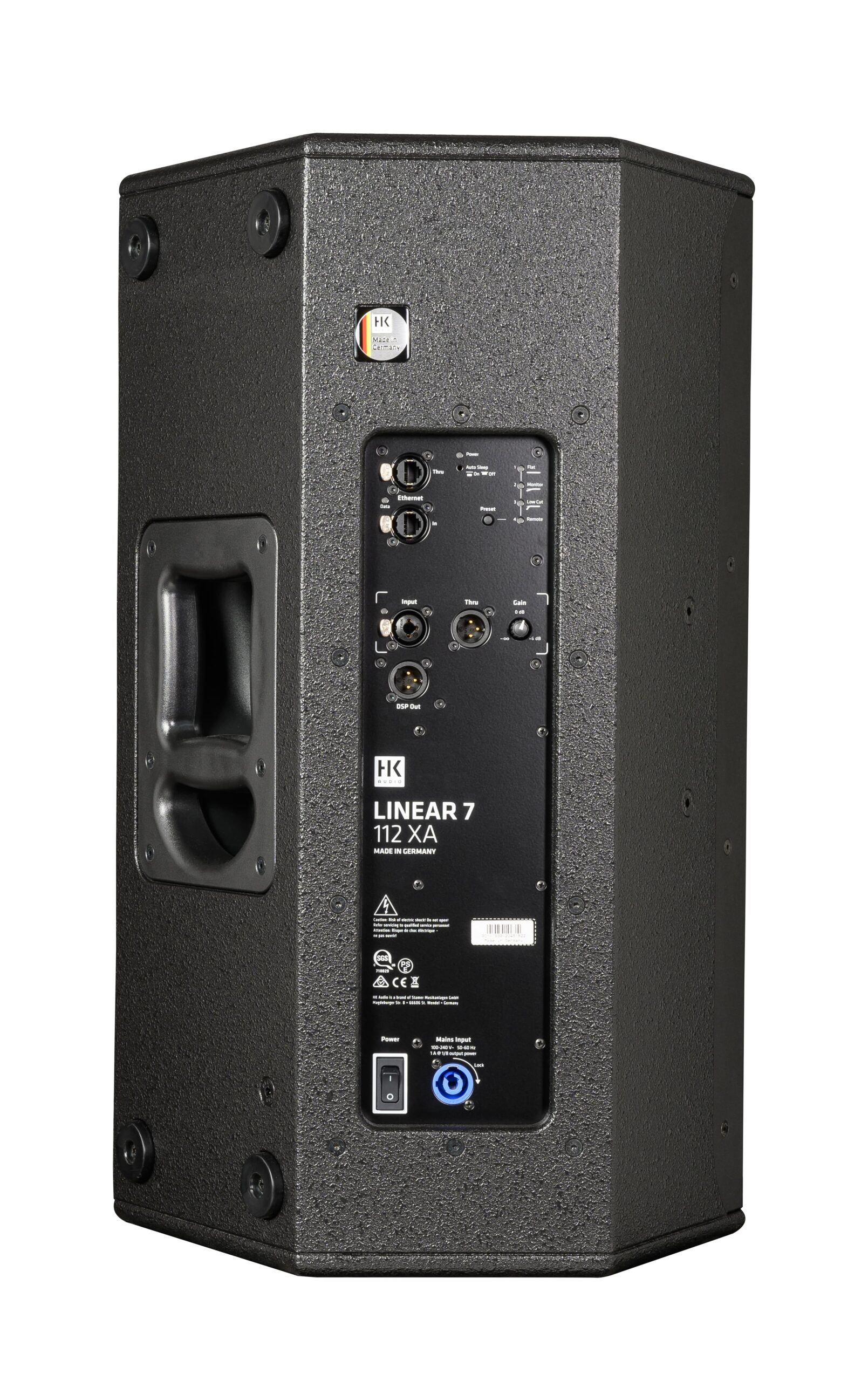

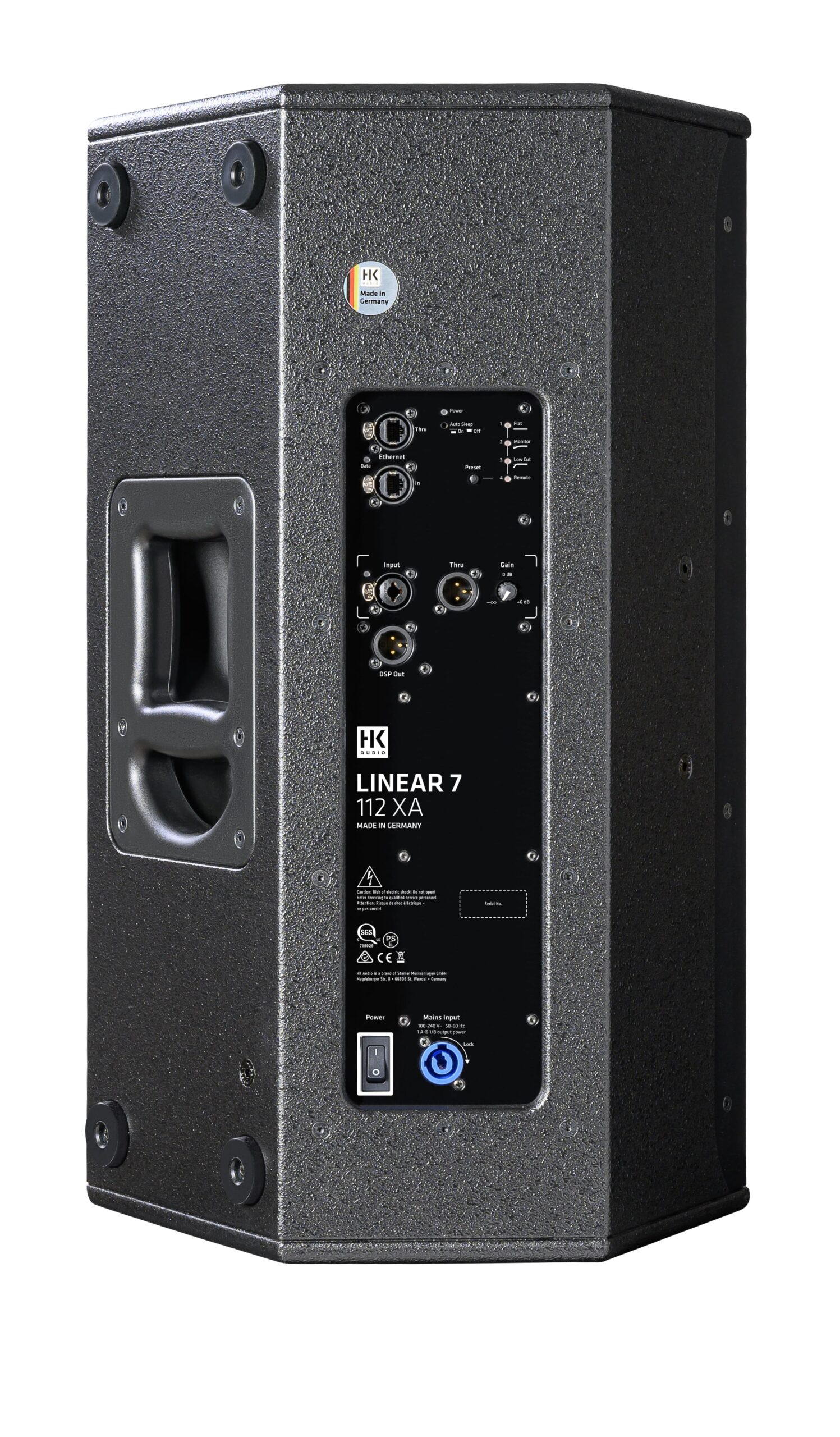

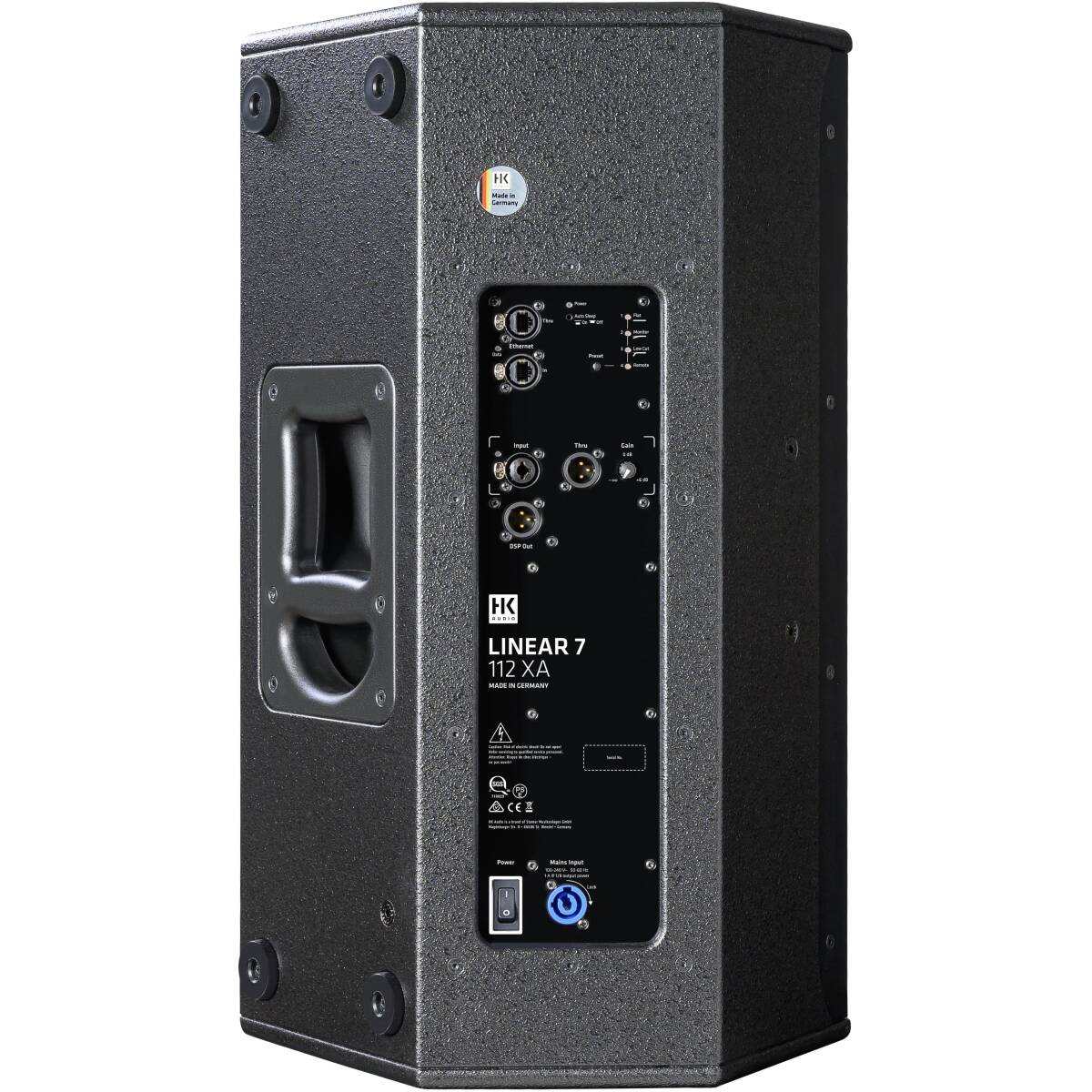

Connections
Analog input 1 x XLR/jack combo symm.
Analog output 1 x XLR symm.
DSP output 1 x XLR symm.
Network input 1 x Ethercon RJ45
Network output 1 x Ethercon RJ45
Electronical data
Preamplifier DSP preamplifier
Power amplifier Class D – Biamped
Power amplifier output peak 2000 W
Power consumption1 A / 100-240 V nominal according to EN 62368-1
Maximum input level +20 dBu
Speaker protection RMS-/Peak-Limiter
Sample rate96 kHz
Latency under 2.6 ms
DSP functions parametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute
Remote software HK Audio DSP CONTROL (Windows, Mac OS)
Filter presets Flat, Boost, Low Cut, Remote
Digital audio transmission MILAN
Mechanical data
Cabinet features/rigging pole mount HK Audio DuoTilt 3°/7°, 4 x rigging point M8, Clustering-Winkel: 70°
Carrying handles 2 x HK Audio MultiGrip
Cabinet material Hybrid (Birch plywood/MDF)
Cabinet surface acrylic enamel
ColorJet black (RAL 9005)
Front grille Steel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric 37 x 67 x 37 cm
Dimensions (W x H x D), imperial 14-9/16 x 26-3/8 x 14-9/16 inch
Weight, metric 23 kg
Weight, imperial 50.7 lbs
