Specifications

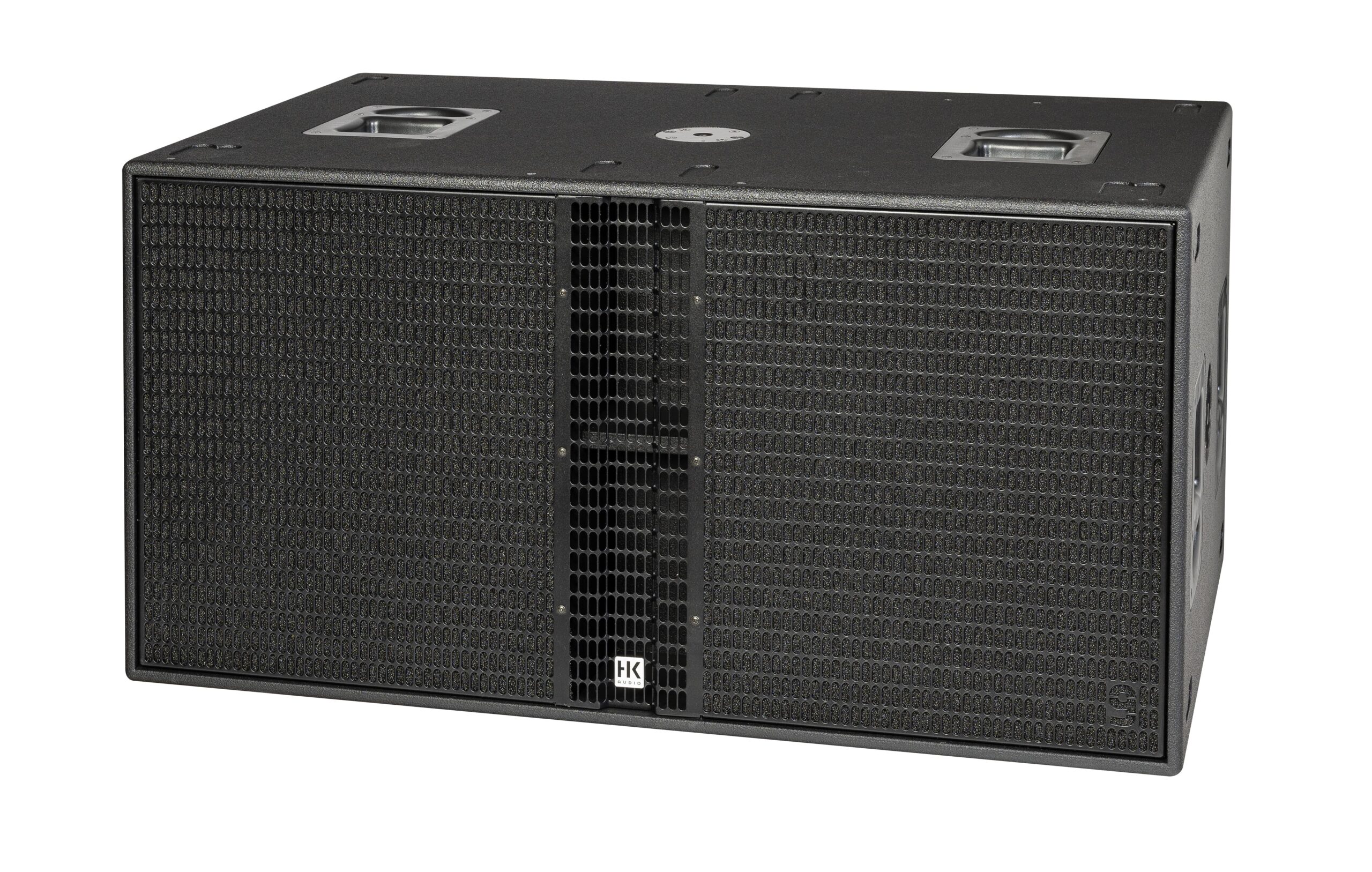

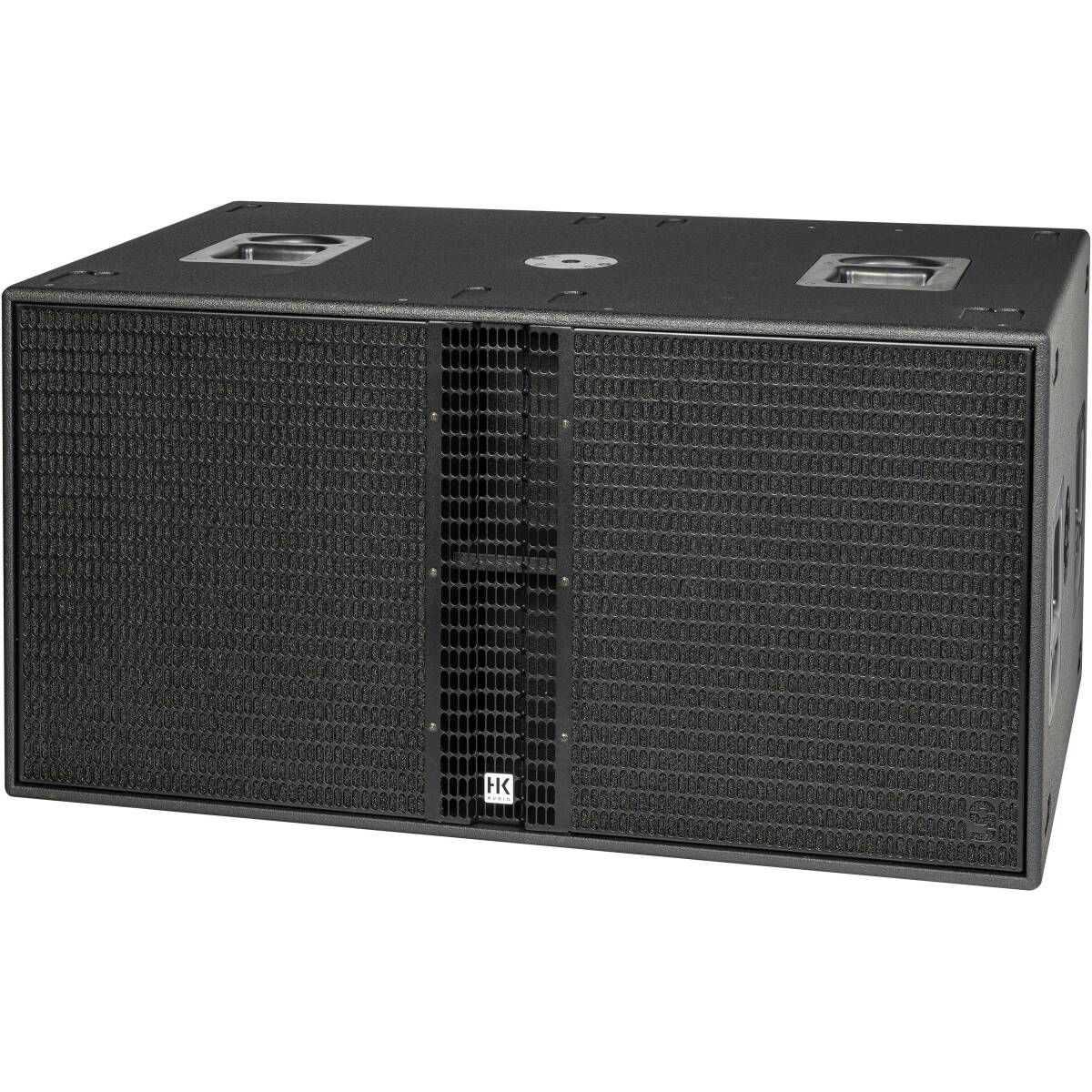

Concept Active subwoofer
Cabinet principle Band pass
Max. SPL average2 134 dB
Max. SPL peak3 136 dB
Frequency range -6 dB38 Hz – X-Over
Frequency range -10 dB31 Hz – X-Over
Index
Index 2)1 x Subwoofer @ 1 m, 10 % THD, 40 Hz – 110 Hz, (EN 60268-21), half space
Index 3)1 x Subwoofer @ 1 m, 10 % THD, half space
Components
Low frequency 2 x 18″ cone speaker, 4″ voice coil

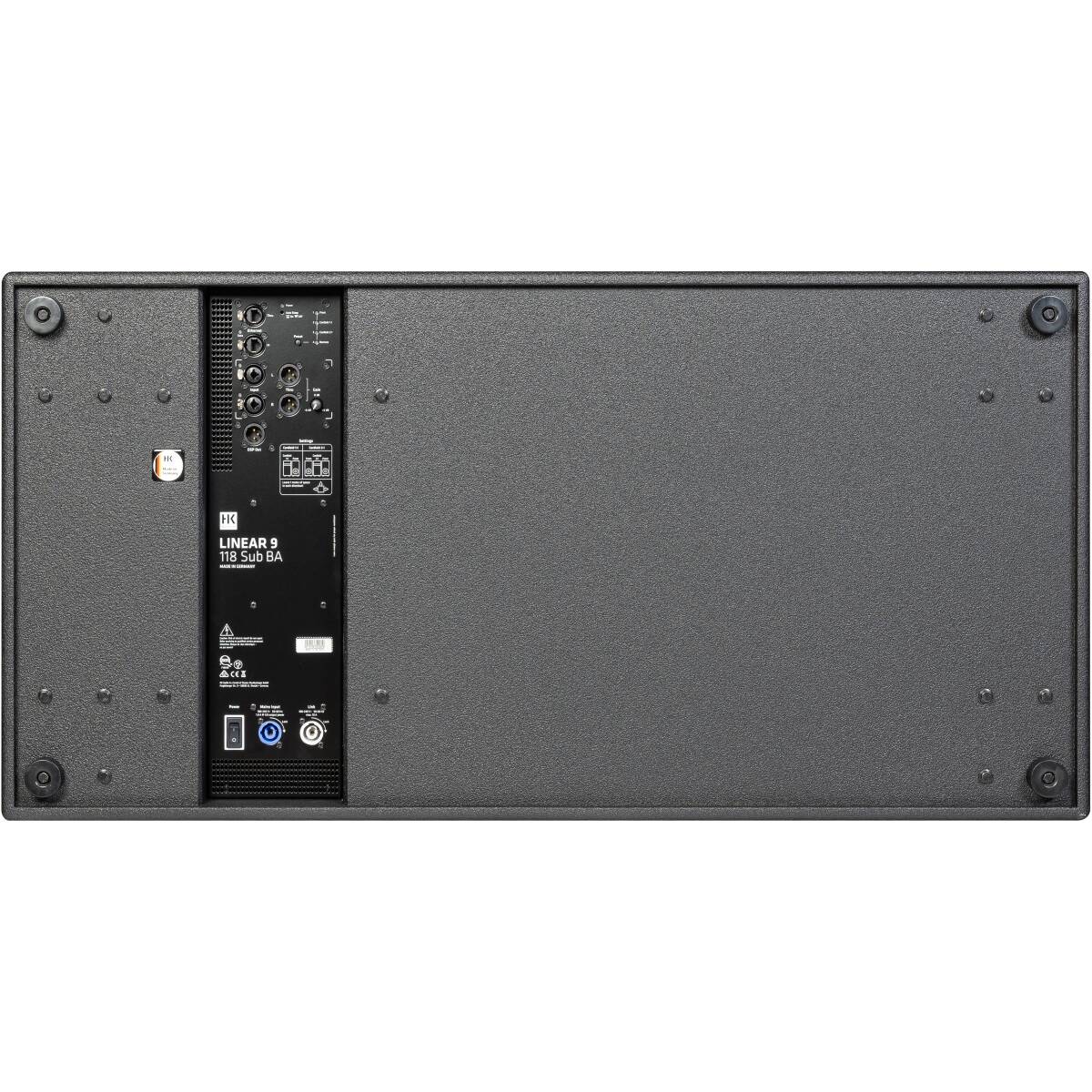

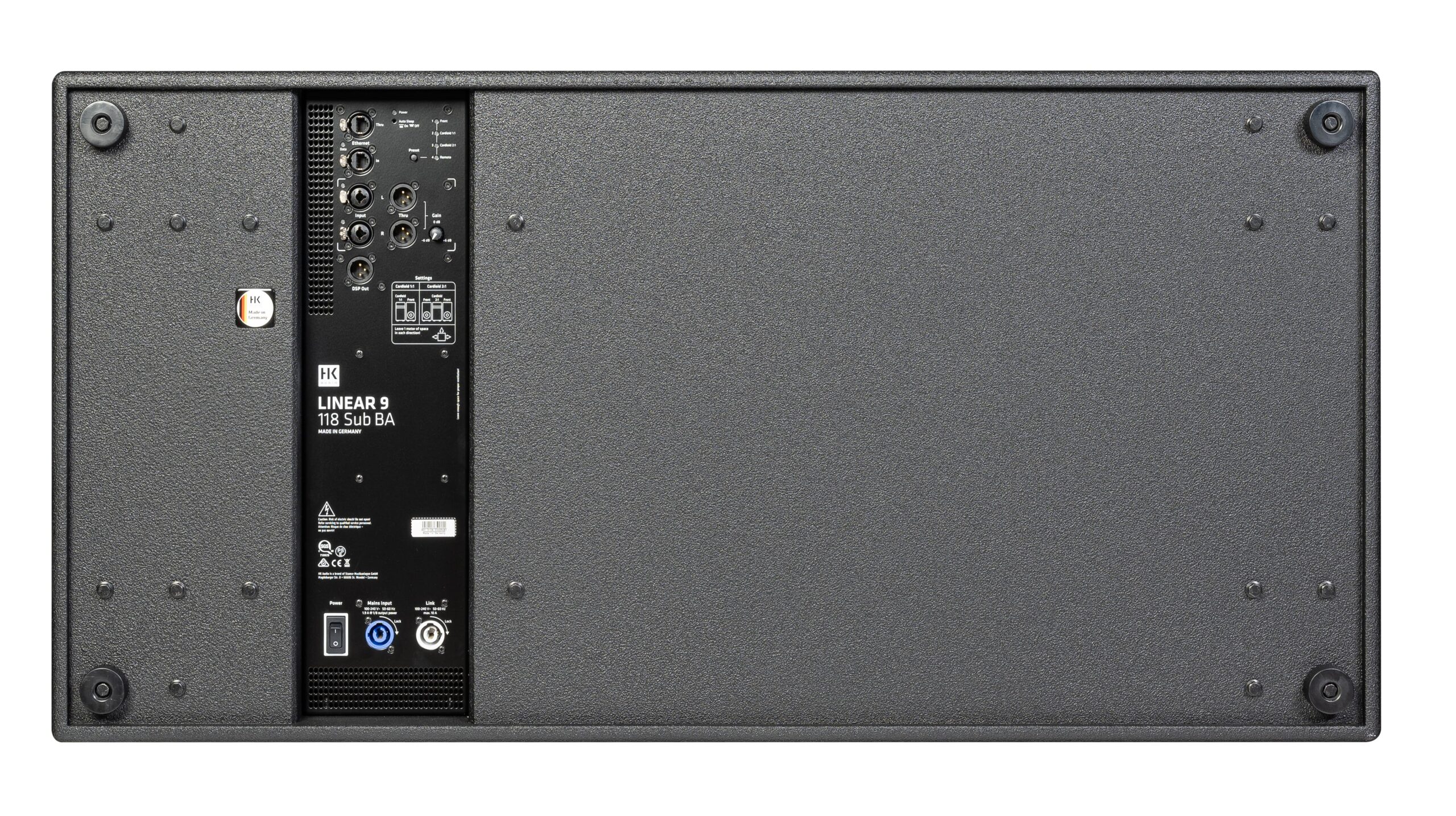

Connections
Analog input 2 x XLR/jack combo symm.
Analog output 2 x XLR symm.
DSP output 1 x XLR symm.
Network input 1 x Ethercon RJ45
Network output 1 x Ethercon RJ45
Electronical data
Preamplifier DSP preamplifier
Power amplifier Class D – Biamped
Power amplifier output RMS1.100 W
Power consumption 1.9 A / 100-240 V nominal according to EN 62368-1
Maximum input level +20 dBu
Speaker protection RMS-/Peak-Limiter
Sample rate 96 kHz
Latency under 2.6 ms
DSP functions parametric 10-band EQ with variable filter characteristics, low-pass filter, polarity, level, delay, limiter, mute
Remote software HK Audio DSP CONTROL (Windows, Mac OS)
Filter presets Front, Cardioid 1:1, Cardioid 2:1, Remote
Digital audio transmission MILAN
Mechanical data
Cabinet features/rigging 2 x pole mount M20

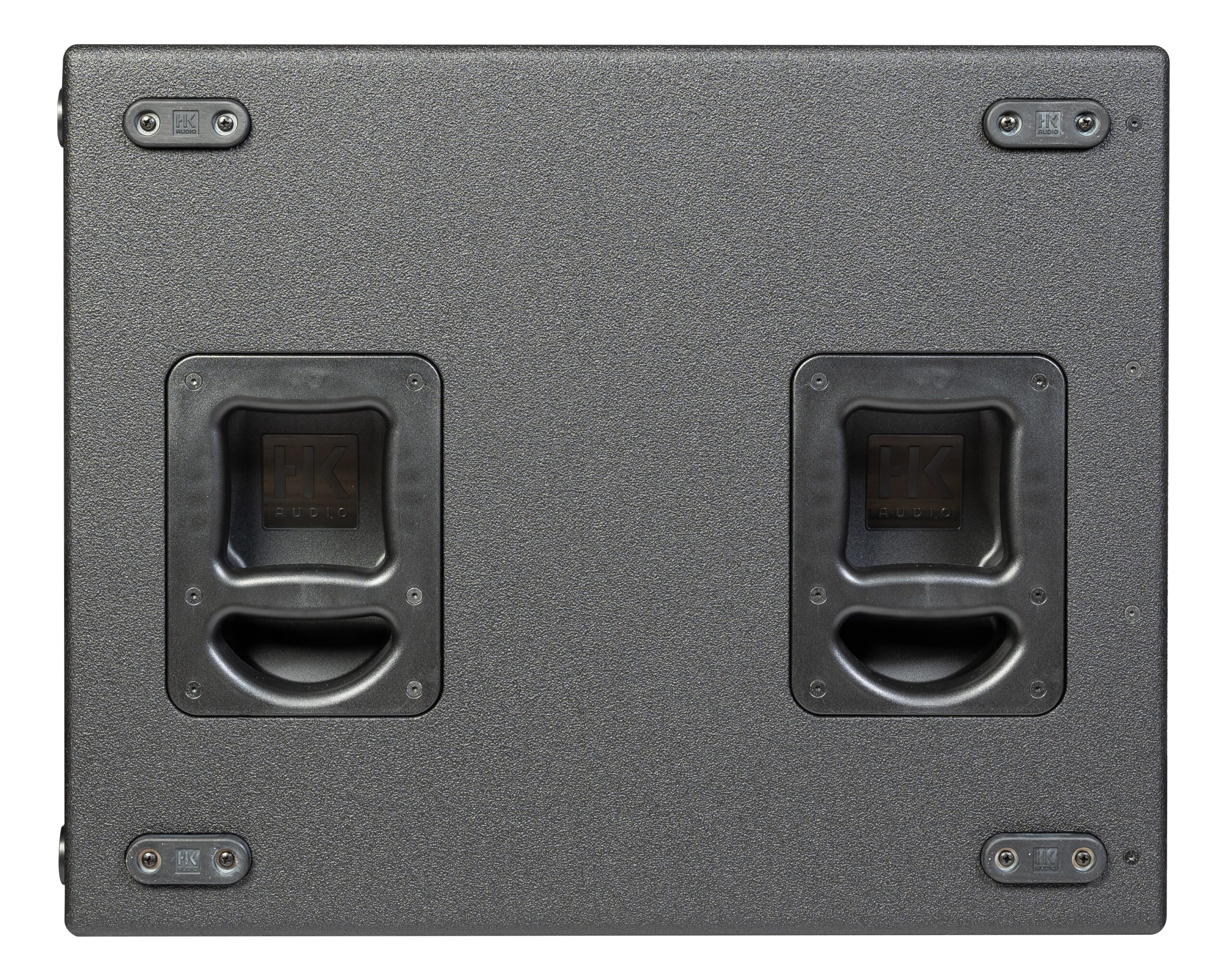

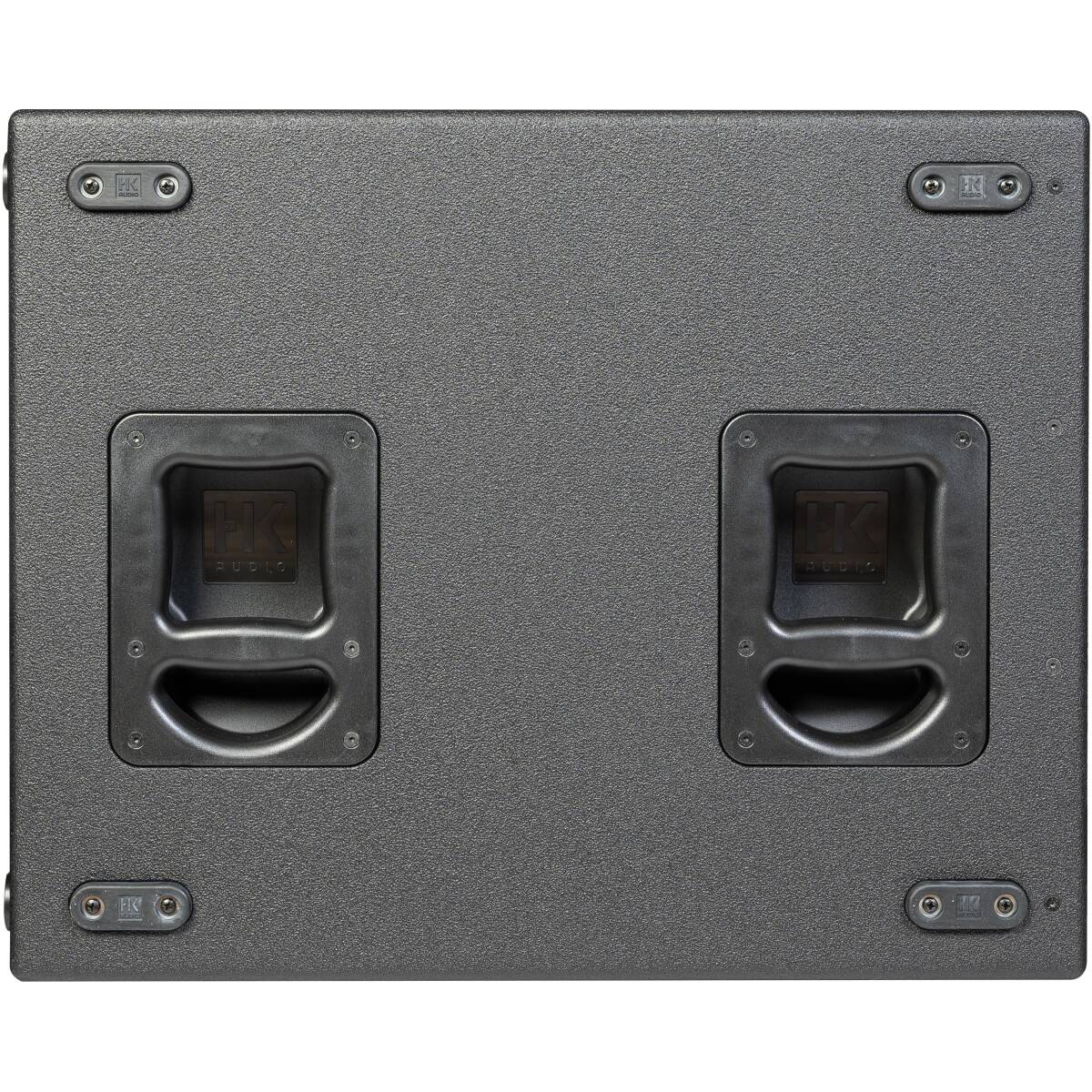

Carrying handles 8 x HK Audio MultiGrip
Cabinet material Birch plywood
Cabinet surface PU coating
Color Jet black (RAL 9005)
Front grille Steel front grille with anticorrosive coating and backed acoustic foam
Dimensions (W x H x D), metric 111 x 56 x 69 cm
Dimensions (W x H x D), imperial 43-11/16 x 22-1/16 x 27-5/32 inch
Weight, metric 63.5 kg
Weight, imperial 140.0 lbs
