Specifications
Concept Active subwoofer
Cabinet principle Bass reflex
Max. SPL average2130 dB
Max. SPL peak3132 dB
Crossover frequency100 Hz / 120 Hz selectable
Frequency range -6 dB49 Hz – X-Over
Frequency range -10 dB45 Hz – X-Over
Index
Index 2)1 x Subwoofer @ 1 m, 10 % THD, 40 Hz – Crossover, (EN 60268-21), half space
Index 3)1 x Subwoofer @ 1 m, 10 % THD, half space
Components
Low frequency 1 x 15″ cone speaker, 3″ voice coil

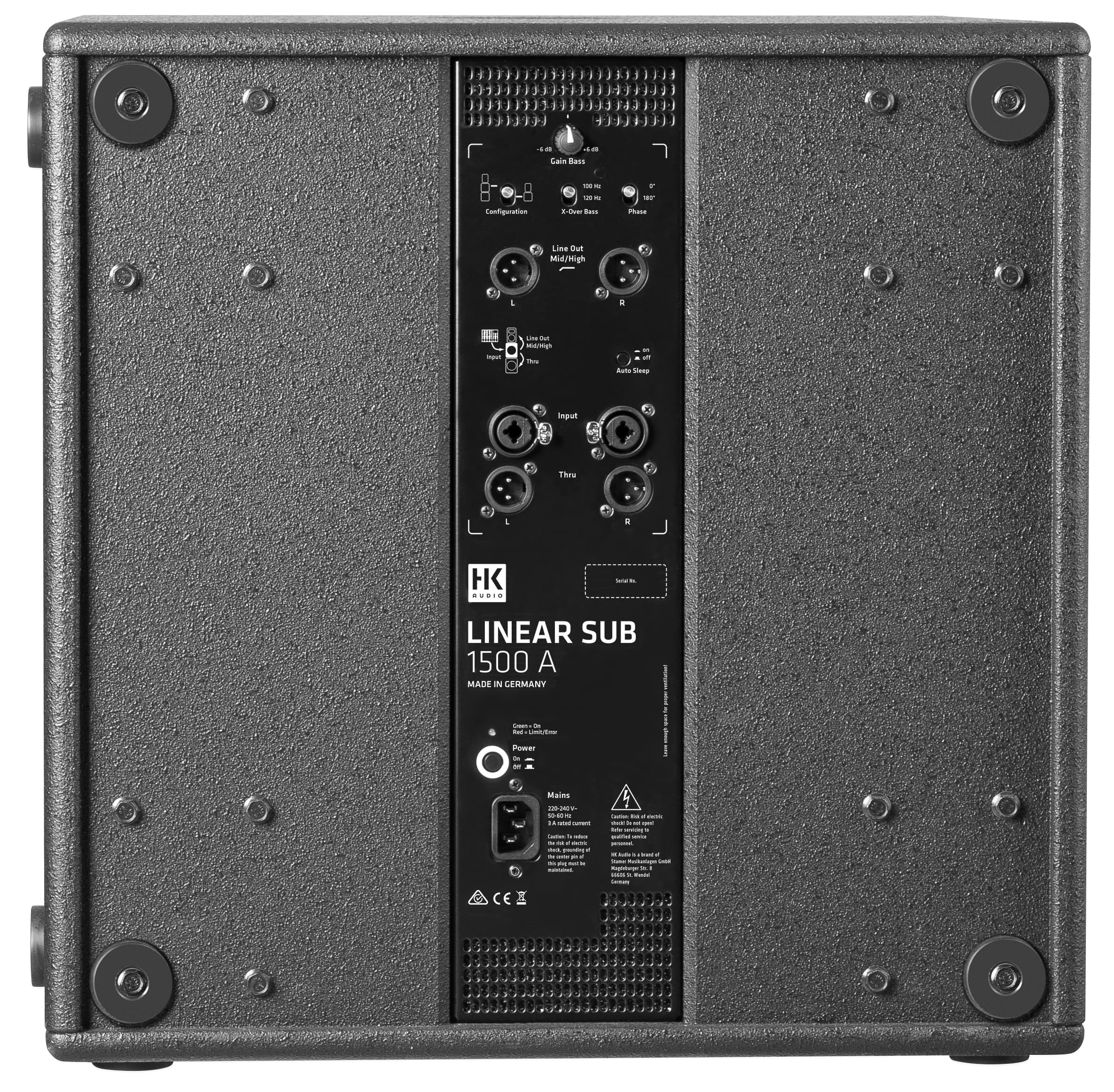

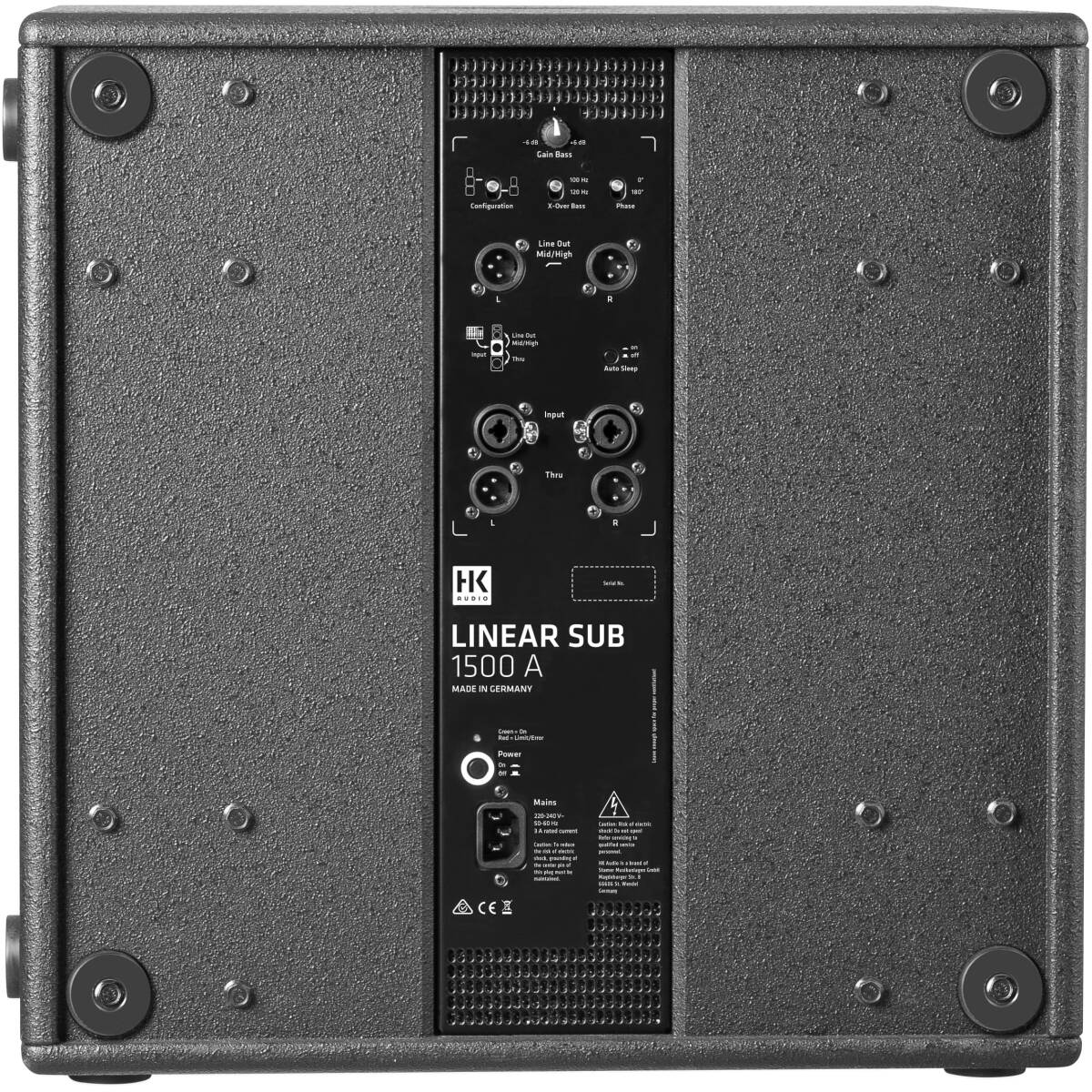

Connections
Analog input 2 x XLR/jack combo symm.
Analog output 2 x XLR-Thru symm.
Sattelite output 2 x XLR Line Out Mid/High mit High pass
Electronical data
Preamplifier Analog preamplifier
Power amplifier Class D
Power amplifier output peak1200 W
Power consumption3 A / 220-240 V (6 A / 100-120 V) according to EN 60065
Speaker protection Subsonic 24 dB/oct., Peak-Limiter
Mechanical data

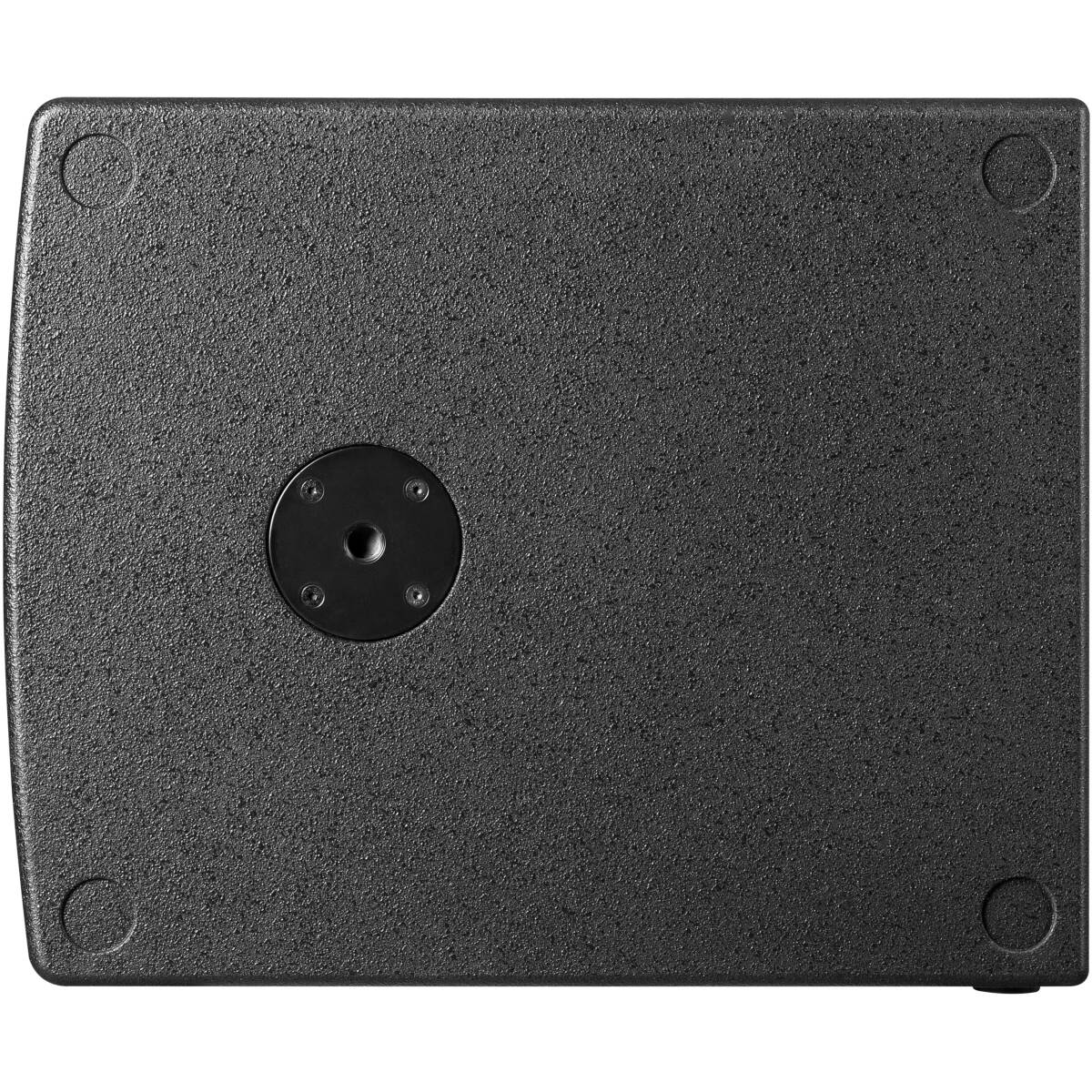

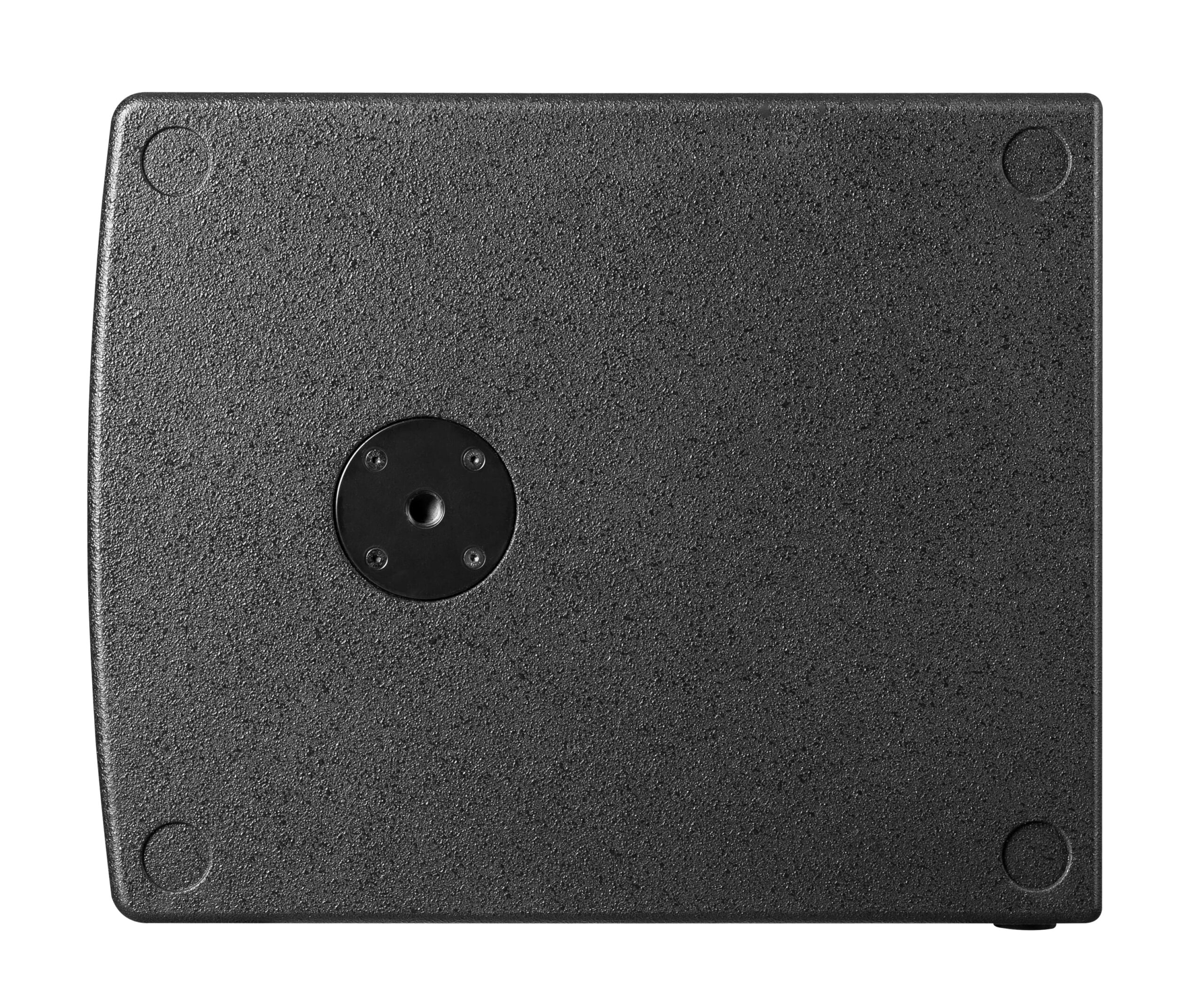

Cabinet features/rigging 1 x pole mount M20

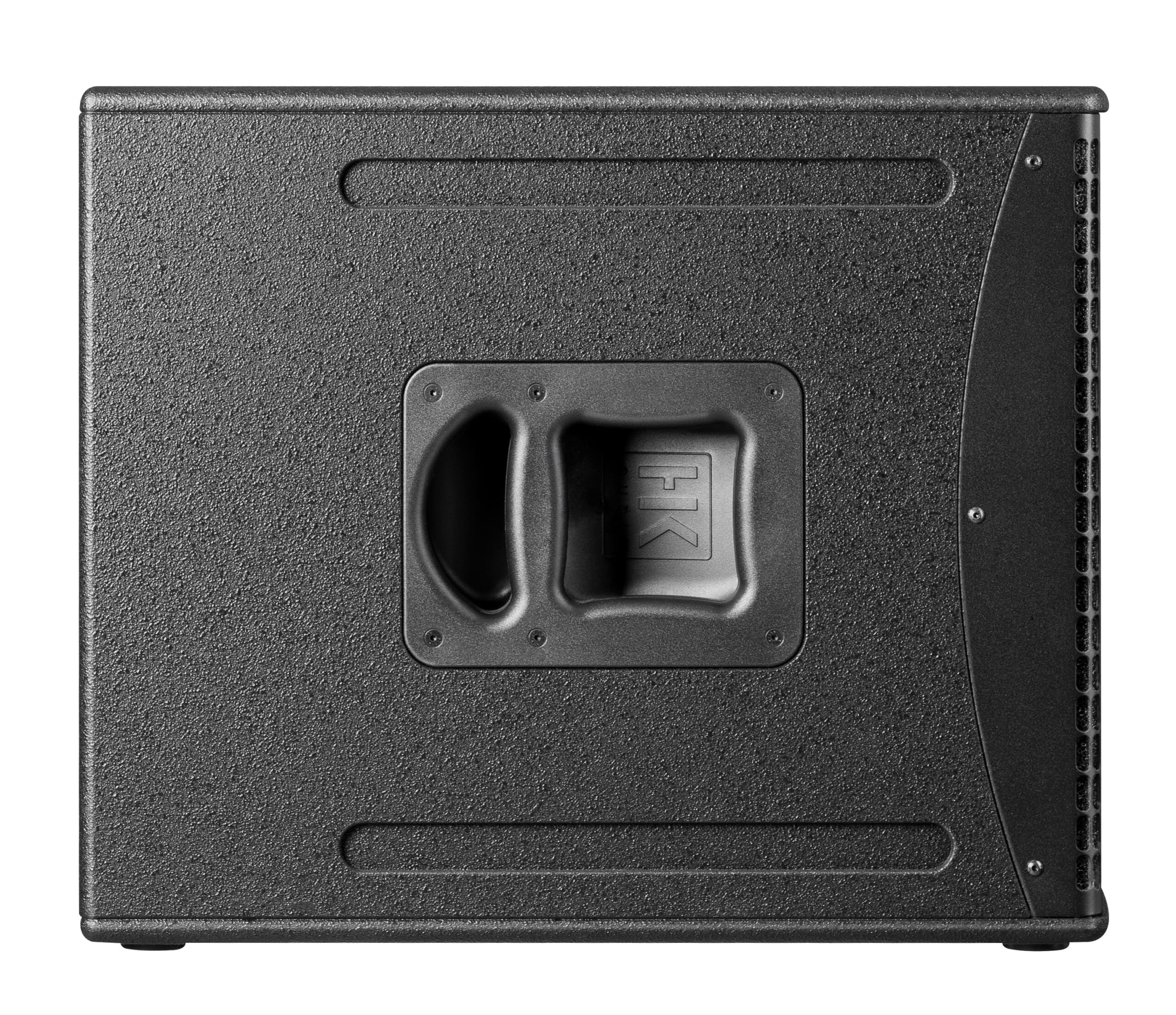

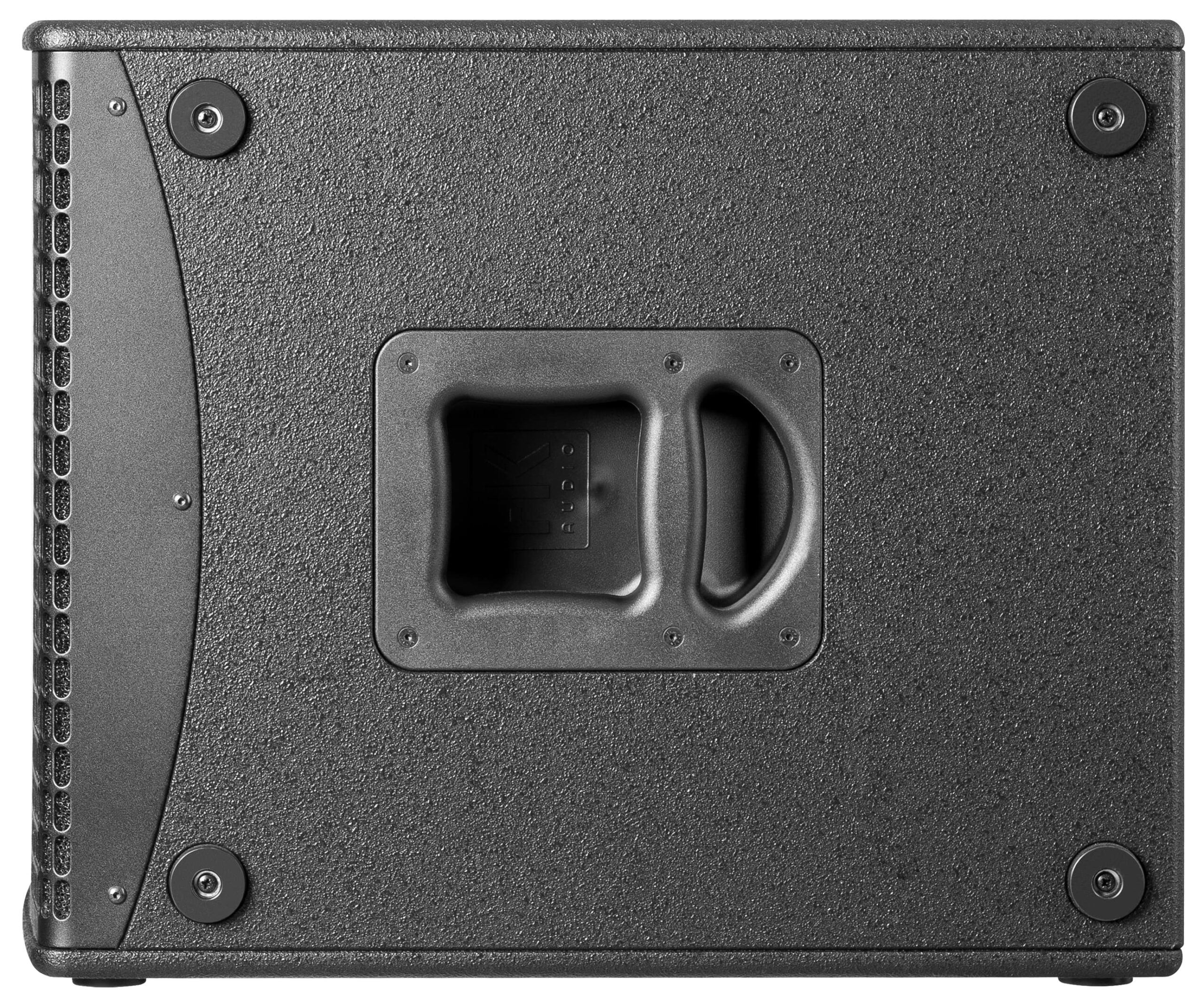

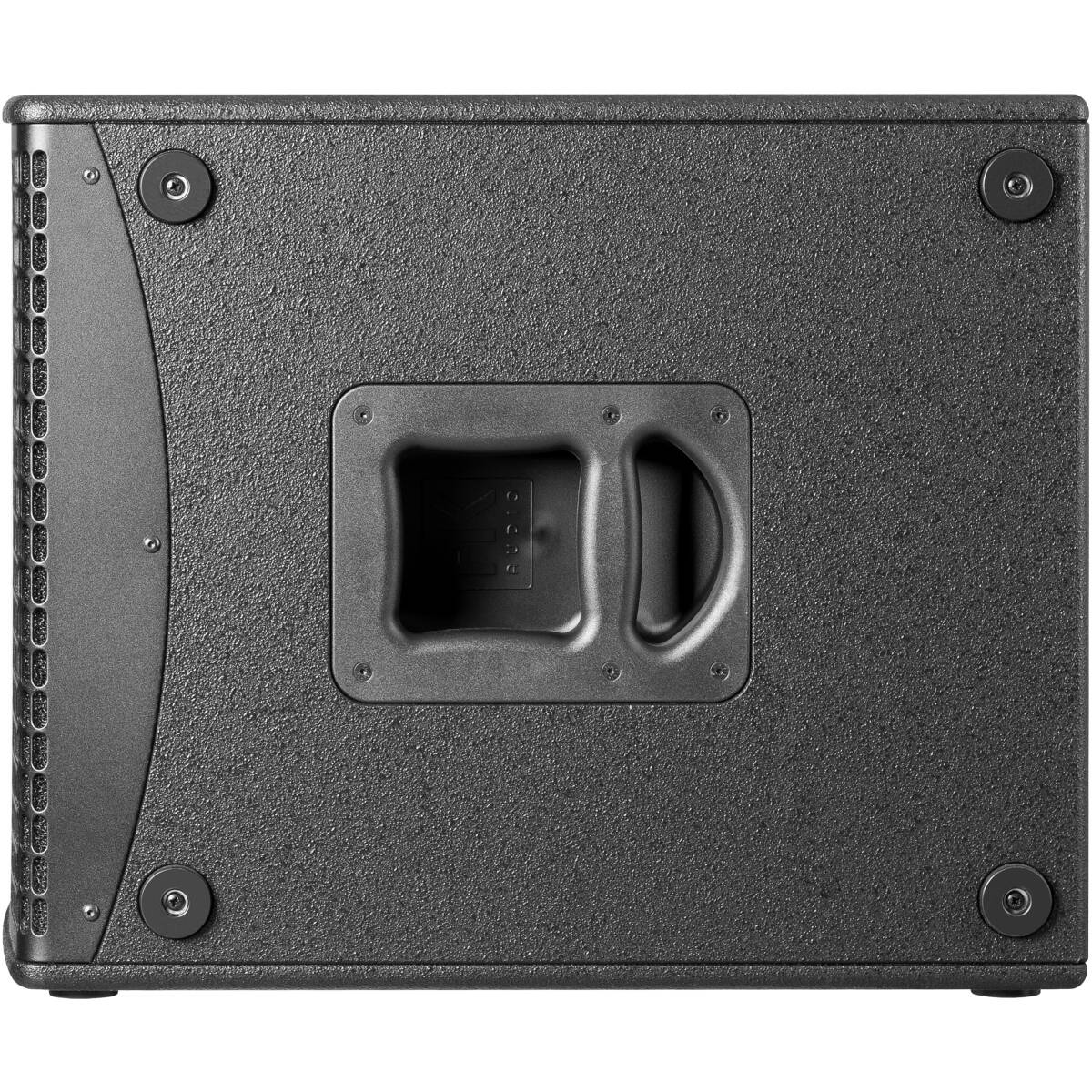

Carrying handles 2 x HK Audio MultiGrip
Cabinet material MDF
Cabinet surface acrylic enamel
ColorJet black (RAL 9005)
Front grille Steel front grille, backed with acoustic foam
Dimensions (W x H x D), metric 48.5 x 48.5 x 59.5 cm
Dimensions (W x H x D), imperial19-3/32 x 19-3/32 x 23-7/16 inch
Weight, metric 29.8 kg
Weight, imperial 65.7 lbs
