Specifications

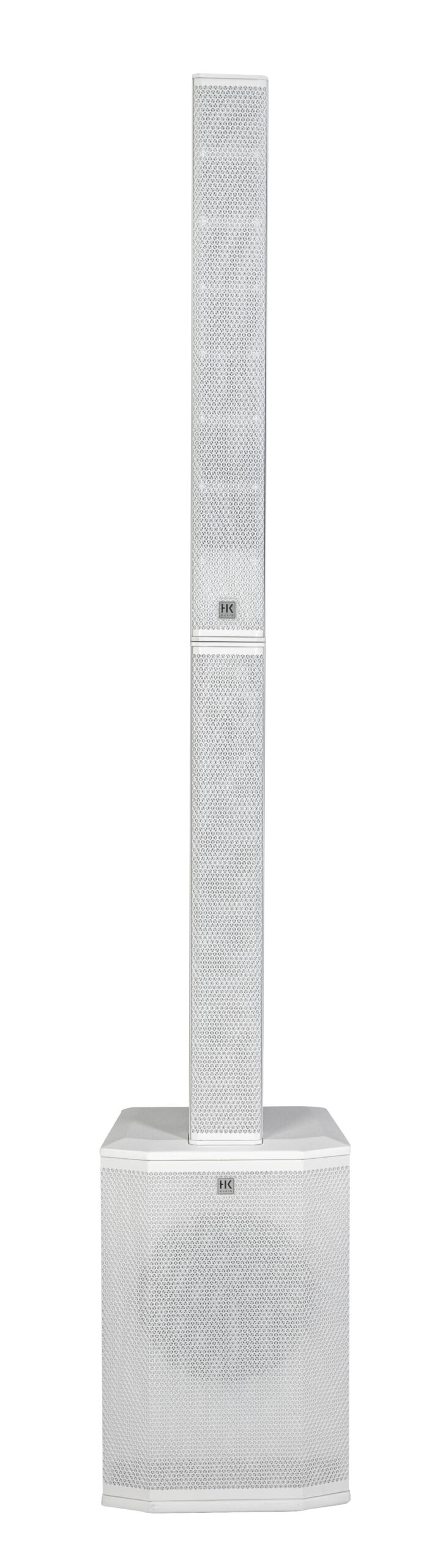

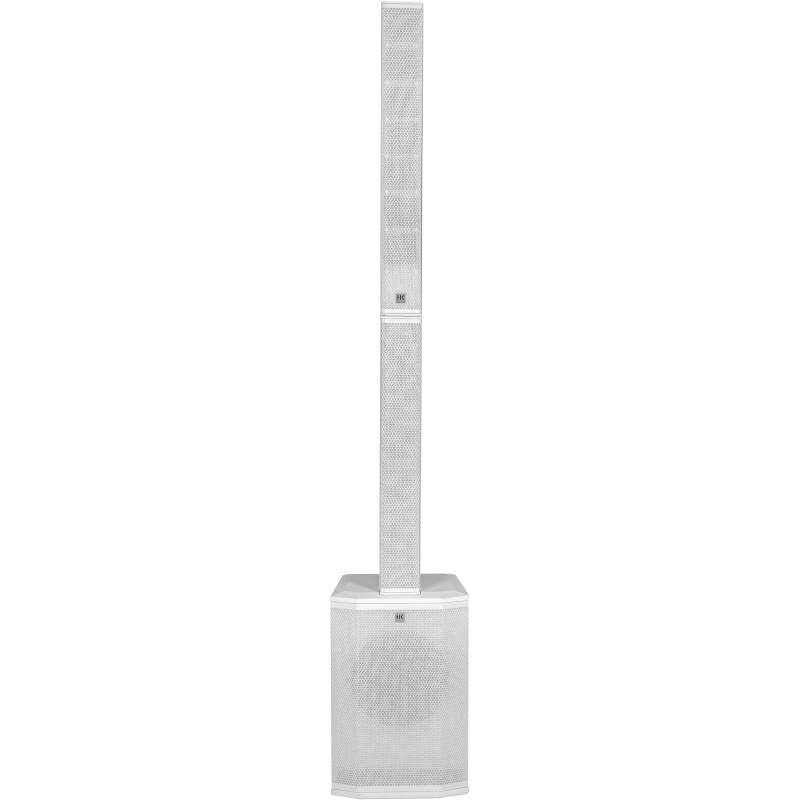

Concept Active column loudspeaker system

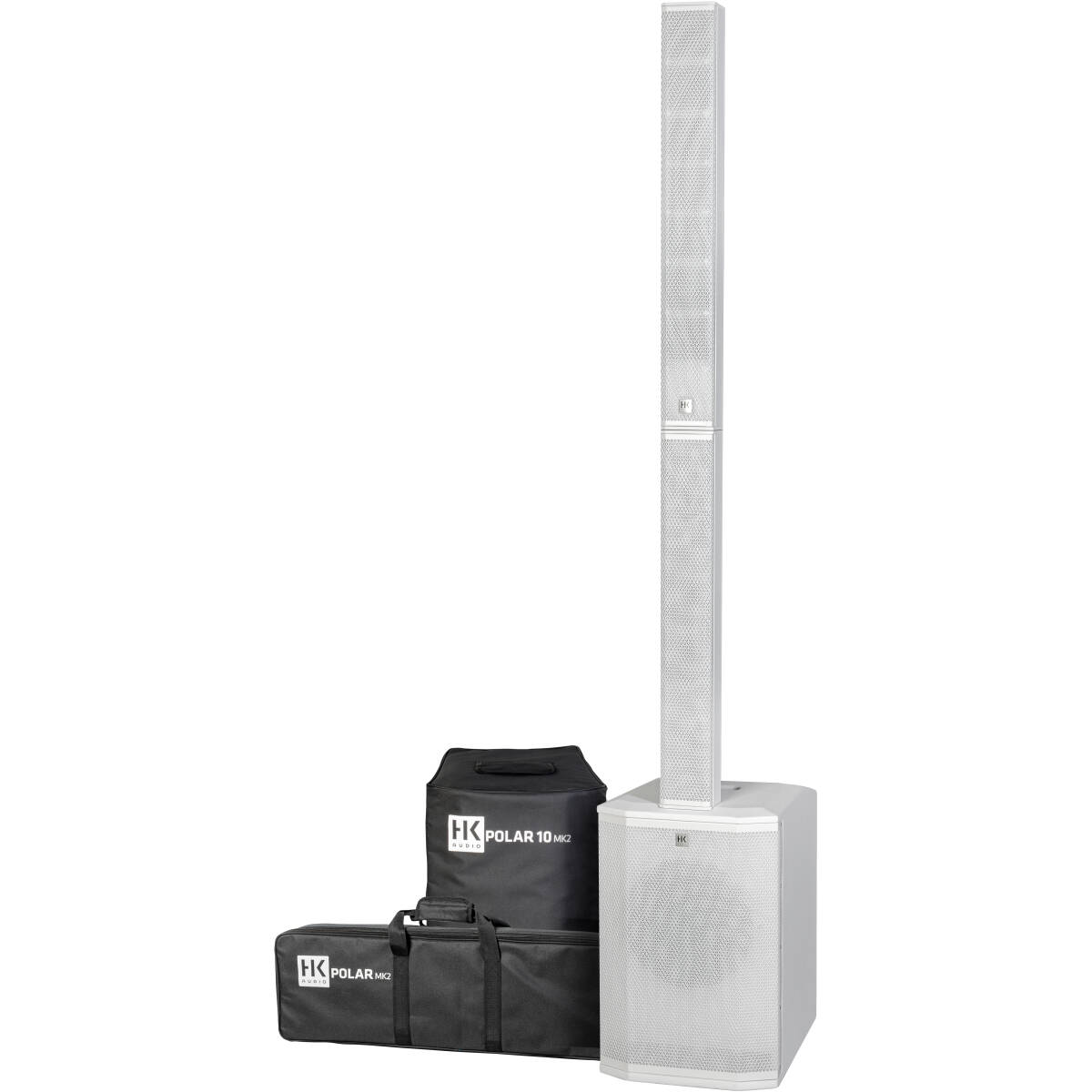

System components1 x Subwoofer, 1 x Spacer, 1 x Mid/High unit
Max. SPL peak3130 dB
Crossover frequency180 Hz
Frequency range -6 dB42Hz – 18kHz
Frequency range -10 dB38Hz – 20kHz
Dispersion angle -6 dB (horizontal x vertical)120° x 30°
Index
Index 3)1 x unit @ 1 m, 10 % THD, half space

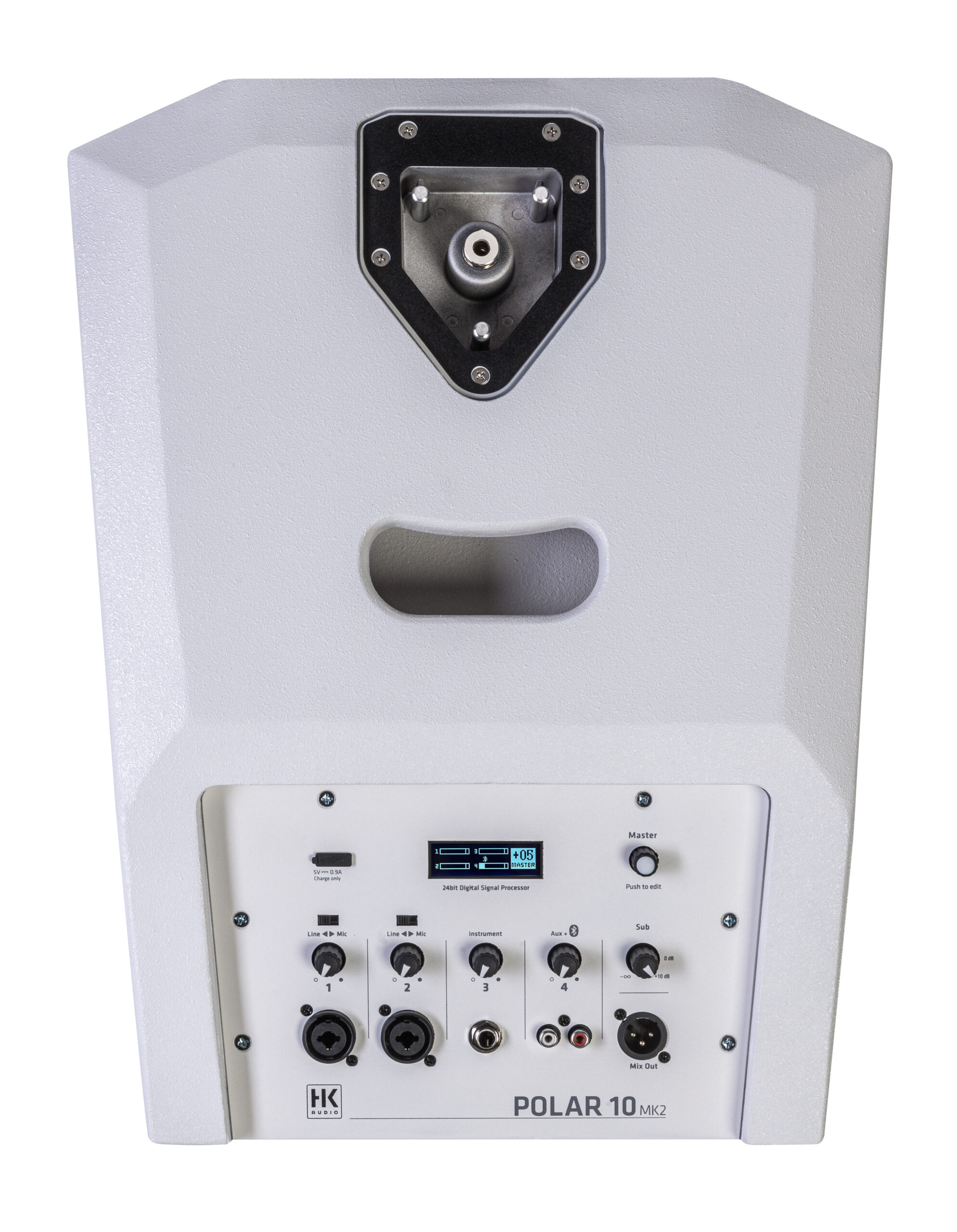

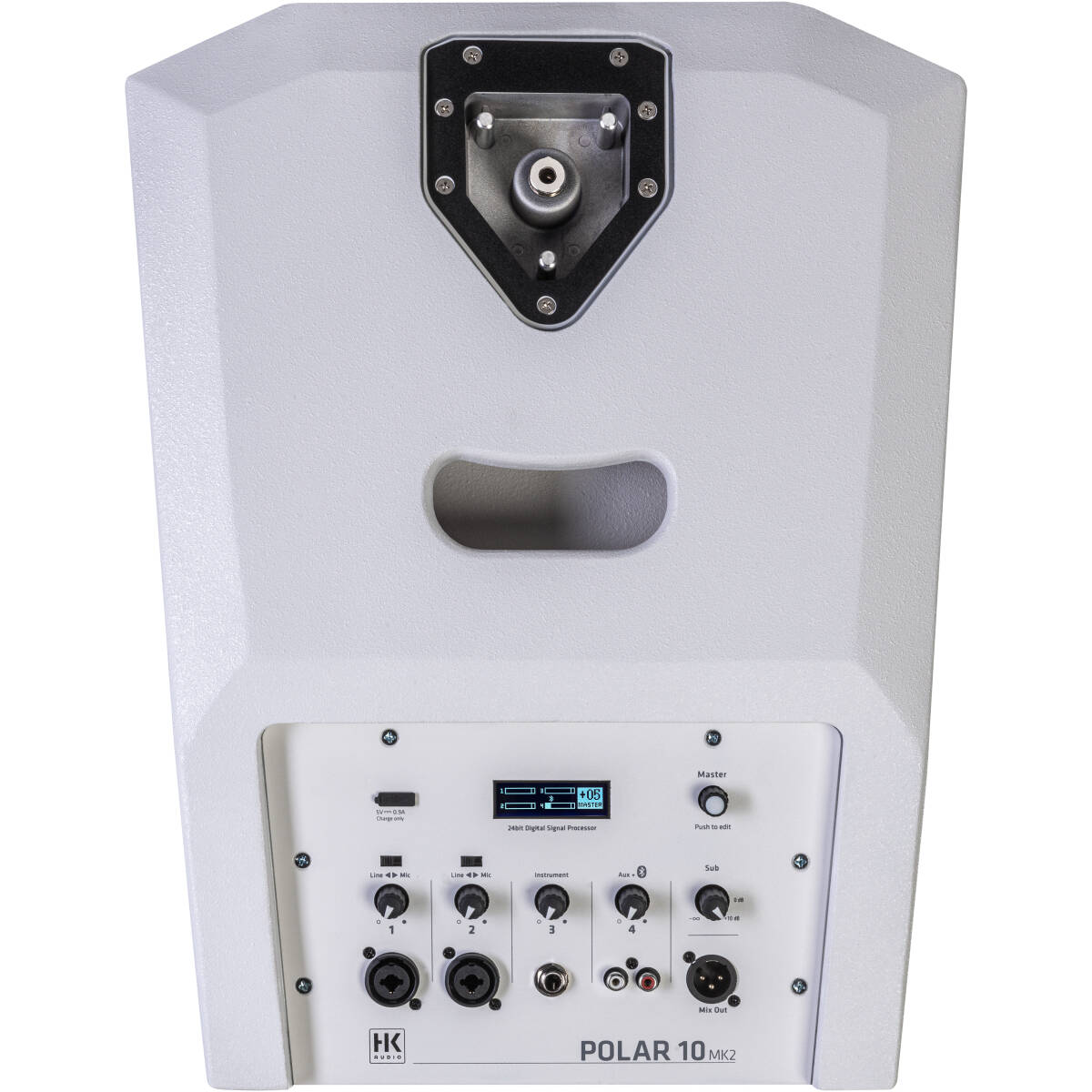

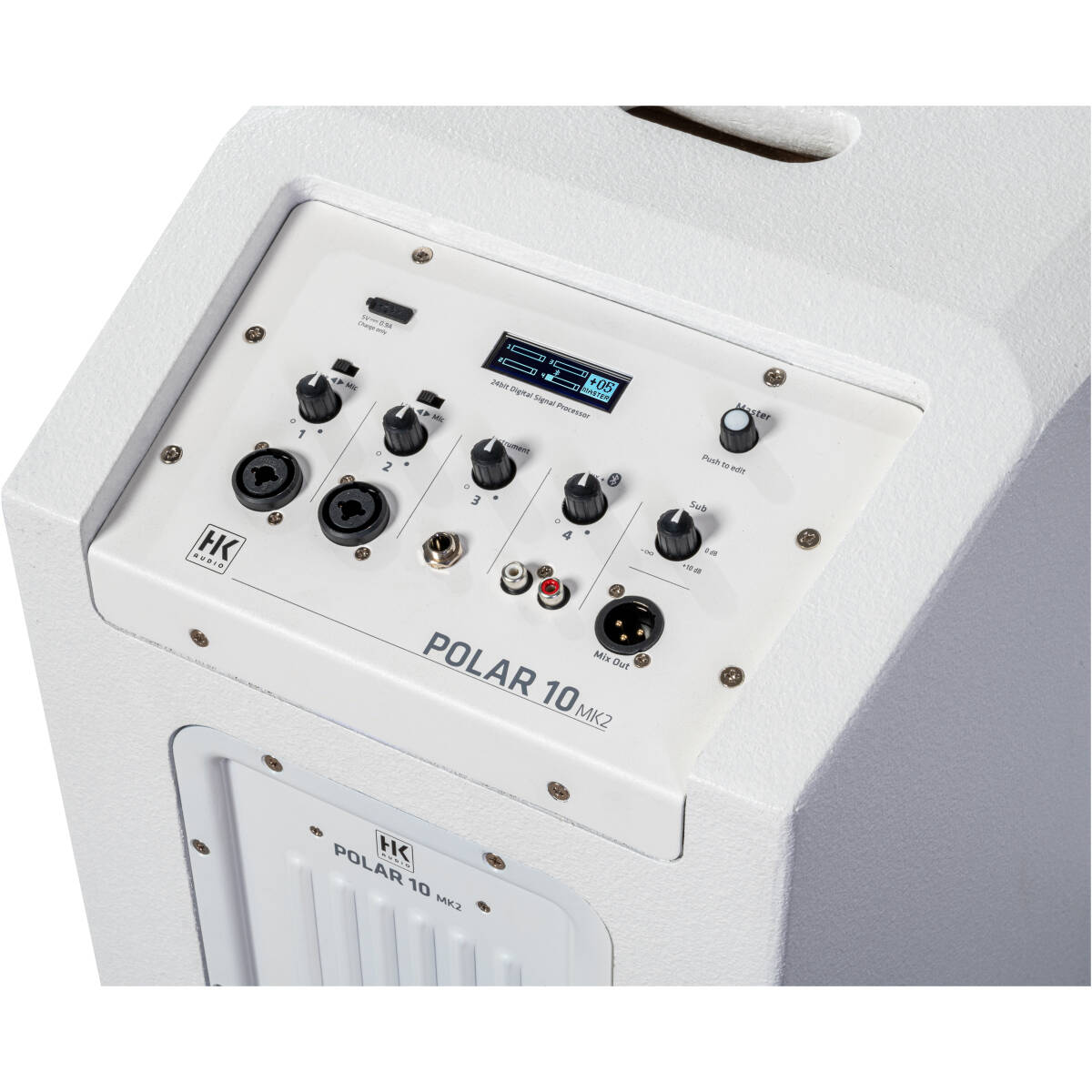

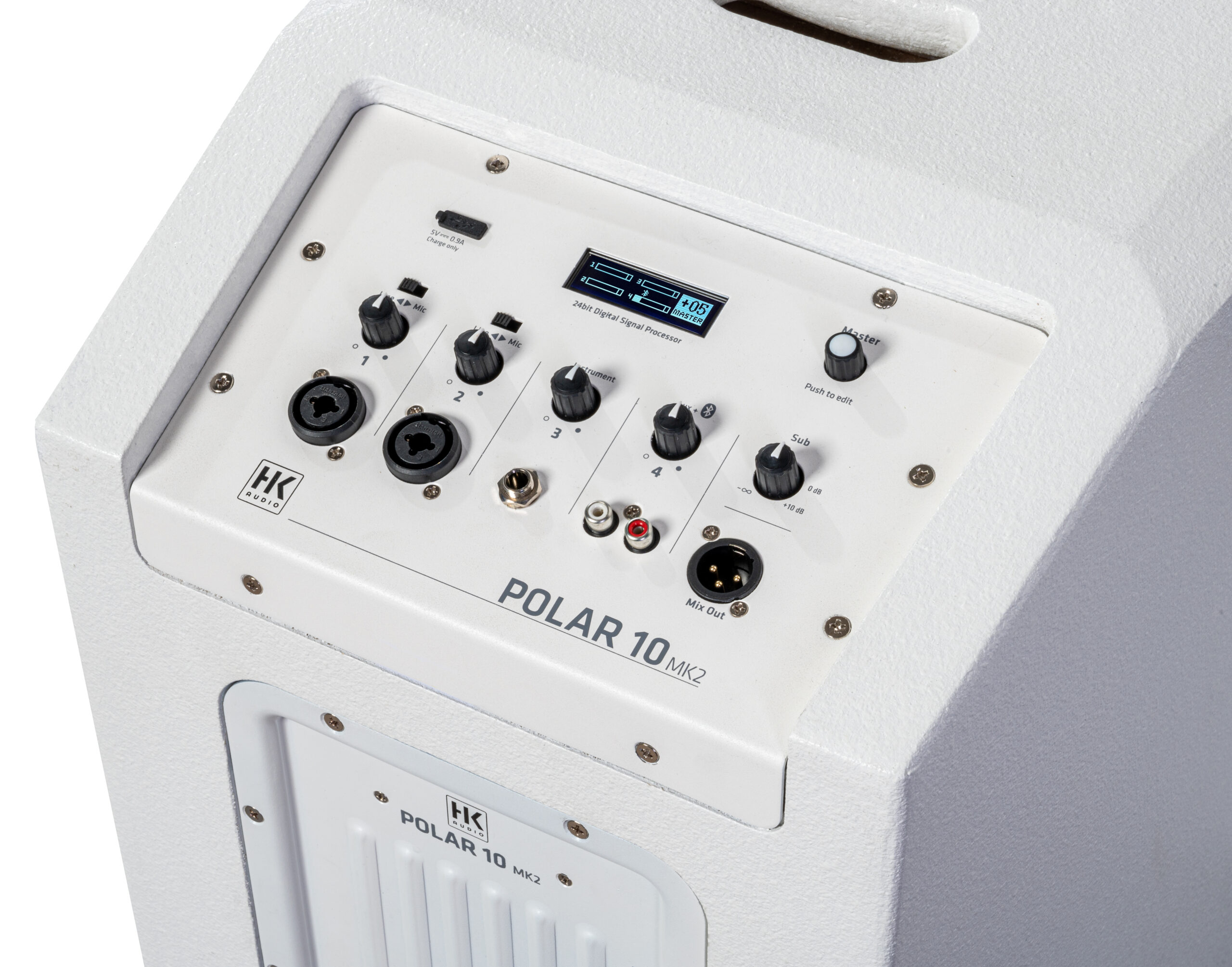

Connections
Analog input2 x XLR/jack combo (Mic/Line), 1 x 6.3 mm (1/4″) jack plug (Instrument), 1 x Chinch Stereo
Mix output1 x XLR
Electronical data
Preamplifier DSP preamplifier
Power amplifier Class D-Biamped
Power amplifier output RMS500 W
Power amplifier output peak2000 W
Power consumption0.8 A/100 – 240 V nominal (EN 62368-1)
Maximum input level16 dBu
Speaker protection RMS-/Peak-Limiter
Sample rate24 Bit / 44.1 kHz
Latency2 ms
Display LCD
DSP functions Presets, 5 storable user presets, delay, LCD dimmable, 3-band EQ, semi-parametric mid-EQ
Filter presets Music, Voice, DJ
Bluetooth Yes (5.0), TWS
Mechanical data
Carrying handles2 x Carrying handle
Cabinet material Plywood, aluminum
Color Jet black (RAL 9005), White (RAL 9003)
Front grille Steel front grille with anticorrosive coating and backed acoustic foam

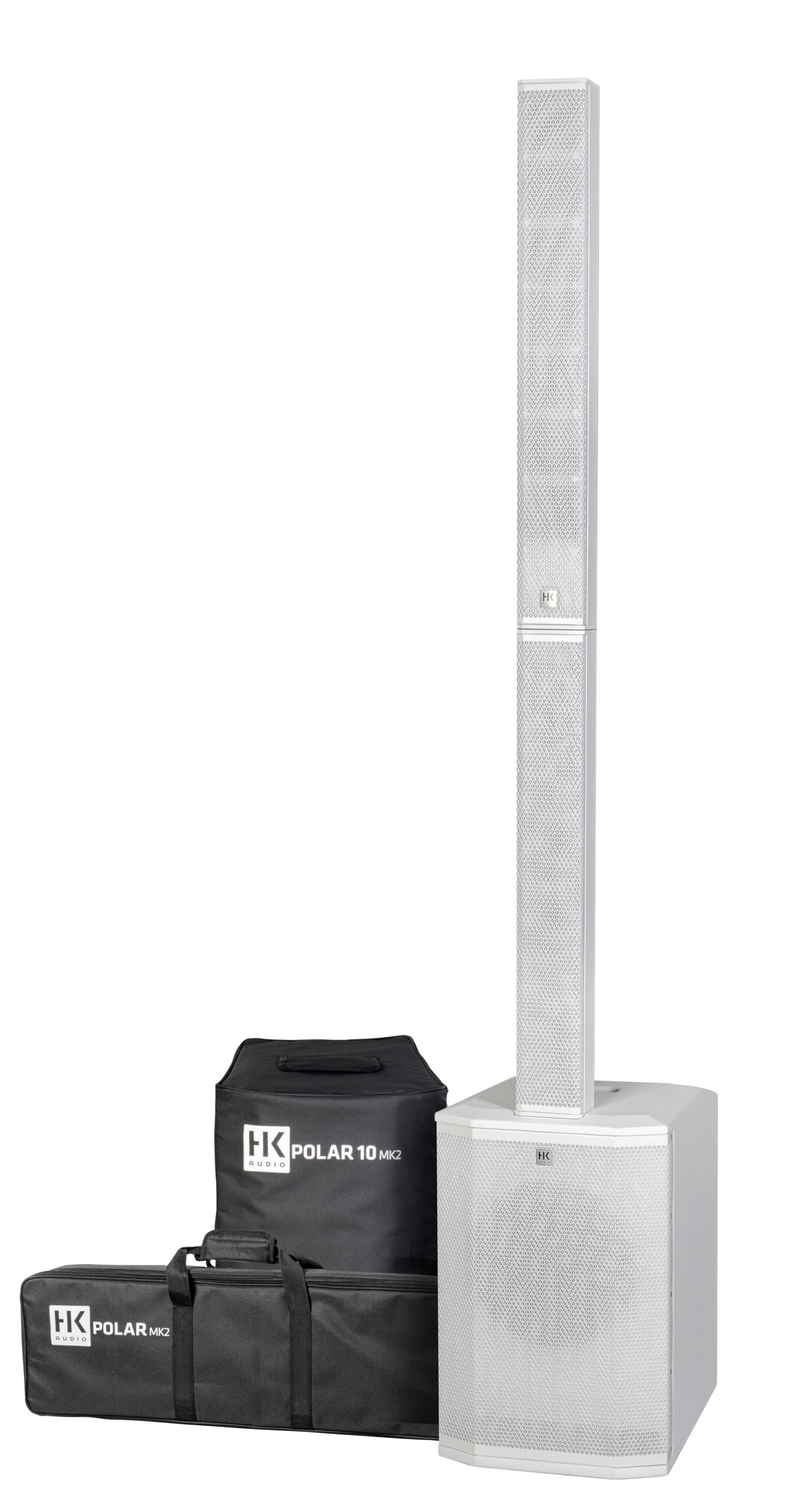

Accessories included Protection cover (Sub), transport bag (Mid/High unit)
Dimensions (W x H x D), metric37 x 208 x 47,8 cm
Dimensions (W x H x D), imperial14-9/16 x 81-7/8 x 18-13/16 inch
Weight, metric 26,9 kg
Weight, imperial 59,3 lbs
