Specifications

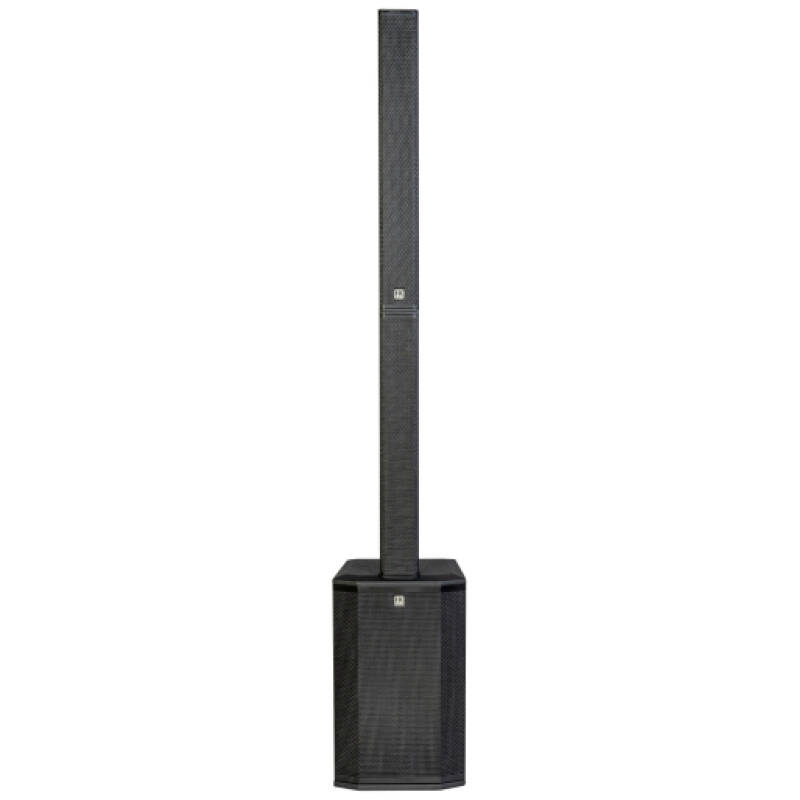

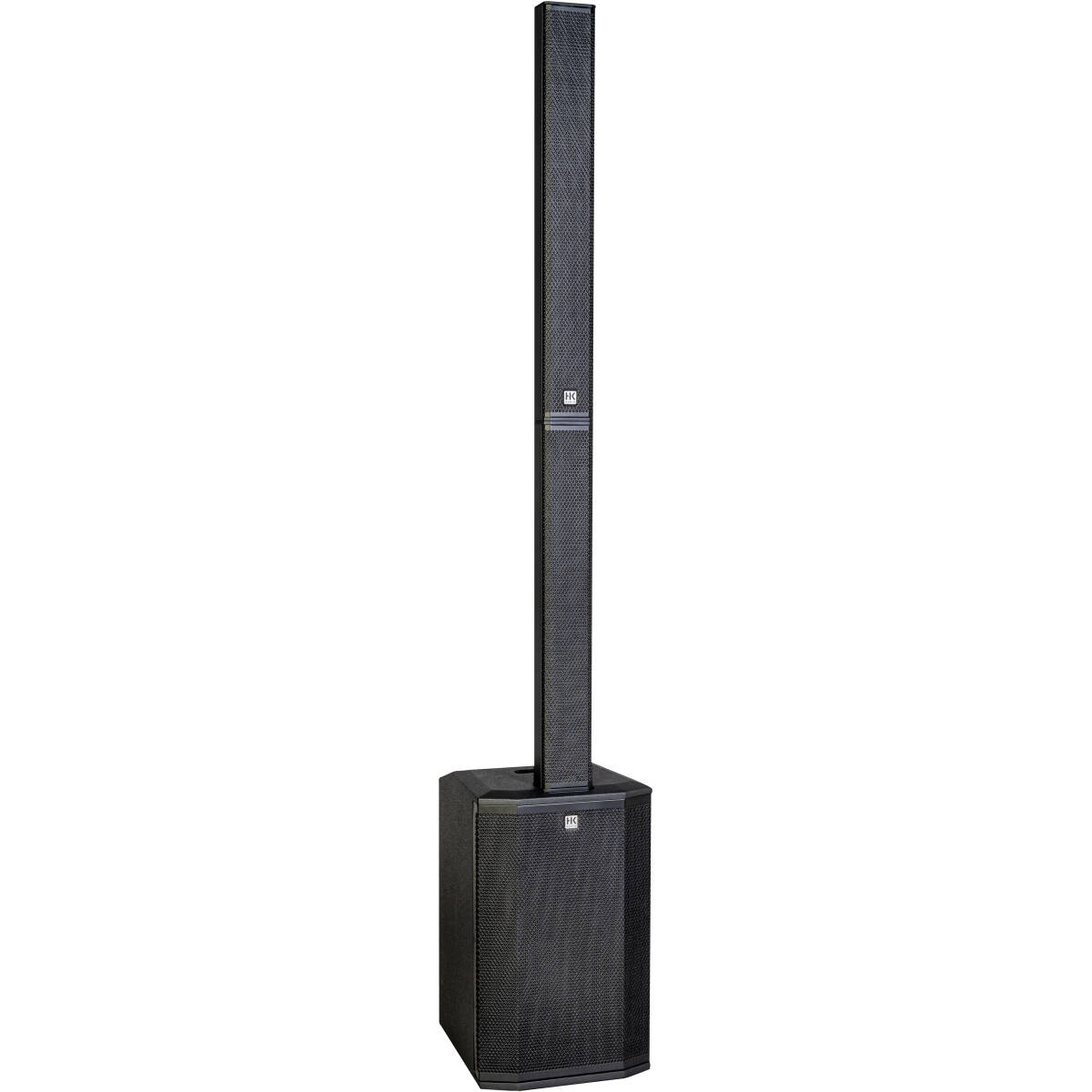

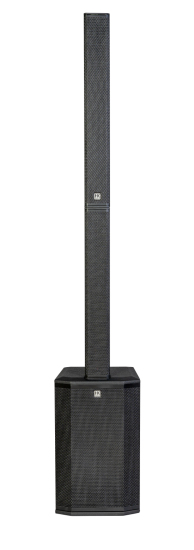

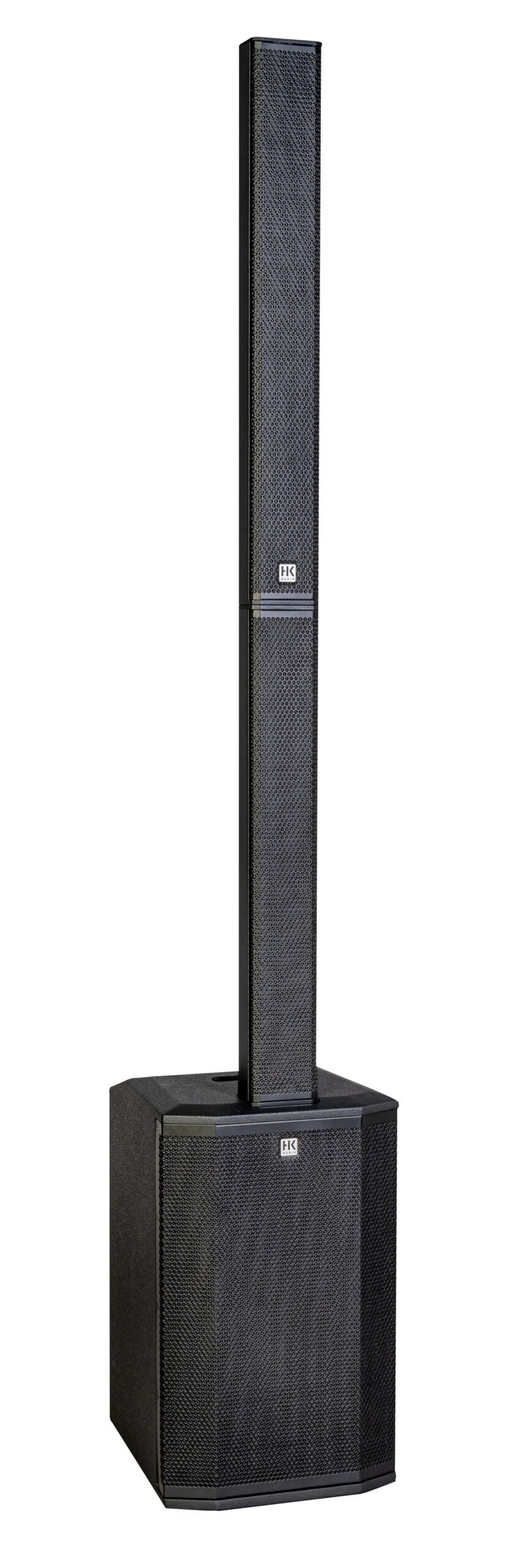

Concept Active column loudspeaker system
System components1 x Subwoofer, 1 x Spacer, 1 x Mid/High unit
Max. SPL peak3 130 dB
Crossover frequency 180 Hz
Frequency range -6 dB42Hz – 18kHz
Frequency range -10 dB35 Hz – 20 kHz
Dispersion angle -6 dB (horizontal x vertical)120° x 30°
Index
Index 3)1 x unit @ 1 m, 10 % THD, half space

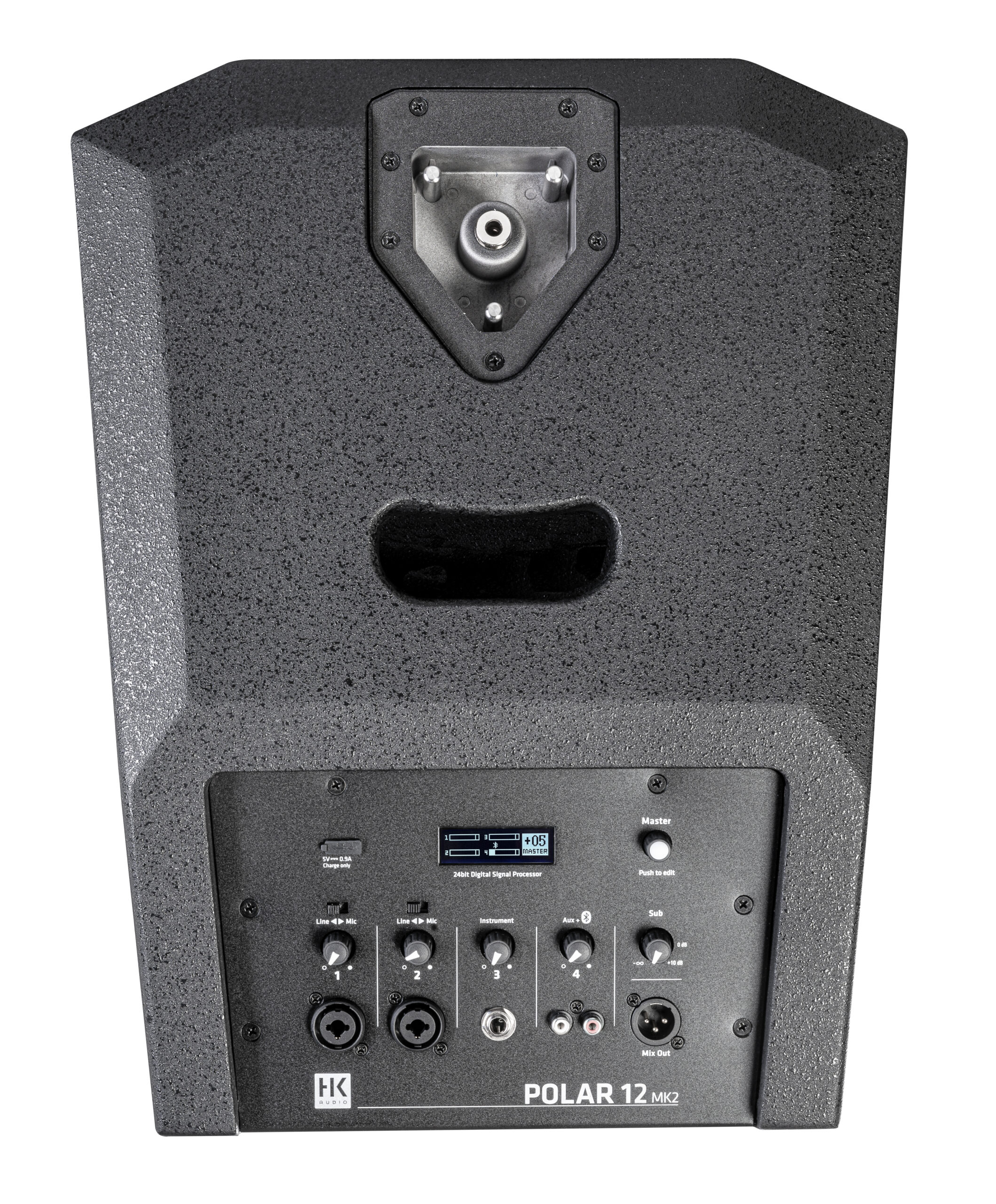

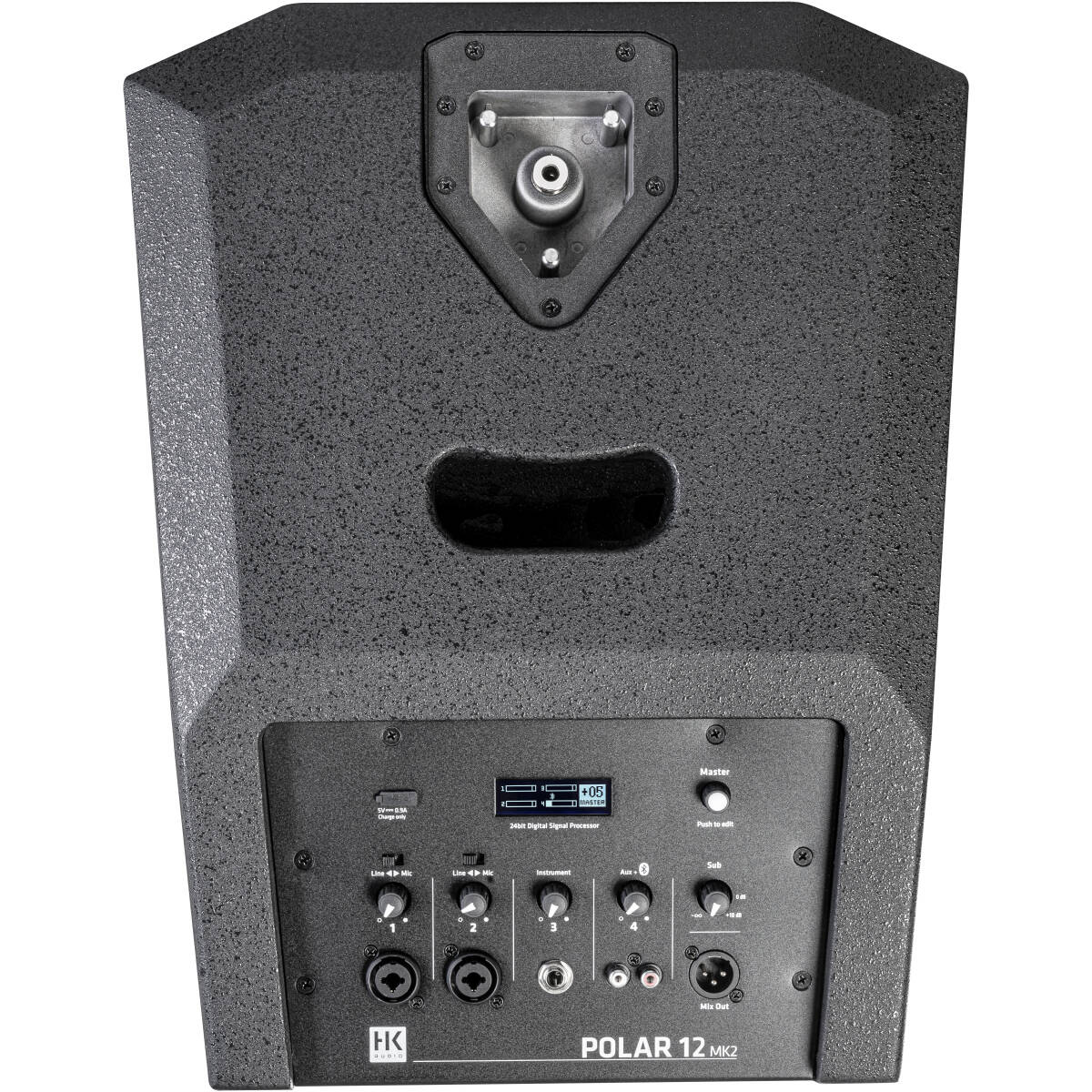

Connections
Analog input2 x XLR/jack combo (Mic/Line), 1 x 6.3 mm (1/4″) jack plug (Instrument), 1 x Chinch Stereo
Mix output1 x XLR
Electronical data
Preamplifier DSP preamplifier
Power amplifier Class D-Biamped
Power amplifier output RMS500 W
Power amplifier output peak2000 W
Power consumption0.8 A/100 – 240 V nominal (EN 62368-1)
Maximum input level16 dBu
Speaker protection RMS-/Peak-Limiter
Sample rate24 Bit / 44.1 kHz
Latency2 ms
Display LCD
DSP functions Presets, 5 storable user presets, delay, LCD dimmable, 3-band EQ, semi-parametric mid-EQ
Filter presets Music, Voice, DJ
Bluetooth Yes (5.0), TWS
Mechanical data
Carrying handles2 x Carrying handle
Cabinet material Plywood, aluminum
ColorJet black (RAL 9005), White (RAL 9003)
Front grille Steel front grille with anticorrosive coating and backed acoustic foam

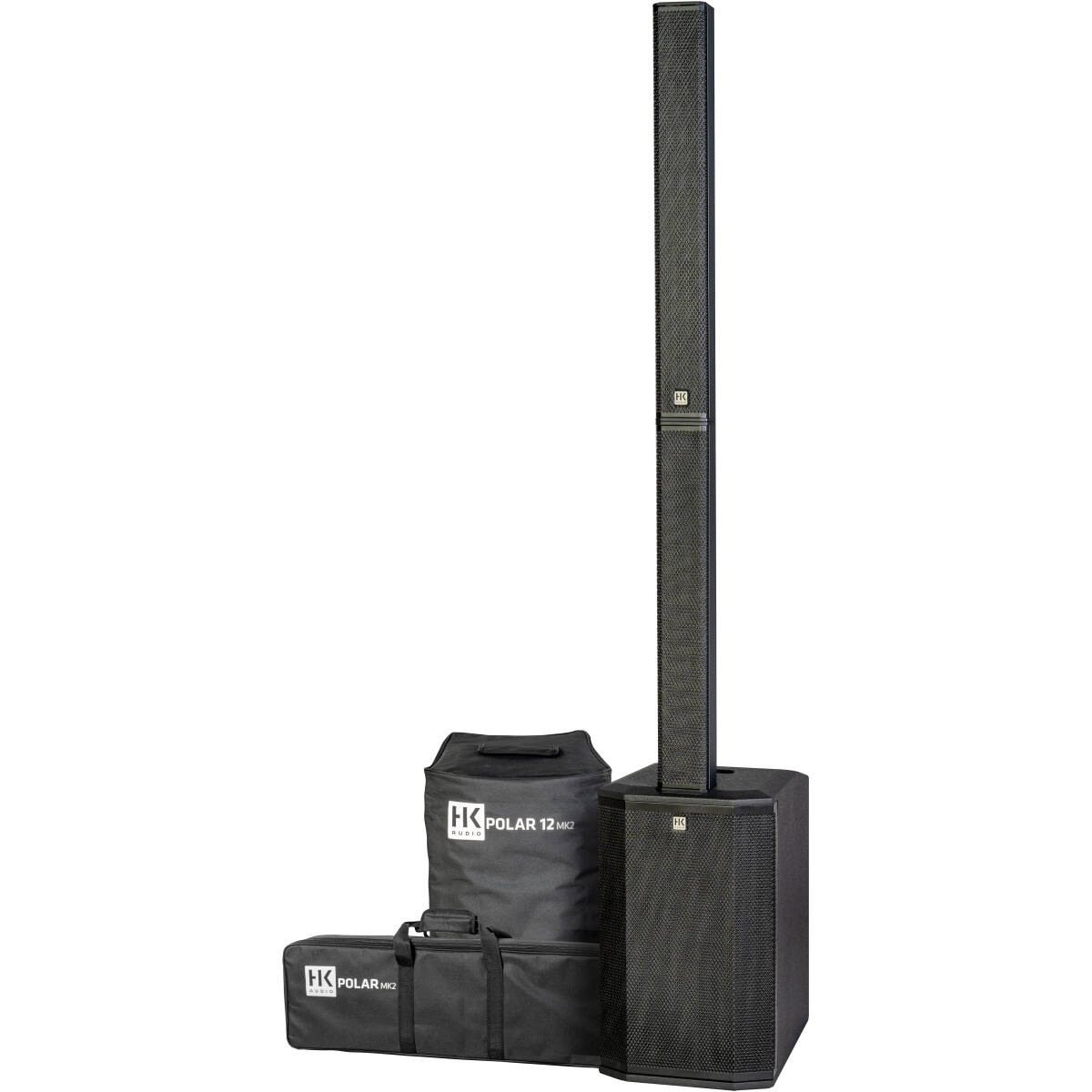

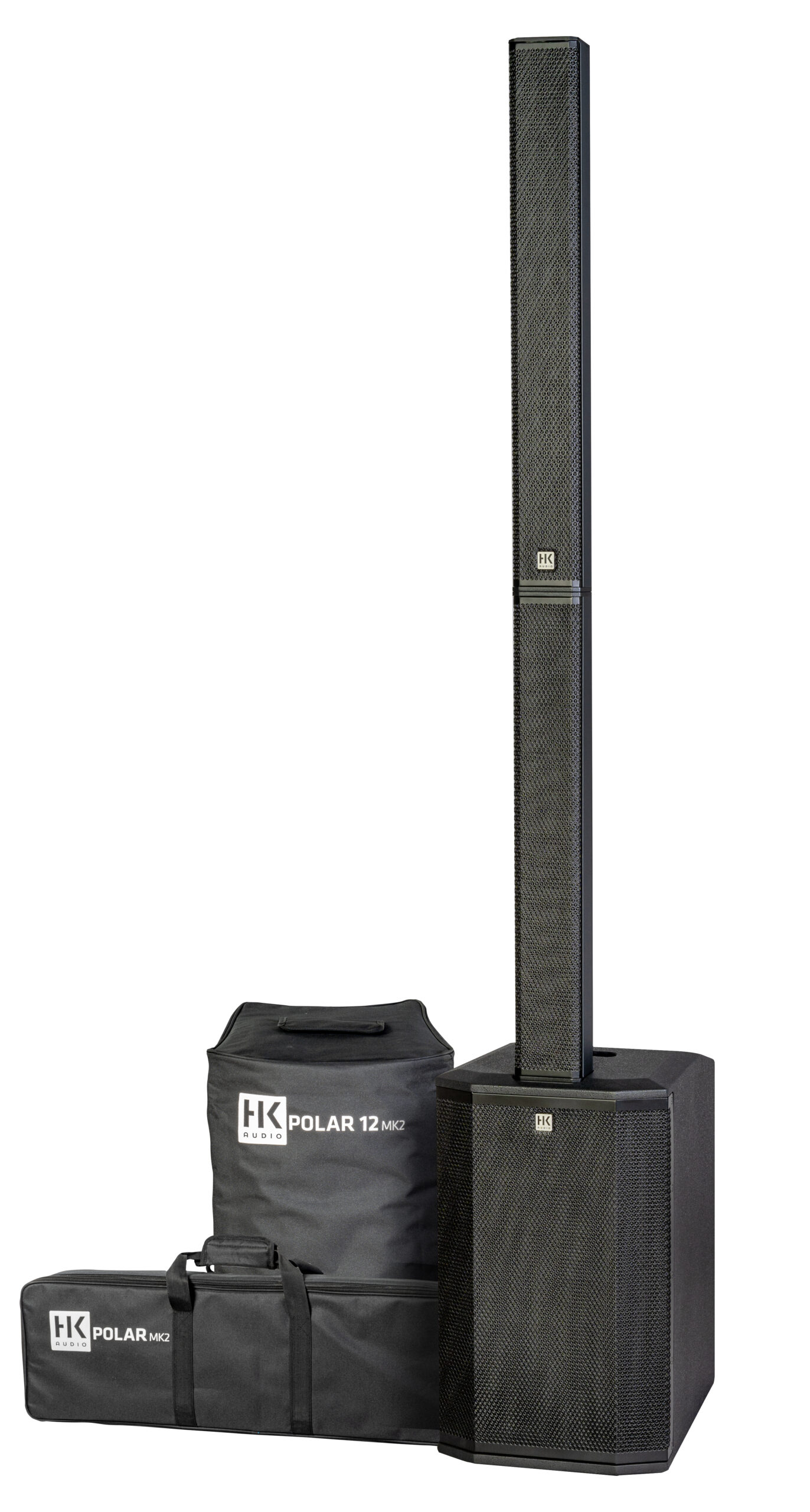

Accessories included Protection cover (Sub), transport bag (Mid/High unit)
Dimensions (W x H x D), metric 37 x 213.6 x 47.8 cm
Dimensions (W x H x D), imperial 14-9/16 x 84-1/8 x 18-13/16 inch
Weight, metric 28.5 kg
Weight, imperial 62.83 lbs
